Paulmann 92469 Base Coin LED surface-mount light EEC: F (A - G) LED (monochrome) 4.9 W Satin
EAN:
Part number:
Item no:
Highlights & Details

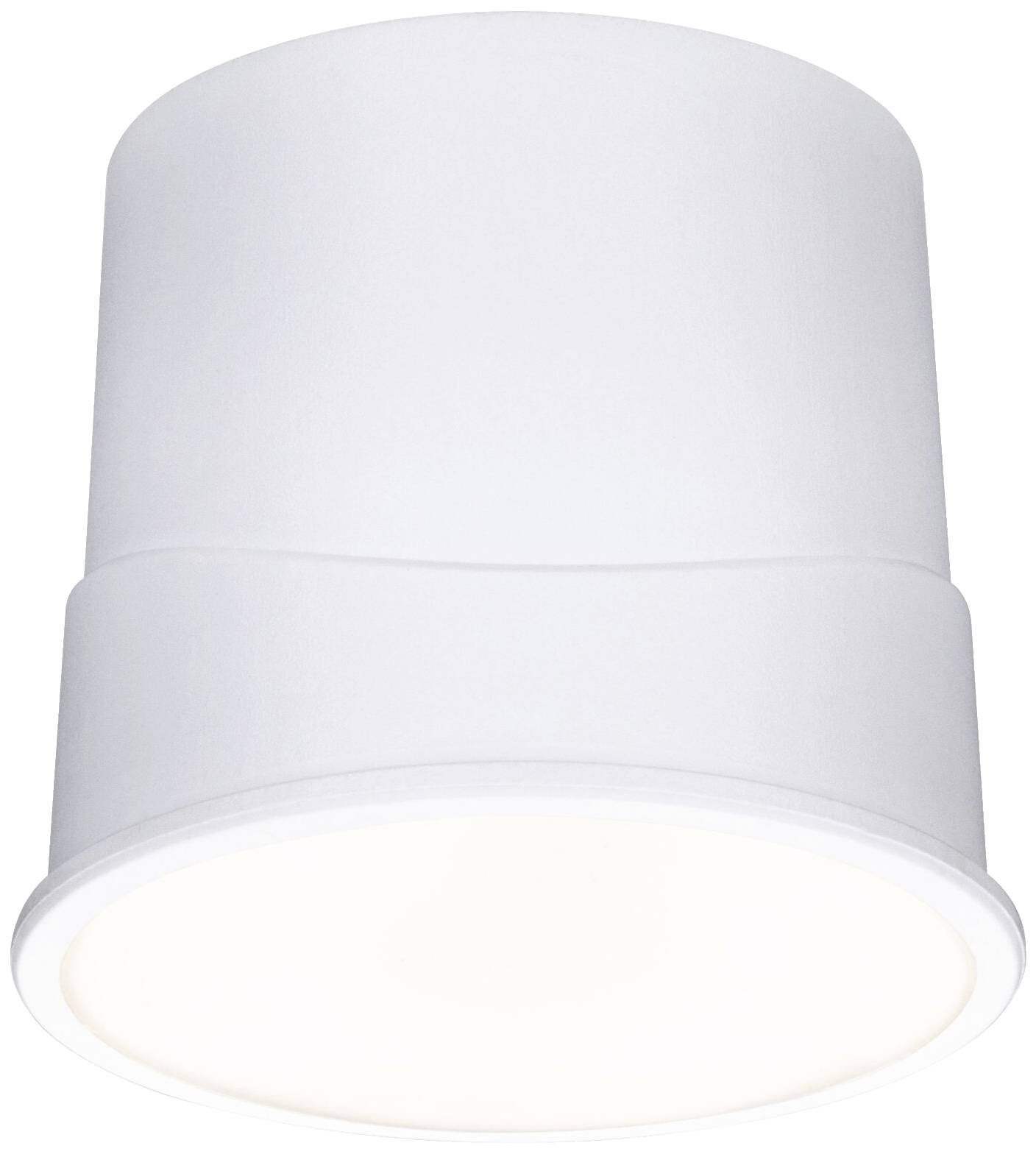

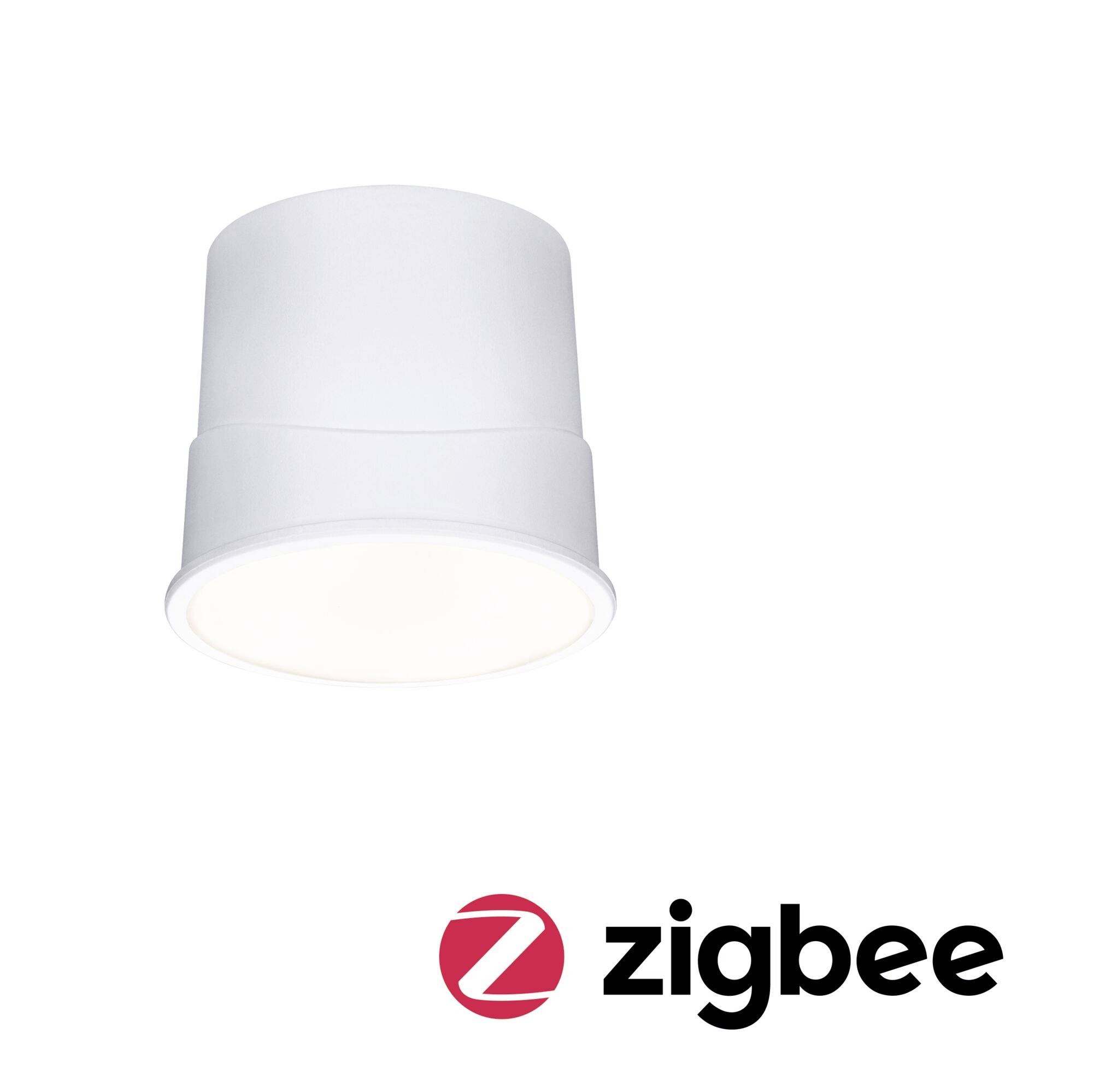

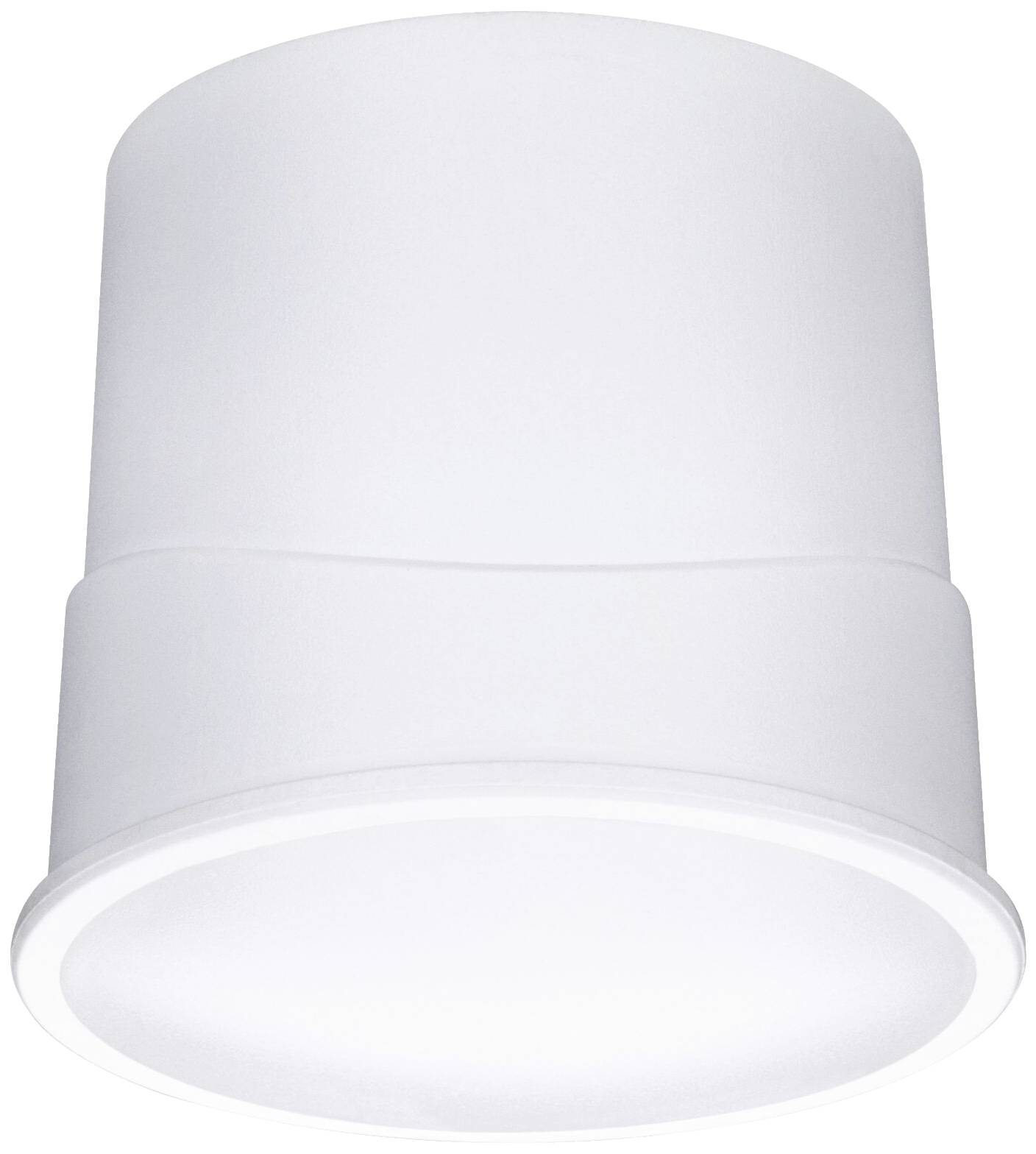

LED module INSTALL.light Smart home Zigbee base coin round 50mm COIN 4.9W 430lm 230V dimmable 3000K satin
- Power= 4.9 W Total luminous flux= 430 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
4.9 W
4.9 W
430 lm
- Total luminous flux
430 lm
3000 K
- Colour
Warm white
- Radiation angle
110°
- Recess diameter
0 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
0 mm
IP20
- Protection class
II
- Factory colour
Satin
- Material
Plastic
- Weight
0.08 kg
F (A - G)
- Dim
(Ø x H) 50 mm x 47 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
47 mm
- (Ø)
50 mm
- Bulb base
Coin
- Start-up time required to reach 60 % luminous flux (in sec)
2 s
Zigbee
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814013 Paulmann 92469 Base Coin LED surface-mount light EEC: F (A - G) LED (monochrome) 4.9 W Satin
Warranty Terms
Warranty Terms 2814013 Paulmann 92469 Base Coin LED surface-mount light EEC: F (A - G) LED (monochrome) 4.9 W Satin
Description
The smart, innovative Base Coins with Zigbee control can also be used in combination with existing lighting installations. If you already have installation spotlights with a diameter of 51 mm, switching to the economical LED modules is very easy. The old bulb is removed, the easily dimmable Coin is attached and inserted with the help of quick clamps The continuously variable dimming function allows an individual adjustment of brightness and provides bright work light and comfortable light in one. Zigbee allows you to individually dim each recessed light using an APP, remote control, or voice command. The LED coins can be linked together more easily, they are interchangeable and can be easily installed in low cavity depths.
This text is machine translated.
This text is machine translated.
Features
- Can be controlled with Smart home Zigbee remote controlCan be used with Smart home gateways that have a Zigbee interfaceFurthermore, it can be switched on and off by the light switchVery flat - the installation is possible even with small cavity depths of only 30 mmFor the 230 V direct connectionEfficient LED-technologyStepless dimmingColour temperature 2700K - warm white
Scope of delivery
- LED module INSTALL.light Smart home Zigbee base coin round 50mm COIN 4.9W 430lm 230V dimmable 3000K satin
- User manual.
