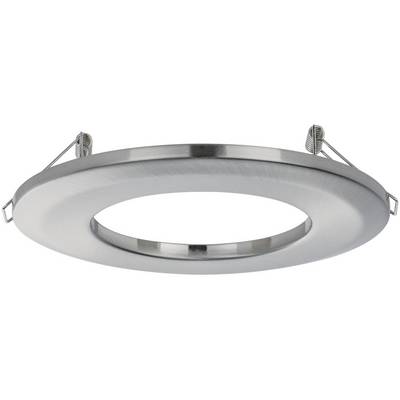

A round, flat metal ring with two mounting clips, likely a mounting bracket for a recessed light or spotlight.

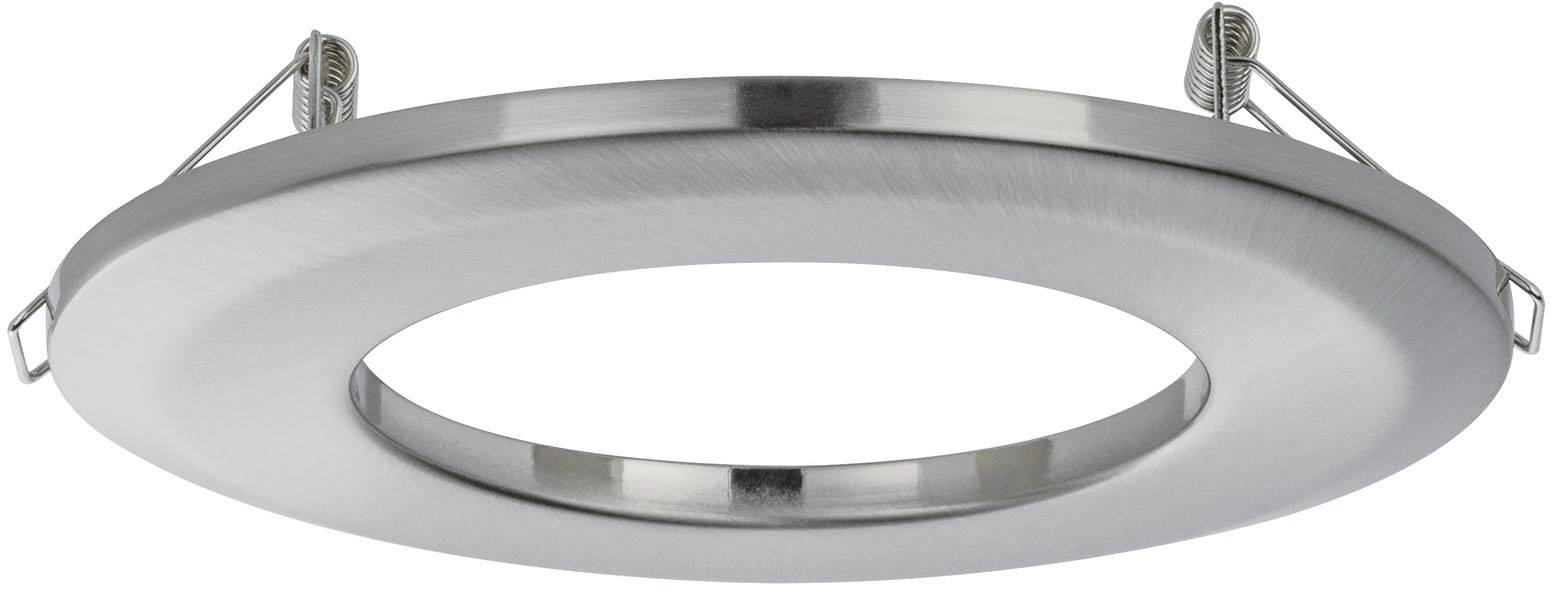

A round, flat metal ring with two mounting clips, likely a mounting bracket for a recessed light or spotlight.

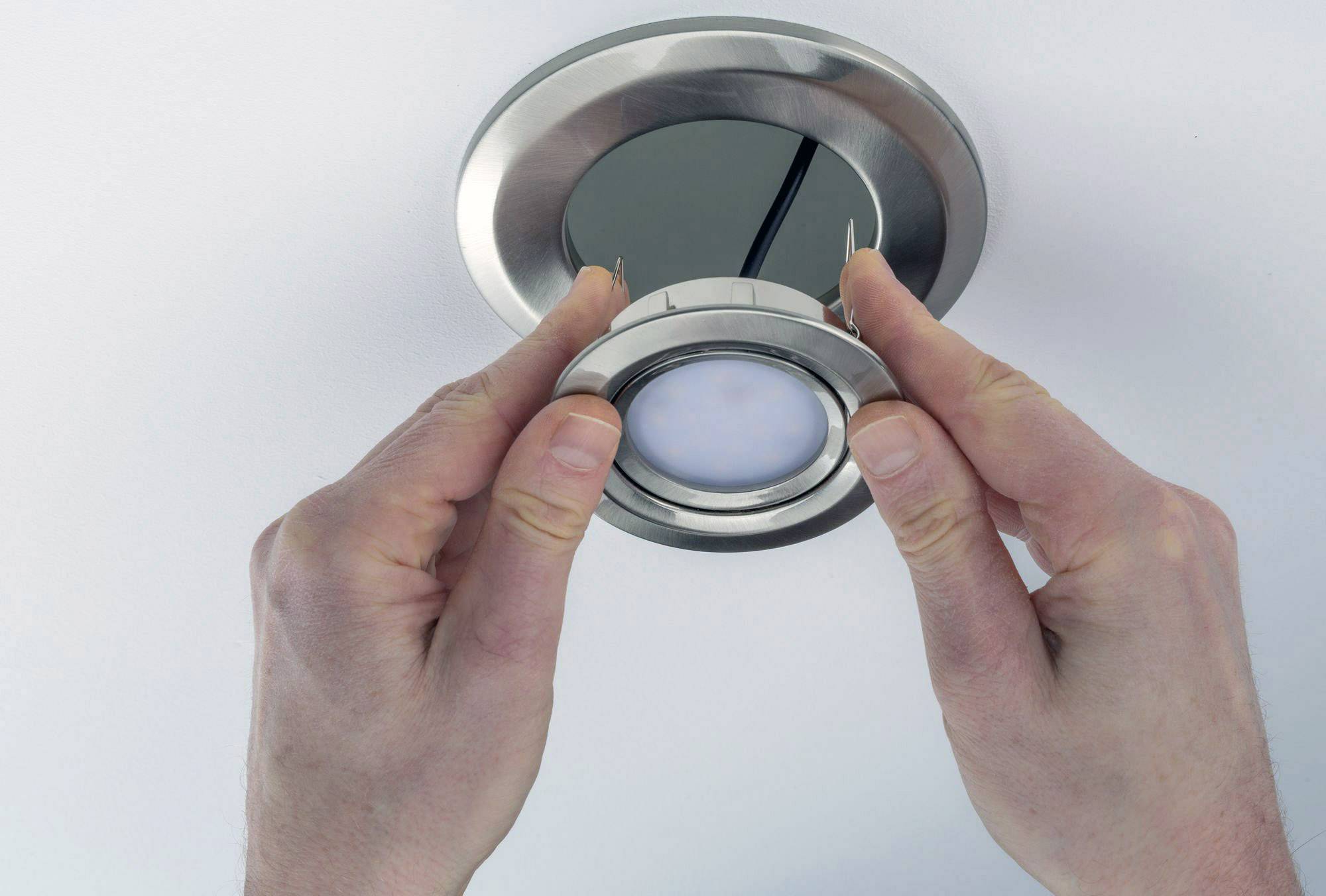

A person replaces a circular LED ceiling light by turning it; hands gripping the frame.

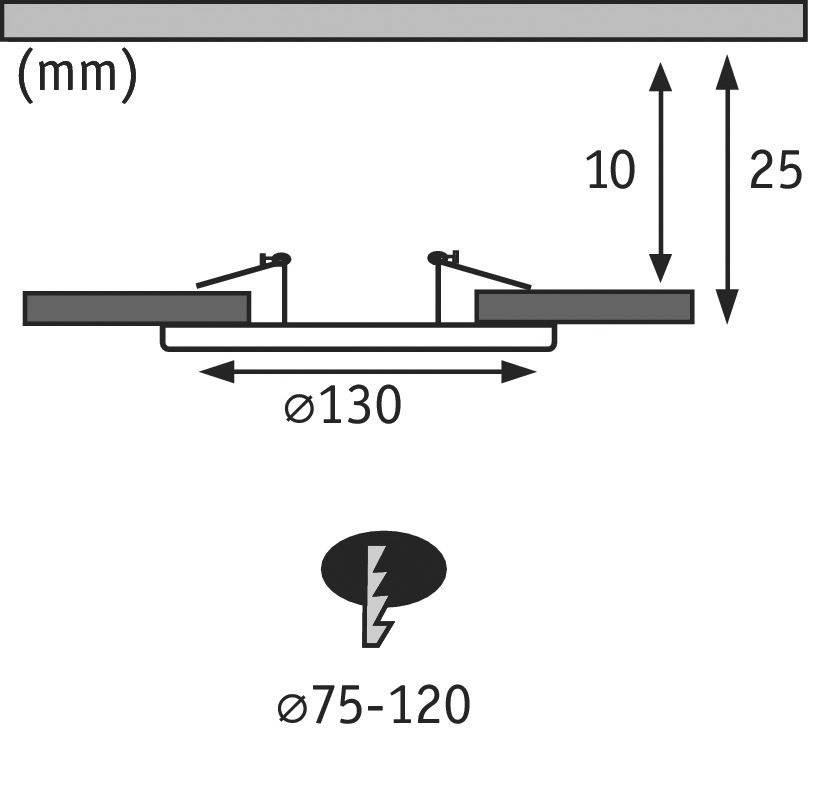

Diameter of a round object: 130 mm. Height range: 10-25 mm. Second element with diameter: 75-120 mm, with lightning symbol.

The diagram shows two possible installation sizes for a light fixture: above Ø75 mm, below Ø120 mm. Adjustable range: Ø75-120 mm.

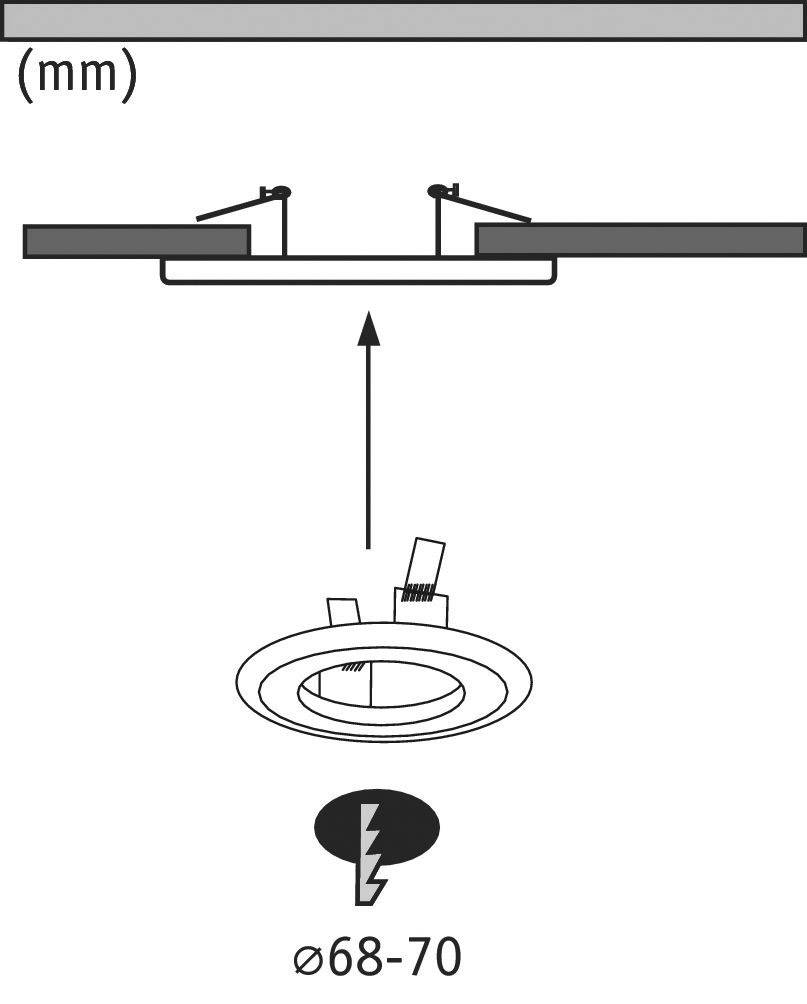

Recessed Lighting Diagram: Shows the installation of a round ceiling spotlight with a diameter of 68–70 mm into a ceiling.

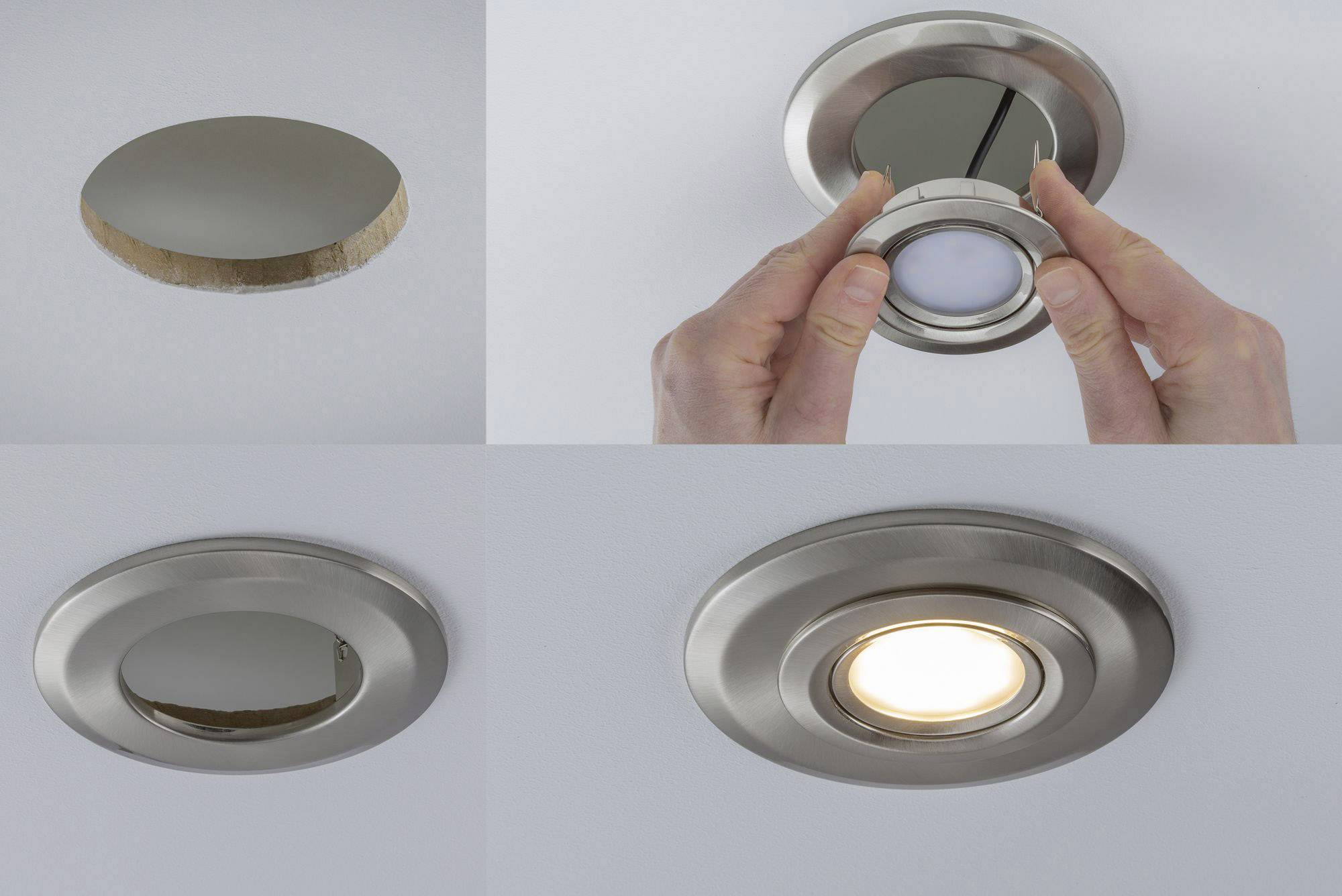

'Lamp insert for ceiling light: top left wood-metal cover, top right insert in socket, bottom left and right insert unlit and illuminated.'

'Packaging: 1x round light ring set, Ø 76 mm, direct mounting in wood, plastic-free packaging. Diagram and technical data shown.'

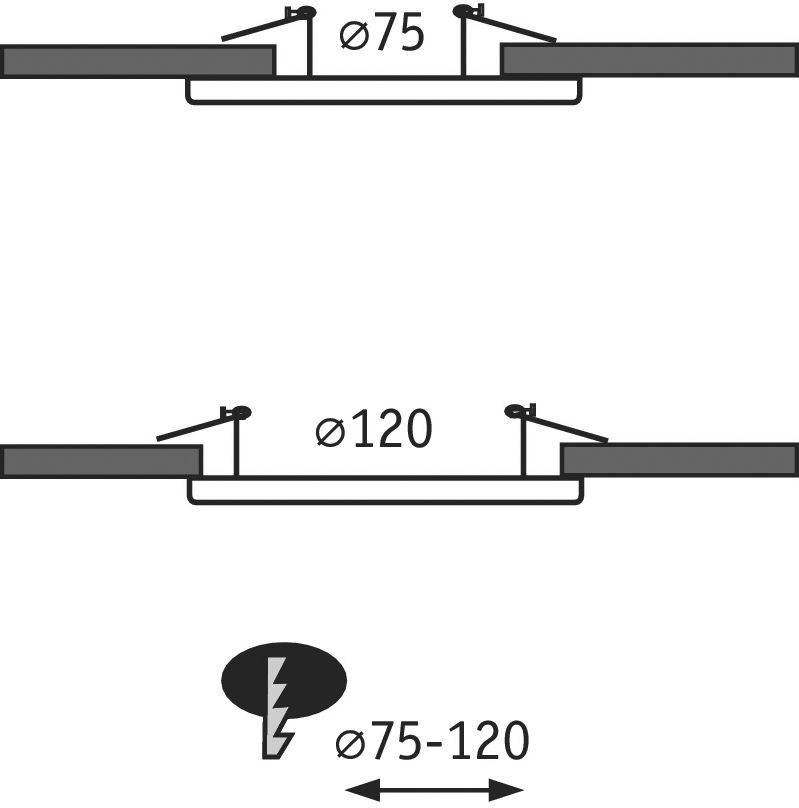

Illustration shows two measurements for mounting holes. Top: Diameter 75 mm. Bottom: Diameter 120 mm. Bottom: Adjustable range 75-120 mm.

Diagram for the Installation of a Recessed Lighting System. Shows installation opening with diameter specification (68-70 mm) and electrical connection.

1/9

Paulmann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation adapter can be drilled hole reducer from 75-120 mm to 68-70 mm 130mm brushed iron

Low minimum installation depth of only 25 mm
For installation openings of 75-120mm

Technical specifications

Dim: (Ø x D) 130 mm x 25 mm

Product type: Flush mount adapter

Factory colour: Iron (brushed)

: n.rel.

Type: Circular

Recess diameter: 75 mm

Recess depth: 25 mm

: 50 W

Rating per bulb: 50 W

Features: Slimline

Material: Metal

Depth: 25 mm

(Ø): 130 mm

Outside Ø: 130 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 1954480 Paulmann 92498 92498 Flush mount adapter 50 W Iron (brushed)

User & Safety Instructions 1954480 Paulmann 92498 92498 Flush mount adapter 50 W Iron (brushed)

Description

Replace old built-in lights with new ones with modern technology: This can be done very easily with the installation adapter from Paulmann. Existing installation diameters from 75 to 120mm can be reduced to 68 to 70mm with the adapter ring.
