Buy Paulmann 94644 Low voltage belt lighting component White

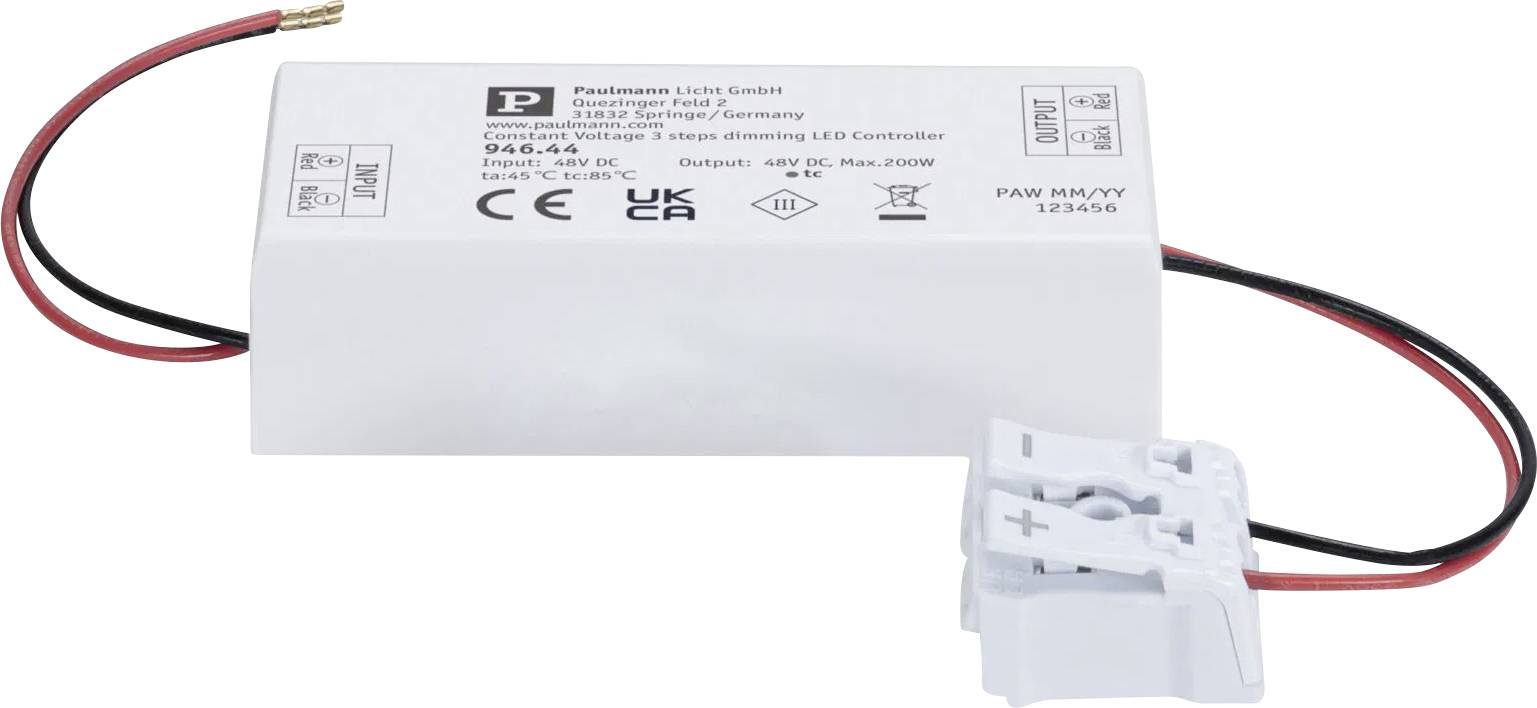

Rectangular LED controller box with wires, labeled 'Paulmann Licht GmbH', suitable for dimming LED lighting, max. 200W.

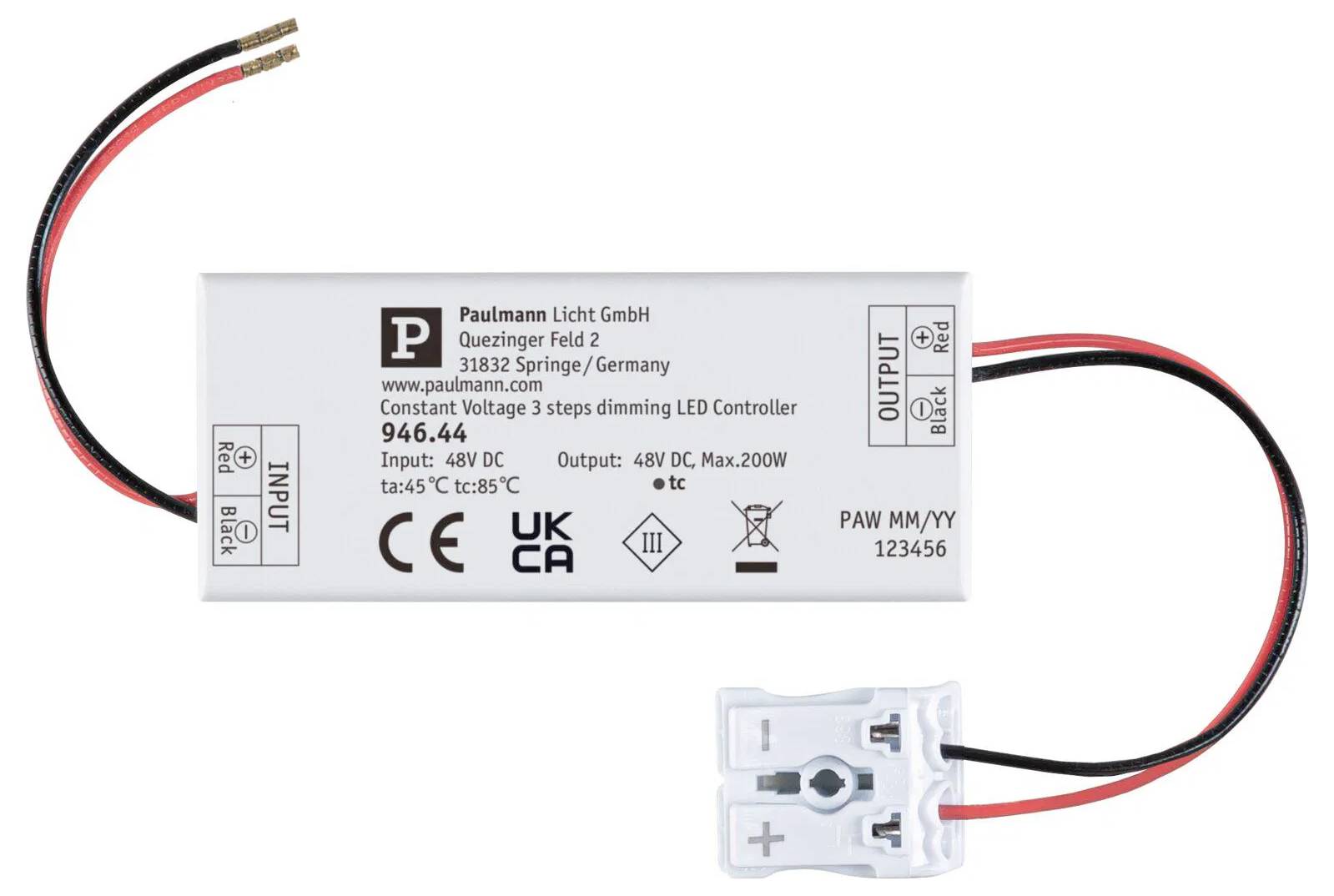

'LED controller, model 946.44 by Paulmann Licht GmbH, for constant voltage and 3-step dimming. Input: 48V DC, Output: 48V DC Max 200W.'

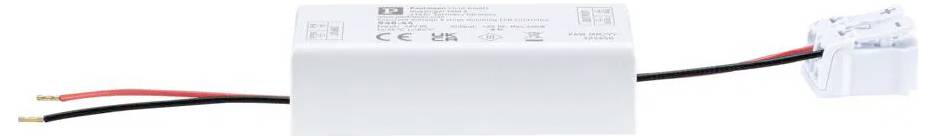

A rectangular electronic component with wires emerging from both ends, used for electrical applications. Text and certification marks visible.

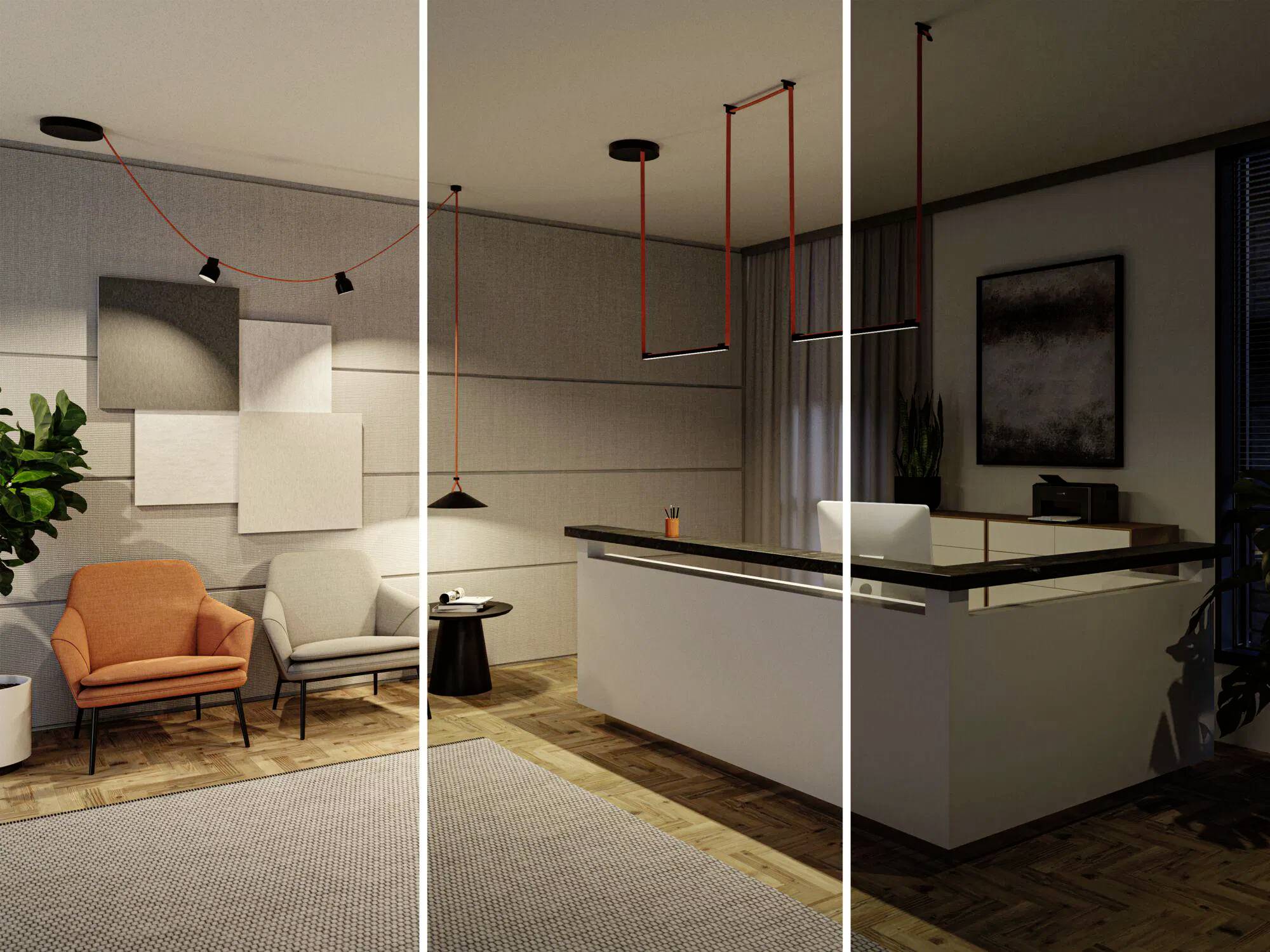

A modern reception area with a desk, two armchairs, and wall art. Warm lighting enhances the clean, minimalist design and decor.

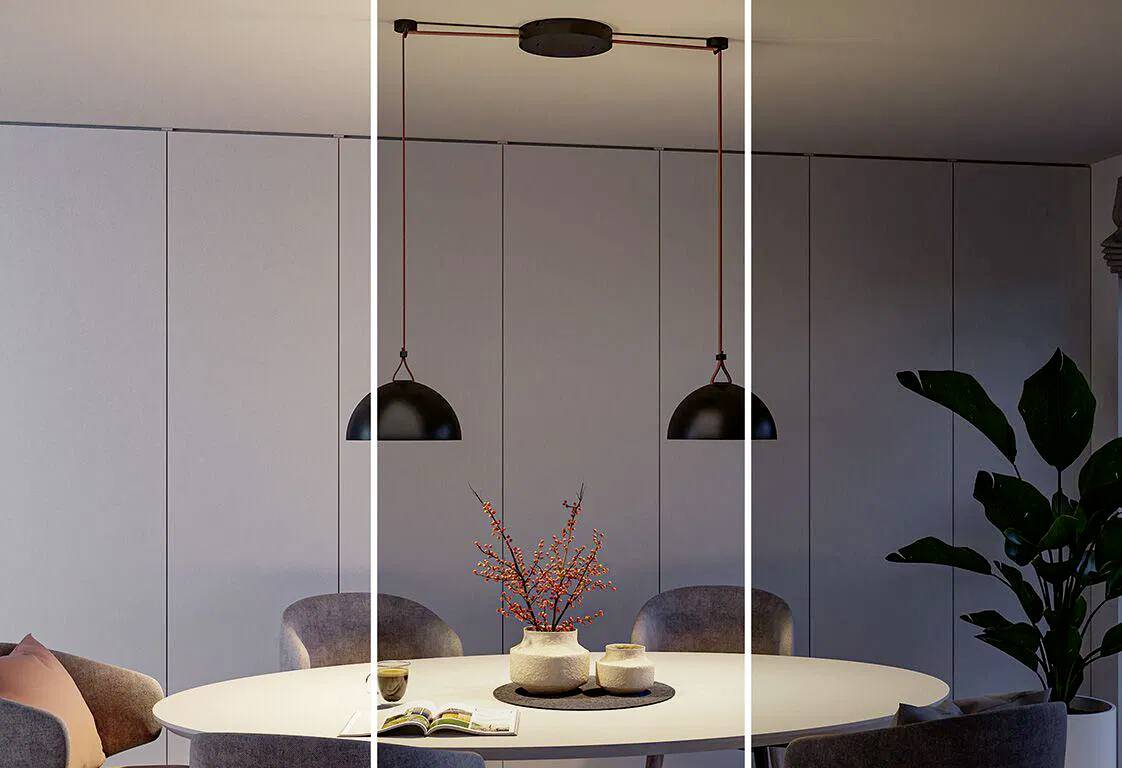

A dining area with a round table, chairs, a plant, and pendant lights above. A centerpiece with berries and open book on the table.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ULINE accessories 3-step dimmer max. 200W 48V 80x35mm white

ULINE Belt-System Accessories incl. assembly instructions
Dimmer for the ULINE Belt-System
Brightness adjustable in 3 levels: 100%, 50% and 10%
Can be dimmed in 3 stages with the commercially available light switch
The memory function stores the last used level until the next power on
Simple connection with the cable feed for the belt
Long life with 50,000 h

Technical specifications

Product type: Low voltage belt lighting component

: n.rel.

: IP20

Protection class: III

Factory colour: White

Dim: (W x H x D) 80 x 21.5 x 35 mm

Width: 80 mm

Height: 21.5 mm

Durability rating: 50000 h

Depth: 35 mm

: 50000

: 50000 h

External length: 35 mm

External width: 80 mm

Output voltage: 48 V

Light-on time: 50000

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3499652 Paulmann 94644 Low voltage belt lighting component White

Description

With this dimmer you can dim the lamps of the ULINE belt system in three steps. By means of a conventional light switch the brightness can be adjusted to 100%, 50% and 10% - in this way the individual light production can be adjusted flexibly to every situation. Thanks to the built-in memory function, the last selected dimming level is activated with new switching on. The “Quick Connector” allows the dimmer to be easily connected to the cable feed for the belt. The 3-step dimmer has a life of 50,000 h for a long-lasting performance.

This text is machine translated.
