Paulmann 94646 Low voltage belt lighting component White
EAN:
Part number:
Item no:
Highlights & Details

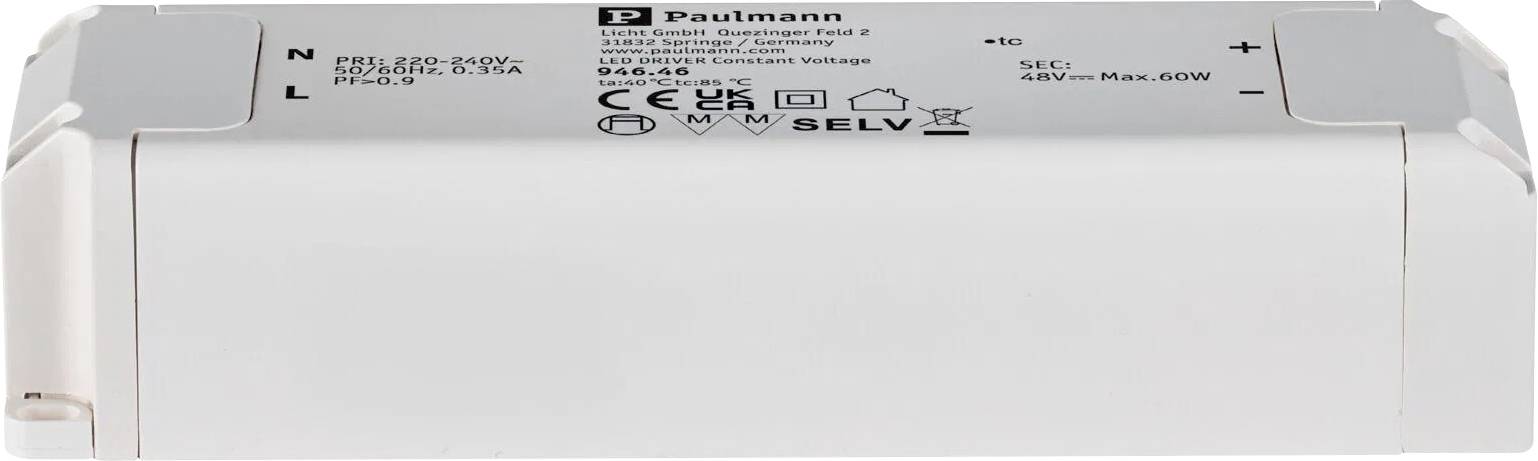

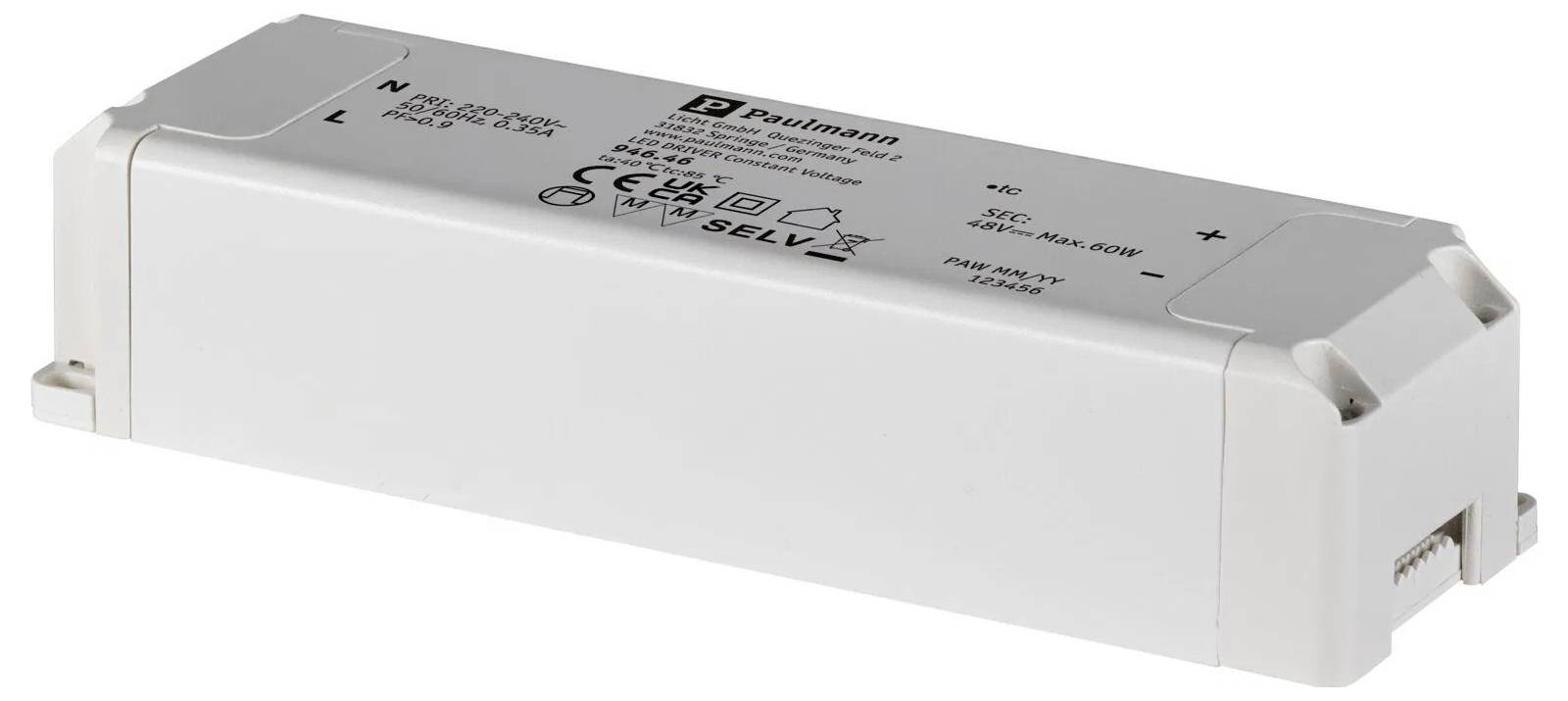

ULINE ACCESSORIES TRAFO 60VA white 230/48V 29mm
- ULINE Belt-System Accessories incl. assembly instructions
- Powerful 48 V DC transformer for installations up to max. 60 W.
- Integrated temperature, overload and short-circuit protection
- Long life with 30,000 h
Technical specifications
- Product type
Low voltage belt lighting component
n.rel.
- Operating voltage
230
- Protection class
II
- Factory colour
White
- Dim
(W x H x D) 137 x 29 x 43 mm
- Width
137 mm
- Height
29 mm
- Durability rating
50000 h
- Depth
43 mm
50000
50000 h
- Nominal voltage
230
- External length
43 mm
- External width
137 mm
- Input voltage
230 V
- Output voltage
48 V
- Light-on time
50000
- Voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3499651 Paulmann 94646 Low voltage belt lighting component White
User & Safety Instructions 3499651 Paulmann 94646 Low voltage belt lighting component White
Description
This high-quality and powerful transformer with 48 V DC is perfectly tuned to the ULINE belt system and is suitable for individual installations up to max. 60 W. With a service life of 50,000 h, it is especially robust and durable. An integrated temperature, overload and short-circuit protection ensures a secure and reliable power supply. The ULINE belt system is an innovative solution for unique Lichterlebnisse in all dimensions of the room and enables a specific light production on walls, ceilings and floors.
