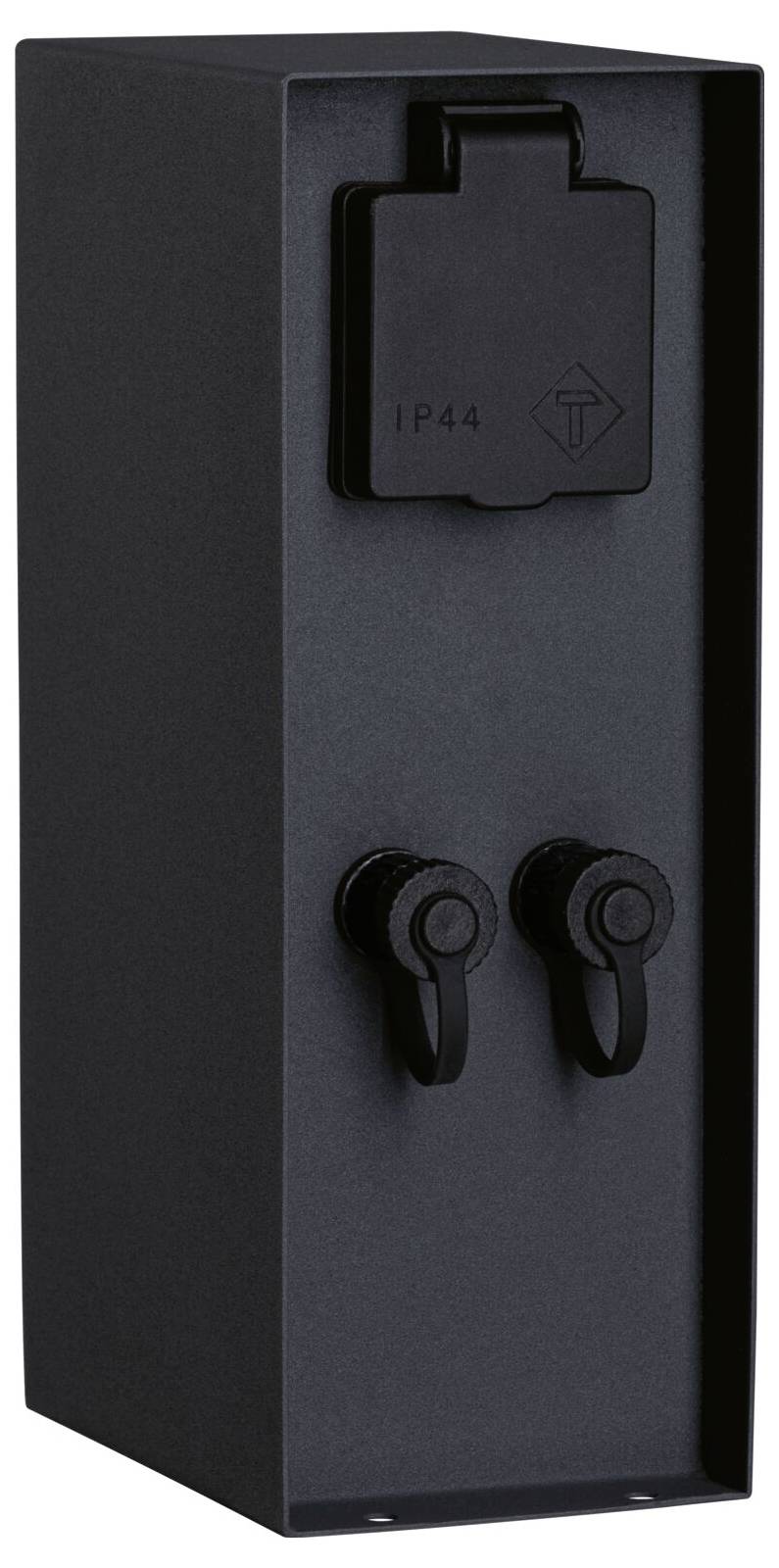

Paulmann 94915 Socket tower Rio inclusive of transformer 230 mm Anthracite
EAN:
Part number:
Item no:
Highlights & Details
Plug & Shine socket column Rio incl. transformer IP44 anthracite
- Smart power distributor for outdoor area
- Two smart 24V outputs for switching and dimming the Plug & Shine system
- Additional two further 230V sockets non Smart
- IP protection IP44 - splash-proof
- Suitable for outdoor use
- Operating voltage 230 V.
- Profile for exactly the straight alignment of the strips
Technical specifications
- Product type
Socket tower Rio inclusive of transformer
3680 W
- Factory colour
Anthracite
IP44
- Dim
(W x H x D) 83 x 230 x 140 mm
- Width
83 mm
- Protection class
I
- Durability rating
30000 h
- Depth
140 mm
- Height
230 mm
0 W
- No. of lights
0
- No. of bulbs
0
- No. of lights (max.)
0 x
30000
30000 h
- External length
140 mm
- External width
83 mm
- Output voltage
230 V
- No. of lights
0
- Light-on time
30000
Zigbee
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3829677 Paulmann 94915 Socket tower Rio inclusive of transformer 230 mm Anthracite
Description

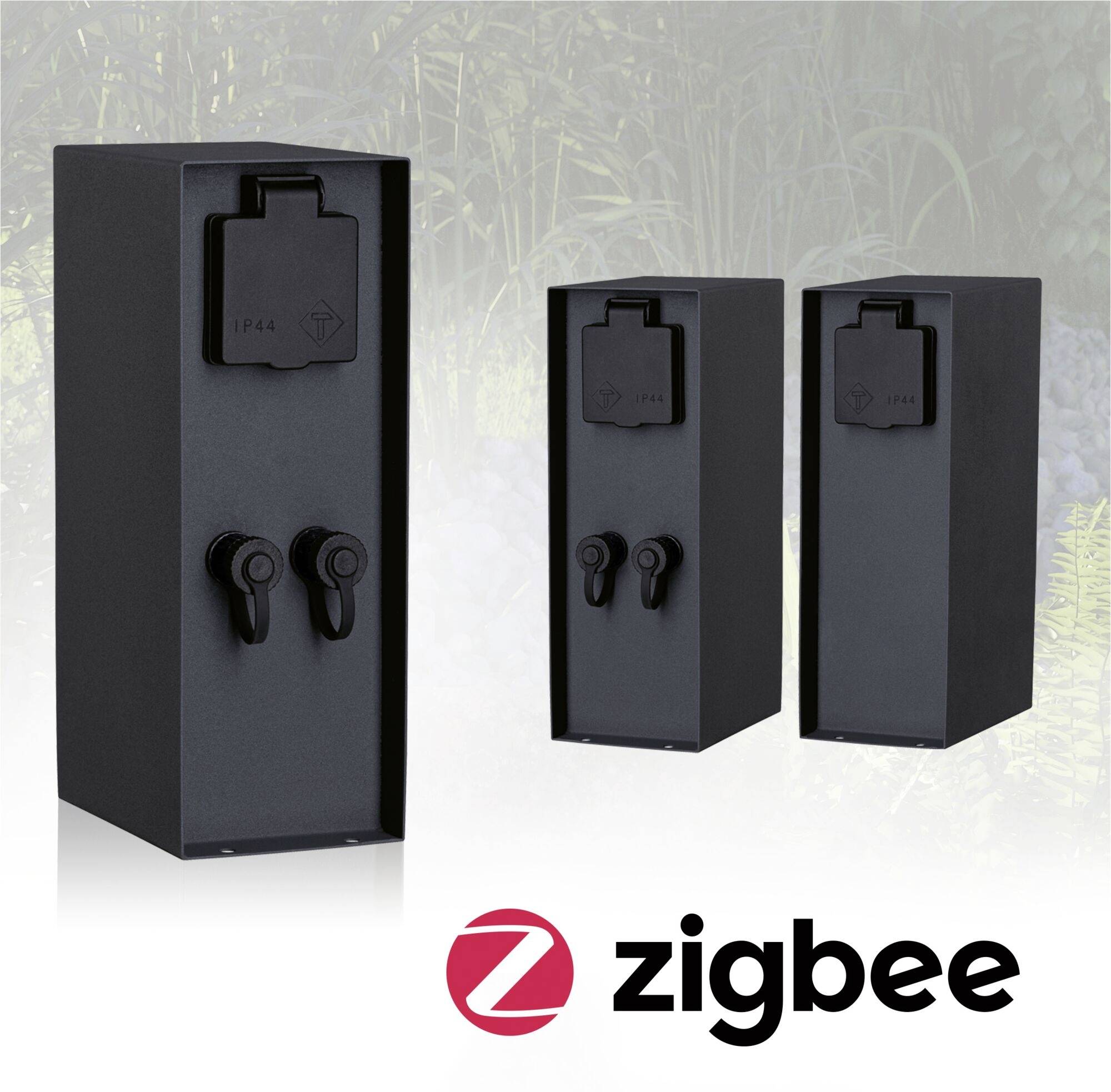

The smart Plug & Shine connector column Rio Zigbee is intended for use as a practical power distributor for outdoor use. Furthermore, you could not use smart plug & Shine systems for an Smart control. With its IP44 splash-water protection and the safety plug sockets it is optimally suitable for outdoor use. Through the transformer included in the socket column, the Plug & Shine system can be connected directly with two outputs of up to 75 W. Thanks to the integrated Smart controller both the 24V-outputs Smart can be controlled, so that the connected Plug & Shine lamps can be switched and dimmed continuously. This increases the comfort and offers flexibility for individual light moods by adjustment of brightness. Two further 230 V non-Smart controlled sockets are available for additional tasks in the garden. They run with continuous current (each 24 V DC) at a maximum power of 75VA.
