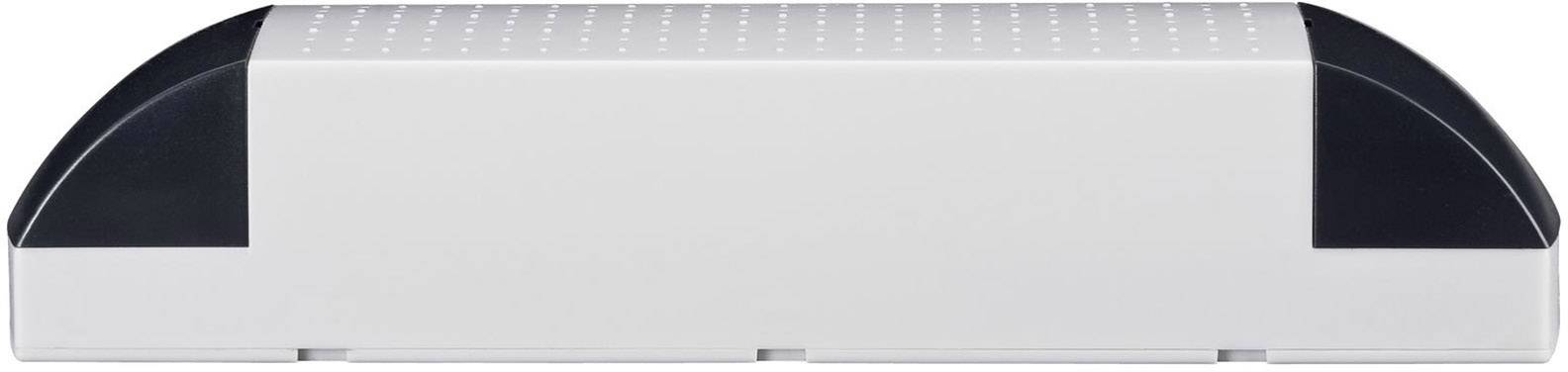

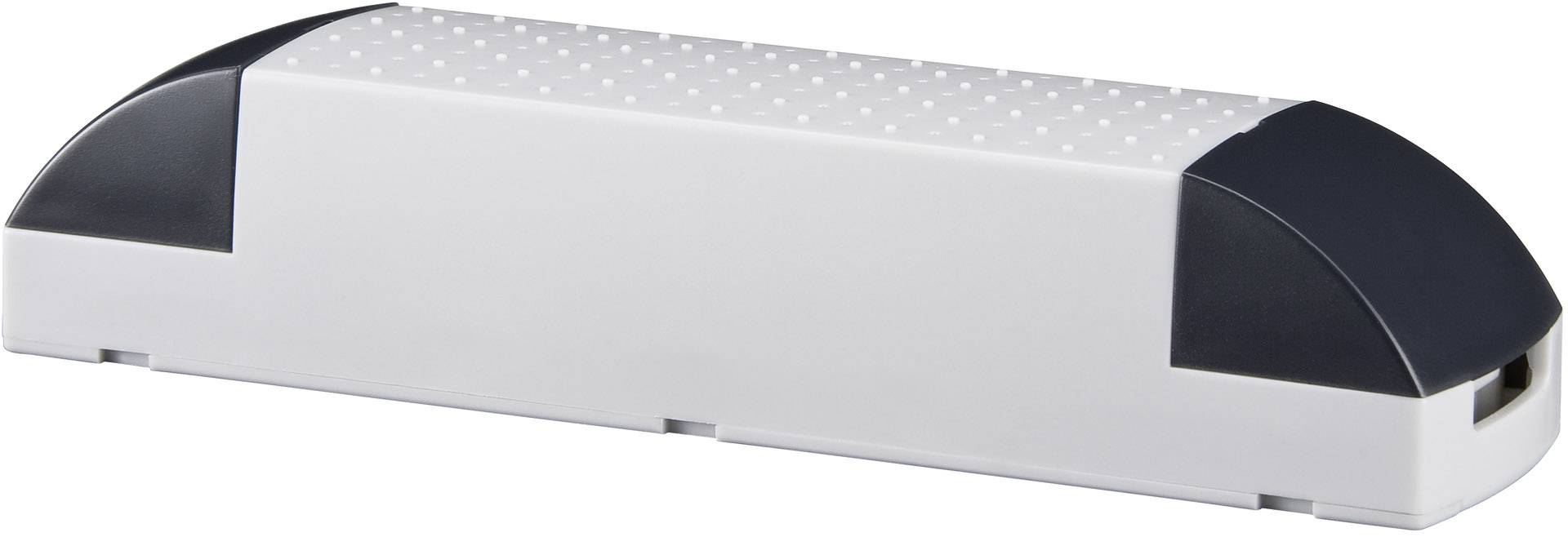

Paulmann 97715 Transformer
EAN:
Part number:
Item no:
Highlights & Details
Transformer electronic VDE Profi 150W white
Technical specifications
- Product type
Transformer
- Protection class
II
- Test mark
VDE
- Factory colour
Grey
Black
- Dim
(L x W x H) 190 x 48 x 40 mm
- No. of outputs
1 x
- Width
48 mm
- Height
40 mm
- Length
190 mm
- Input voltage (max.)
230 V
- Output voltage (max.)
12 V
- Max. power
150 W
- Power (min.)
50 W
- Operating voltage
230 V
- No. of inputs
1 x
- UKCA
not relevant
Documents & Downloads

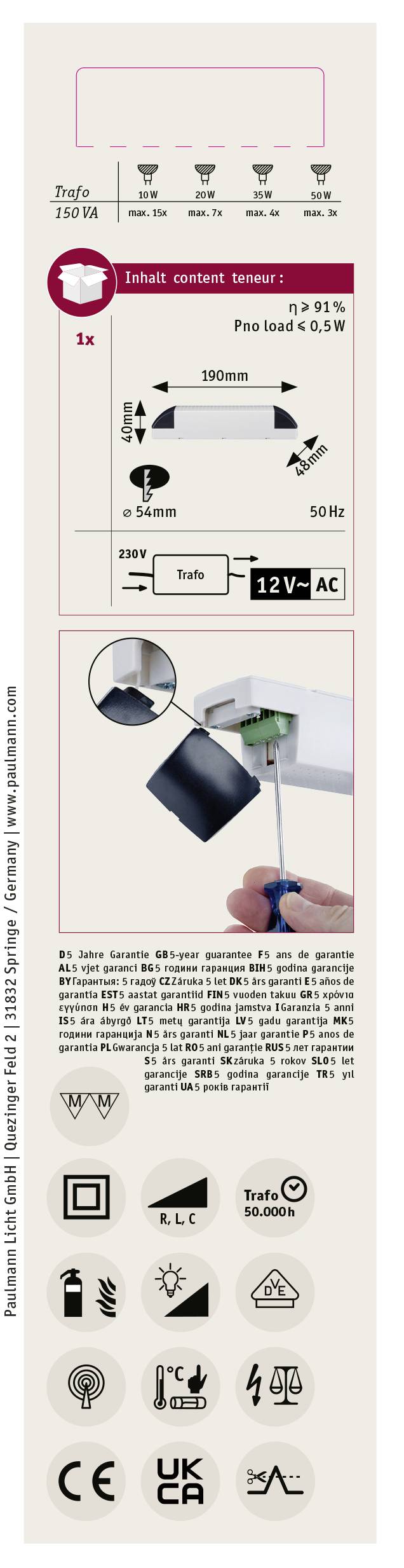

User & Safety Instructions
User & Safety Instructions 1954435 Paulmann 97715 Transformer
Description
Features
- VDE-certified
- II protection rating
- Dimmable with universal dimmer for all transformers (R,L,C)
- Integrated fire protection
- Temperature monitor and electronic fuse
- Double primary connection for several transformers in one circuit
- Several secondary clamp pairs
- Up to 50° ambient temperature
- Middle outlet
