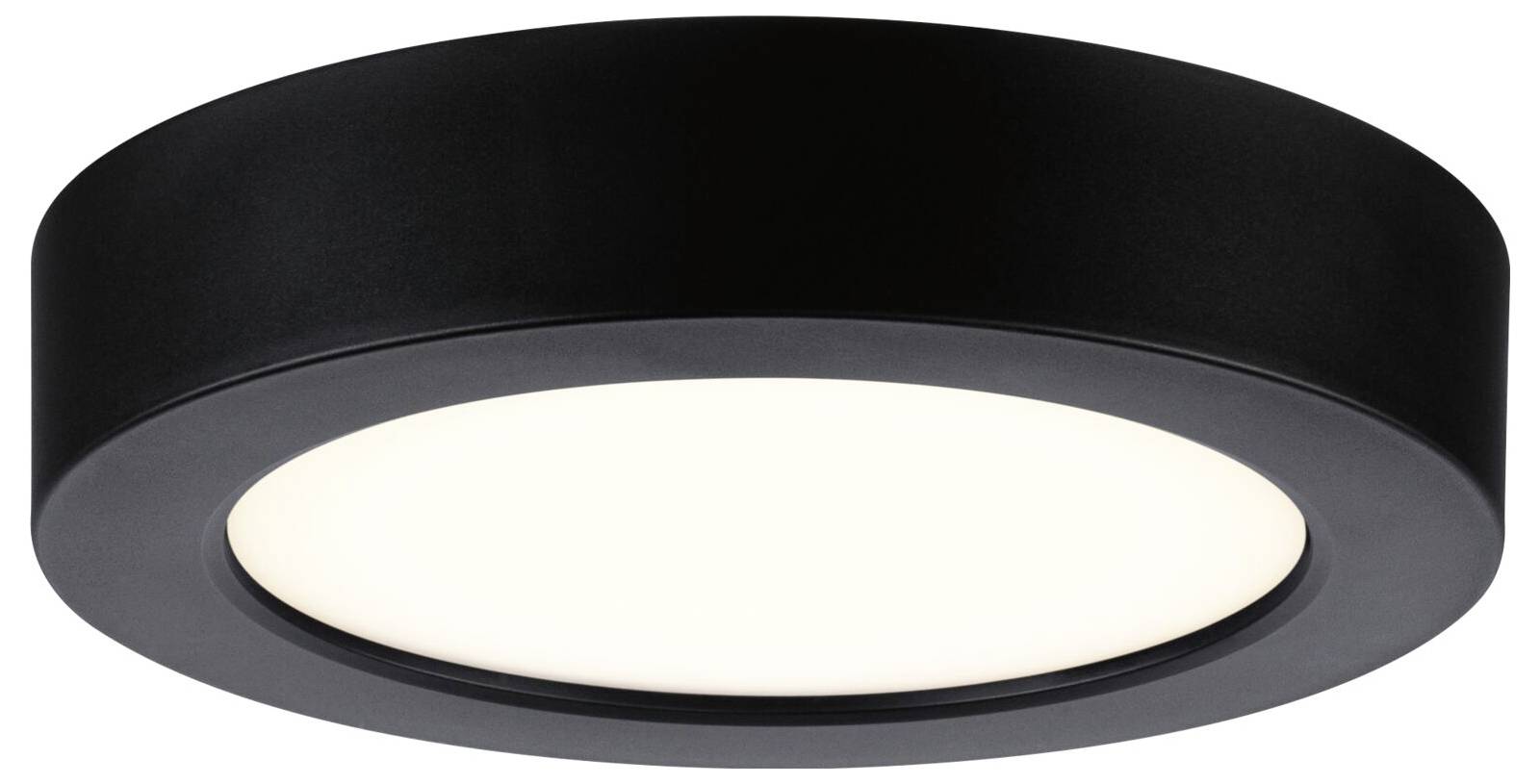

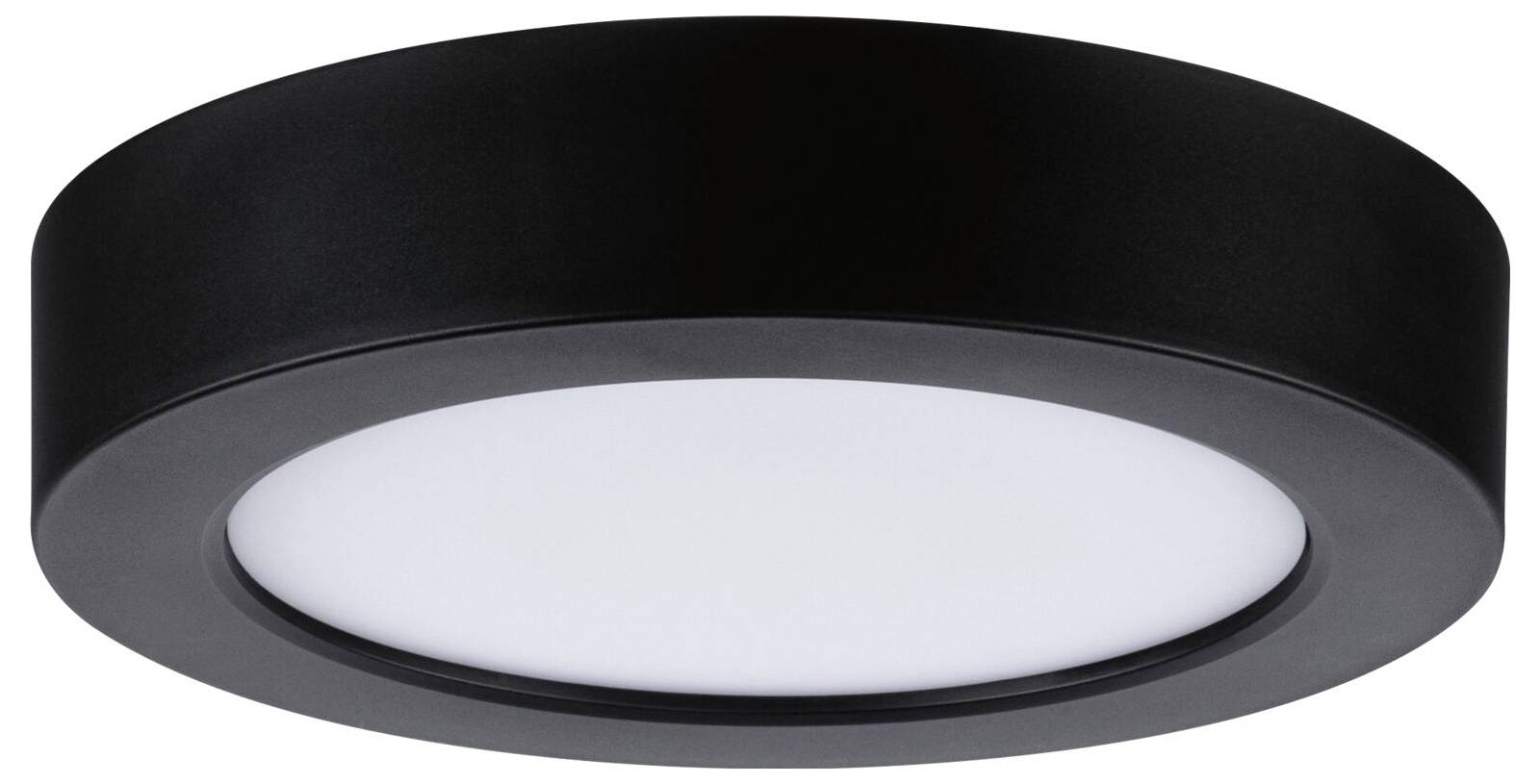

Paulmann Abia 71293 LED panel 9.5 W Warm white Black
EAN:
Part number:
Item no:
Highlights & Details
LED Panel Abia 2 White Select twilight-controlled motion detector (HF) round 170mm 9.5W 1100lm 2700 - 4000K black
- Power= 9.5 W
- Total luminous flux= 1100 lm
- Colour temperature= 2700 K
- Warm white
Technical specifications
- Product type
LED panel
- No. of bulbs
1
- Rating per bulb
9.5 W
9.5 W
2700 K
- Colour
Warm white
1100 lm
- Total luminous flux
1100 lm
- Protection class
II
- Factory colour
Black
- Height
33 mm
- (Ø)
170 mm
n.rel.
No
- Light bulb included
Yes
- Durability rating
30000 h
80
0 W
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
2700 K
- No. of lights
1
- No. of lights (max.)
1 x
30000
30000 h
- Colour rendering index
80 Ra
- Outside Ø
170 mm
- Luminous flux
1100 lm
- Luminous flux (Φ) per unit
1100 lm
- Output voltage
230 V
- Power consumption
10.5 W
- Output rating
9 VA
- Power consumption
10.5 W
- No. of lights
1
- Outside Ø
170 mm
- Light-on time
30000
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3743153 Paulmann Abia 71293 LED panel 9.5 W Warm white Black
Description
More comfort. More security. More possibilities! The Abia 2 panel puts an end to compromises and brings a functional lighting solution to every room. The integrated twilight-controlled motion sensor can be activated or deactivated via DIP switch before mounting. In this way, the panel offers the optimum solution for different requirements in functional rooms, kitchens or corridors. The sensor responds reliably to movement and provides for greater comfort and safety thanks to the automatic light control. With activated sensor, the light only switches when it is needed and thus enables an energy-efficient use. When the sensor is deactivated, the panel can be switched on and off as usual conveniently via the available wall switch. The White Select dip switch also offers maximum flexibility, with which the light color can be adjusted before mounting. You can choose between two warm white tones and one neutral white color as required. The panel with a diameter of 170mm is easy to install and with its timeless black design fits seamlessly into any living room, office or work environment.
