Paulmann LumiTiles Basic Set Square 10x10cm 78401 LED panel (basic) LED (monochrome) 2.2 W Warm white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LumiTiles LED tiles square 2-piece set IP44 100x10mm 2x70lm 230/12V 2x0.8W 2700K white plastic#aluminum
- LumiTiles LED tiles produce an effective homogeneous light
- Planar light
- Color temperature: 2700k - warm white
- Protection class: IP44 - suitable for damp rooms and outdoor areas
Technical specifications
- Product type
LED panel (basic)
- Operating voltage
230 V
- No. of bulbs
2
- Bulb type
LED (monochrome)
LED
- Rating per bulb
0.8 W
2.2 W
2700 K
- Colour
Warm white
70 lm
- Total luminous flux
140 lm
- Protection class
II
IP44
- Factory colour
White
- Dim
(L x W x H) 100 x 100 x 100 mm
- Feed length
60 cm
n.rel.
- Content
1 pc(s)
- Light bulb included
Yes
- Width
100 mm
- Height
100 mm
- Length
100 mm
- Depth
10 mm
- Output voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2525396 Paulmann LumiTiles Basic Set Square 10x10cm 78401 LED panel (basic) LED (monochrome) 2.2 W Warm white White
User & Safety Instructions
User & Safety Instructions 2525396 Paulmann LumiTiles Basic Set Square 10x10cm 78401 LED panel (basic) LED (monochrome) 2.2 W Warm white White
Description

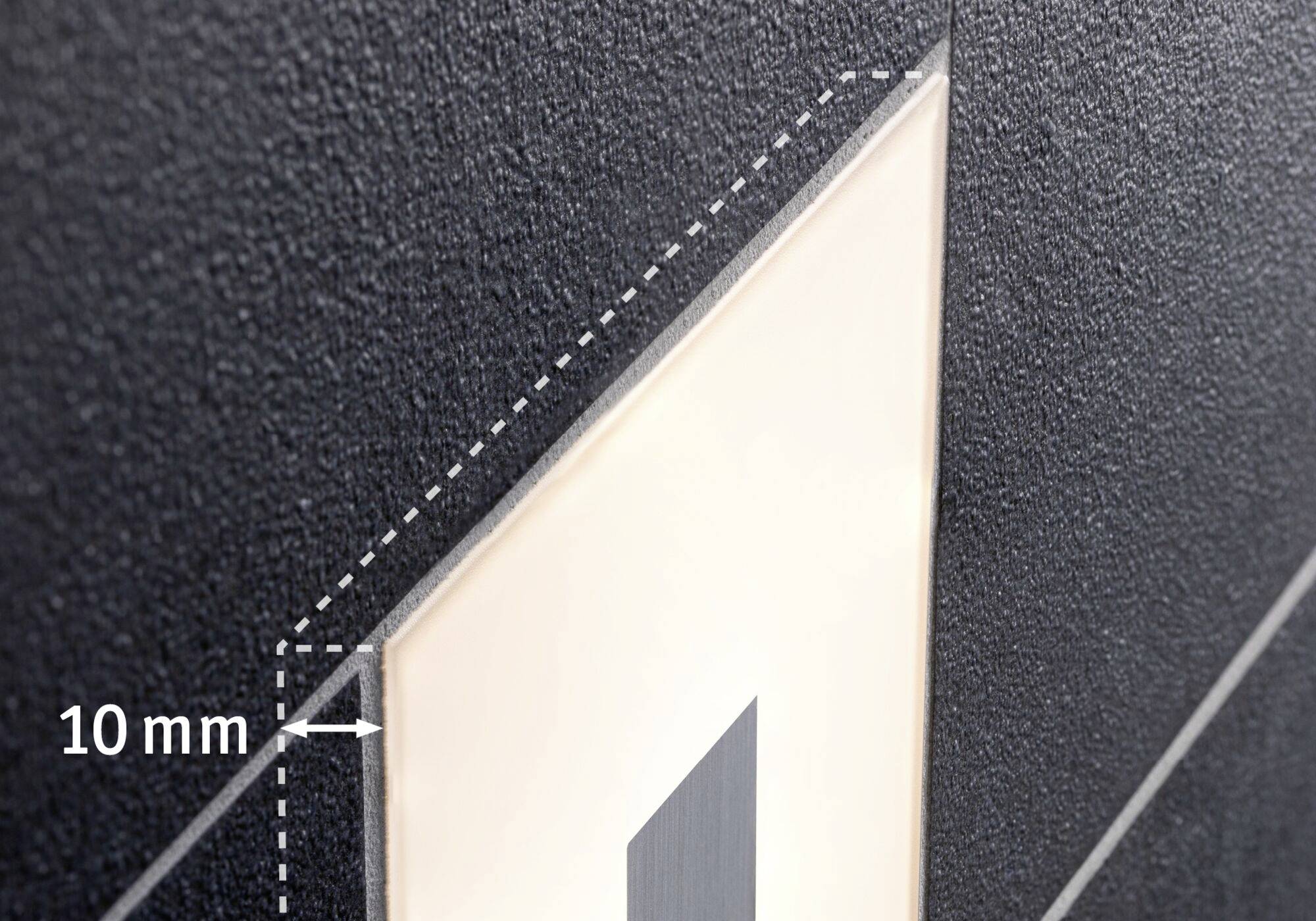

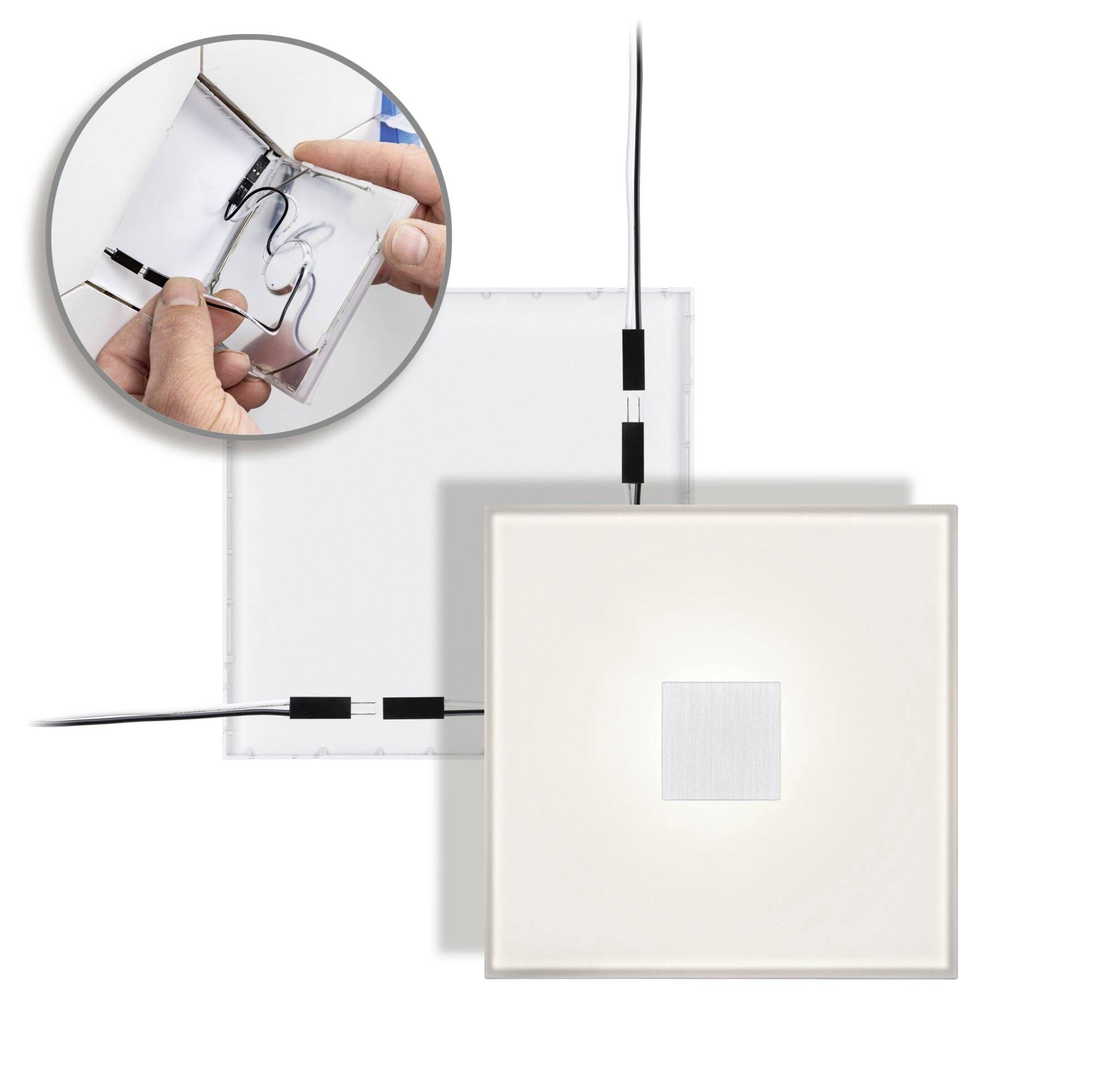

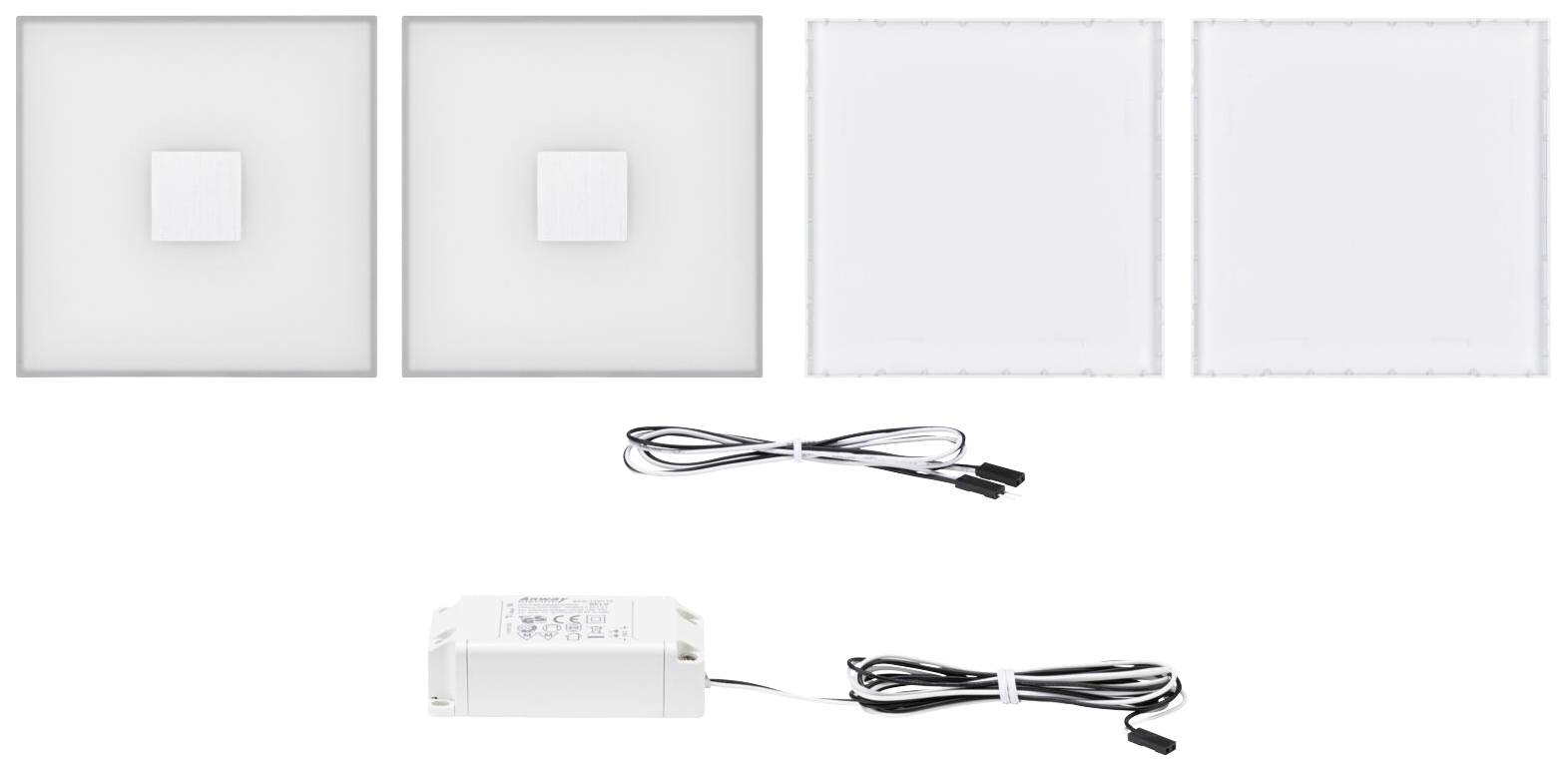

The efficient 100x10mm LumiTiles LED Tiles Square basic set with a power of 2x0.8W consists of two tiles, a connection cable (length 60 cm) and a transformer including connection. Despite the IP44 protection, the warm-white LED tiles have a minimum installation depth of only 10 mm and thus fit between standard wall tiles. Either the modules are plugged directly into plug & play or connected optionally via cable with 25, 65, 105 or 205 cm distance. The Paulmann LumiTiles system is suitable for every project thanks to its enormous flexibility, easy installation and extra long service life. The basic set can be supplemented with further LED tiles and connection cables.
This text is machine translated.
This text is machine translated.
Scope of delivery

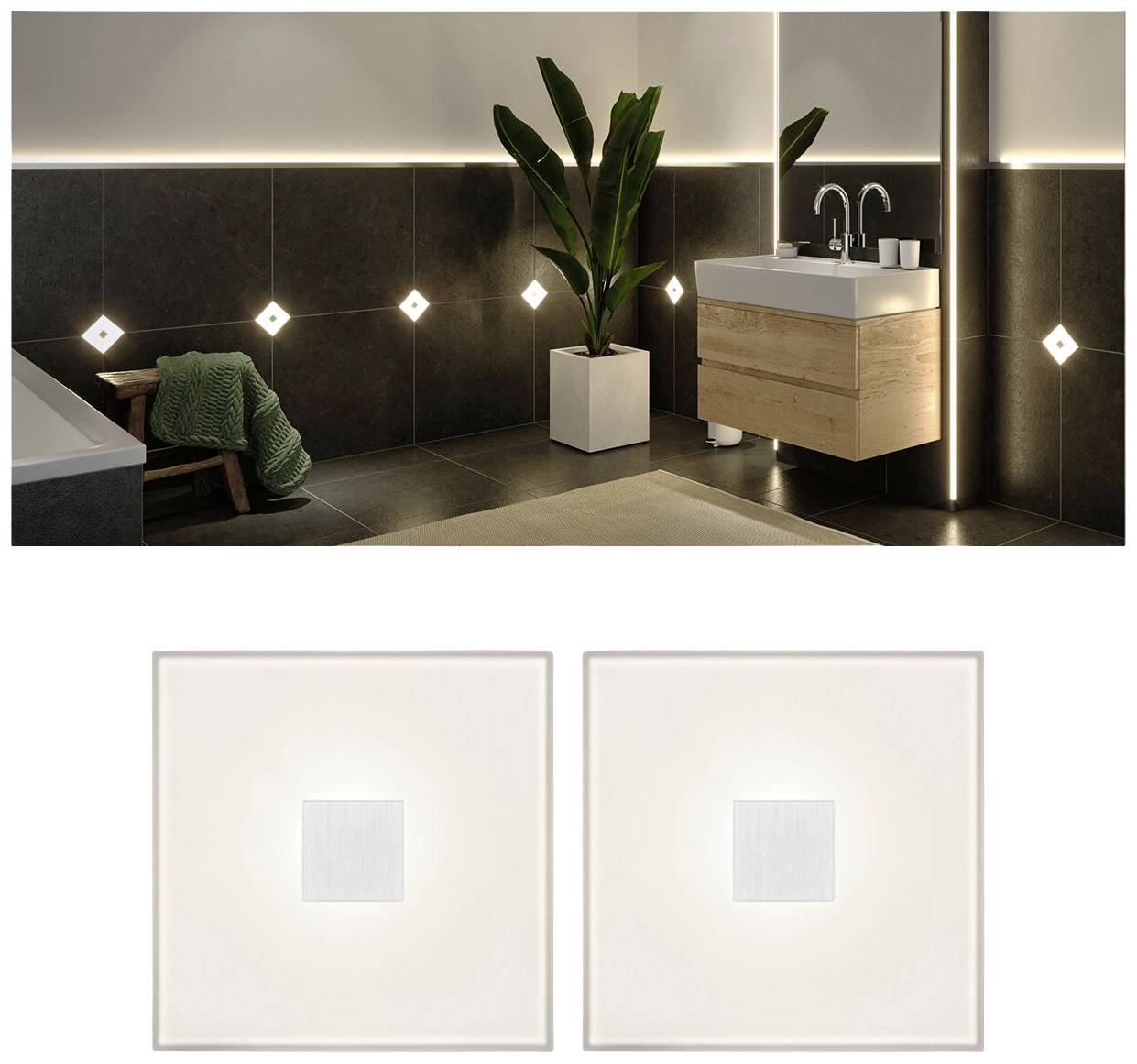

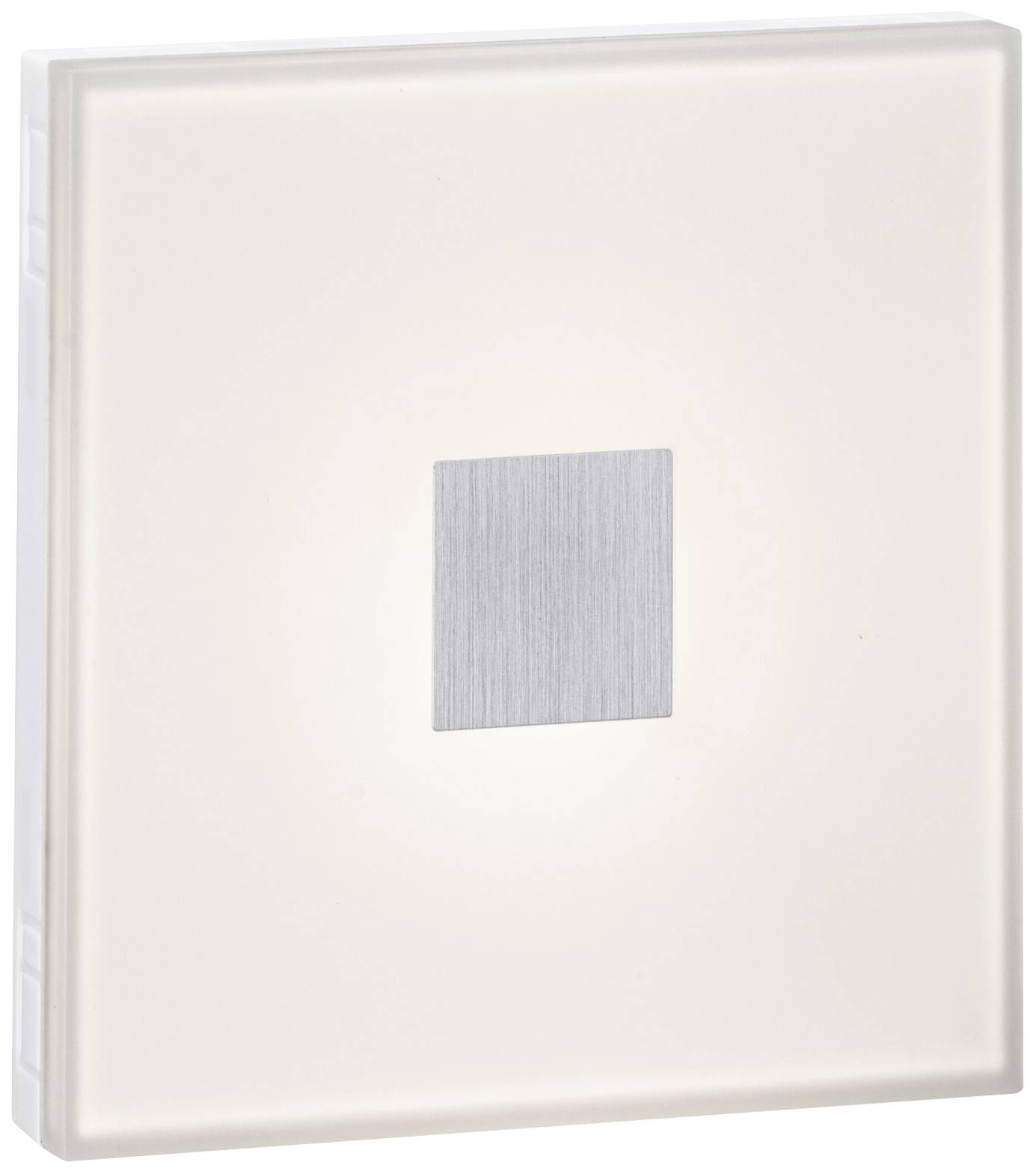

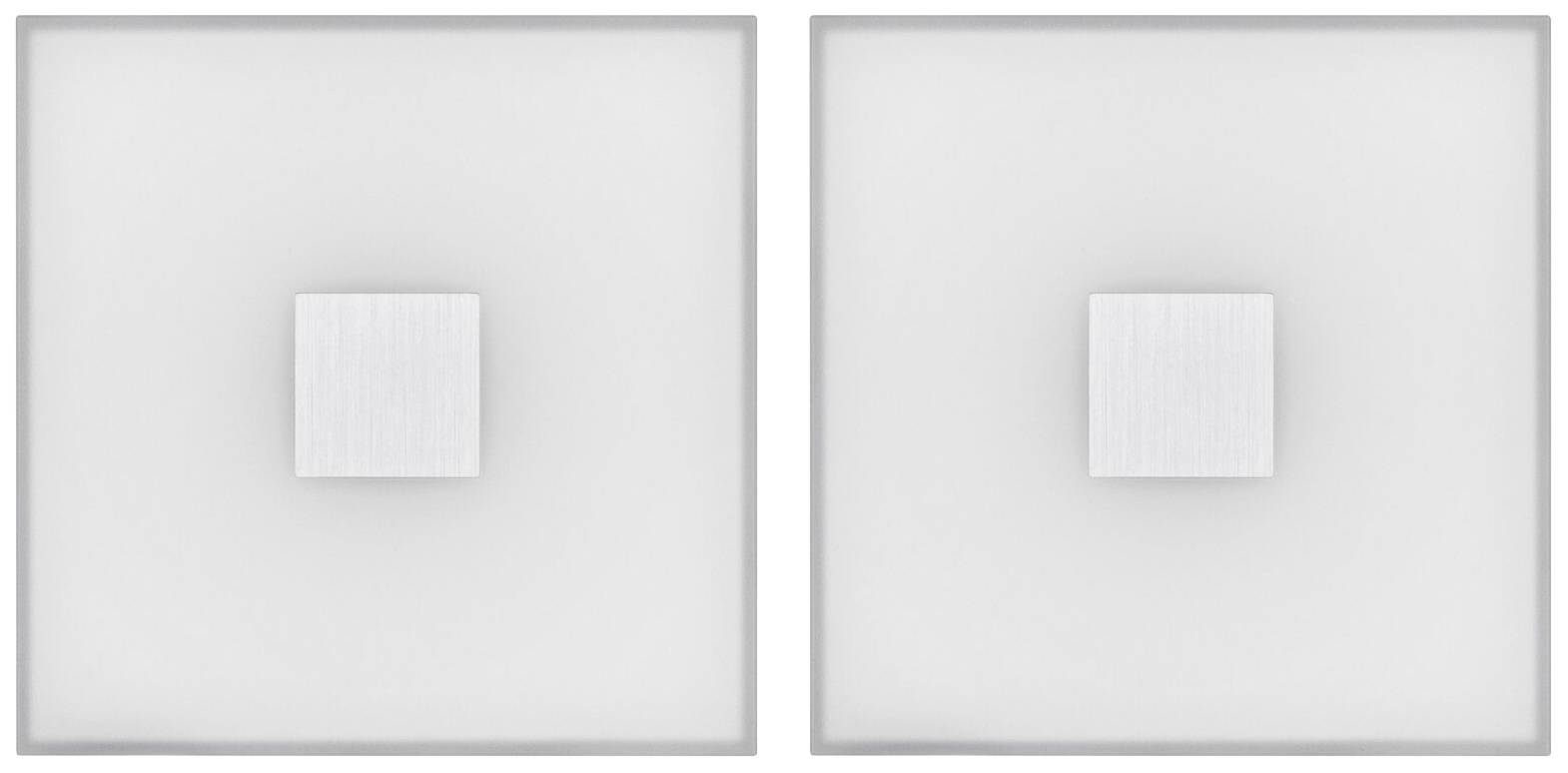

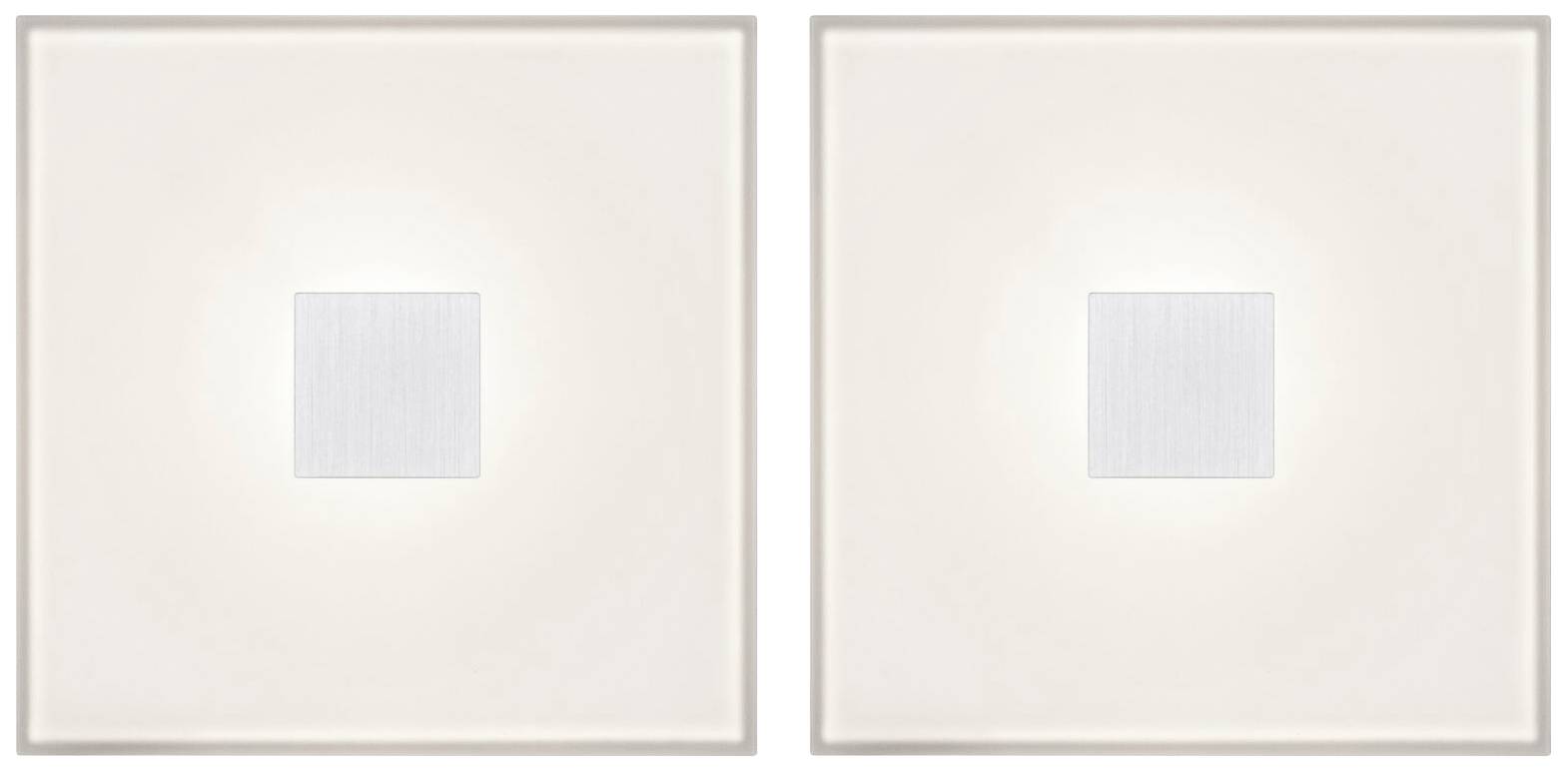

- 2 light fields 100x100 mm warm white
- User manual.
