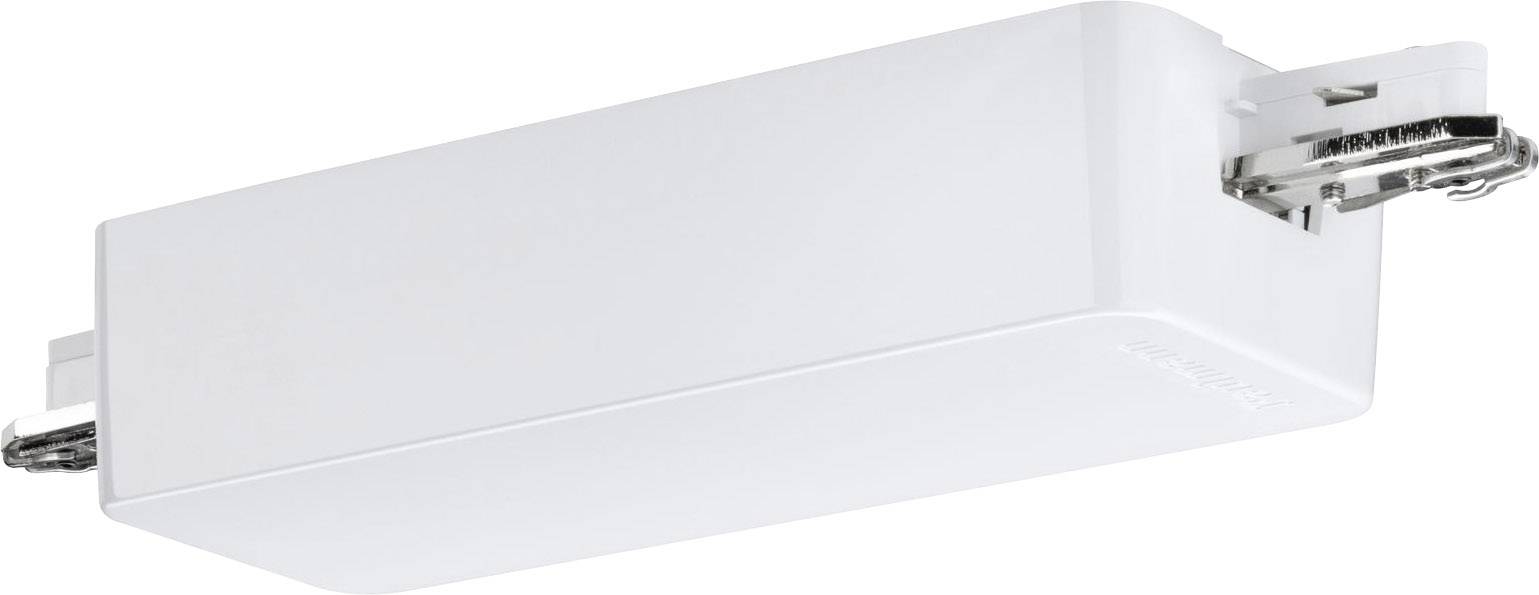

Paulmann URail 50051 Actuator White
EAN:
Part number:
Item no:
Highlights & Details
URail rail adapter smart home Zigbee DIMM/switch 155x56mm white
- Switching and dimming of the URail System
- Range up to 50m outdoors
- Continue with the light switch on and off.
Technical specifications
- Protection class: protection class II
- Starting time<: 0.0 s
- Radio frequency 2.4 GHz
- Radio range 50 m
- Capacitive load: 150 W
- Resistive load: 400 W
- Max. SAR value: 2.38 mW
- Product type
Actuator
n.rel.
- Operating voltage
230 V
- Factory colour
White
- Material
Metal
- Dim
(L x W x H) 56 x 155 x 35 mm
400 W
- Width
155 mm
- Height
35 mm
- Length
56 mm
30.000 h
- Data exchange
Bidirectional (bi)
- Transfer Standard (Smart Home)
ZigBee
Alexa
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1657189 Paulmann URail 50051 Actuator White
Warranty Terms
Warranty Terms 1657189 Paulmann URail 50051 Actuator White
Description
Paulmann Home - Zigbee-controlled Lighting
Paulmann products now support wireless Zigbee via a compatible gateway, allowing you to control lights using an app, a remote (optional) or Alexa voice-control.
Depending on the product, feature include turning the lights on or off, dimming, colour selection and choosing different shades of white.
The URail dimmer/switch from the Smart Home Zigbee series switching and dimming the following rail sections of your URail system. The dimmer/switch is zigbee 3.0 compatible. Zigbee is a radio transmission protocol, the networked devices of different manufacturers. This is a central control of lighting is possible, for example, in the shutters, heaters and alarm systems can be integrated. You can choose between the operation via the paulmann Home Gateway, a gateway same standards of other manufacturers or a Smart Home Zigbee hand transmitter. Individual components can be selectively engage in groups or as light scenes.
This text is machine translated.
Paulmann products now support wireless Zigbee via a compatible gateway, allowing you to control lights using an app, a remote (optional) or Alexa voice-control.
Depending on the product, feature include turning the lights on or off, dimming, colour selection and choosing different shades of white.
The URail dimmer/switch from the Smart Home Zigbee series switching and dimming the following rail sections of your URail system. The dimmer/switch is zigbee 3.0 compatible. Zigbee is a radio transmission protocol, the networked devices of different manufacturers. This is a central control of lighting is possible, for example, in the shutters, heaters and alarm systems can be integrated. You can choose between the operation via the paulmann Home Gateway, a gateway same standards of other manufacturers or a Smart Home Zigbee hand transmitter. Individual components can be selectively engage in groups or as light scenes.
This text is machine translated.
Features
- Can be controlled with paulmann Home Gateway via free Paulmann Home app for iOS and Android
- Can be controlled with the gateways of other manufacturers via corresponding App
- Can be controlled with Smart ZigBee remote control
- Bidirectional data transfer
- Mesh-enabled: increased range from product to product
- Switching and dimmable URail Connector
- Simple plug-in installation.
Scope of delivery
- Switching controller · User manual.
- This text is machine translated.
Hints
Please order suitable remote control and gateway separately.
This product is not compatible with all permanently installed LEDs and LED lights. Please note the compatibility of the dimmer in the technical data of the lamps/illuminants.
