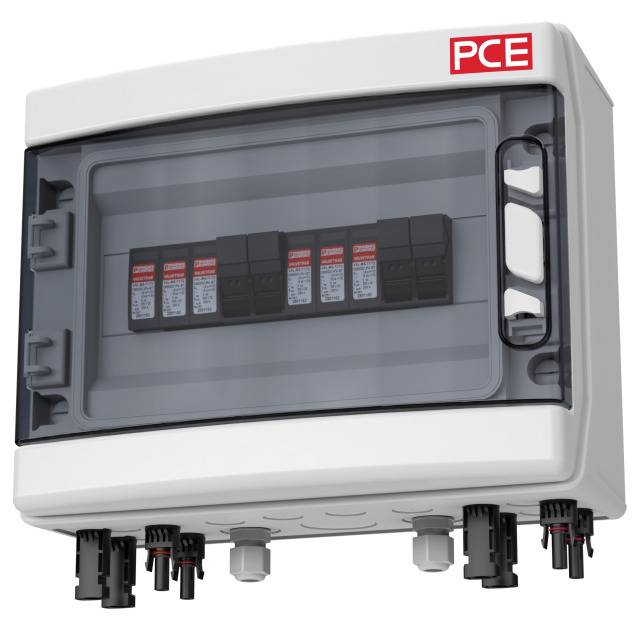

PC Electric 090PV006 SOL-LINE DC2-SICH-MC-TYP2 PV control system
EAN:
Part number:
Item no:
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
PV control system
- Dim
(W x H x D) 310 x 246 x 148 mm
- Content
1 pc(s)
- Width
310 mm
- Height
246 mm
- Depth
148 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2936828 PC Electric 090PV006 SOL-LINE DC2-SICH-MC-TYP2 PV control system
Description
Type 2 system solution for PV systems with 2 MPP tracker, 1000V DC
Plastic housing (310x246x148mm) with transparent window for max. 12 division units
Number of MPP trackers: 2 / number of strings per MPP: 1
2x surge suppressor type 2 (PC)
8x PV-plug connector
4x fuse link 16A gPV 1000V DC (PC)
2x M16 cable glands for earth conductor connection
Ready wired
Protection system: IP65
This text is machine translated.
Plastic housing (310x246x148mm) with transparent window for max. 12 division units
Number of MPP trackers: 2 / number of strings per MPP: 1
2x surge suppressor type 2 (PC)
8x PV-plug connector
4x fuse link 16A gPV 1000V DC (PC)
2x M16 cable glands for earth conductor connection
Ready wired
Protection system: IP65
This text is machine translated.
