PC Electric 253841-sr 3-way connector Solid rubber + voltage display 250 V Red IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Only 2 Piece(s) available
Highlights & Details

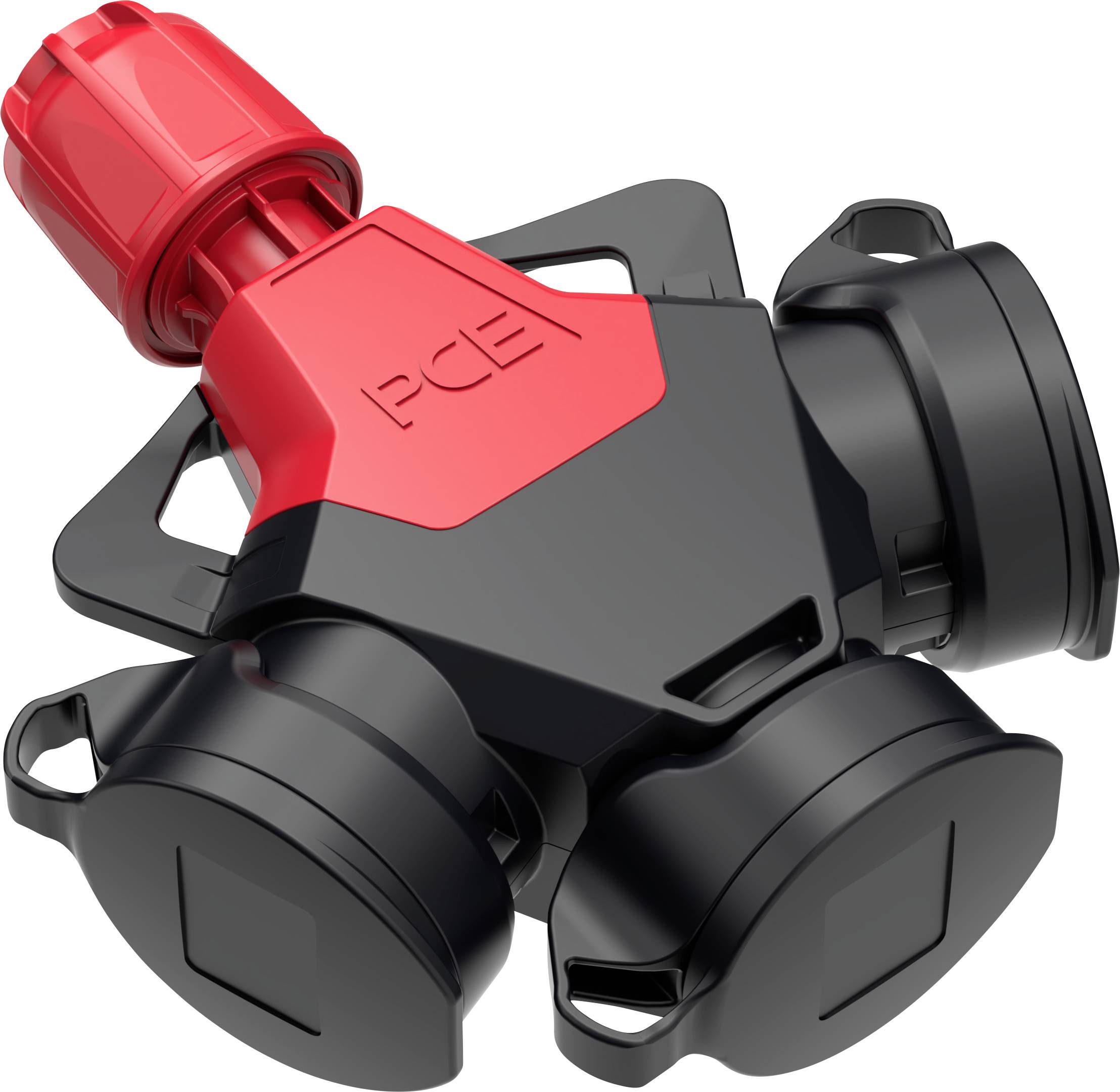

3-way coupling TopTaurus 2 solid rubber with cover tape nat LED IP54 red
- 3-way coupling TopTaurus 2 full rubber with cover band
- Colour of housing/connection cover: Black/red
- Contact holder TPE
- This text is machine translated.
Technical specifications
- Number of poles: 3
- Product type
3-way connector
- Features
+ voltage display
- Connector version
straight
- Nominal voltage
250 V
- Load (max.)
16 A
- Material
Solid rubber
- Factory colour
Red
IP54
- Type
Coupler CEE 7/3 (type F)
Documents & Downloads
Datasheet
Datasheet 3308243 PC Electric 253841-sr 3-way connector Solid rubber + voltage display 250 V Red IP54
User & Safety Instructions
User & Safety Instructions 3308243 PC Electric 253841-sr 3-way connector Solid rubber + voltage display 250 V Red IP54
Description
Features
- Ready wired to 3-pin terminal (PH1)
- Protective conductor system: Austrian/German system (type F - with protective conductor clamp)
- Contacts: Nickel-plated
- 250V~ / 16A / 2P+E

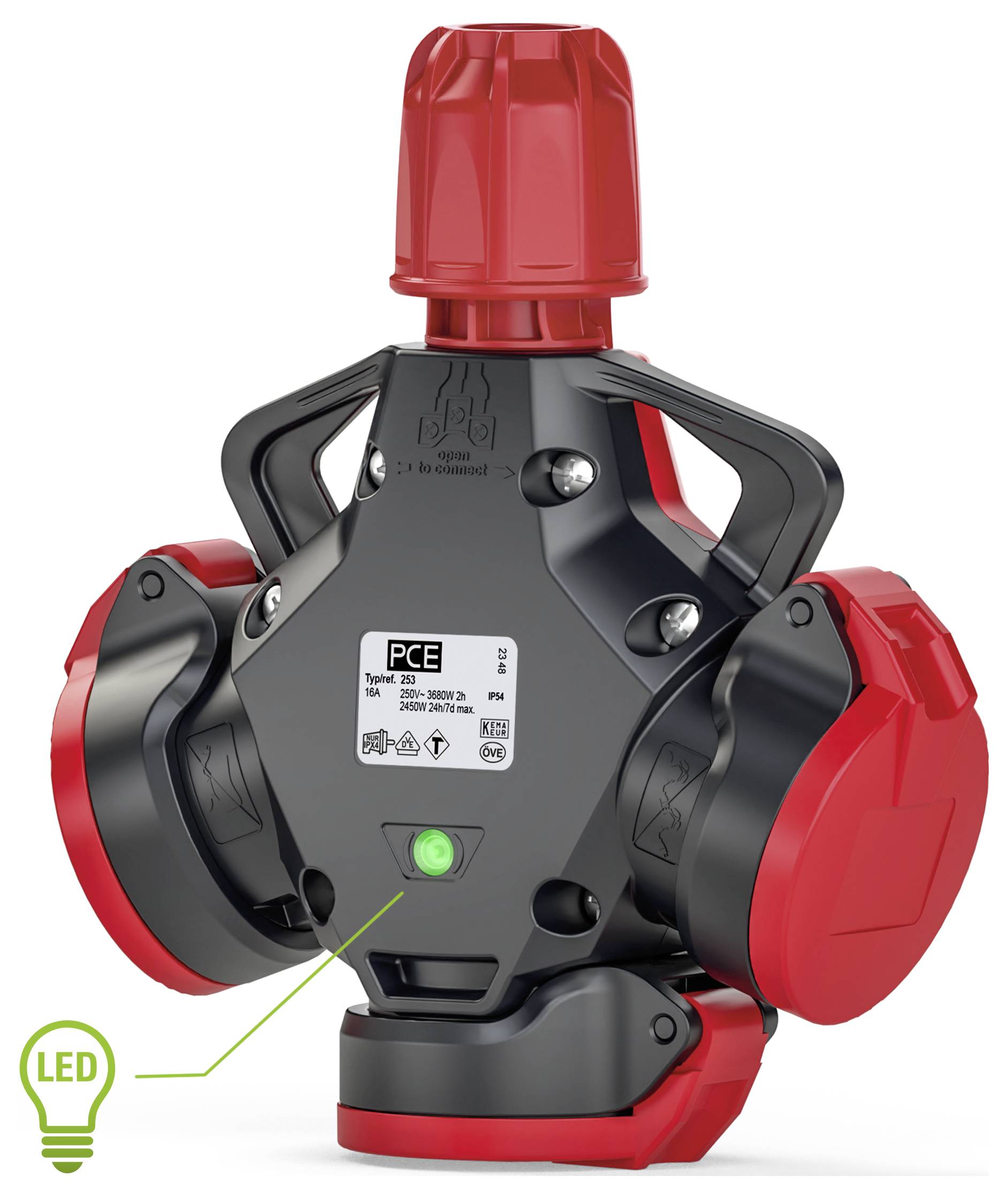

- Outer strain relief with coupling nut; with LED operating voltage display
- For more difficult conditions
- Protection class: IP54
Scope of delivery
- 3-way coupling TopTaurus 2 nat DB LED IP54
