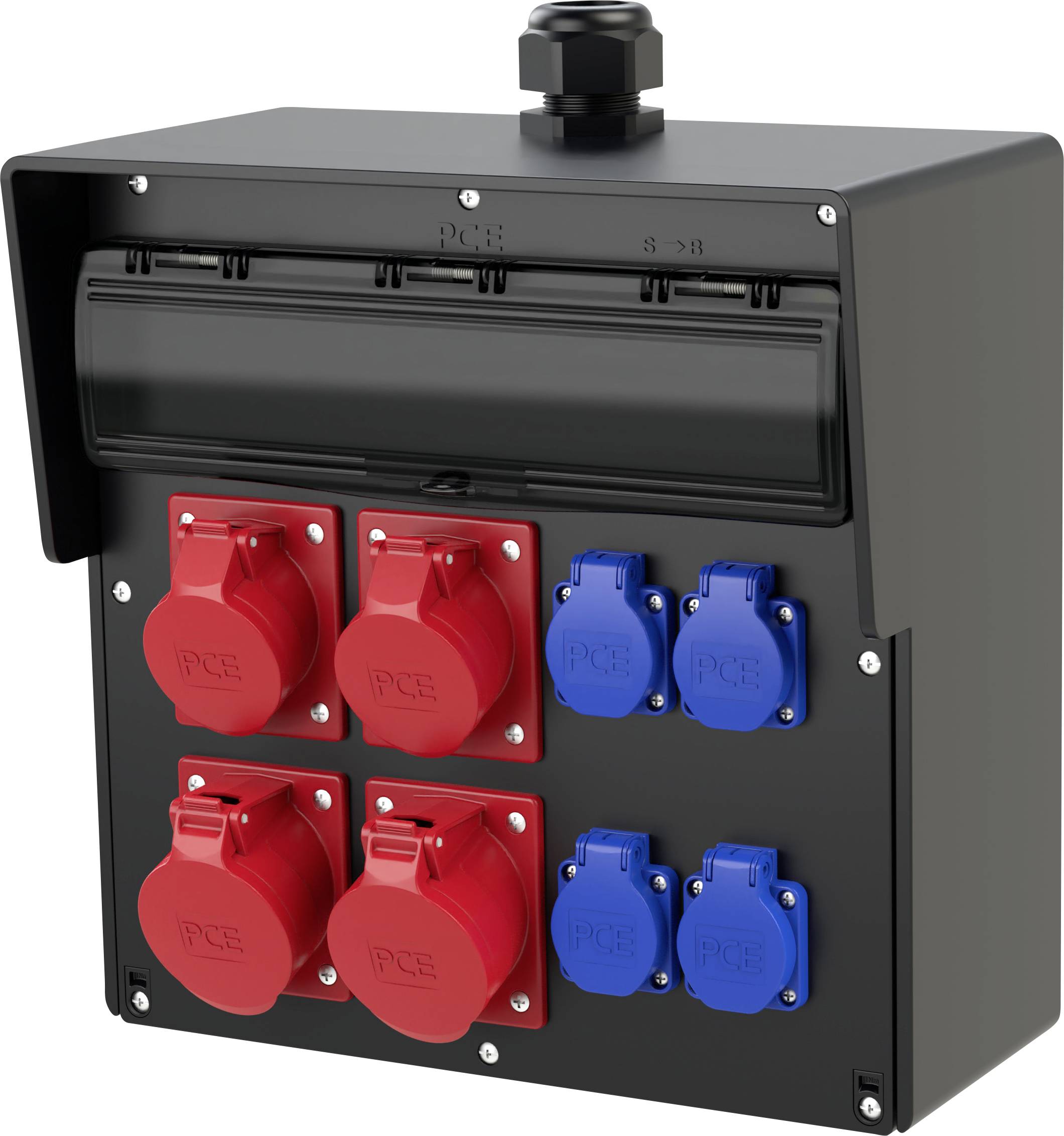

PC Electric CEE power distributor Bruck 9240862 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 1 x M40 screw connection above (cable diameter 22 - 32mm PG36) black
- 1 x blind screw joint M40 below
- 2 x CEE-socket 32A 5P 400V secured ü. 1 x LS 32A 3P C
- 2 x CEE-socket 16A 5P 400V secured ü. 2 x LS 16A 3P C
- 4 x SK socket 16A 250V IP54 secured ü. 4 x LS 16A 1P C
- 1 x FI 63A/4/0.03A (TYPE A 63AT) via all outputs
- Circuit breaker switch and FI manufacturer Eaton EVE / VDE
- Distributor on HVAC terminal (max. 5 x 25 qmm/5 x 16 qmmYF!) wired
- Number of circuit breakers: 7
- Feed/connection option: 2 lines (loop/loop-through)
- Product type
CEE power distributor
- Type A
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
- Type B
PG socket
- No. of PG sockets
4
- Nominal input voltage
400 V
IP54
IK08
- Factory colour
Black
- Dim
(W x H x D) 370 x 370 x 203 mm
- Width
370 mm
- Height
370 mm
- Content
1 pc(s)
- Number of pins
5
- Depth
203 mm
Documents & Downloads
Datasheet
Datasheet 2389955 PC Electric CEE power distributor Bruck 9240862 400 V
Description
Wall distributor solid rubber series BRUCK BV 2x32/5 2x16/5 4xSSD M40oBVu EA IP54 TOP.
This text is machine translated.
This text is machine translated.
Features
- 4-way wall mounting sealed from wiring room
- Protection class II (standard)
- Vulcanized brass nuts for lid mounting
- Captive cover screws
- Hinges between the bottom of the housing and the cover
- Excellent impact resistance
- High temperature and shape resistance
- Very good electrical insulating properties
- High resistance to weathering
- UV and ozone resistant
- Resistant to sweat and sparks
- High mechanical strength
- Resistant to aging and corrosion
- Resistant to various oils, greases, acids etc.
- Case made of solid rubber
- Glow wire-proof 960 °C according to EN 60695-2-11
- Non-flammable according to EN 60695-11-5
- Mechanical resistance IK08 according to EN 50102
- External rust-free metal parts
- High-quality technical plastic parts.
