PC Electric CEE power distributor Schrems 9504020 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 1 x CEE-device plug 63A 5P 400V
- 2 x CEE-socket 32A 5P 400V secured ü. 1 x LS 32A 3P C
- 4 x CEE-socket 16A 5P 400V secured ü. 2 x LS 16A 3P C
- 6 x SK socket 16A 250V IP54 secured ü. 3 x LS 16A 1P C
- 1 x FI 63A/4/0.03A (TYPE A 63AT) via all outputs
- Circuit breaker switch and FI manufacturer Eaton EVE / VDE
- Distributor connected ready for operation
- Number of circuit breakers: 6
- Infeed/connection option: Mounted connector
- Type of mains connection: CEE 63 A.
- Product type
CEE power distributor
- Type A
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
- Type B
PG socket
- No. of PG sockets
6
- Nominal input voltage
400 V
IP54
IK08
- Factory colour
Black
- Dim
(W x H x D) 400 x 255 x 300 mm
- Width
400 mm
- Height
255 mm
- Content
1 pc(s)
- Number of pins
5
- Depth
300 mm
Documents & Downloads
Datasheet
Datasheet 2389960 PC Electric CEE power distributor Schrems 9504020 400 V
Description

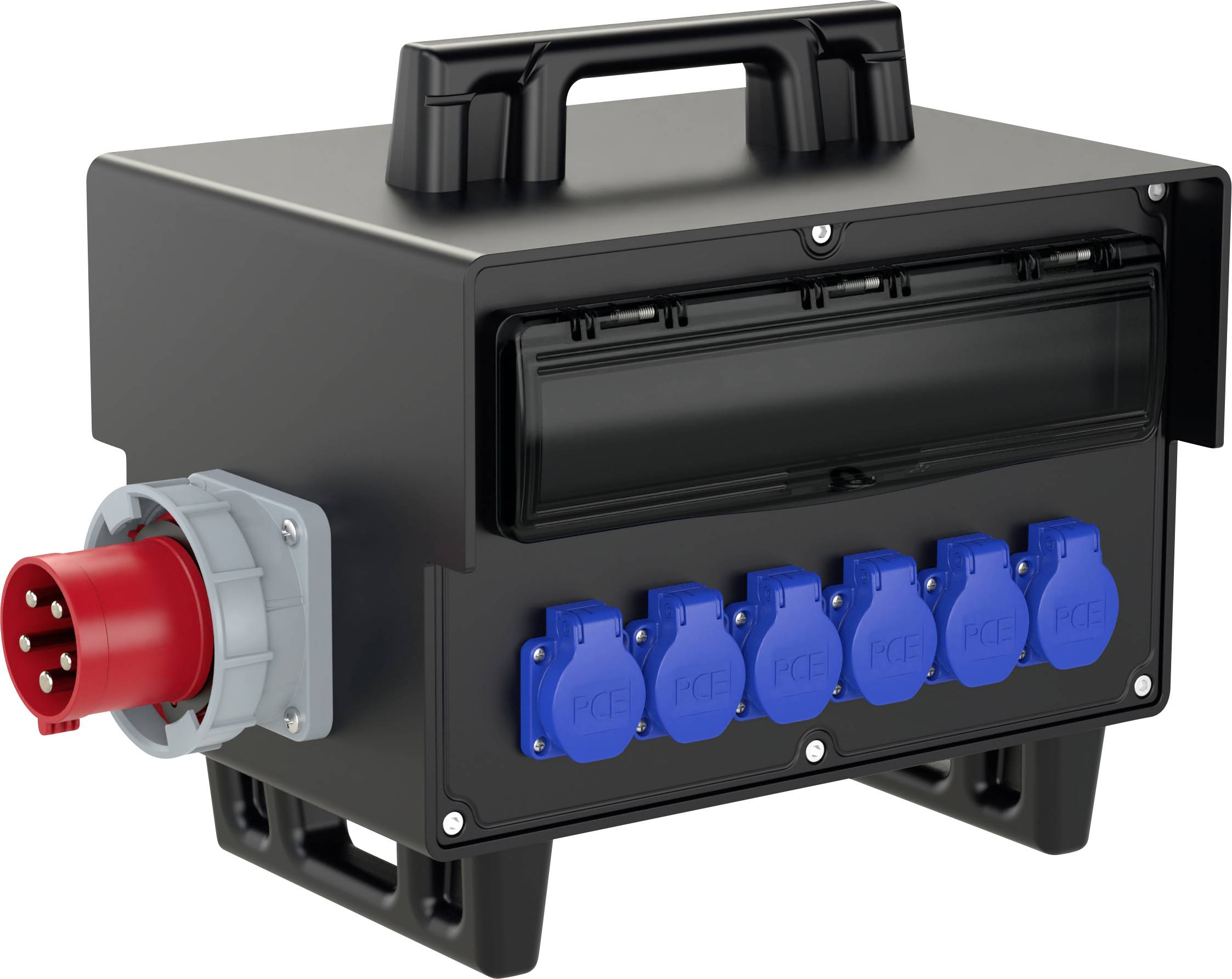

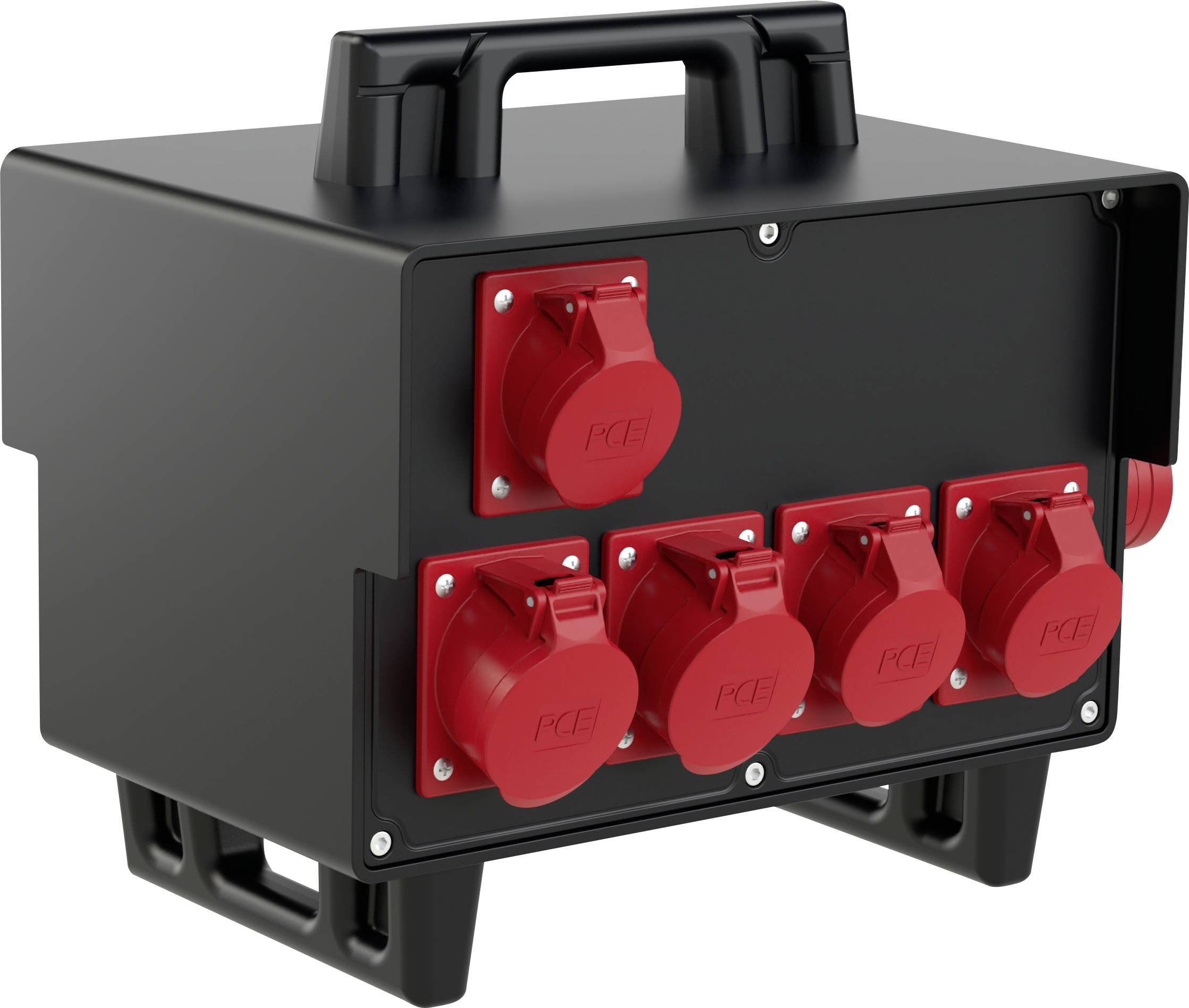

Solid rubber mobile distributor series SCHREMS BV 2x32/5 4x16/5 6xSSD GS63/5 EA IP54, with 1x top carrying handle and 2 x bottom adjustable feet (stackable).
This text is machine translated.
This text is machine translated.
Features
- Portable full rubber housing
- Protection class II (standard)
- Vulcanized brass nuts for lid mounting
- Countersunk, captive lid screws
- Excellent impact resistance
- High temperature and shape resistance
- High resistance to weathering
- UV and ozone resistant
- Resistant to sweat and sparks
- Highest mechanical strength
- Resistant to aging and corrosion
- Conditionally resistant to various oils, greases
- Resistant to various acids etc.
- Case made of solid rubber
- Glow wire-proof 960 °C according to EN 60695-2-11
- Non-flammable according to EN 60695-11-5
- Mechanical resistance IK08 according to EN 50102
- Cover made of PA reinforced
- Glow wire resistant 650 °C according to EN 60695-2-11
- External rust-free metal parts
- High-quality technical plastic parts.
