PC Electric CEE power distributor Schrems 9504124 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 2 m cable H07RN-F 5G 16 mm2 black with plug 63A 5P 400V
- 1 x CEE-socket 63A 5P 400V through ground
- 2 x CEE-socket 32A 5P 400V secured ü. 2 x LS 32A 3P C
- 2 x CEE-socket 16A 5P 400V secured ü. 2 x LS 16A 3P C

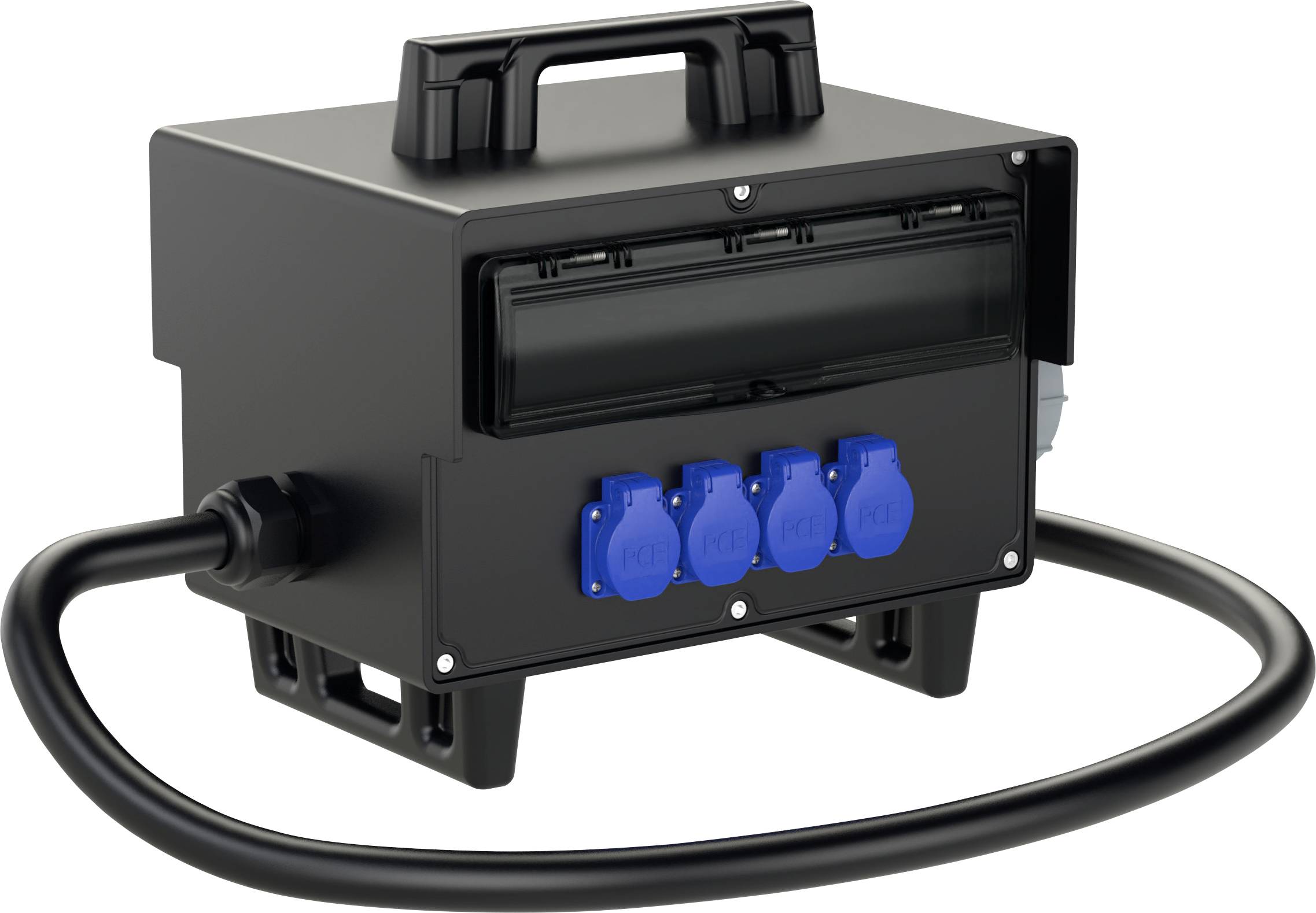

- 4 x SK socket 16A 250V IP54 secured ü. 2 x LS 16A 1P C
- 1 x FI 63A/4/0.03A (TYPE A 63AT) over all 16 and 32A outputs
- Circuit breaker switch and FI manufacturer Eaton EVE / VDE
- Distributor connected ready for operation
- Note: Number of output circuits (ready for operation)
- Max. Total current of all outgoing circuits limited by rated operating current INA!
- Number of circuit breakers: 6
- Infeed/connection option: Supply cable with plug
- Type of mains connection: CEE 63 A.
- Product type
CEE power distributor
- Type A
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 65 A)
- Type B
PG socket
- No. of PG sockets
4
- Nominal input voltage
400 V
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 16 mm²
- Factory colour
Black
- Dim
(W x H x D) 400 x 255 x 300 mm
- Width
400 mm
- Height
255 mm
- Content
1 pc(s)
- Number of pins
5
- Depth
300 mm
Documents & Downloads
Datasheet
Datasheet 2389961 PC Electric CEE power distributor Schrems 9504124 400 V
Description

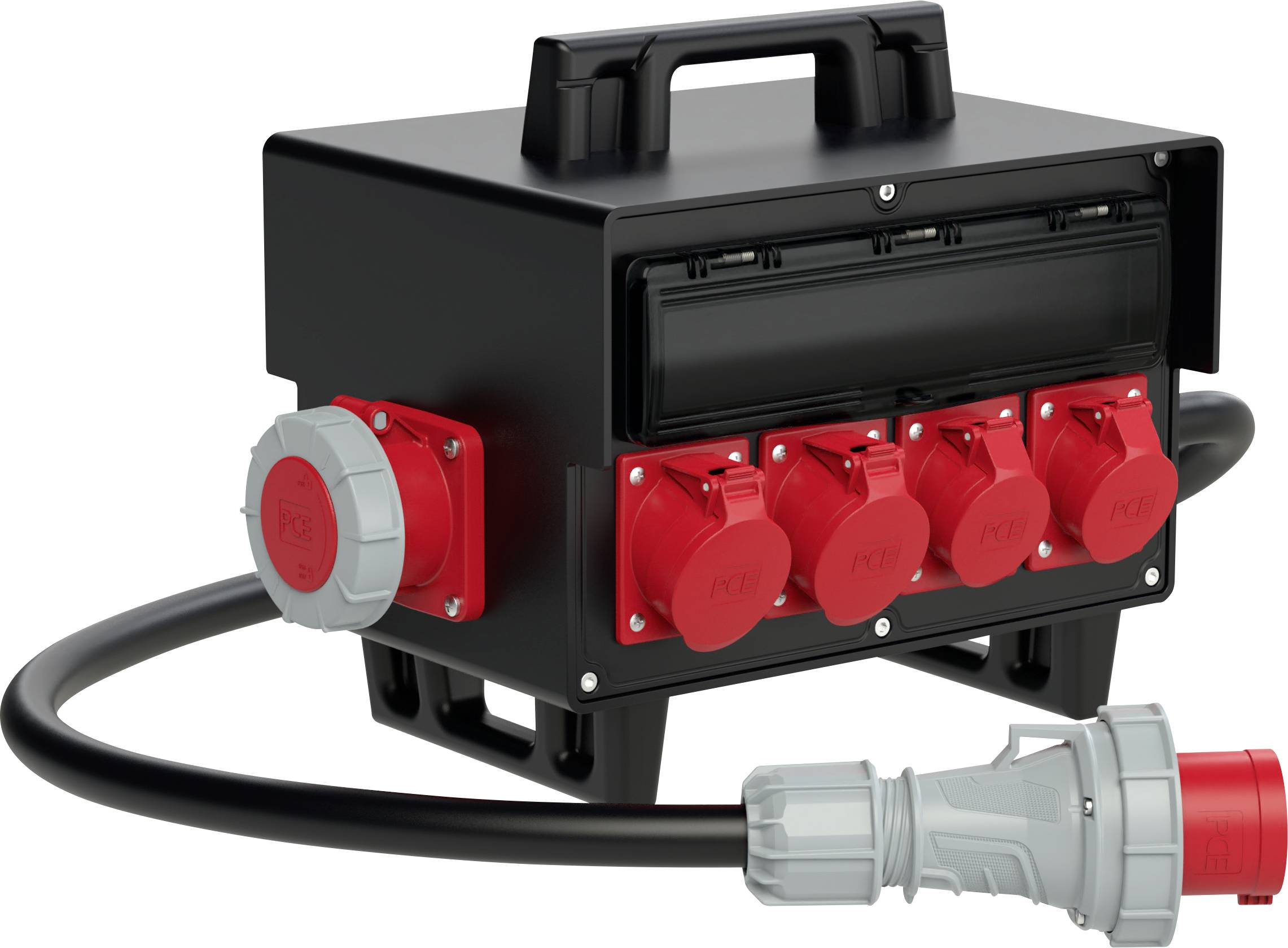

Solid rubber mobile distributor series SCHREMS BV 63/5 2x32/5 2x16/5 4xSSD EA IP54, with 1 x top carrying handle and 2 x bottom adjustable feet (stackable).
This text is machine translated.
This text is machine translated.
Features
- Portable full rubber housing
- Protection class II (standard)
- Vulcanized brass nuts for lid mounting
- Countersunk, captive lid screws
- Excellent impact resistance
- High temperature and shape resistance
- High resistance to weathering
- UV and ozone resistant
- Resistant to sweat and sparks
- Highest mechanical strength
- Resistant to aging and corrosion
- Conditionally resistant to various oils, greases
- Resistant to various acids etc.
- Case made of solid rubber
- Glow wire-proof 960 °C according to EN 60695-2-11
- Non-flammable according to EN 60695-11-5
- Mechanical resistance IK08 according to EN 50102
- Cover made of PA reinforced
- Glow wire resistant 650 °C according to EN 60695-2-11
- External rust-free metal parts
- High-quality technical plastic parts
- Dim. (W x H x D) 400 x 225 x 300 mm
- Protection class: IP54
