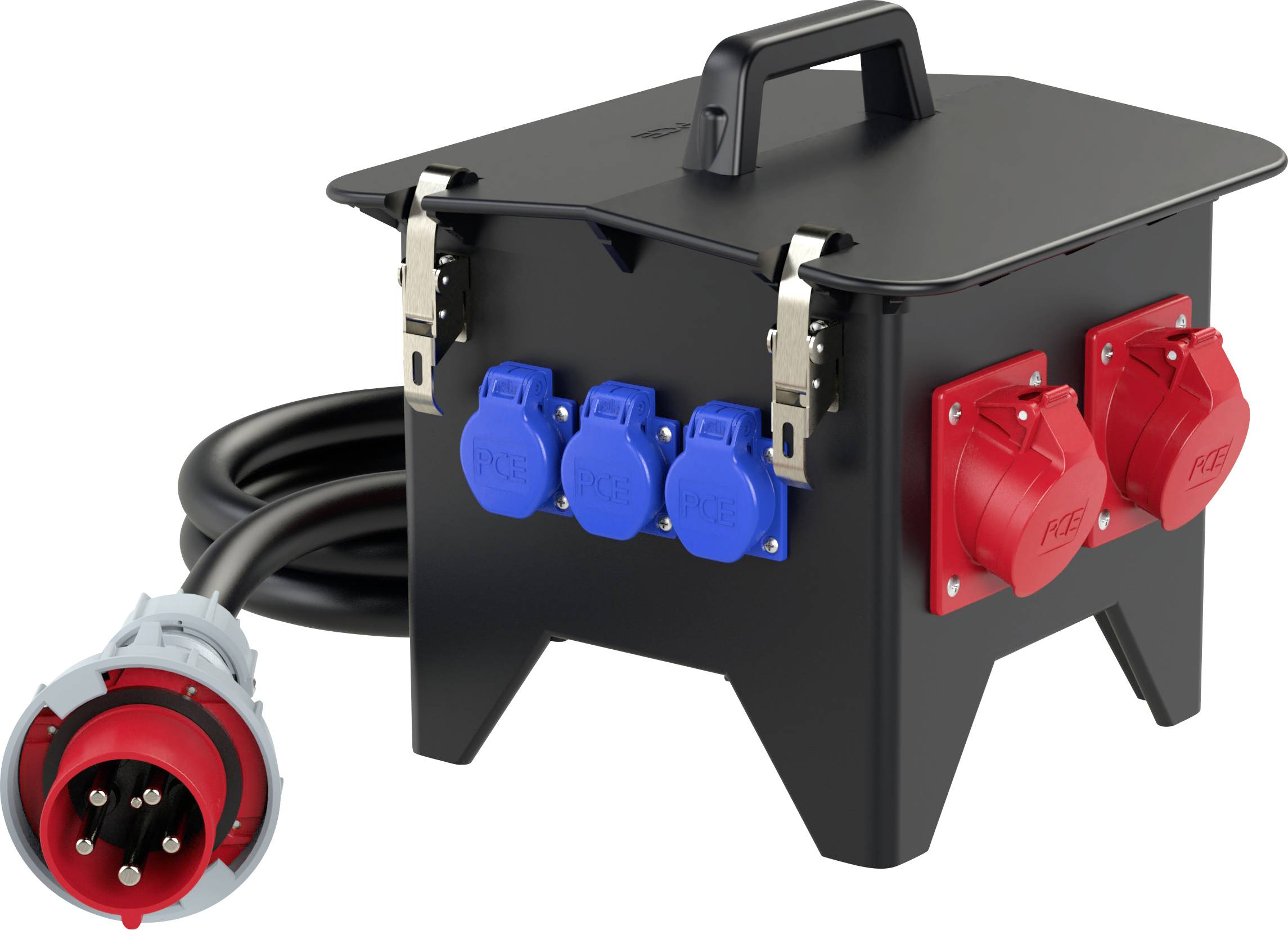

Portable construction power distribution box with a handle, multiple blue and red sockets, and an attached black power cable.

Portable construction power distribution box with a handle, multiple blue and red sockets, and an attached black power cable.

PC Electric

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

2 m cable H07RN-F 5G16 mm2 black with plug 63A 5P 400V
1 x CEE-socket 32A 5P 400V secured ü. 1 x LS 32A 3P C
2 x CEE-socket 16A 5P 400V secured ü. 2 xls 16A 3P C.
3 x SK socket 16A 250V IP54 secured ü. 3 x LS 16A 1P C
1 x FI 63A/4/0.03A (TYPE A 63AT) via all outputs
Circuit breaker switch and FI manufacturer Eaton EVE / VDE
Distributor connected ready for operation
Number of circuit breakers: 6
Infeed/connection option: Supply cable with plug
Type of mains connection: CEE 63 A.

Product type: CEE power distributor

No. of CEE connectors: 3

Type A: CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)

Type B: PG socket

No. of PG sockets: 3

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Cable length: 2.00 m

Cable standard: H07RN-F 5G 16 mm²

Factory colour: Black

Weight: 12.400 kg

Dim: (W x H x D) 320 x 320 x 320 mm

Width: 320 mm

Height: 320 mm

Inputs (CEE power distributor): CEE plug (5-pin, 63 A)

Outputs (CEE power distributors): CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Depth: 320 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2389959 PC Electric CEE power distributor Spitz 94741511 400 V

Description

Mobile distributor solid rubber series POINTED BV 32/5 2x16/5 3xSSD 2m5G16St6 EA IP54.

This text is machine translated.

Features

Portable full rubber housing
Protection class II (standard)
Lid fixing through lockable quick-release fasteners
Ergonomic carrying handle
Sturdy plastic inboard as contact protection
Excellent impact resistance
High temperature and shape resistance
Very good electrical insulating properties
High resistance to weathering
UV and ozone resistant
Resistant to sweat and sparks
High mechanical strength
Resistant to aging and corrosion
Resistant to various oils, greases, acids etc.
Case made of solid rubber
Glow wire-proof 960 °C according to EN 60695-2-11
Non-flammable according to EN 60695-11-5
Mechanical resistance IK08 according to EN 50102
External rust-free metal parts
High-quality technical plastic parts.
