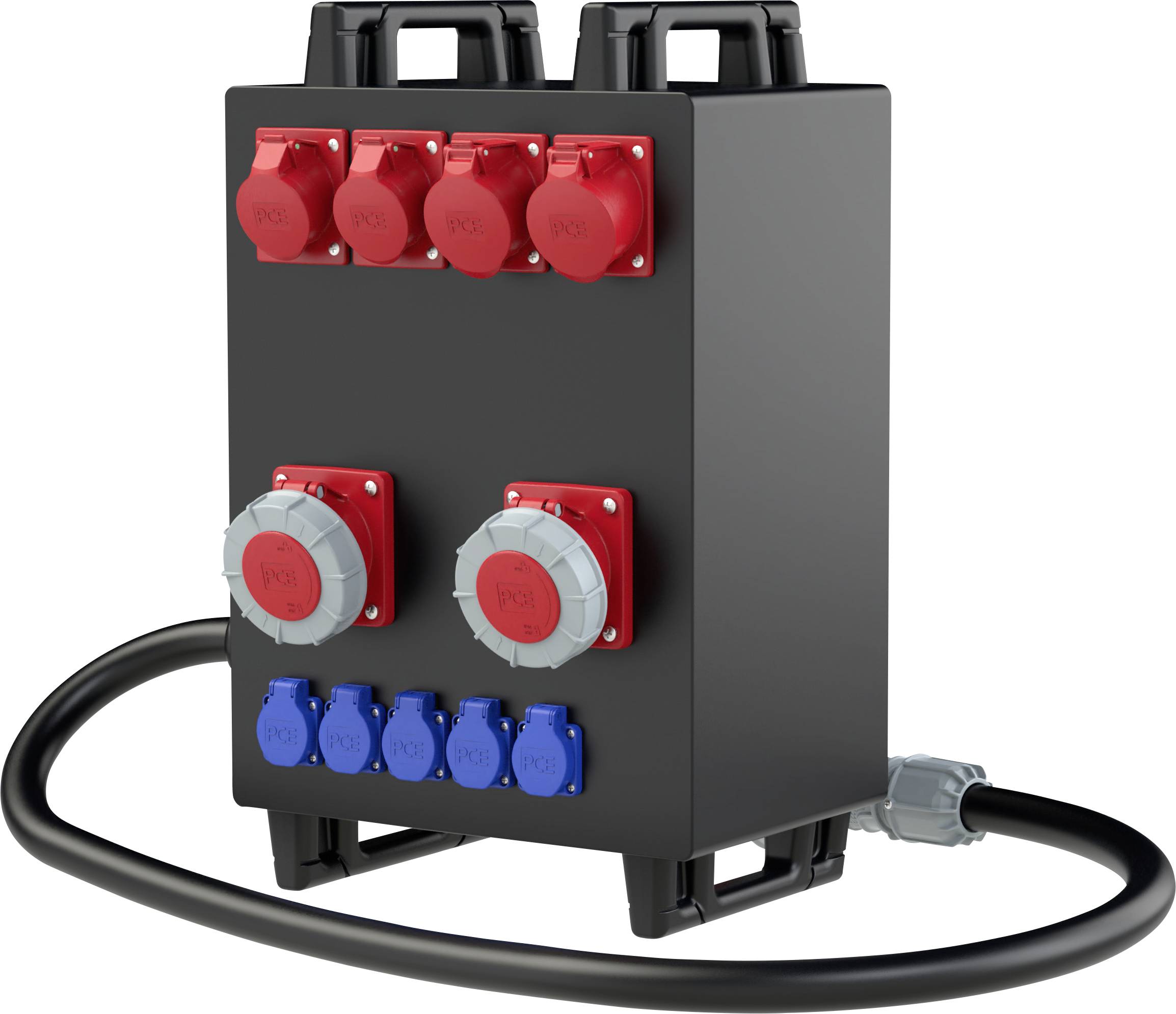

PC Electric CEE power distributor Zirl 9545305 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CEE power distributor
- Type A
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 65 A)
CEE socket (5-pin, 125 A)
- Type B
PG socket
- No. of PG sockets
6
- Nominal input voltage
400 V
- Dim
(W x H x D) 400 x 527 x 270 mm
- Width
400 mm
- Height
527 mm
- Content
1 pc(s)
- Number of pins
5
- Depth
270 mm
Documents & Downloads
Datasheet
Datasheet 2389963 PC Electric CEE power distributor Zirl 9545305 400 V
Description
Features
- 4-way wall mounting sealed from wiring room
- Protection class II (standard)
- Vulcanized brass nuts for lid mounting
- Captive cover screws
- Hinges between the lower part of the housing and the cover (variant)
- Excellent impact resistance
- High temperature and shape resistance
- Very good electrical insulating properties
- High resistance to weathering
- UV and ozone resistant
- Resistant to sweat and sparks
- Highest mechanical strength
- Resistant to aging and corrosion
- Conditionally resistant to various oils, greases, acids etc.
- Case made of solid rubber
- Glow wire-proof 960 °C according to EN 60695-2-11
- Non-flammable according to EN 60695-11-5
- Mechanical resistance IK08 according to EN 50102
- Cover made of PA reinforced / door made of PMMA
- External metal parts rust-free
- High-quality technical plastic parts.
- This text is machine translated.
