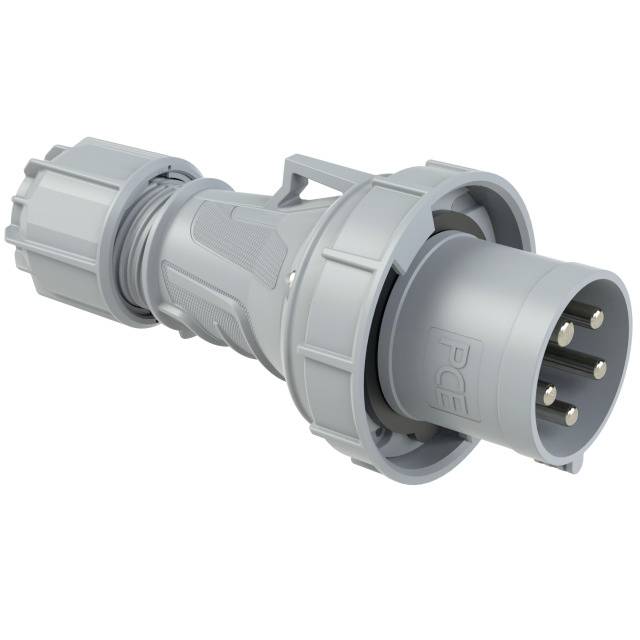

PC Electric Power Twist 035-1 CEE plug 63 A 5-pin 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
14-day return policy included
Technical specifications
- Housing material PA6
- 5 PINS (3P+N+PE)
- Clock position: 1h
- Rated voltage/frequency: >50V/other
- Nickel-plated brass contacts with pilot pin
- Connection technology: Frame terminals with screws
- Product type
CEE plug
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screws
- Type B
CEE connector
- Cores
5
IP67
- Standards
IEC 60309
- Factory colour
Grey
- Dim
(W x H) 115.0000 mm x 115.0000 mm
- Width
115.0000 mm
- Height
115.0000 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2936858 PC Electric Power Twist 035-1 CEE plug 63 A 5-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2936858 PC Electric Power Twist 035-1 CEE plug 63 A 5-pin 1 pc(s)
Information
Information 2936858 PC Electric Power Twist 035-1 CEE plug 63 A 5-pin 1 pc(s)
Description
CEE-plug 63A 5p 1H IP67 Power TWIST
