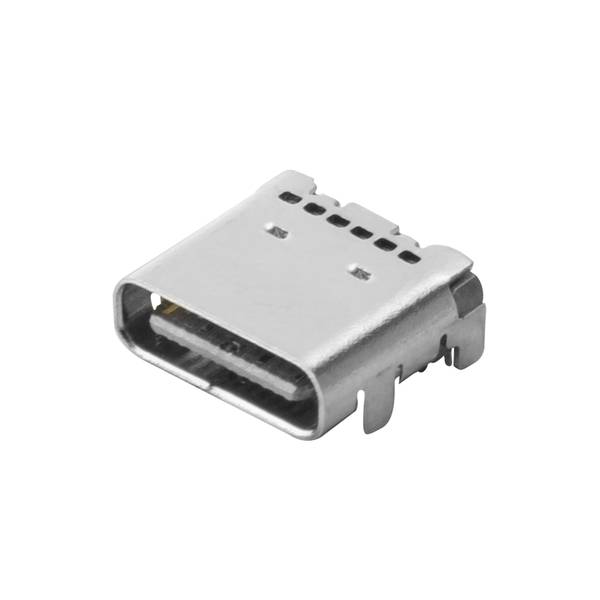

PCB connector USB socket, Type C, USB 3.1, 10 Gb/s , SMD solder connection, Roll PCB socket, straight USB3.1C S1H DN1 RL
EAN:
Part number:
Item no:
Product type
PCB connector
Connector type
PCB socket, straight
Number of pins
24
USB type
C®
Connector standard
USB-C® socket
Datasheet (PDF)
Technical specifications
- Type
USB3.1C S1H DN1 RL
- Type
Fixed connector
- Product type
PCB connector
- Connector type
PCB socket, straight
- Number of pins
24
- USB type
C®
- Connector standard
USB-C® socket
- Connection
SMD
- Connection
0°/180° (horizontal)
- Manufacturer part #
2987560000
- Factory colour
Black
- Content
1050 pc(s)
- Contact material
Gold
- Material
LCP
- Nominal voltage (details)
5 V
- Nominal current (details)
1:25 A
- Max. temperature
80 °C
- Min. temperature
-40 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750788 PCB connector USB socket, Type C, USB 3.1, 10 Gb/s , SMD solder connection, Roll PCB socket, straight USB3.1C S1H DN1 RL
User & Safety Instructions
User & Safety Instructions 3750788 PCB connector USB socket, Type C, USB 3.1, 10 Gb/s , SMD solder connection, Roll PCB socket, straight USB3.1C S1H DN1 RL
Description
PCB connector for USB data cables
