PCE 547255303 CEE plug 32 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details

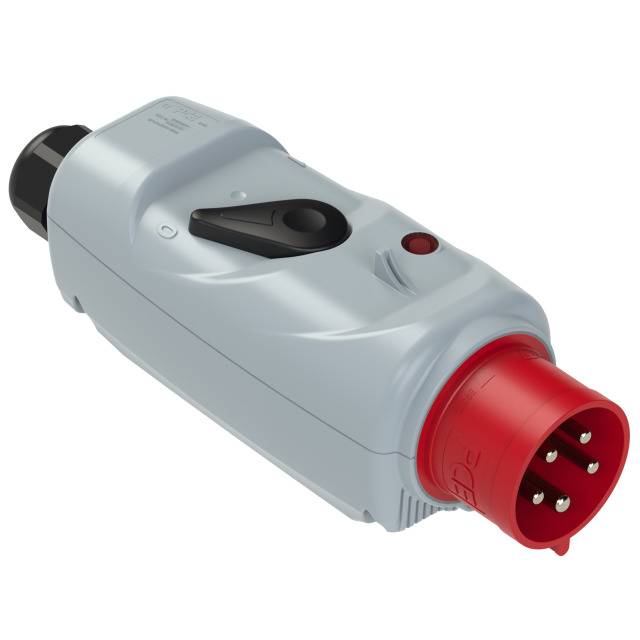

CEE-Plug with ON/OFF switch PW 32 A 5-pole 6h 0-1 spin control
- On/OFF switch
- Rotating magnetic field indicator
- IP44
Technical specifications
- CEE ON/OFF switch AC 22 A, 10 kA
- Without Bracket
- Product type
CEE plug
- Features
Rotating magnetic field indicator
Status indicator
Phase inverter
On/off switch
- Nominal voltage
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
M32 cable gland
- Type B

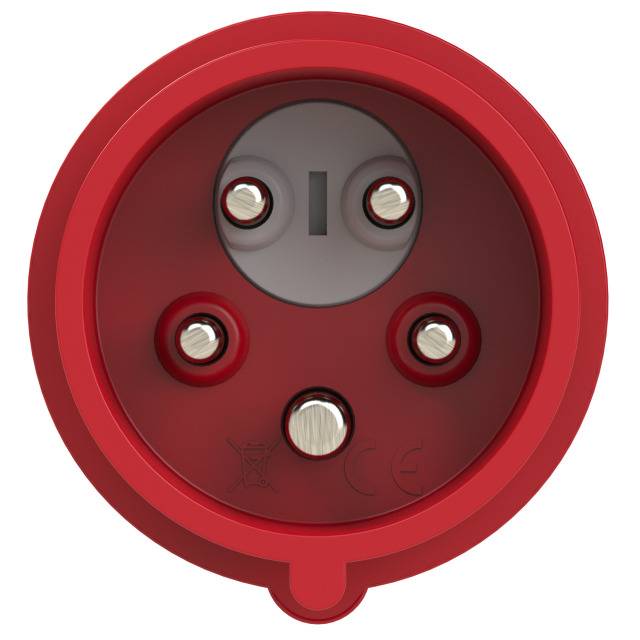

CEE plug (5-pin, 32 A)
- Cores
5
IP44
- Factory colour
Red
Grey
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1276661 PCE 547255303 CEE plug 32 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1276661 PCE 547255303 CEE plug 32 A 5-pin 400 V 1 pc(s)
Information
Information 1276661 PCE 547255303 CEE plug 32 A 5-pin 400 V 1 pc(s)
Description
CEE-Plug ML0 with operating display, phase and phase control.
This text is machine translated.
This text is machine translated.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
