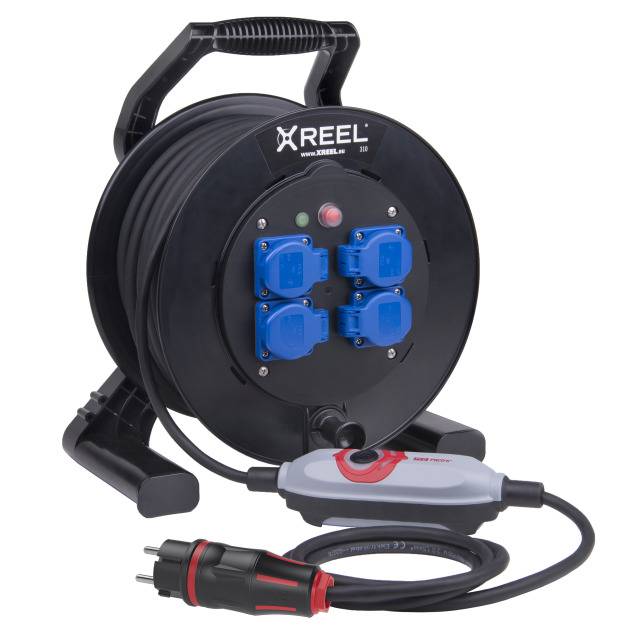

PCE 9350001 Safety cable reel Plastic PRCD-S+ Black, Blue, Grey, Red IP54
EAN:
Part number:
Item no:
Product type
Safety cable reel
Differential current rating
0.03 A
Factory colour
Black
Blue
Grey
Red
IP rating
IP54
Type
PRCD-S+
Number
Total (€ 390.76 / piece)
€ 390.76
plus VAT.
14-day return policy included
Highlights & Details
PRCD-S + safety cable reel XREEL 310
- Switch before or after haste
- Detects surge or direct voltage
- IP44
Technical specifications
- Product type
Safety cable reel
- Factory colour
Black
Blue
Grey
Red
IP54
- Differential current rating
0.03 A
- Type
PRCD-S+
- Cable colour
Black
- Cable length
40.00 m
- Cable standard
H07RN-F 3G 2,5 mm²
- Type A
PG plug
- Type B
PG socket
- Cable features
incl. PRCD
- Connector version
straight
- Material
Plastic
- Nominal input voltage
230 V
- Used at
Indoors
Outdoors
- Outlets
4
- Inputs
1
- Nominal current (details)
16 A
Documents & Downloads
Information
Information 1517615 PCE 9350001 Safety cable reel Plastic PRCD-S+ Black, Blue, Grey, Red IP54
Description
Craftsmen are often faced with the problem that you need to connect your power tools on sockets, whose functional safety do not check. Faulty electrical installations (e.g. lack of protective conductors, or interchanging of the protective earth conductor and outer conductor) are normally not visible without a more detailed investigation and thus particularly dangerous. This can result in serious accidents. The PRCD-S + the PCE protects the user against faulty electrical installations.
When plugging in the PRCD-S + into a socket with unknown protective measure, there is an automatic routine testing. Only if the socket in a proper and safe condition (signal unit flashes green), the PRCD-S + switch on. The signal unit is permanently illuminated in the color green. Only now can the electric load is switched on.
After commissioning of the electrical load that is used for the PRCD-S+ as residual current operated circuit breakers and protects the user against dangerous currents, which can be caused by faulty electrical equipment. In addition, the PRCD-S + undervoltage tripping, which an independent switching the consumer after a power failure.
This text is machine translated.
When plugging in the PRCD-S + into a socket with unknown protective measure, there is an automatic routine testing. Only if the socket in a proper and safe condition (signal unit flashes green), the PRCD-S + switch on. The signal unit is permanently illuminated in the color green. Only now can the electric load is switched on.
After commissioning of the electrical load that is used for the PRCD-S+ as residual current operated circuit breakers and protects the user against dangerous currents, which can be caused by faulty electrical equipment. In addition, the PRCD-S + undervoltage tripping, which an independent switching the consumer after a power failure.
This text is machine translated.
Features
- Optical Error Message
- Measuring error detection
- Earthing contact socket-outlets with sealing edge and self-closing hinged lids
- Thermal protection switches and protective contact plug for two-fold earthing system
- Operating voltage display
- This text is machine translated.
