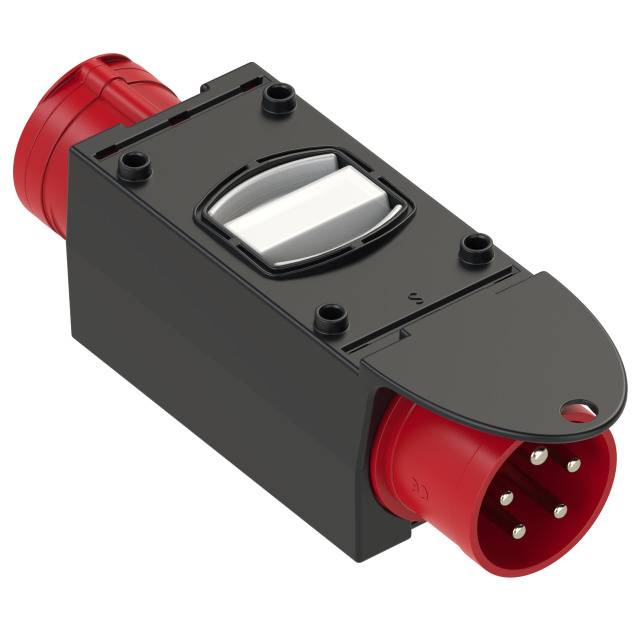

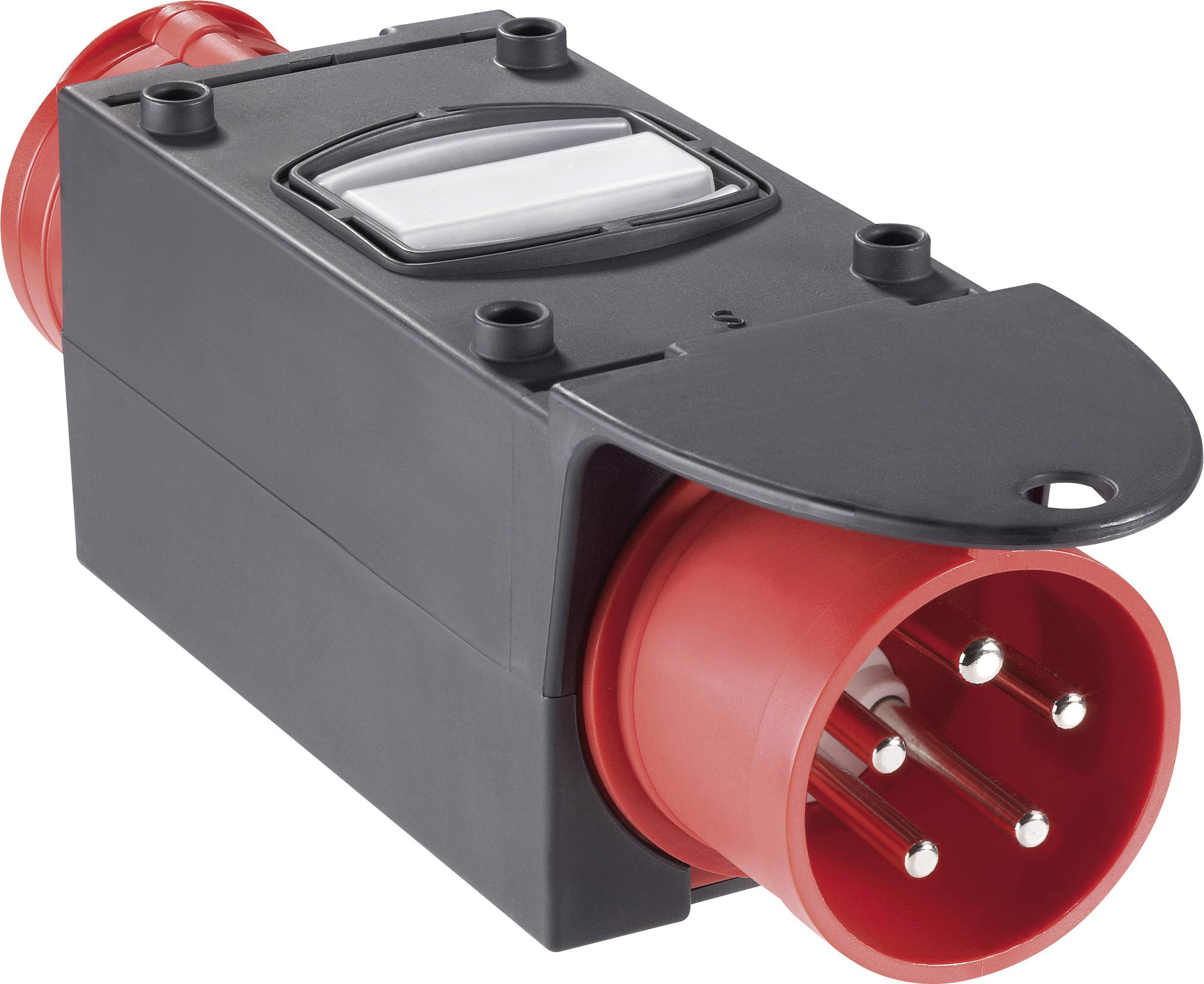

PCE 9436432 CEE adapter 32 A, 16 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
CEE-Transition A 32 A phase inverter/OFF 16A
- IP44
Technical specifications
- Product type
CEE adapter
- Features
Phase inverter
- Nominal voltage
400 V
- Nominal current
32 A
16 A
- Nominal current - rounded value
NaN A
- Type A
CEE plug
- Type B
CEE connector
- Cores
5
- Type
Input: CEE-phase inverter plug 32A/Output: CEE Coupling 16 A with LS C16 A 3-pin
IP44
- Factory colour
Red
Black
- Dim
(W x H) 81.0000 mm x 240.0000 mm
- Width
81.0000 mm
- Height
240.0000 mm
- Content
1 pc(s)
- Number of pins
3
- Weight
0.900 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 554196 PCE 9436432 CEE adapter 32 A, 16 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 554196 PCE 9436432 CEE adapter 32 A, 16 A 5-pin 400 V 1 pc(s)
Description
Mobile plastic junction type St. Anton-2f IP44 with bracket. Attached ready to use.
