PCE CEE power distributor DELTA Lofer 9019153 400 V 16 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Plastic Junction Lofer 16A
- IP54
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
Screw terminals
- Type B
CEE connector (5-pin, 16 A)
PG connector
- No. of PG sockets
2
- Inputs
Screw terminals
- Outputs
1 CEE-socket 16A, 5-pin, 2 outlets 16 A (230 V)
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
16 A
IP54
- Protection
1 line safety switch C 16 A 3-pole, 2 Line safety switch C 16 A 1-pin, 1 FI-circuit breaker 40 A (30 mA)
- Dim
(L x W x H) 520 x 297 x 165 mm
- Length
520 mm
- Width
297 mm
- Height
165 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
- Depth
140 mm
Documents & Downloads
Datasheet
Datasheet 552990 PCE CEE power distributor DELTA Lofer 9019153 400 V 16 A
User & Safety Instructions
User & Safety Instructions 552990 PCE CEE power distributor DELTA Lofer 9019153 400 V 16 A
Information
Information 552990 PCE CEE power distributor DELTA Lofer 9019153 400 V 16 A
Description

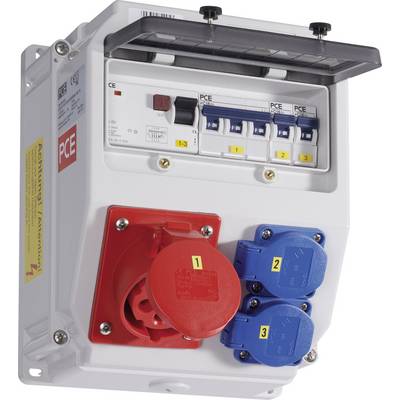

Wall distributor made of plastic series DELTA with 9 part units in the folding window.
This text is machine translated.
This text is machine translated.
