Buy PCE CEE power distributor Ried BV32A 9473080 400 V 32 A

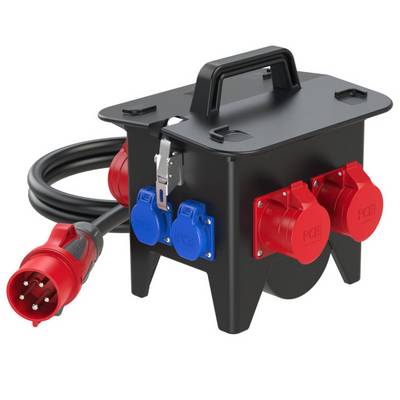

Black extension lead with four red and two blue sockets. Carry handle on top and robust design for outdoor use.

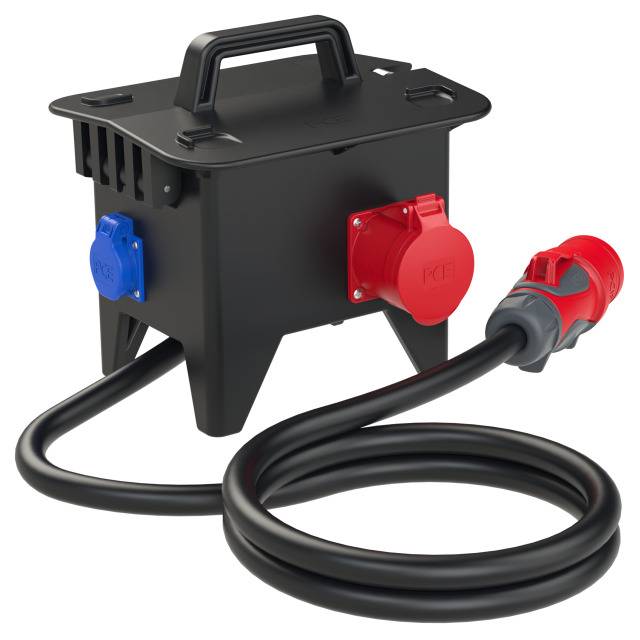

'Black portable power distribution box with a blue and a red connection point, a long black cable, and a red plug.'

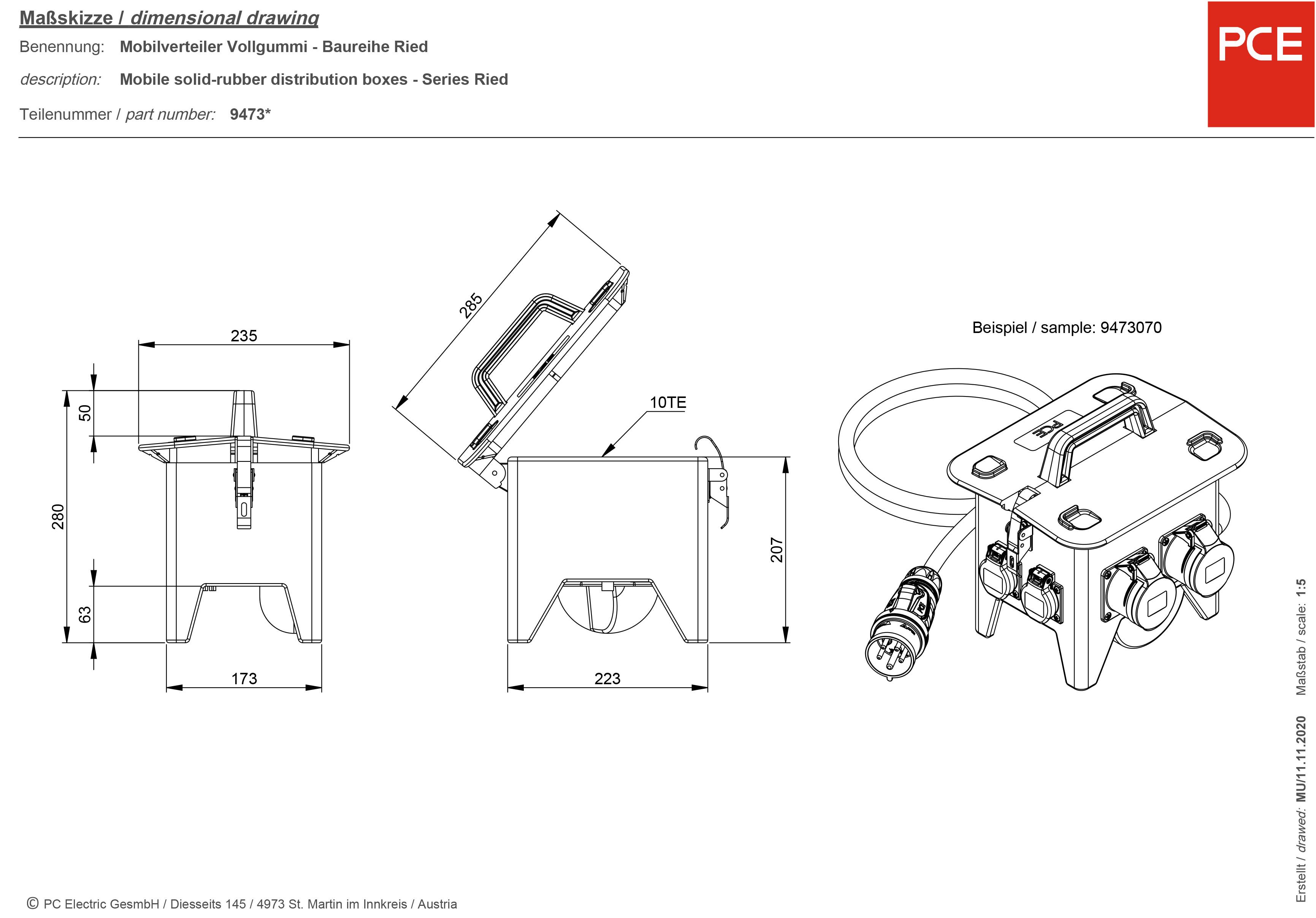

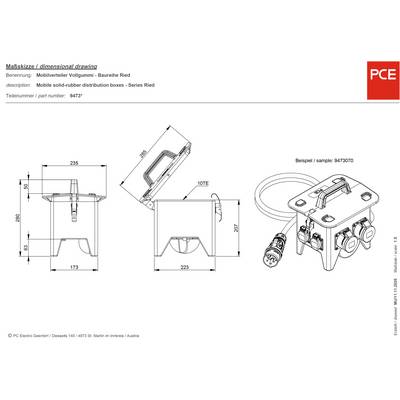

'Technical drawing of a mobile solid rubber distributor with carrying handle, multiple slots, and dimensions. Example number: 9473070.'

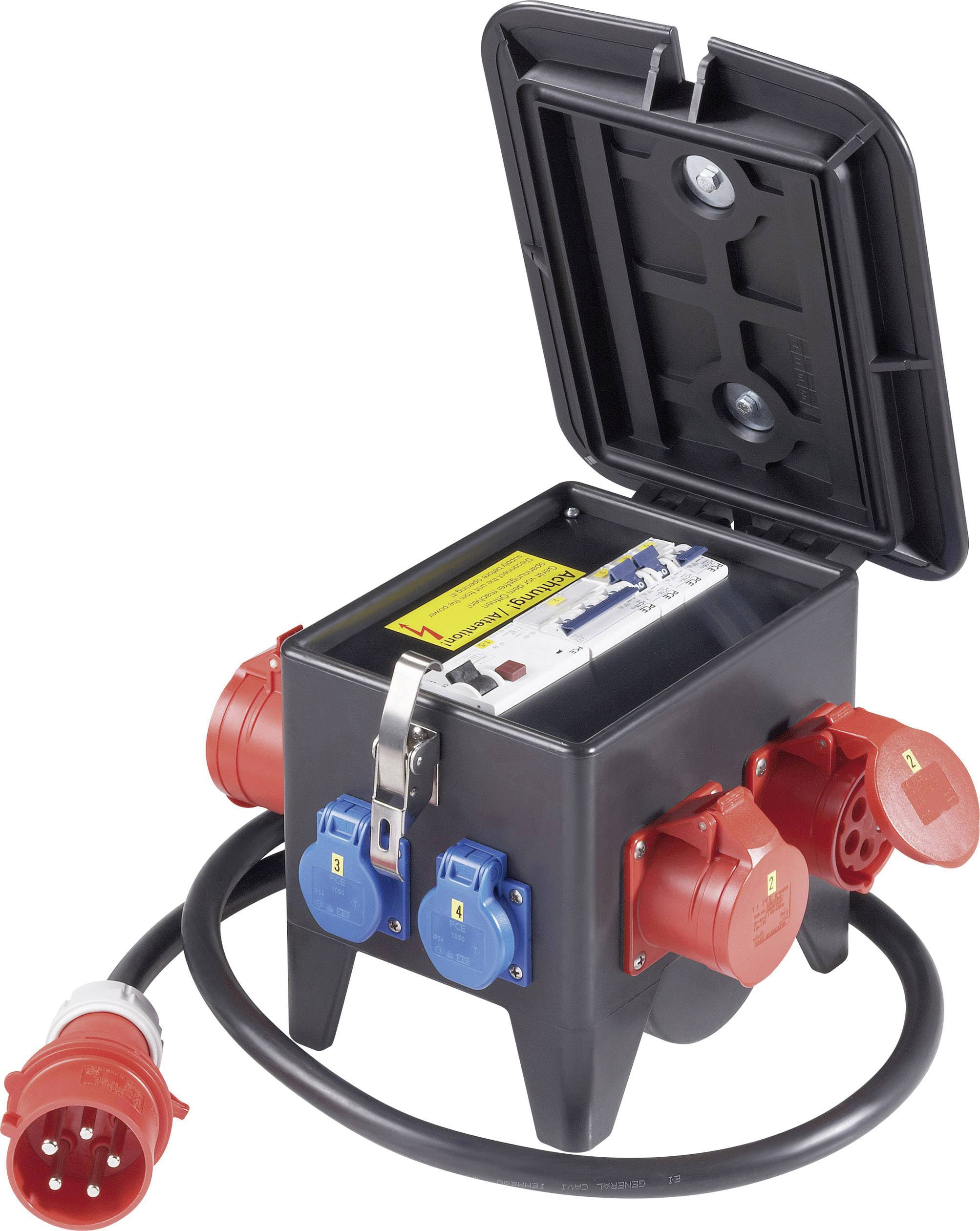

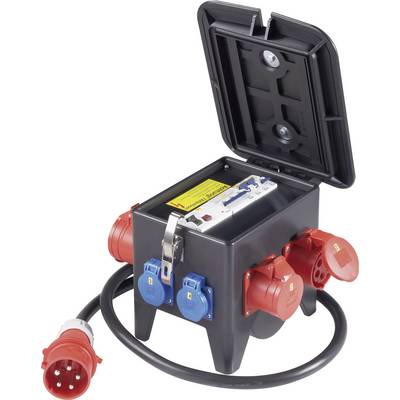

A mobile electrical distribution box with multiple blue and red sockets and an open lid reveals the fuses inside.

1/4

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 444.54 / piece)

€ 466.39

-5 %

€ 444.54

plus VAT.

Report legal concerns

Highlights & Details

Mobile full-rubber distribution model Ried BV 32 A

IP44

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 3

Type A: CEE plug (5-pin, 32 A)

Type B: CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

No. of PG sockets: 3

Inputs: CEE plug, 32 A, 5-pin

Outputs: 2 CEE-socket 16A, 5-pin, 1 CEE-socket 32A, 5-pin, 3 outlets 16 A (230 V)

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Cable length: 2.00 m

Protection: 1 line safety switch C 16 A 3-pole, 3 Line safety switch C 16 A 1-pin, 1 FI-circuit breaker 63 A (30 mA)

Factory colour: Black

Weight: 7.300 kg

Dim: (W x H x D) 235 x 285 x 281 mm

Width: 235 mm

Height: 285 mm

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 281 mm

Documents & Downloads

Datasheet

Datasheet 552968 PCE CEE power distributor Ried BV32A 9473080 400 V 32 A

Description

Portable, handy rubber distributor, ready for connection. The FI-protection switch is concealed under the fold-hinged lid with snap closure. All sockets are protected by the early protective border. The closed lower part of the casing with high ground clearance prevents any water entry from below. The distributors are stackable.
