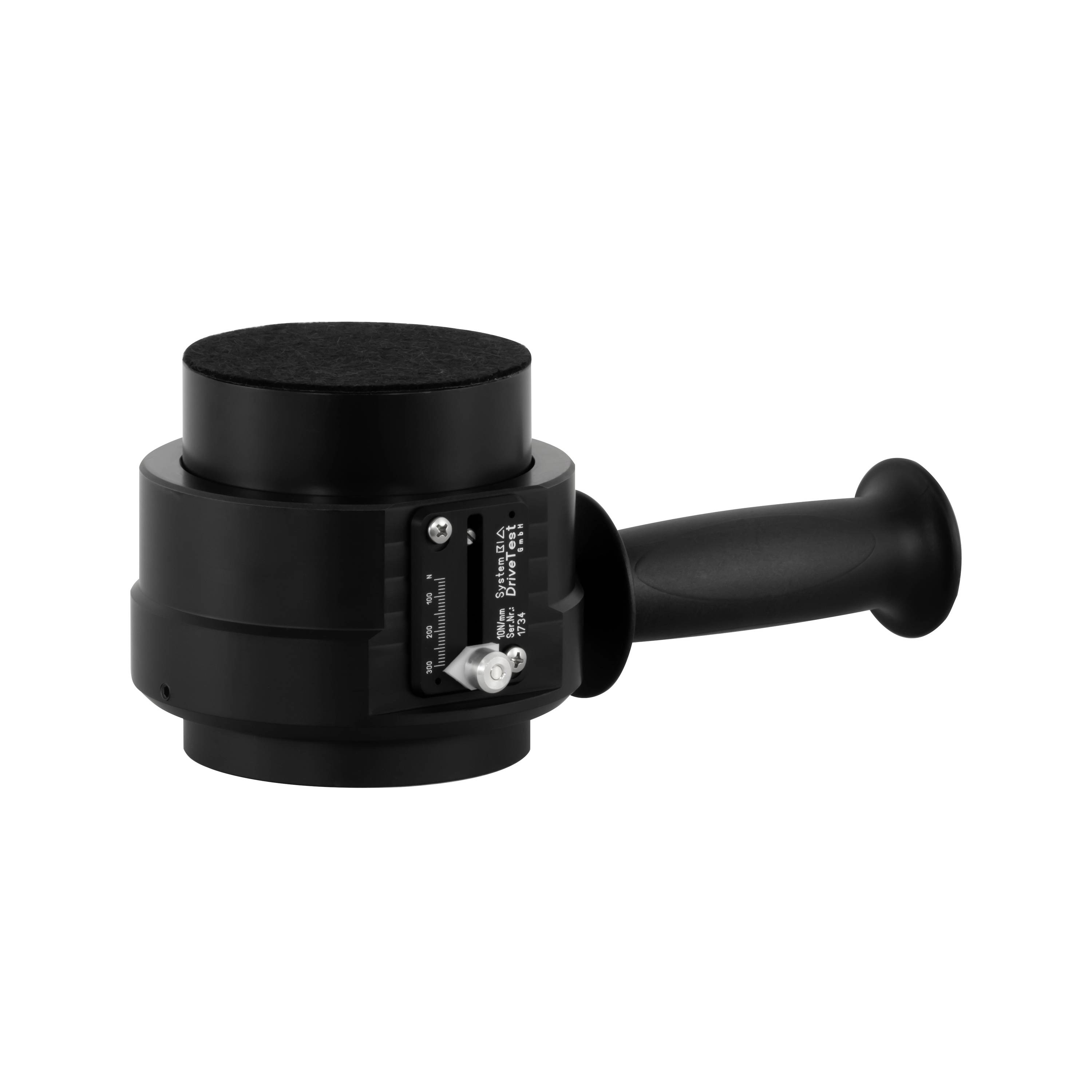

Black handheld camera focus controller with a cylindrical body and side handle, shown on a plain white background.

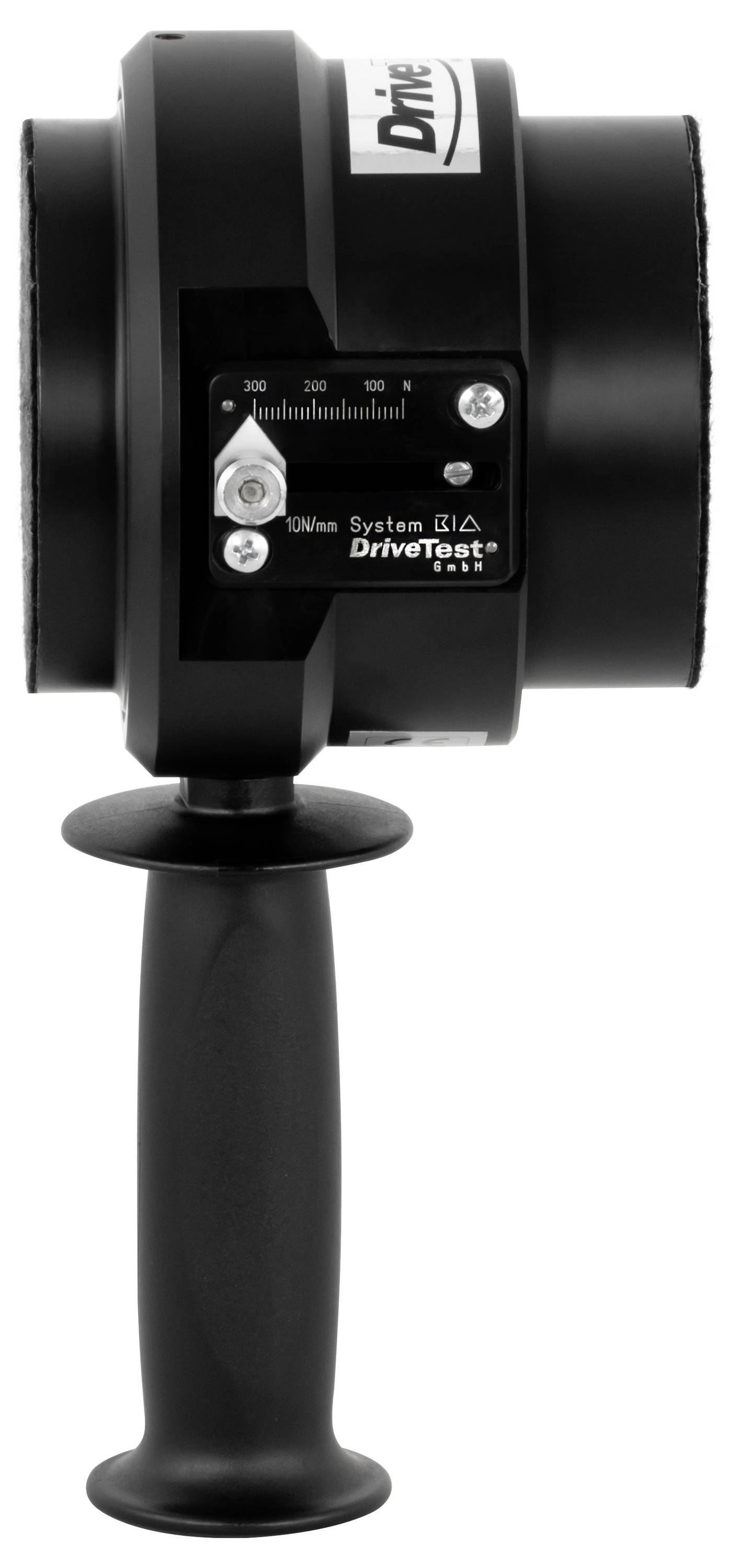

Black handheld torque tester tool labeled 'DriveTest' with adjustment scale and grip handle on a white background

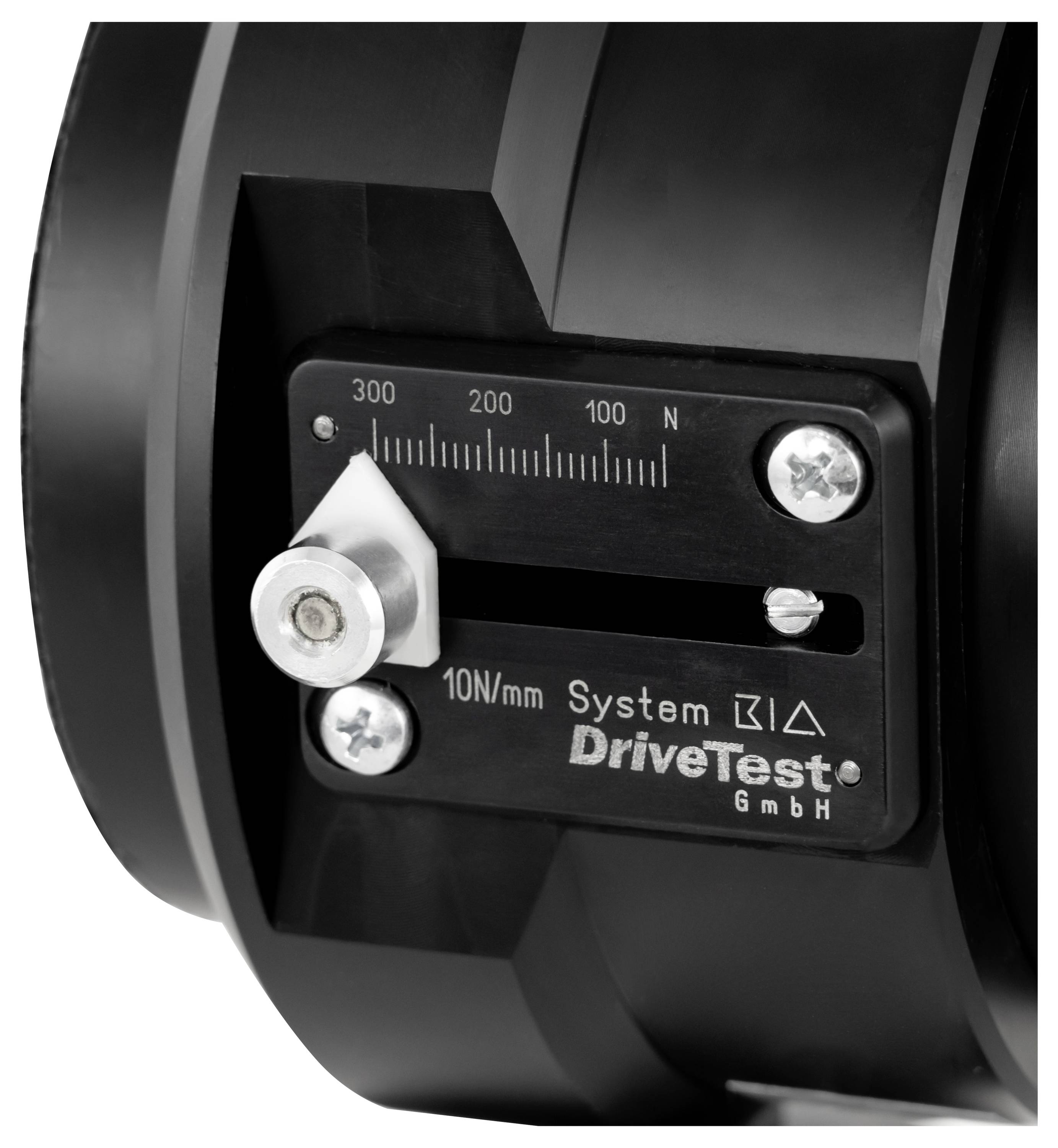

Close-up of a DriveTest force gauge dial with a 0–300 N scale and 10 N/mm label.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments BIA2-SE-10-300 Door force gauge 0 - 300 N ISO standards

Measuring device for closing force / safety by clamping forcePrecise measurementsRobust design.Easy to useComplete delivery package including high-quality transport caseComprehensive user supportCalibration Service

Technical specifications

Original BIA class 2Measuring range must be selectedAccuracy +/ 10 N or 5% of the measured valueStiffness 10 N/mm or 25 N/mm selectableGap width 115 mmDiameter 100 mmDrag hand indicator measuring principleDimension: 260 x 130 x 115 mmWeight 21 kg.

Product type: Door force gauge

Display: Analogue

Force reading range (max.): 300 N

: ISO standards

Dim: (L x W x H) 260 x 130 x 115 mm

Weight: 2100 g

Resolution (force): 20 N

Basic accuracy: 5 %

Force reading range: 0 - 300 N

Force reading range (min.): 0 N

Reading frequency: 250 Hz

Width: 130 mm

Height: 115 mm

Length: 260 mm

Interfaces: RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
1x USB 2.0 (host)
Show more

Documents & Downloads

Datasheet

Datasheet 2813709 PCE Instruments BIA2-SE-10-300 Door force gauge 0 - 300 N ISO standards

User & Safety Instructions

User & Safety Instructions 2813709 PCE Instruments BIA2-SE-10-300 Door force gauge 0 - 300 N ISO standards

Description

The original BIA class 2 is a mechanical clamping force meter for bus doors. The complex design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.

This text is machine translated.

Features

Precise measurementsRobust design.Easy to useComplete delivery package including high-quality transport caseComprehensive user supportCalibration Service
