PCE Instruments Differential pressure gauge PCE-PDA 1L Connector (pressure gauge): Bottom 1 pc(s)

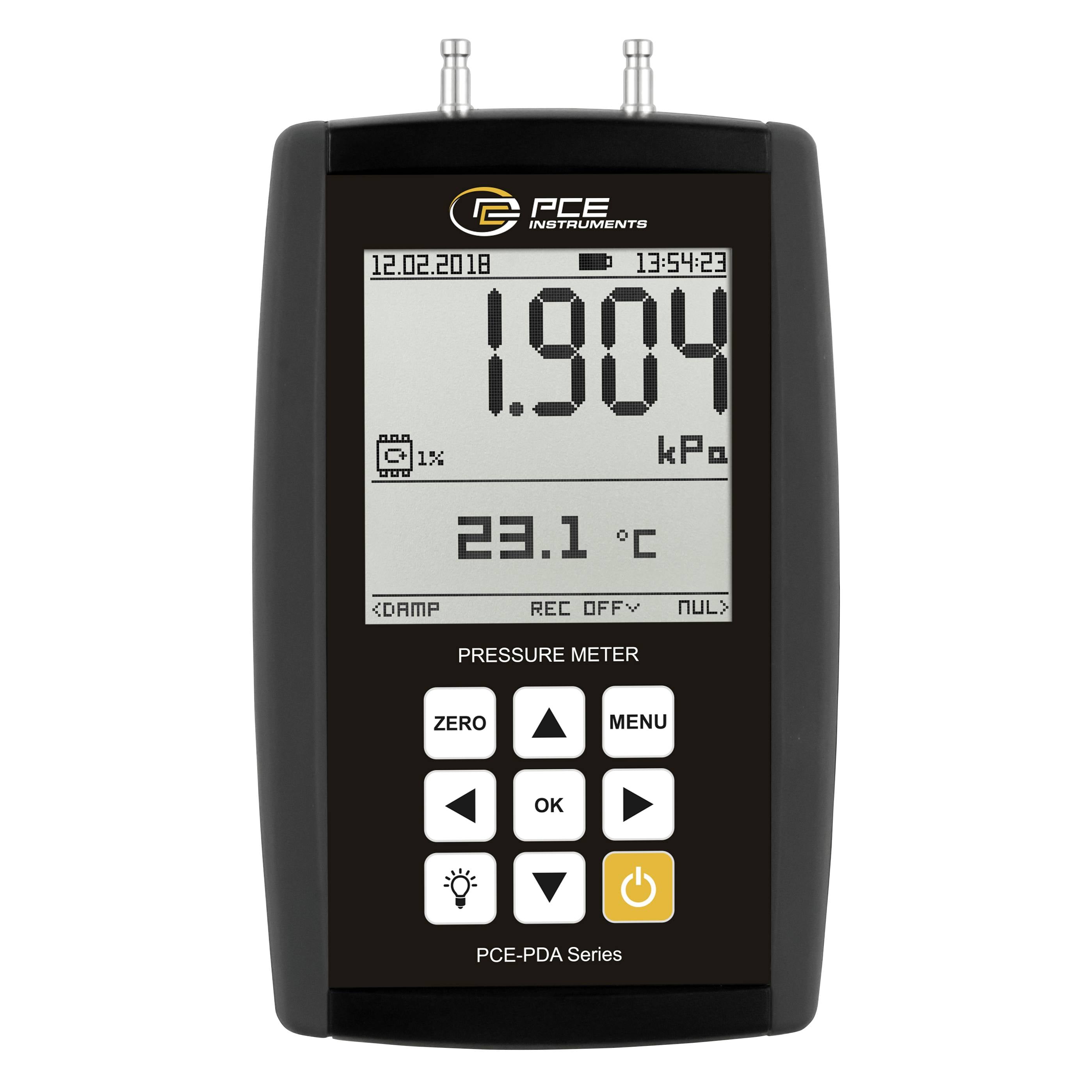

Differential pressure manometer PCE-PDA 1L Differential pressure manometer for relative and differential pressure / Pitot tube can be adapted to differential pressure manometer / MAX MIN function / Data logger The differential pressure gauges of the PCE-PDA series are reliable differential pressure gauges for the pressure measurement of gases in the range of ±200 Pa, ± 2kPa or 20 kPa depending on the model. The differential pressure gauge has many different pressure measurement functions. This means that the user has over 16 units. Furthermore, the differential pressure gauge measures the temperature, flow rate and flow rate in addition to the differential pressure. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can be switched optionally. A high-precision mode is integrated in the differential pressure gauge, which increases the resolution by ten times. The PCE-PDA differential pressure manometer has a data logger function. In addition to the continuous storage of the measured values, this enables a leak test to be carried out on pressure lines. In data logger mode, it is possible to set a time period on the differential pressure gauge in which the data is stored at a previously selected interval. In leakage measurement mode, the user must specify the measuring duration and the differential pressure level. After the measurement, the differential pressure gauge then indicates the deviation from the setpoint. In addition to these two functions, the differential pressure gauge can determine the flow velocity or the volume flow in lines with optionally available pilot tubes.
