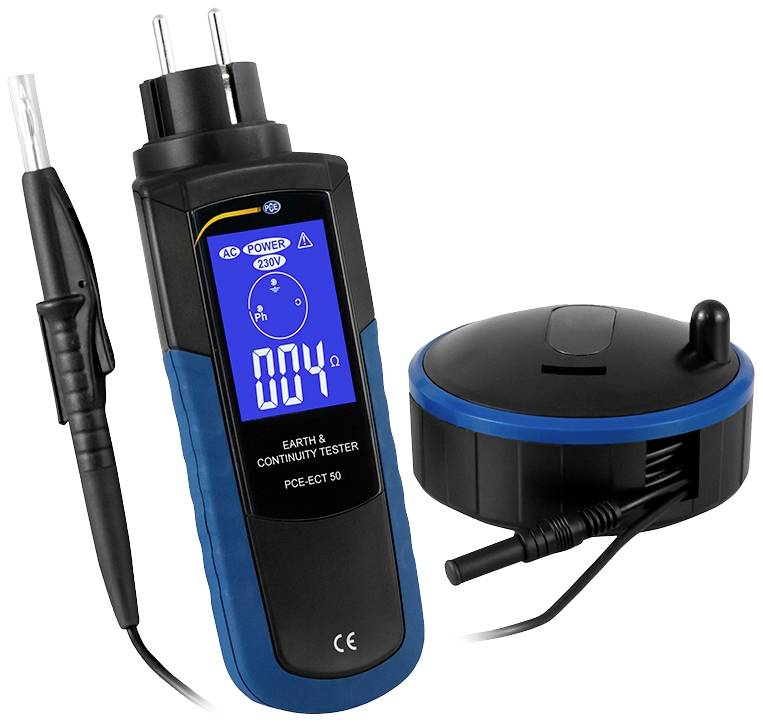

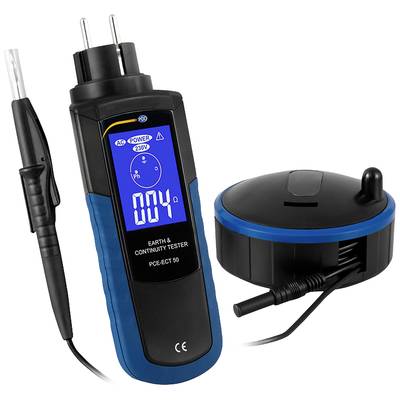

'Earth and continuity tester' with blue display shows '004 Ω'. Includes test probe and black base station with cable.

'Device for measuring earthing and continuity, PCE-ECT 50; displays voltage value (230V) and ohm measurement on blue display.'

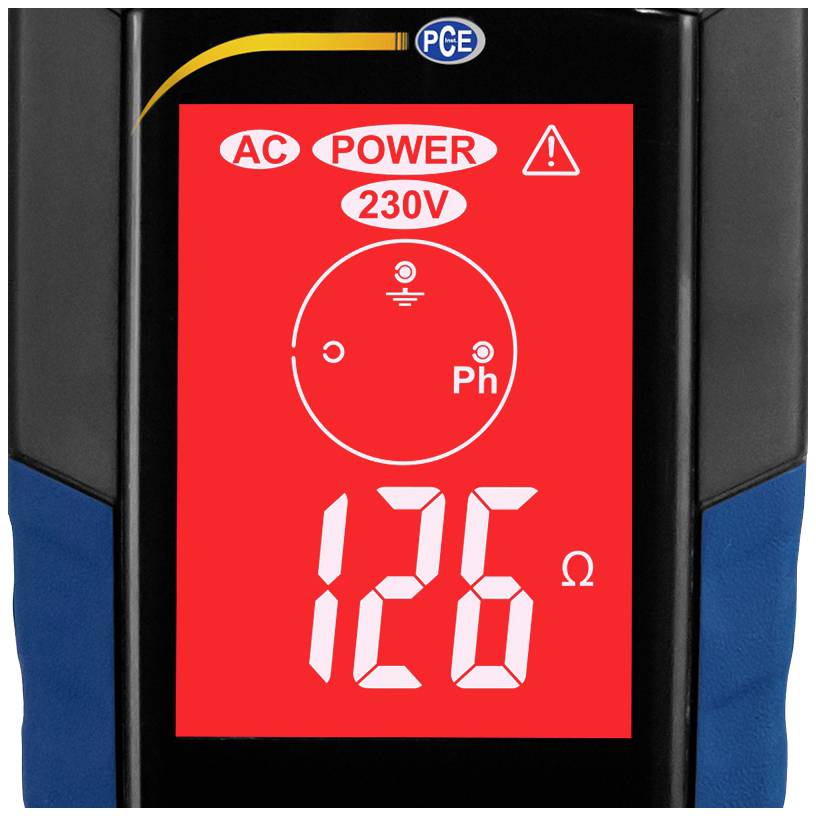

Digital display of an electrical test device shows 'AC Power 230V' and '126 Ω'. Safety warning symbol is visible.

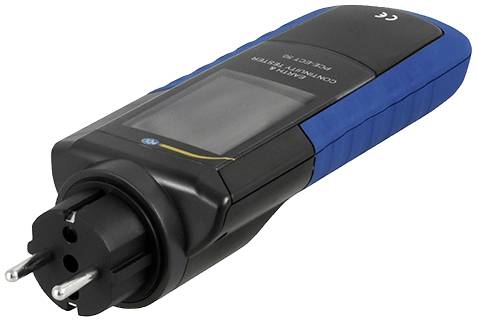

A portable measuring device for checking sockets and electrical connections, featuring a display and a three-pin plug.

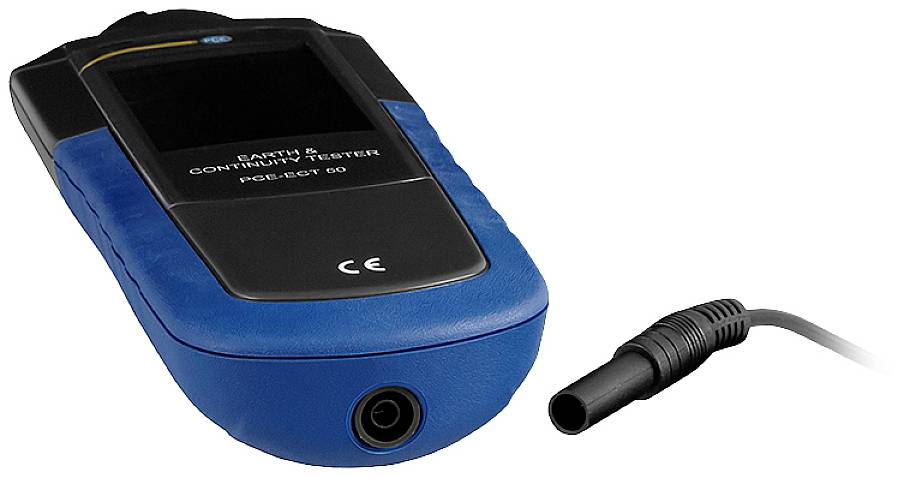

A navy blue card and continuity tester with CE marking, shown with a detachable cable on the right side.

1/5

Datasheet (PDF)

338 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Report legal concerns

Highlights & Details

Earth ground tester PCE-ECT 50

Multi-colored, backlit LCD
Installation category III.
50 / 60 Hz operating voltage
High measuring accuracy
Handy design
IP40, IK06 protected

Technical specifications

Measuring principle continuity test/earth resistance measurement Measurement range 0 ... 2000 Ω Display two-color, backlit LCD Accuracy ± (3% + 3 digits) at 0 ... 200 Ω At 23 °C ±5 °C. Operating voltage 230 V (Ph/N) -10 / +6 % Operating frequency 50 / 60 Hz Standards IEC 611010-1 EN 61557-4, Class II, IP40, IK06 Installation category III.Operating temperature -15 ... +45 °C Storage temperature -25 ... +70 °C Dimensions 72 x 210 x 50 mm (W x L x H) Length of test cable approx. 7 m. Weight 340 g Power supply 9V block

Product type: Earth ground meter

: Manufacturer's standards (no certificate)

: IP40

Dim: (L x W x H) 200 x 71 x 50 mm

Weight: 340 g

Display: LCD

Content: 1 pc(s)

Width: 71 mm

Height: 50 mm

Length: 200 mm

Type: PCE-ECT 50

Documents & Downloads

Datasheet

Datasheet 2452416 PCE Instruments Earth ground meter

User & Safety Instructions

User & Safety Instructions 2452416 PCE Instruments Earth ground meter

Conformity certificate

Conformity certificate 2452416 PCE Instruments Earth ground meter

Description

Earthing tester for testing the earthing resistance / installation category III / 7 meter measuring line at the safety measuring tip / high measuring accuracy Protection class IP40 / 50, 60 Hz Operating voltage of the earthing tester is a handy measuring device. The robust and ergonomic design allows the user to work comfortably with the earthing tester. The earthing resistance can be quickly determined with the earthing tester. In addition, a check can be carried out to determine whether the earth is connected to each other. In order to guarantee a clear reading, the earthing tester has a large, clearly arranged, multi-colored LC-display. The display also provides visual feedback on the state of the installation. If the installation is OK, the display remains blue. In the event of a faulty installation, the display changes from the grounding tester to a red background. The earthing tester consists of a reading unit which is inserted into the socket as a whole and a safety test tip which is connected to the reading unit via the bottom. The safety test probe has a cable length of about seven meters.
