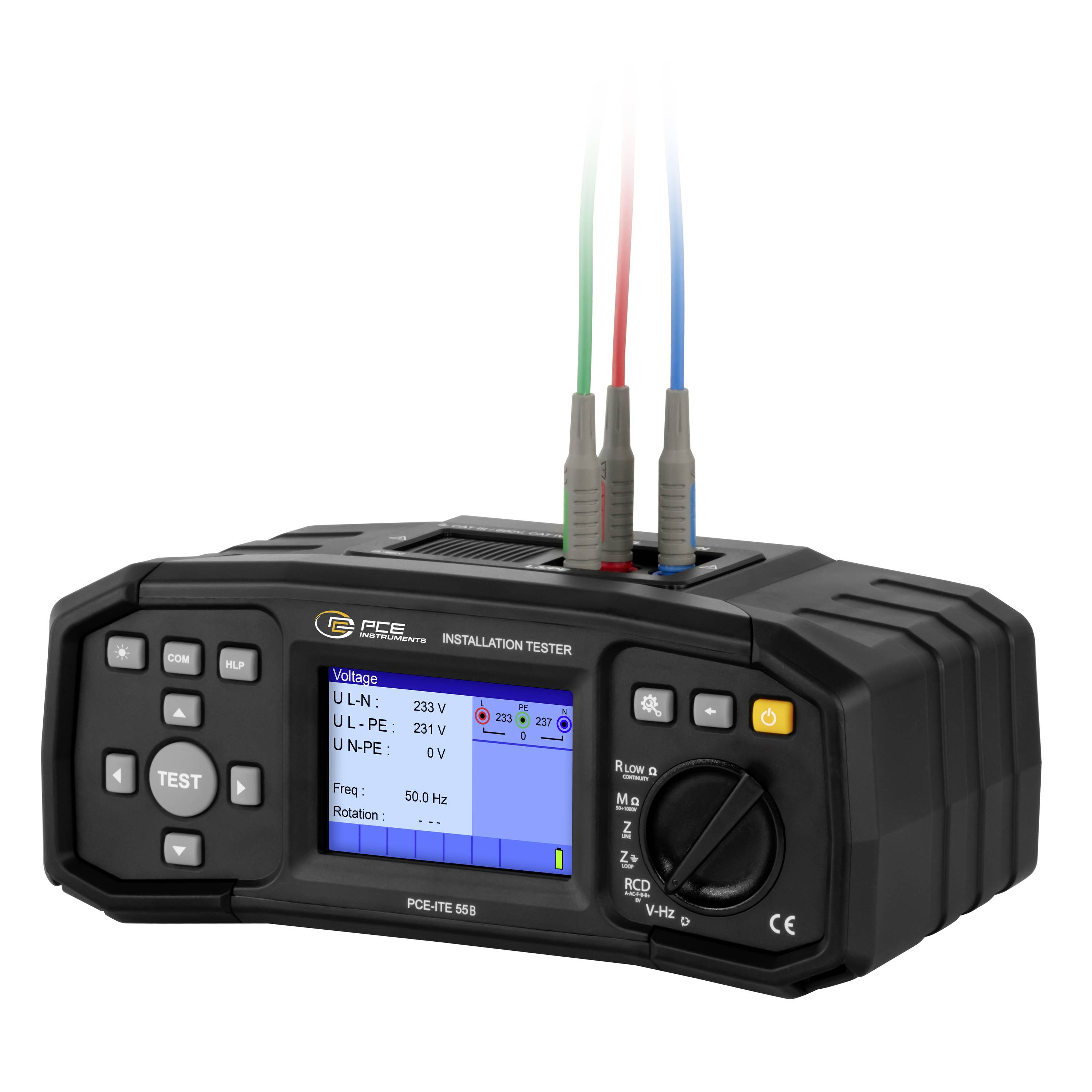

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-IT 55B

Multi-functional measuring device for testing electric safety according to EN 61557 and DIN VDE0100
RCD TYPE A, AC, B, B+ AND F
Installation tester with carrying strap
Quick testing of stationary installations
Insulating resistance
Error impedance
Selectable test voltages and residual currents
Menu in German or English
Circuit and fault loop impedance
Continuity testing
Voltage, rotary field and frequency
EV charging stations test with optional test adapter

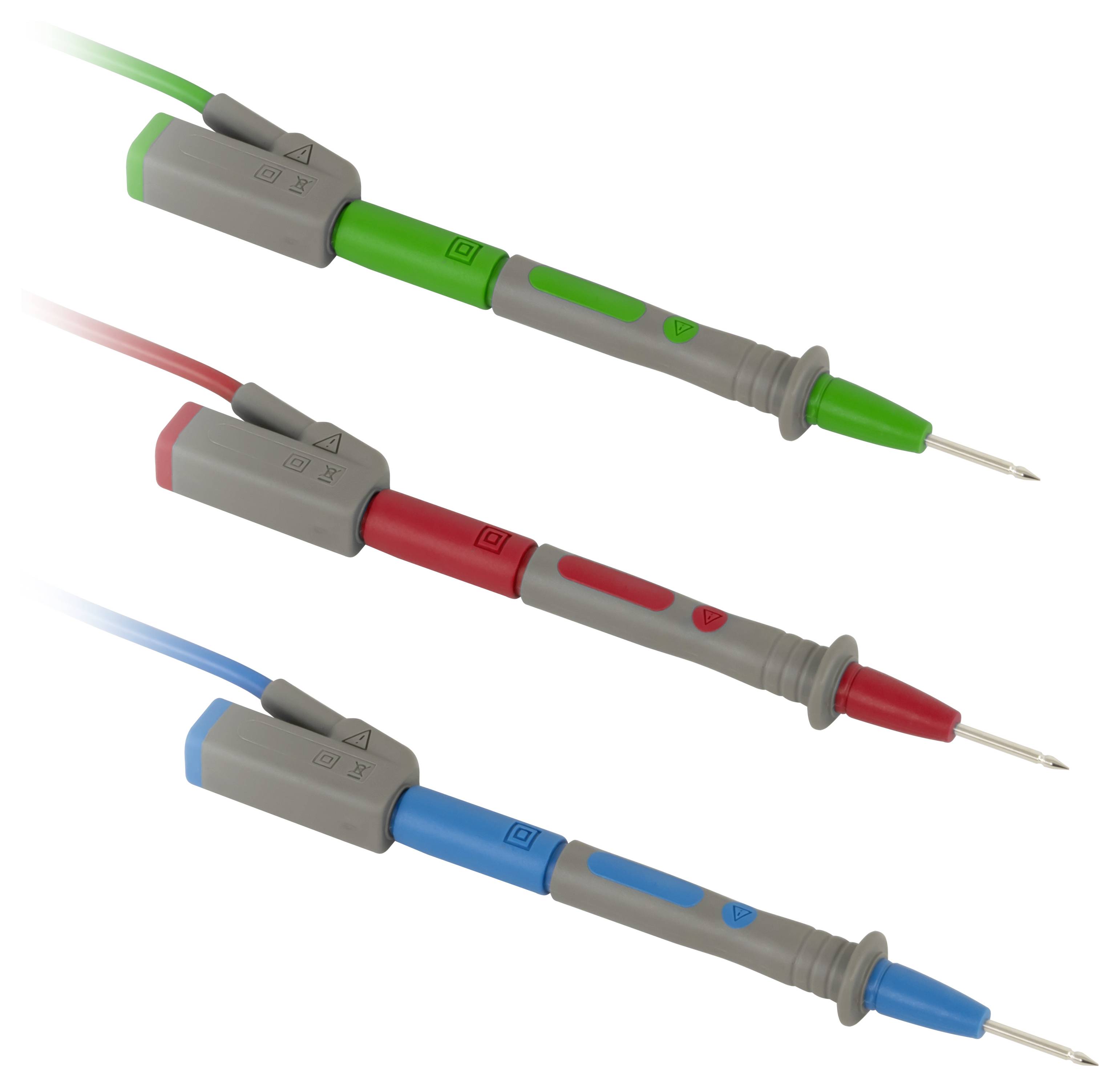

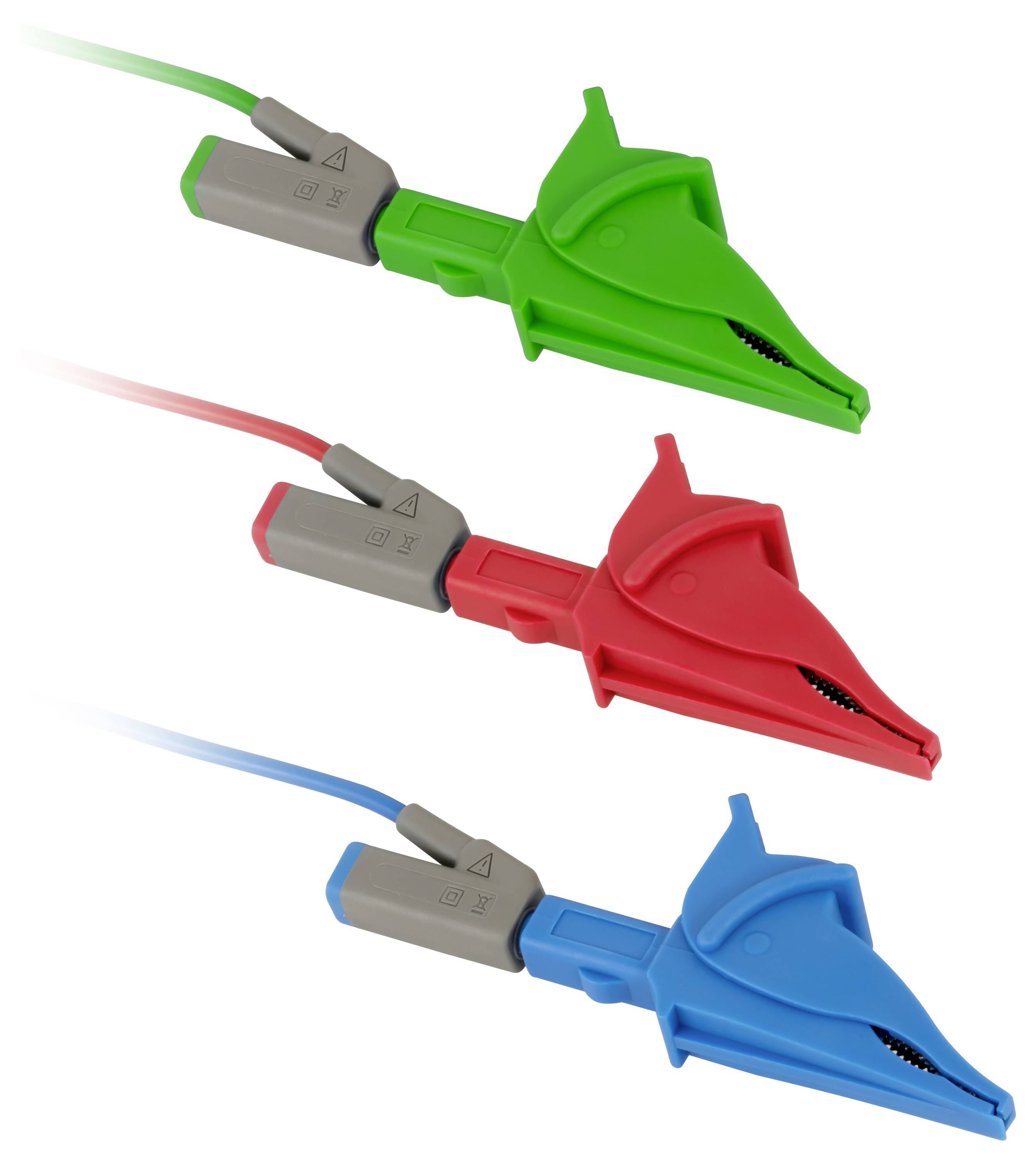

Test leads included

Technical specifications

Alternating voltage AC
Measuring range 0 V ... +550 V
Resolution 1 V
Accuracy ±(2 % from MW. + 2 digits)
Insulating resistance
Test voltage 50 V DC
Measuring range 0.1 M Ω ... +80 M Ω
Resolution 0.001 MΩ (0,100 ... 1,999)
0.01 MΩ (2.00 ... 80.00)
Accuracy ±(5 % from MW. + 3 digits)
Insulating resistance
TEST VOLTAGE DC 100 V, 250 V
Measuring range 0.1 M Ω ... +199.9 M Ω
Resolution 0.001 MΩ (0.100 ... 1.999)
0.01 MΩ (2.00 ... 99.99)
0.1 MΩ (100.0 ... 199.9)
Accuracy ±(5 % from MW. + 3 digits)
Insulating resistance
TEST VOLTAGE DC 500 V, 1000 V
Measuring range 0.1 M Ω ... +199.9 M Ω
Resolution
0.001 MΩ (0.100 ... 1.999)
0.01 MΩ (2.00 ... 99.99)
0.1 MΩ (100.0 ... 199.9)
Accuracy ±(2 % from MW. + 3 digits)
Insulating resistance
TEST VOLTAGE DC 500 V, 1000 V
Measuring range +200 M Ω ... +999 M Ω
Resolution 1 MΩ
Accuracy ±(10 % from MW.)
Continuity testing
Measuring range 0.1 Ω ... +20 Ω
Resolution 0.01 Ω
Accuracy ±(3 % from MW. + 3 digits)
Continuity testing
Measuring range +20 Ω ... +1999 Ω
Resolution 0.1 Ω (20.0 Ω ... 99.9 Ω
1 Ω (100 Ω ... 1999 Ω
Accuracy ±(5 % from MW.)
Impedance
Measuring range 0.25 Ω ... +9999 Ω
Resolution 0.01 Ω (0.20 ... 19.99)
0.1 Ω (20.0 ... 99.9)
1 Ω (100 ... 9999)
Accuracy ±(5 % from MW. + 5 digits)
Frequency
Measuring range +10 Hz ... +4999.9 Hz
Resolution 0.1 Hz
Accuracy 0.2% + 1 Digit
Display type TFT color display
Display size 3.3 inches
Standard(s) EN61557, DIN VDE 0100
Operating time 15 h
Automatic shutdown adjustable 0.5 ... 60 min.
Automatic switch-off deactivated Yes
RCD Test current characteristic A, AC
RCD tripping current 650 mA, 500 mA, 30 mA, 6 mA, 300 mA, 10 mA, 1000 mA, 100 mA
RCD tripping time 0 ... 500 ms
Contact voltage 0 ... 99.9 V
Menu language German or English
Protection class (device) IP42
Power supply battery, power unit
Weight 1300 g
Device weight supplied with 1750 grams
Device weight with delivery scope and packaging 1930 g
Dimensions (L x W x H) 250 x 135 x 107 mm
Operating conditions 0 ... 40 °C , 95 % r.h.
Storage conditions -10 ... 70 °C , 90 % r.h.

Product type: Electrical tester

: Manufacturer's standards (no certificate)

Reading category: CAT II 600 V
CAT IV 300 V

Dim: (L x W x H) 250 x 135 x 107 mm

Weight: 1300 g

: IP42

Reading range (VDE): RCD testing (AC, A, F, B, B+)
Resistance
Frequency
Wave impedance
Insulation resistance
Voltage
Earth fault loop impedance
Earth leakage resistance
Loop impedance
Earth leakage current
RCD testing (AC, A, F, B, B+, EV)
Show more

DIN standard: DIN VDE 0100
DIN EN 61557

Display type: LCD

Accuracy: 2 %

Width: 135 mm

Height: 107 mm

Length: 250 mm

Test procedure: automated

Voltage supply: Battery
Mains

Memory: No

Type: PCE-ITE 55B

VDE standard: 0100

Features: RCD/FI testing
PV testing

Documents & Downloads

Datasheet

Datasheet 3192923 PCE Instruments Electrical tester VDE standard 0100

User & Safety Instructions

User & Safety Instructions 3192923 PCE Instruments Electrical tester VDE standard 0100

Description

The installation tester is a multi-functional measuring device, which is suitable for testing electrical safety according to the standards EN 61557 and DIN VDE 0100. It offers many functions specially designed for the testing and evaluation of electrical installations. The installation tester can conduct a precise measurement of the insulation resistance between live parts and earthing. In the RCD Test both type A- as well as AC, B, B+ and F-controlled fault current circuit breakers can be efficiently tested. This ensures the proper functioning of these vital protective devices.

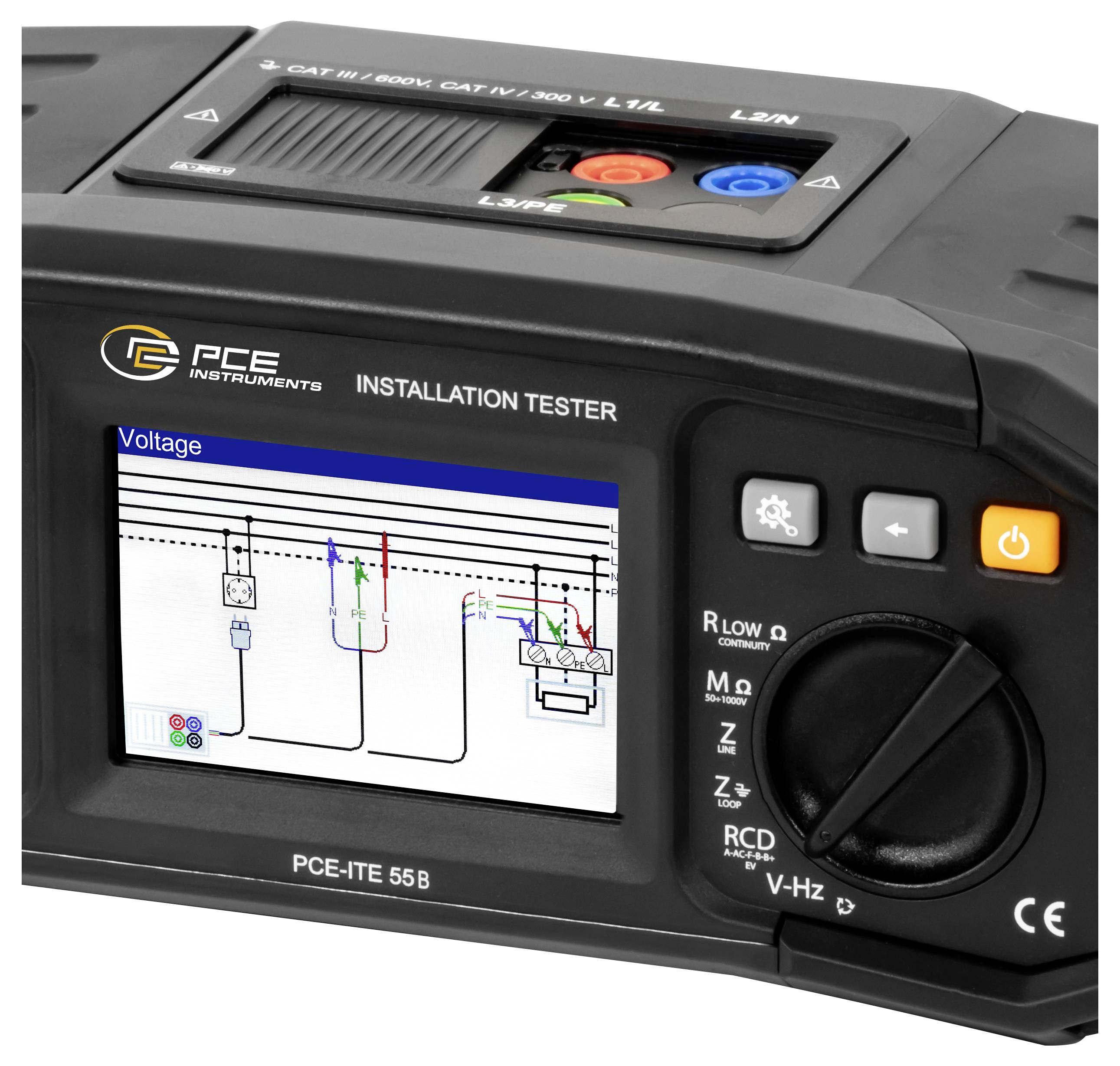

The installation tester enables the fast and accurate measurement of loop impedance to ensure that sufficient resistance is available in the event of a fault current to ensure a safe shutdown. In addition, a measurement of the protective conductor resistance enables the continuity of conductors and connections to be checked. A graphical representation of the wiring helps the operator to perform measurements correctly.

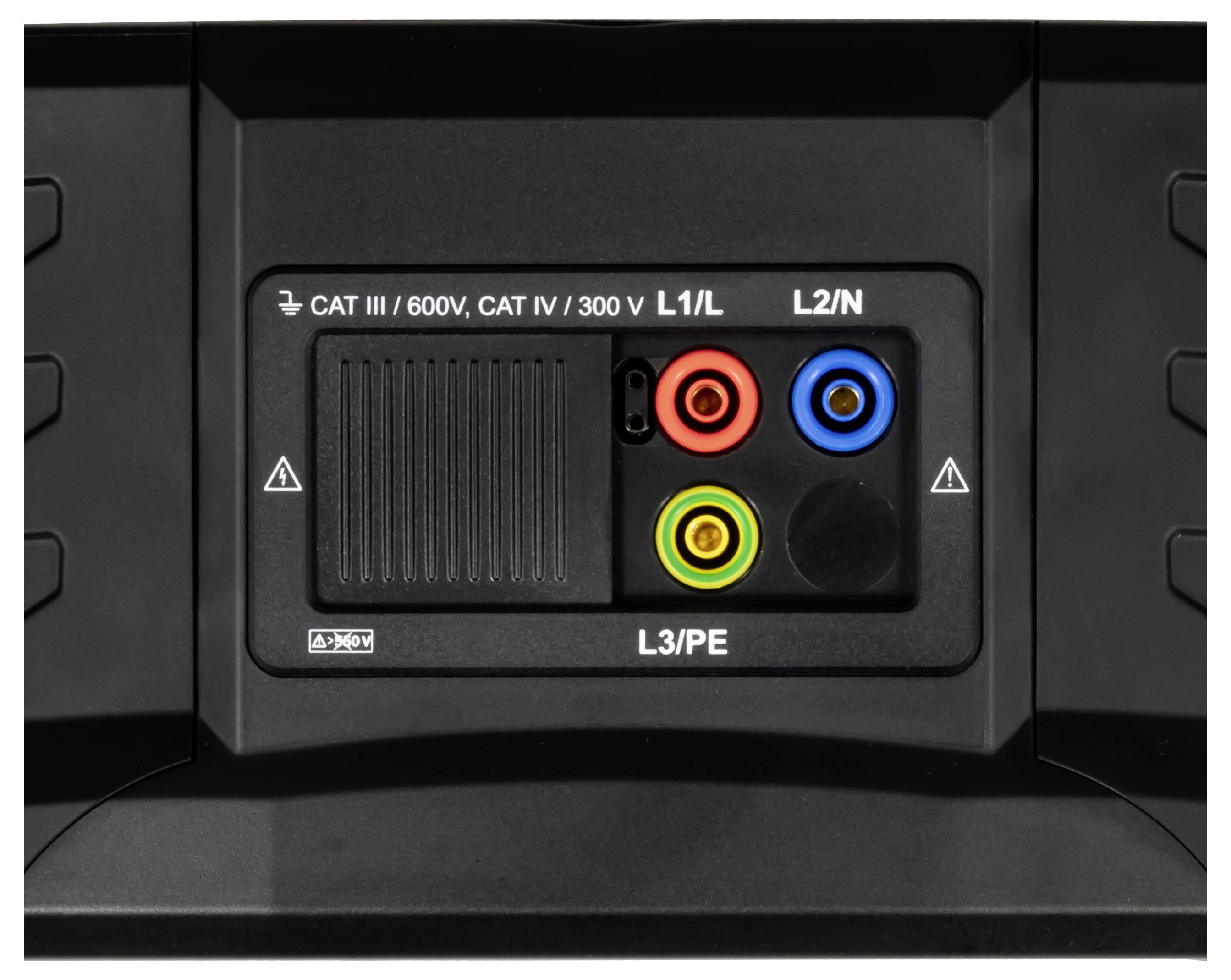

The brightness of the display can be adjusted to 4 levels. An adjustable alarm tone warns of errors or exceeding the limit value. The installation tester can be prevented from accidentally discharging using the adjustable off-time of the batteries. The device is supplied with test leads which correspond to the specific requirements of CAT III / 600 V and CAT IV / 300V.

The installation tester offers a user-friendly interface, clear display elements and a robust design, in order to meet the requirements in different environments. By complying with international standards, it ensures a safe and reliable evaluation of electrical installations according to the highest industrial standards.

With our optional EVSE test adapters, tests can also be carried out on wall boxes and charging stations for electric vehicles.
