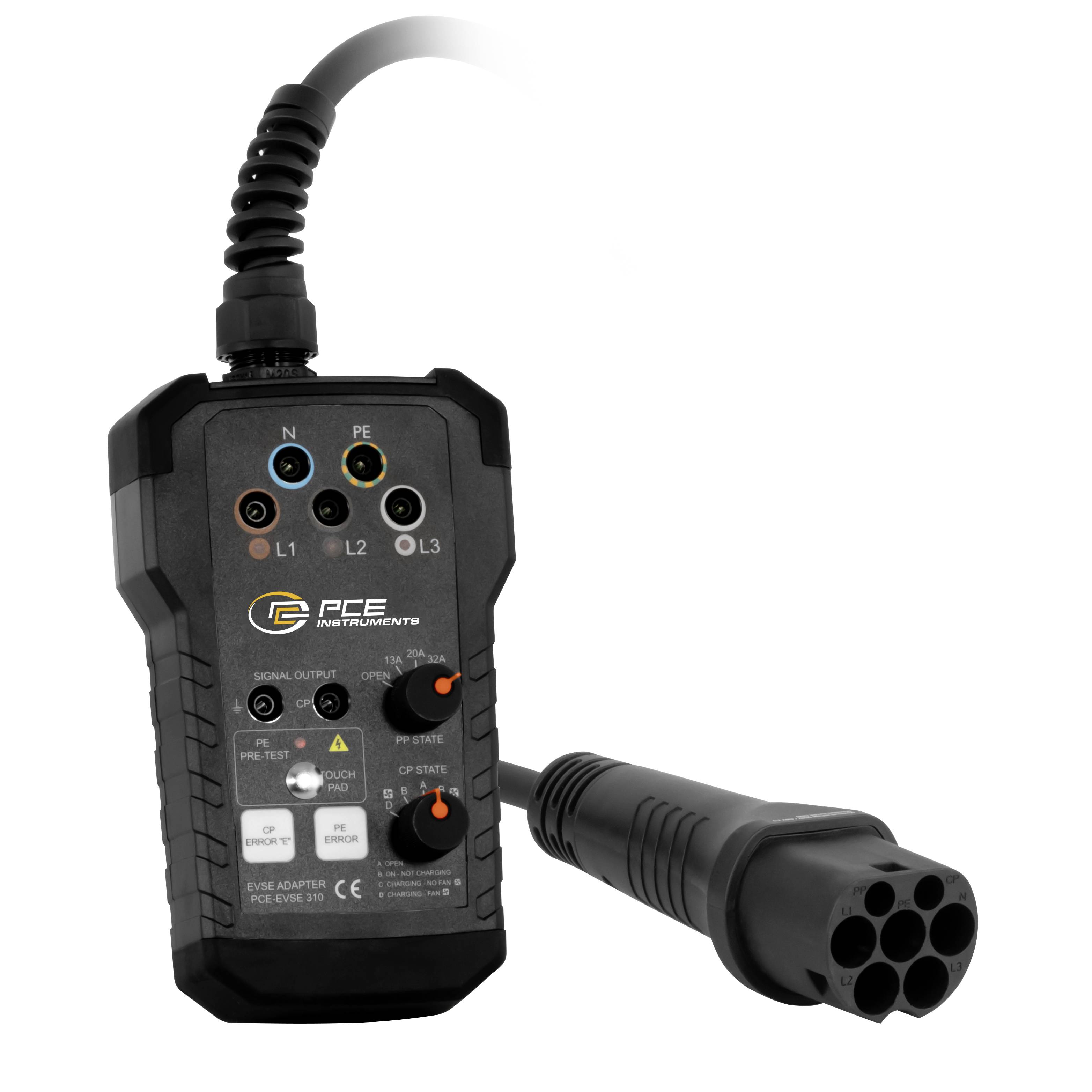

Portable PCE Instruments electrical tester with labeled N, PE, L1, L2, L3 sockets and attached multi-pin connector cable on a white background

Black rugged handheld electrical device with ribbed cable, likely a power tool or controller, shown on a white background.

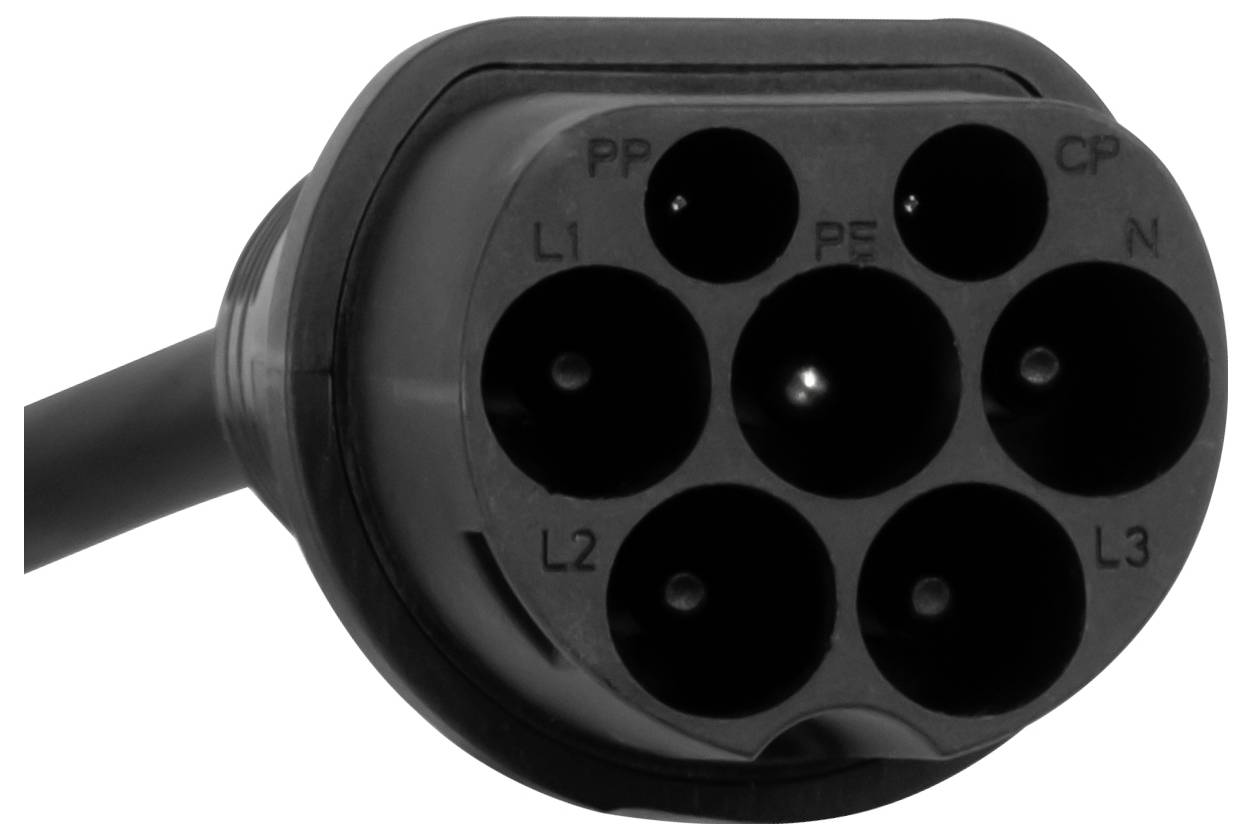

Close-up of a black electric vehicle charging connector with seven pin sockets, labeled PP, CP, L1, N, L2, PE, and L3.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-EVSE 310

Measuring connection adapter for Wallboxes
Vehicle simulation
Cable simulation
CP output and power socket for measurement purposes
Inclusive of carrying case
PE pre-test
Status of the proximity pilot PP and the control pilot CP
Simulation of CP error "E" and PE error

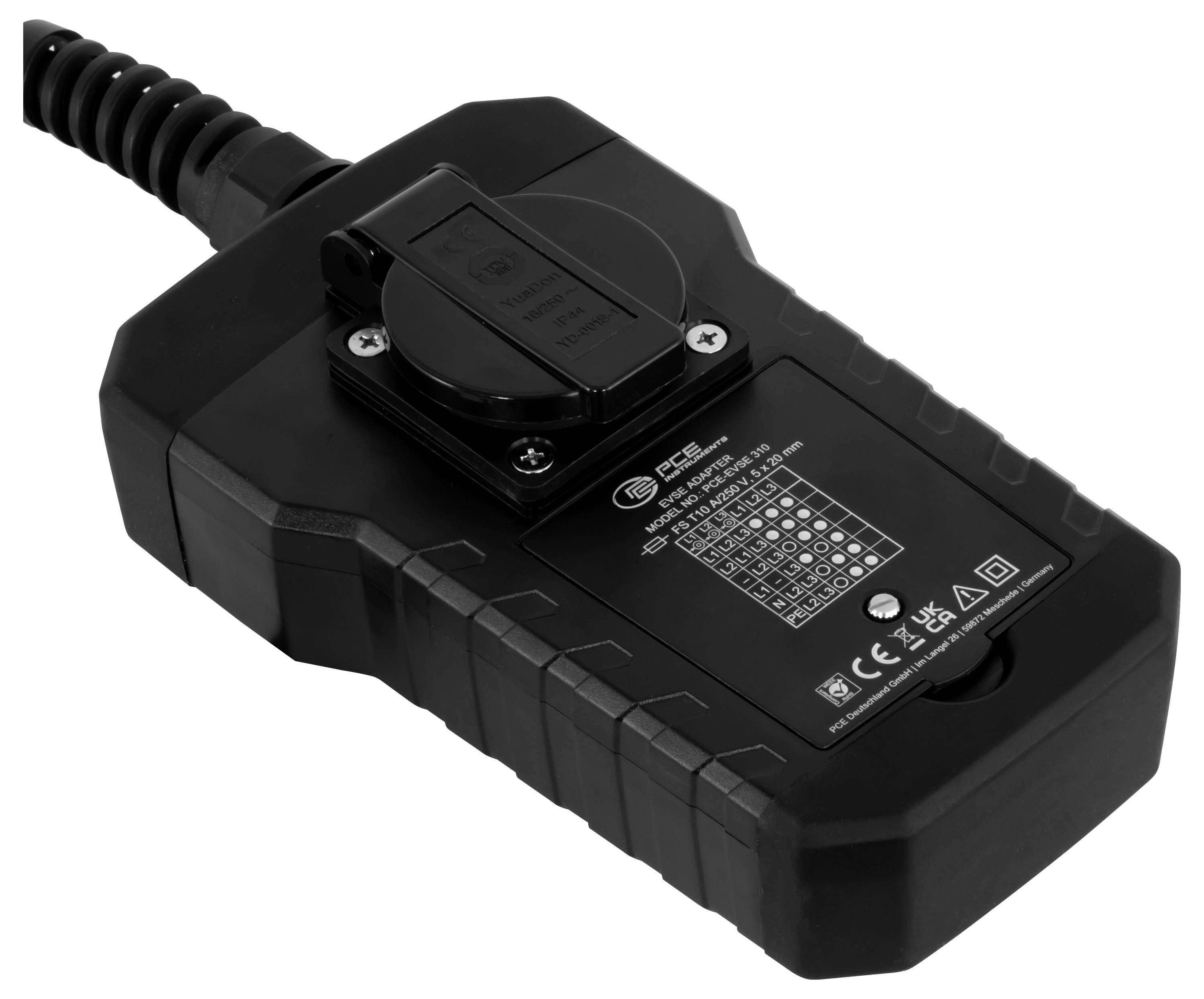

Mains socket for measuring purposes
Safety test jacks
Optional adapter on type 1
Incl. type 2 connector

Technical specifications

Test functions
PE pre-test yes, with capacitive electrode
PP simulation open, 13 a, 20 a, 32 a, 63 a
CP STATUS A, B, C, D
CP ERROR "E" E
PE Error / Grounding Error Yes
General Technical Data
CONNECTIONS L1, L2, L3, N, PE
Additional information connections max. 230V
1-phase) / 430V (3-phase) ; 50 / 60Hz
10A / 250 V
Type 2 plug fixed at the cable (optional adapter required for type 1)
Standard(s) IEC62196-2 Type 2 plug
Cable length 25 cm
Safety standard CAT II / 300V
Power socket max. 250 V; 50/60 Hz; 10 A
Outputs: 2 x 4 mm sockets (signal output terminals)
Fuse(s) mains socket T10A/250V
Protection class (device) IP40
Weighs 643 g.
Dimensions (L x W x H) 600 x 105 x 73 mm
Operating conditions 0 ... 40 °C , 80 % r.h.
Storage conditions -10 ... 50 °C , 80 % r.h.
Languages of the instructions German and English

Product type: eMobility wiring tester

Charger connectors: Type 2

Charging mode: Mode 3

No. of ports: 5 x

No. of phases: 1- & 3-phase

Cable length: 25 cm

: IP40

Certification marks: IEC62196-2 Type 2 plug

Factory colour: Black-grey

Length: 600 mm

Width: 105 mm

Height: 73 mm

Weight: 643 g

Documents & Downloads

Datasheet

Datasheet 3192918 PCE Instruments eMobility wiring tester Type 2 Mode 3 No. of ports 5 x

User & Safety Instructions

User & Safety Instructions 3192918 PCE Instruments eMobility wiring tester Type 2 Mode 3 No. of ports 5 x

Description

The measuring connection adapter for Wallboxes is suitable for VDE 0100 tester to test charging stations (charging mode 3) for electric cars. This adapter can be used with the installation tester PCE-ITE 55B or with most of the other common VDE 0100 testers. Thanks to the LEDs for voltage detection at the 3 phases it can be quickly established, if an installation error exists.

With the PP-state rotary switch the current capacity of the charging cable can be simulated. The current carrying capacity is simulated with various resistances in the measuring connection adapter for Wallbox, which are connected between PP and PE conductors. The CP STATE rotary switch can be used to simulate different vehicle conditions. The vehicle statuses are simulated with various resistors connected between the CP and PE conductors.

An external load can be connected to the socket. This output is only intended for measurement purposes and offers the possibility to check the function of the electricity meter. The measurement connection adapter for wall boxes can also be used to simulate a PE error (ground fault). The measurement connection adapter for Wallboxes is delivered in a device bag. Wallboxes with type 1 connection also have an adapter available optionally.
