PCE Instruments Flow meter PCE-HWA 30 PCE-HWA 30 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow meter
Type
PCE-HWA 30
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
Highlights & Details

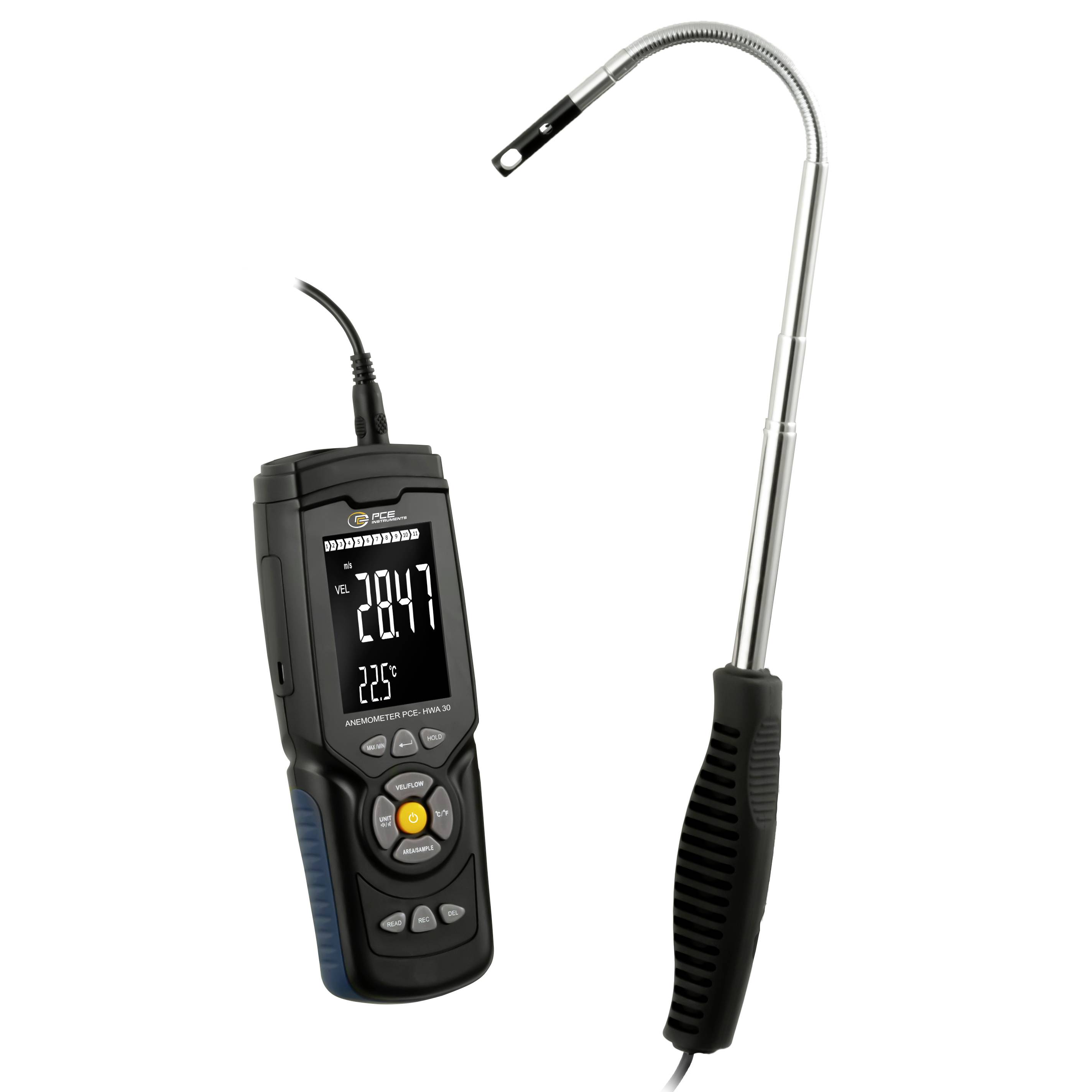

Heat wire anemometer PCE-HWA 30
- Flow meter with data memorySoftware for reading out the measured valuesSwiveling telescopic armMeasuring range 0.3 ... 30.0 m/sData memory for 960 measured valuesBeaufort scale
Technical specifications
- Wind speed: Ft/minMeasuring range: 60 ... 5904 ft/minResolution 0.01, 0.1, 1 ft/min.Accuracy: ±3 % ±20 ft/min of MW. Wind speed: buttonsMeasuring range: 0.6 ... 58.3 knotsResolution: 0.01 knotsAccuracy: ±3 % ±0.2 knots of MW. Wind speed: Km/h.Measuring range: 1.0 ... 108.0 km/hResolution: 0.01 km/h.Accuracy: ±3 % ±0.4 km/h of MW. Wind speed: MphMeasuring range: 0.7 ... 67 mphResolution: 0.01 mphAccuracy: ±3% ±0.2 mph v. MW. Volume flow: CMM (m³/min)Measuring range: 0 ... 999900 m³/min.Resolution: 0.001 ... 100 m³/min.Adjustable area: 0.001 ... 999 m² Volume flow: CFM (FT³/min)Measuring range: 0 ... 999900 ft³/min.Resolution: 0.001 ... 100 m³/min.Adjustable area: 0.001 ... 999 m³ Temperature measurement °C.Measuring range: 0 ... 45 °CResolution: 0.1 °CAccuracy: ±1.0 °C Temperature measurement: °FMeasuring range: 32 ... 113 °FResolution: 0.18 °FAccuracy: ±1.8 °F Other specifications: Probe length 270 … 990 mmProbe diameter: Ø0,8 ... 1.2 mmInterface: micro USBData memory: 960 measured valuesPower supply 3.7 V, 1000 mAh rechargeable battery5 V DC, 1 A micro USB interfacePower consumption: 15 ... 35 mA without backlight70 ... 100 mA with background lightingBattery discharged display : <3.4 V.Operating conditions: 0 ... 50 °C, 40 ... 80 % RH, non-condensingStorage conditions: -20 ... 60 °C, < 80% RH, non-condensingDimensions 70 x 194 x 35 mmWeight 400 g
- Product type
Flow meter
- Type
PCE-HWA 30
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2620713 PCE Instruments Flow meter PCE-HWA 30 PCE-HWA 30 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2620713 PCE Instruments Flow meter PCE-HWA 30 PCE-HWA 30 1 pc(s)
Description

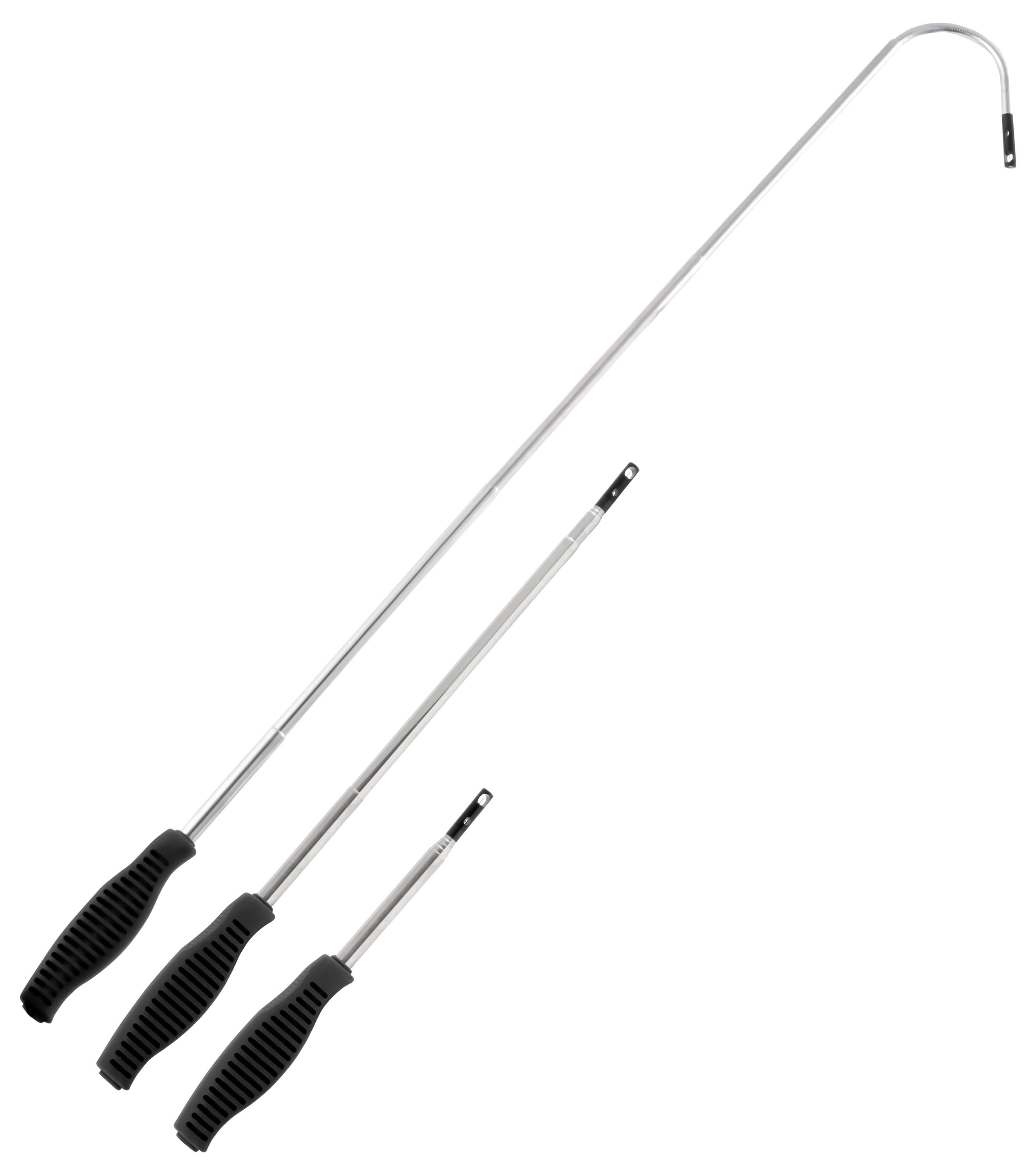

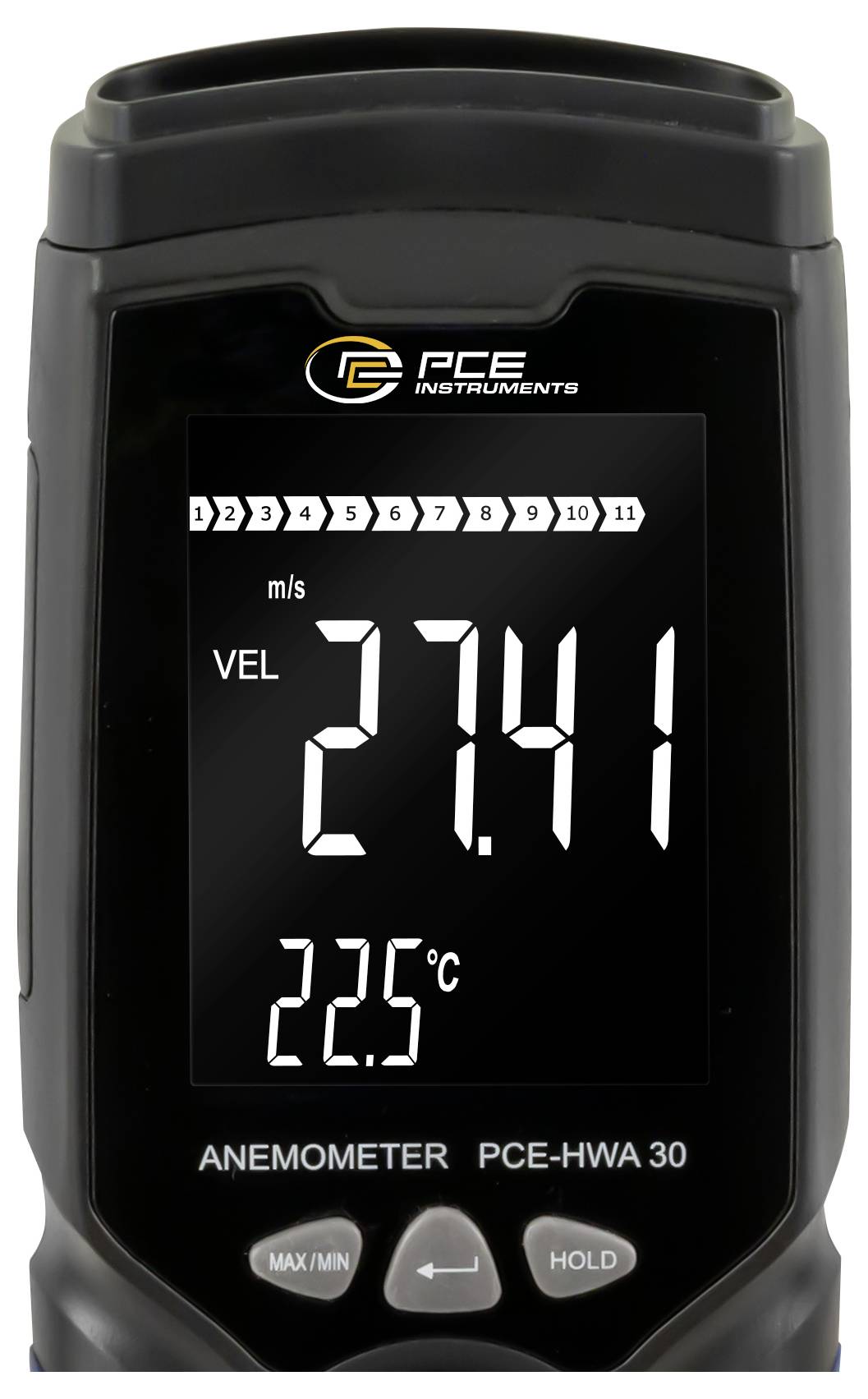

Flow meter with data logger / Beaufort scale / Measuring range 0.3 ... 30.0 m/s / battery operation / carrying case / rechargeable via 5 V DC Micro-USB interface / heat wire anemometer / telescopic arm / swiveling head The flow meter measures the flow speed according to the heat wire principle. This guarantees a particularly compact design. The measuring range of the flow meter is between 0.3 … 30.0 m/s. In addition to the flow velocity, the flow meter can measure the volume flow and ambient temperature. A Beaufort scale is displayed next to the measured value for each measurement. Using this scale, you can read the current wind strength. With the integrated data memory up to 960 measured values can be recorded with the flow meter. This can be done directly on the flow meter to read out the data. At the same time, the measured values can be transferred from the flow meter to a PC via the Micro-USB interface. For further processing of the data, a suitable software for the flow meter is available in the PCE Instruments download portal. For optimum alignment, the telescopic arm can be extended from the flow meter to up to 750 mm. In addition, the head of the flow meter is semi-rigid and can therefore be aligned differently. The battery of the flow meter with a capacity of 1000 mAh enables the mobile use. To recharge the battery, the flow meter must be connected to a 5 V DC micro USB power supply.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x flow meter PCE-HWA 30 1 x Micro USB cable 1 x carrying case 1x user manual
