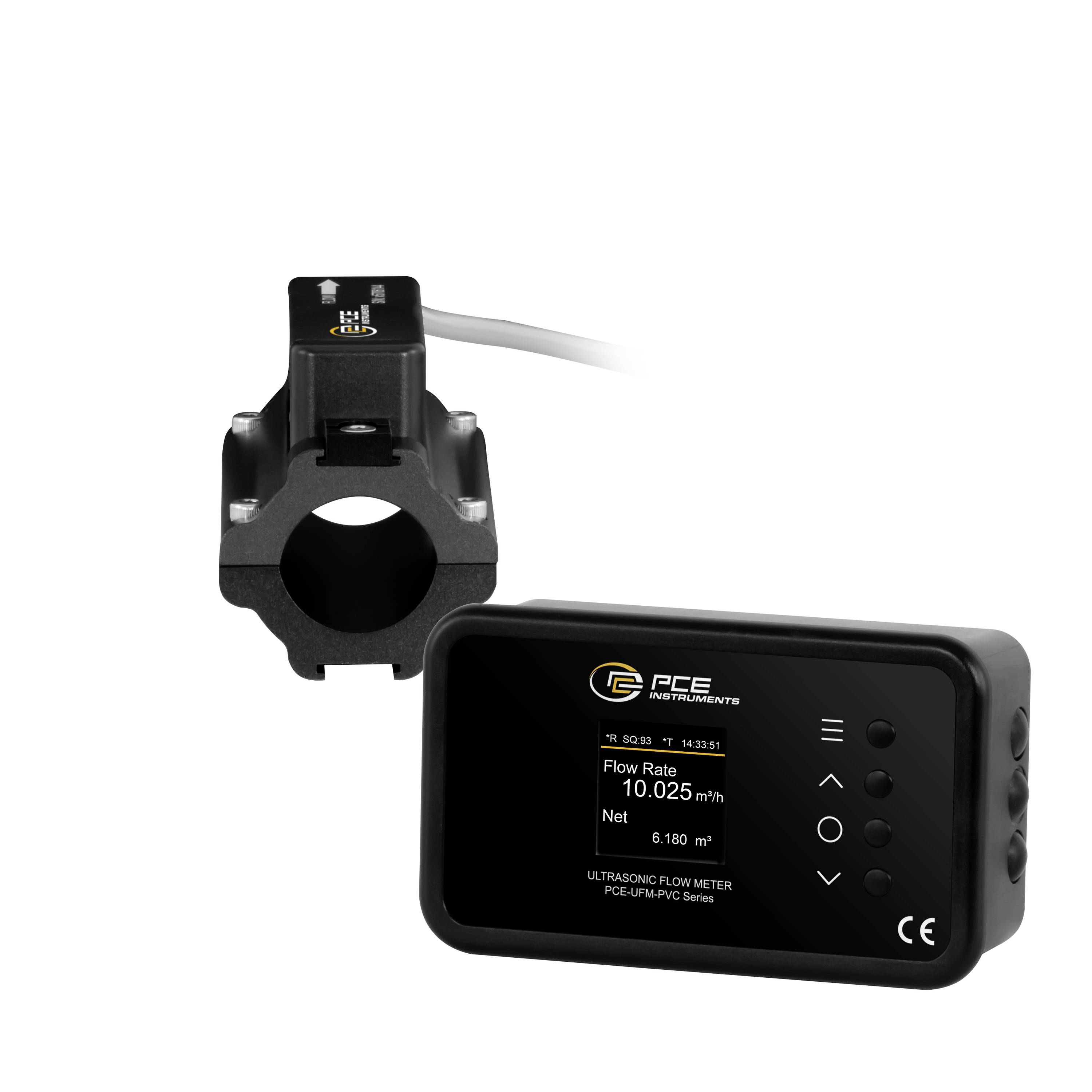

Ultrasonic flow meter with clamp-on sensor and display showing flow rate 10.025 m³/h and net 6.180 m³.

Ultrasonic flow meter with clamp-on sensor and display showing flow rate 10.025 m³/h and net 6.180 m³.

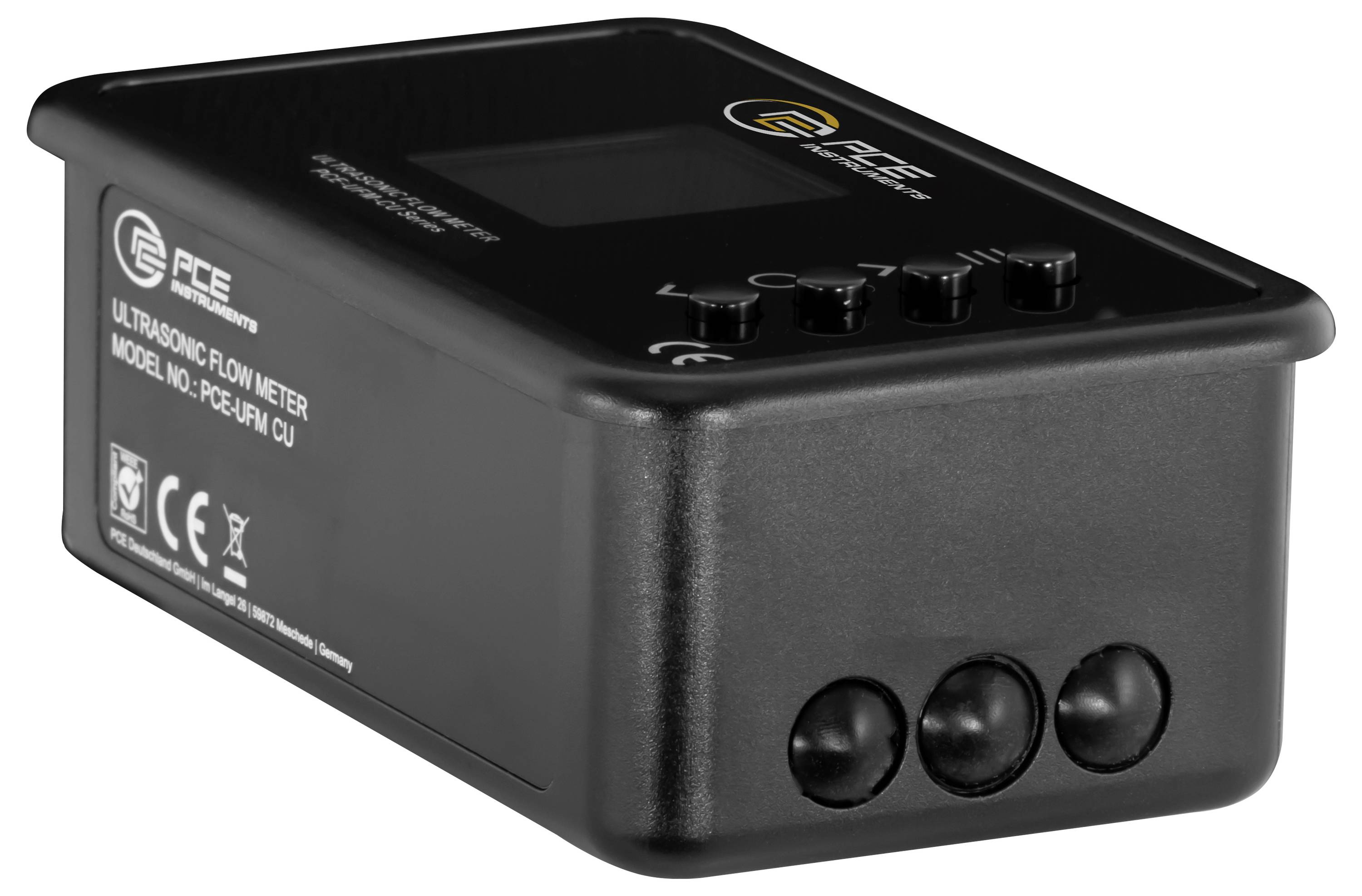

Black ultrasonic flow meter device with display buttons on top and three sensor ports on the front, labeled 'ULTRASONIC FLOW METER' and 'PCE-UFM 70'

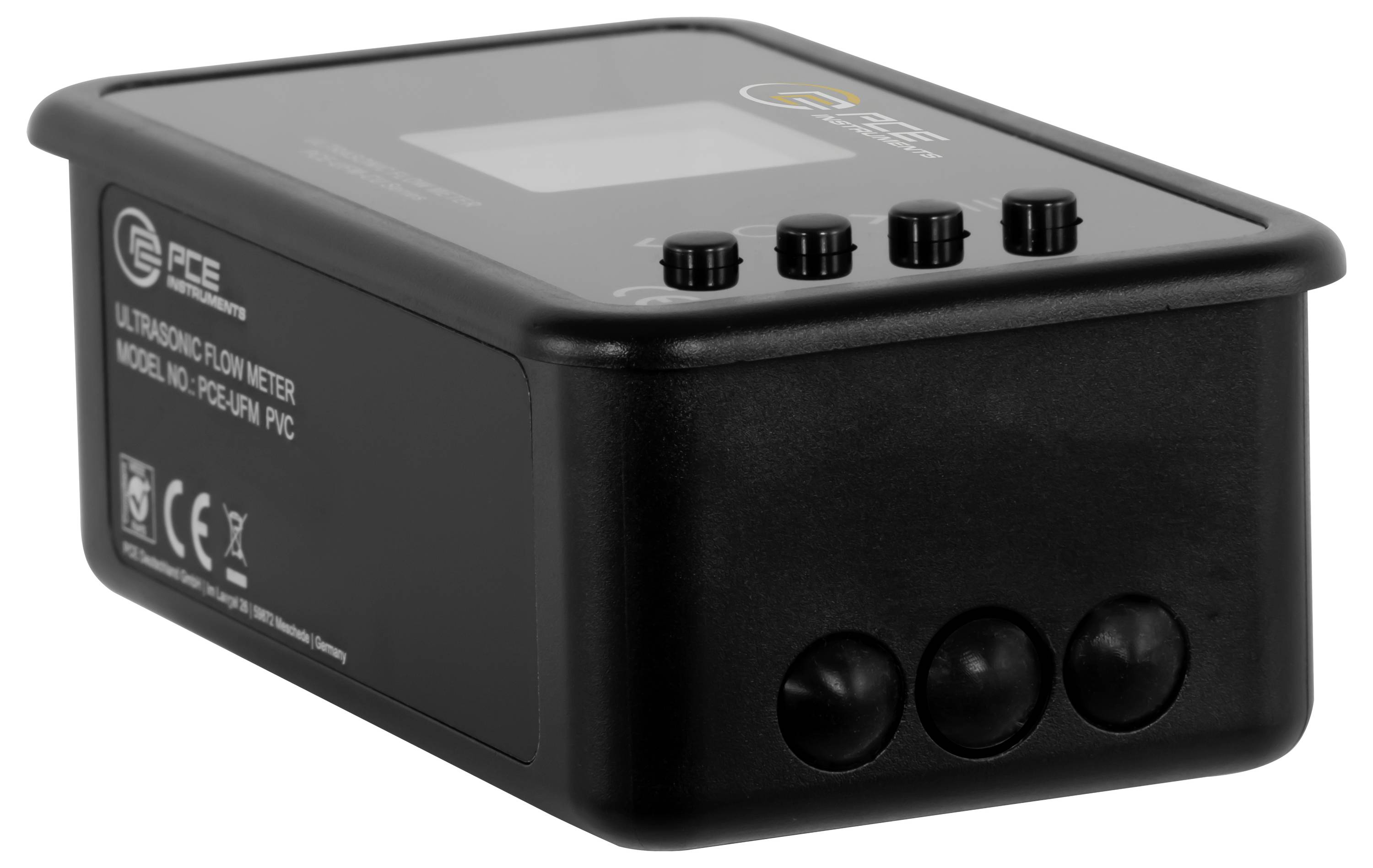

Black ultrasonic flow meter with four top knobs and side display panel on a white background

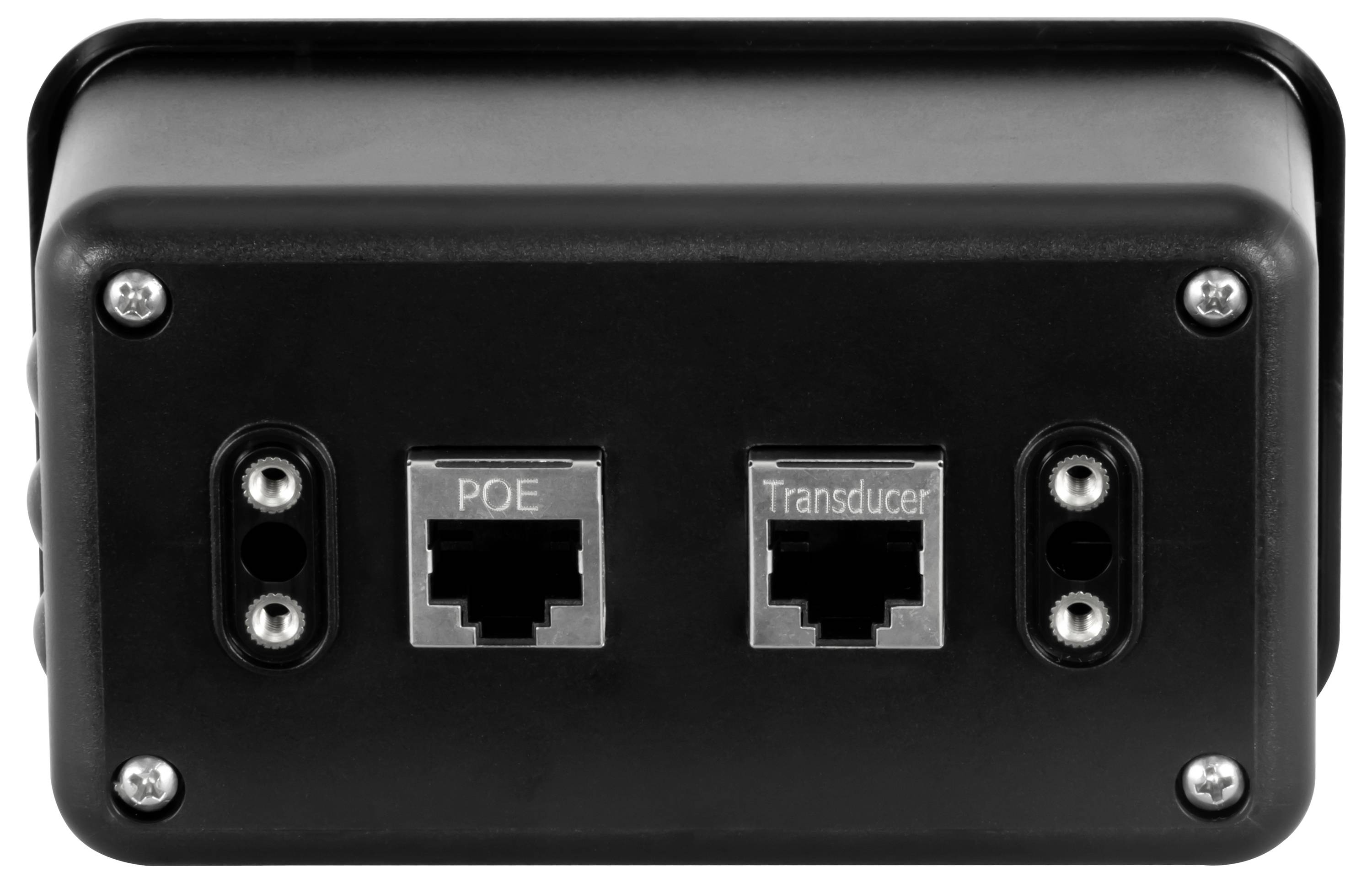

Close-up of a black device rear panel with two Ethernet-style ports labeled 'POE' and 'Transducer' and four mounting screws.

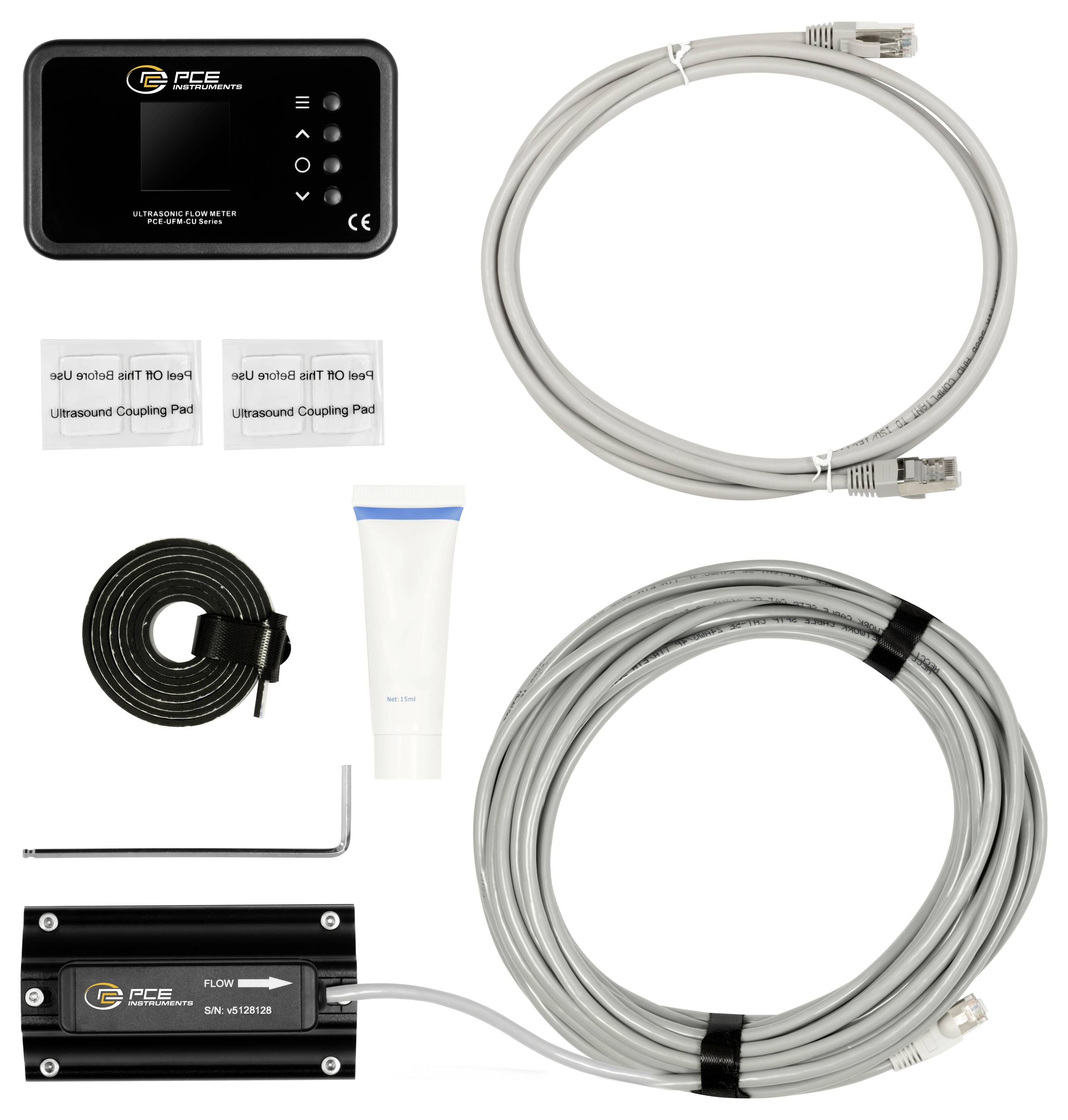

Ultrasound equipment kit with control unit, two coiled cables, coupling pads, gel tube, and a sensor/transducer accessory.

1/5

Product type

Flow meter

Min. operating voltage

44 V DC

Max. operating voltage

57 V DC

Reading range (max.)

5 m/s

Type

PCE-UFM 80PVC

Datasheet (PDF)

Deutsch (Deutschland)

PCE Instruments

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Flow meter

Type: PCE-UFM 80PVC

Min. operating voltage: 44 V DC

Max. operating voltage: 57 V DC

Operating voltage: 44 - 57 V DC

Features: Incl. enclosure

Material: PVC

Nominal diameter: 80 mm

Accuracy ±: 0.2 %

Reading range (min.): 0.03 m/s

Reading range (max.): 5 m/s

Reading range: 0.03 - 5 m/s

: IP54

Weight: 1491 g

Min. ambient temperature: -10 °C

Max. ambient temperature: 50 °C

Length: 65 mm

Width: 111 mm

Dim: (L x W) 65 mm x 111 mm

Content: 1 pc(s)

RoHS-compliant: Yes
