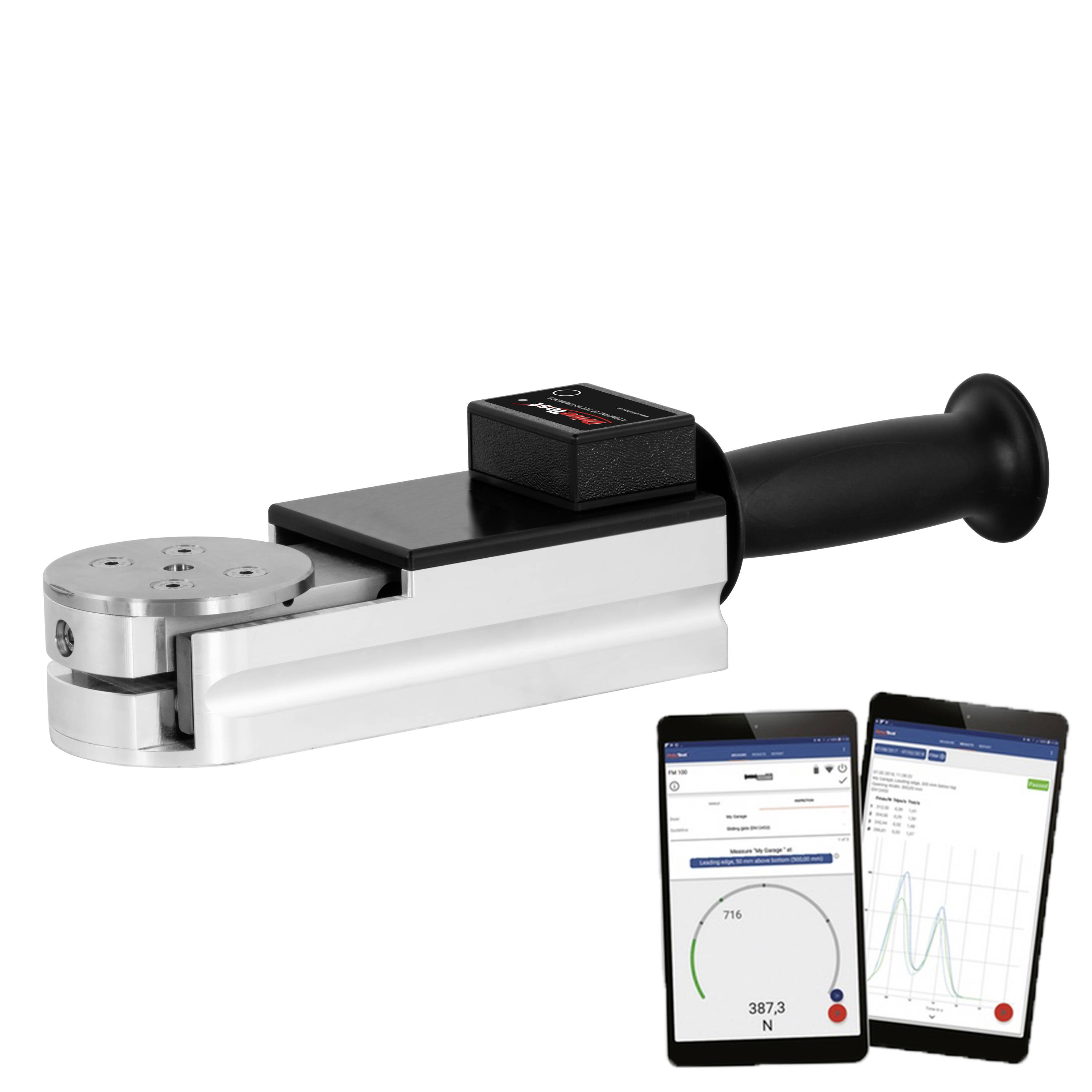

Handheld digital force gauge with a pull handle and two smartphone app screens showing force measurements and graph data.

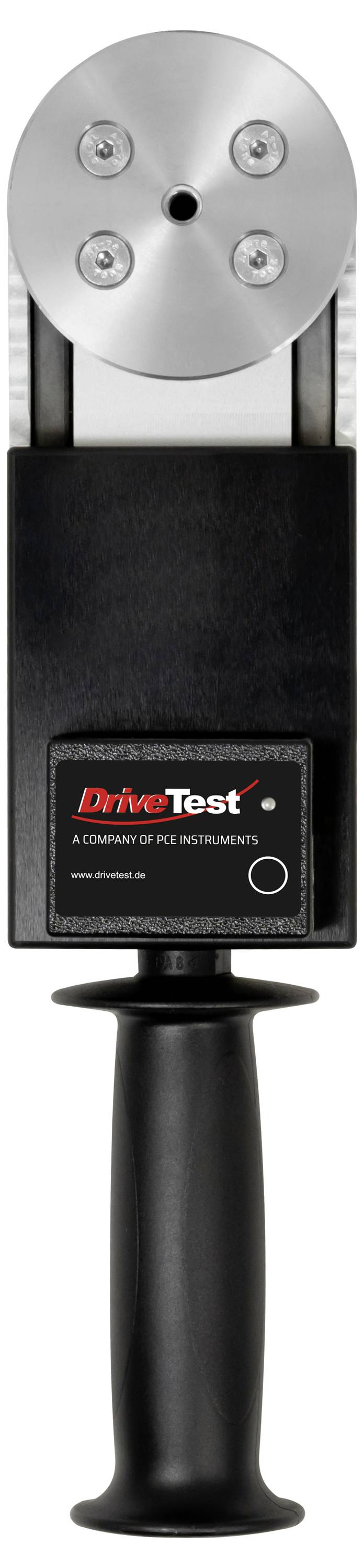

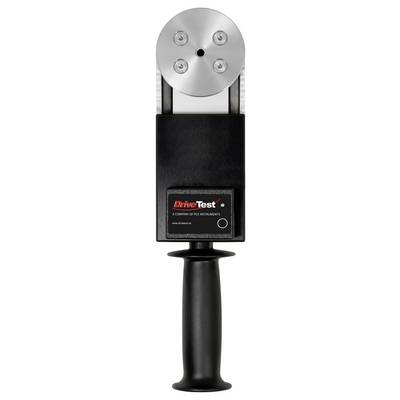

Handheld DriveTest measuring device with round metal sensor head, black body, and pistol grip, shown front view.<br>

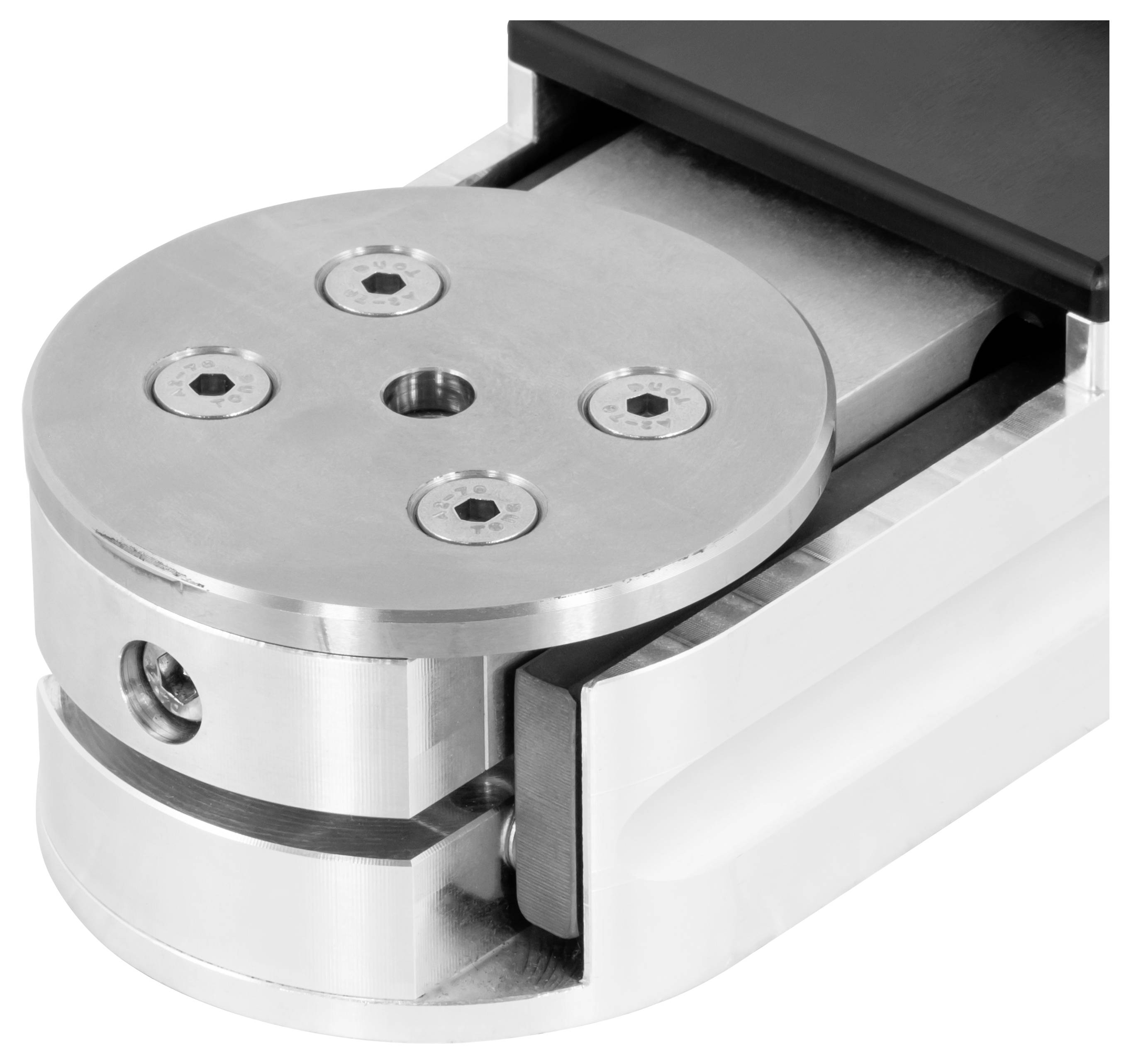

Close-up of a metal clamp or hinge mechanism with a circular top plate, bolt heads, and a sliding white housing.<br>

DriveTest branded handheld device on a stand, shown with a black control box and a large circular attachment.<br>

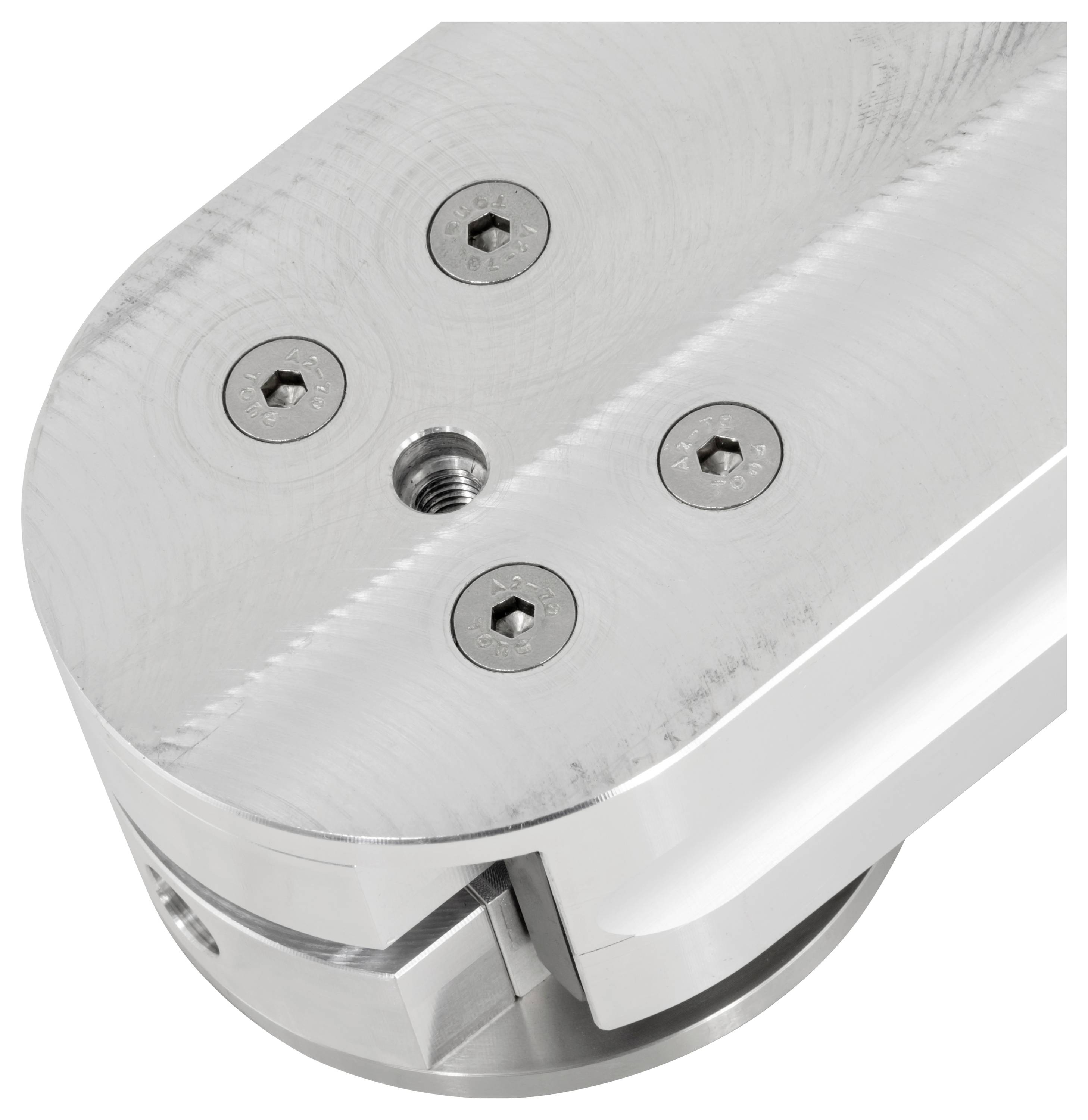

Close-up of a machined metal component with four hex screws and a central threaded hole on a rounded rectangular top.

1/5

Datasheet (PDF)

Unavailable

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments FM100BT-SY-500-2000 Door force gauge 0 - 2000 N ISO standards

Force sensor / measuring device for closing forceWireless clamping force measuring system for doors and gatesEasy handling uses experience from many years of useExtensive customer service inhouse calibration service and software updates ensure theUse of current policiesImmediate evaluation according to selected guidelines and standardsProcess safety Integrated test instructions ensure reliable measurementLarge temperature working rangeLanguage Selection Available in DE / EN / ES / FR / IT / CNSupport of relevant standards User guidance and evaluation according to EN 124532017 EN603352 DIN V 18650 ASR A17 DHF TS 0112016 ETC.Precise measurements by friction-free guide and platform weighing cellRobust design Case made from high-strength material for long life in tough conditionsNo more cables than FireWireMeasuring point identification via QR and barcodes (integrated solution)Upgrade possibility for existing devices

Technical specifications

FM100BT BluetoothMeasuring range 0 2000 NAccuracy +/ 3 N or 3% of the measured valueStiffness 500 N/mmGap width 50 mm80 mm diameterMeasurement principle: DMS transducersDimension: 210 x 80 x 50 mmWeight 21 kg.PC analysis software PitchPilotMULTI-LINGUAL (EN IT FR ES)Graphical representation of the force courseCalculation of important parametersEvaluation according to different guidelines (standards)Ability to enter custom policiesProtocol printoutData export (Excel CSV PDF)APP can be downloaded from the Google play storeForce meter user-friendly APP with automatic guidelines and standardsUpdatesTime saving immediate feedback on the measurement result including simpleReport generationPaperless office reduces paper and the associated costs and protects theEnvironmentCan be used individually Integration of the signature of the customer is possibleSystem requirements software PinchPilot u APP (see tab Software/App)

Product type: Door force gauge

Display: Digital

Force reading range (max.): 2000 N

: ISO standards

Power supply (details): 5 V DC

Dim: (L x W x H) 210 x 80 x 50 mm

Weight: 2100 g

Resolution (force): 1 N

Basic accuracy: 3 %

Force reading range: 0 - 2000 N

Force reading range (min.): 0 N

Reading frequency: 250 Hz

Width: 80 mm

Height: 50 mm

Length: 210 mm

Interfaces: RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
1x USB 2.0 (host)
Bluetooth®
Show more

Documents & Downloads

Datasheet

Datasheet 2813713 PCE Instruments FM100BT-SY-500-2000 Door force gauge 0 - 2000 N ISO standards

User & Safety Instructions

User & Safety Instructions 2813713 PCE Instruments FM100BT-SY-500-2000 Door force gauge 0 - 2000 N ISO standards

Description

The clamp meter is a wireless, electronic meter for power-driven doors and gates. A typical application is both final acceptance of new plants and regular inspection.The clamping force meter is a further development of the tried and tested FM 100 clamping force meter. It combines the well-known robust construction for years of use in harsh environments and long-lasting precision with the flexibility of a wireless application and a user-friendly APP.This results in many advantages for you in the daily application, such as the automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

This text is machine translated.

Features

Easy handling uses experience from many years of useExtensive customer service inhouse calibration service and software updates ensure theUse of current policiesImmediate evaluation according to selected guidelines and standardsProcess safety Integrated test instructions ensure reliable measurementLarge temperature working rangeLanguage Selection Available in DE / EN / ES / FR / IT / CNSupport of relevant standards User guidance and evaluation according to EN 124532017 EN603352 DIN V 18650 ASR A17 DHF TS 0112016 ETC.Precise measurements by friction-free guide and platform weighing cellRobust design Case made from high-strength material for long life in tough conditionsNo more cables than FireWireMeasuring point identification via QR and barcodes (integrated solution)Upgrade possibility for existing devices

Scope of delivery

1 x Measuring device for closing force FM100BT1 x APP force meter available for download1 x Software PinchPilot (USB-stick)1x USB cable1 x manual1 x ISO calibration certificate1 x Carrying case with foam insert
