PCE Instruments FM205-WI-SE-65-260 Door force gauge 0 - 150 N ISO standards

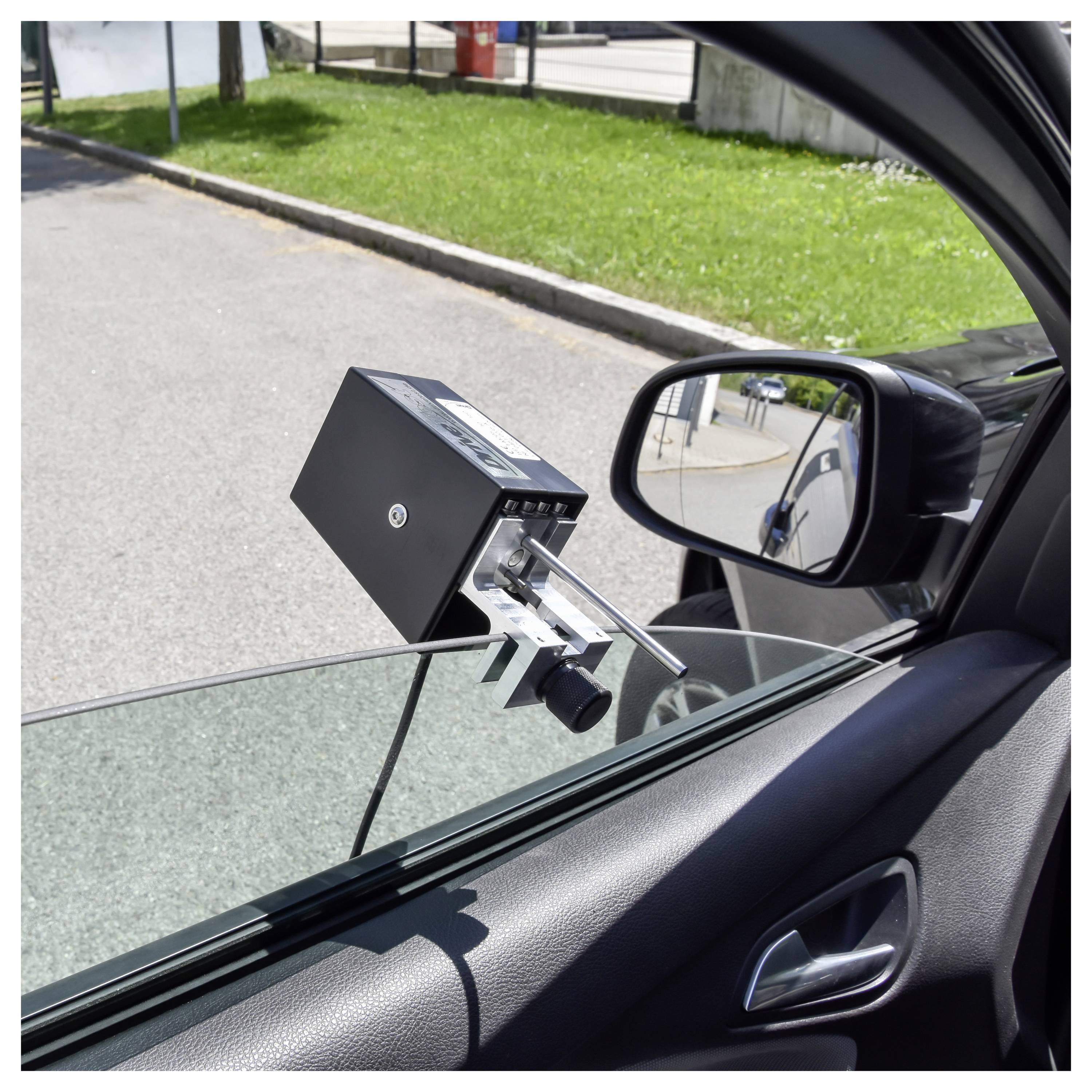

DynamometersClosing force measurement for automatic window lifterSupport of relevant standards 2000/4 ECPrecise measurements by friction-free guide and platform weighing cellRobust design with high-strength aluminum and POM ensures long service life in tough applicationsEasy handling operation with a single button or remotely operated via Microsoft® DLLInterface or National Instruments® LabVIEW LibraryProfessional extensive PCSoftware PincPilot does not leave anything undesiredAvailable in several spring stiffnesses 2 5 10 20 65 N/mmComplete delivery package including high-quality transport case

Technical specifications

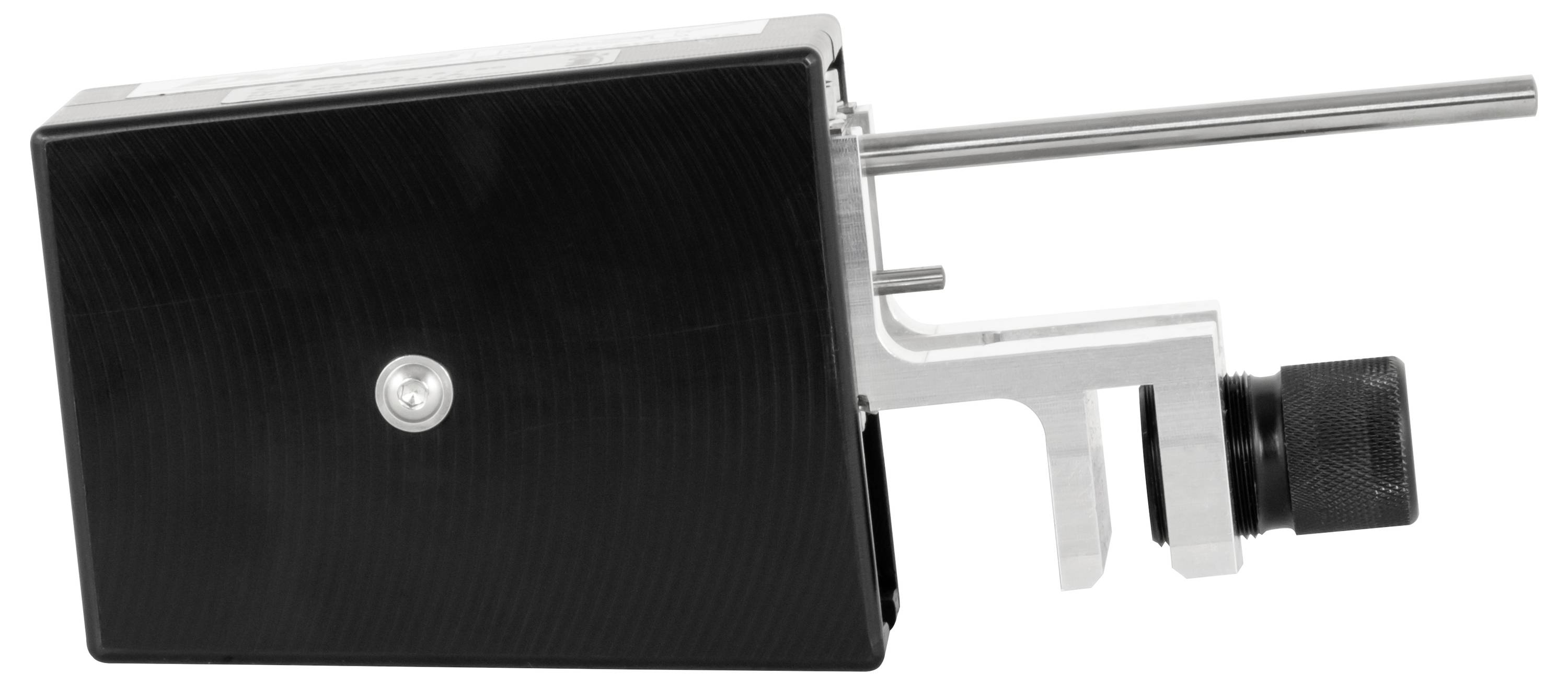

FM205Force introduction, single-sidedMeasuring range 0 260 NAccuracy +/ 3 N (0100 N) or+/ 3 % (>100 N)Spring stiffness 65 N/mmGap width Fmax 5 mmArea 5 x 80 mmForce sensorCable length DMSbridge15 mDimension: 175 x 75 x 57 mmWeight approx. 400 gDisplay device SEB22Display device SEB22 Data logger unit with LCD display and LED status displaysOperating key USB interfaceOptional PC-controlled measurementLithium polymer rechargeable batteryReal-time clockMemory for 100 measurementsSensor and PC interfacePeak value display and effective force displayEvaluation display i O/n i OSpacerComplete set for all opening widths according to EN 147522015Automatic detection of the used spacersAutomatic limit value setting according to opening widthEasy application, fast mounting without toolsRobust design low weight POMTogether with BIA 600Sensor SEB2 in a carrying casePC analysis software PitchPilotMULTI-LINGUAL (EN IT FR ES)Graphical representation of the force courseCalculation of the relevant standard valuesEvaluation according to different guidelines possibleCustom policy can be setProtocol printoutData export (Excel CSV PDF)Optional measuring point identificationSystem requirements software PinchPilot (see tab Software/App)

Product type: Door force gauge

Display: LCD

Force reading range (max.): 150 N

: ISO standards

Power supply (details): 9 V DC

Dim: (L x W x H) 175 x 75 x 57 mm

Weight: 400 g

Resolution (force): 1 N

Basic accuracy: 3 %

Force reading range: 0 - 150 N

Force reading range (min.): 0 N

Reading frequency: 250 Hz

Width: 75 mm

Height: 57 mm

Length: 175 mm

Interfaces: RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
1x USB 2.0 (host)
Show more

Documents & Downloads

Datasheet

Datasheet 2813722 PCE Instruments FM205-WI-SE-65-260 Door force gauge 0 - 150 N ISO standards

User & Safety Instructions

User & Safety Instructions 2813722 PCE Instruments FM205-WI-SE-65-260 Door force gauge 0 - 150 N ISO standards

Description

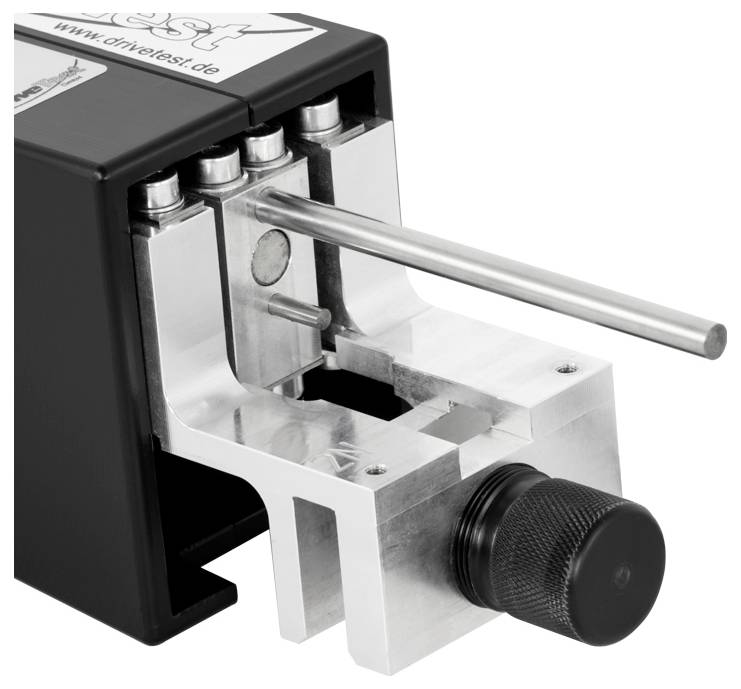

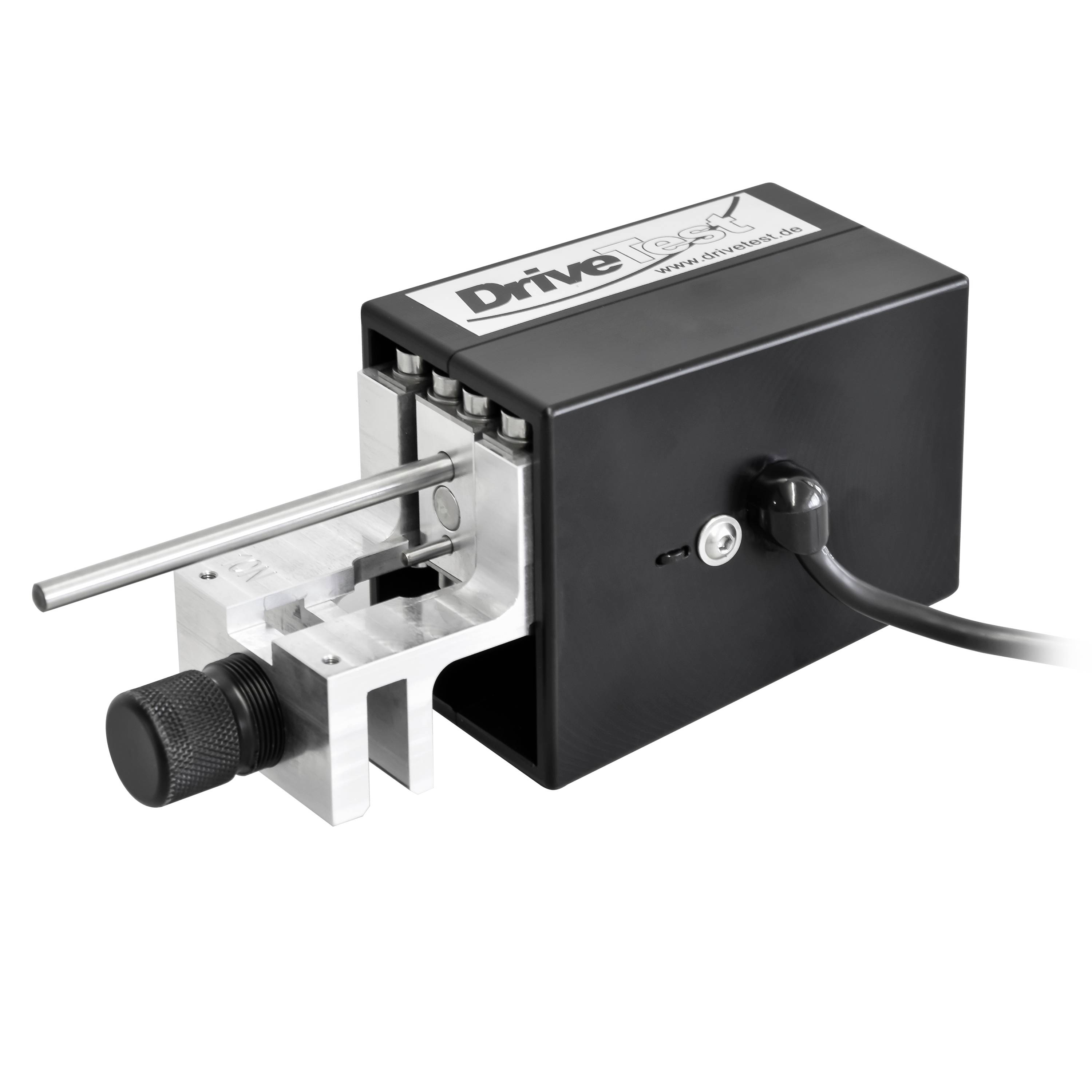

The dynamometer is an electronic closing force meter for power-driven windows in the automotive sector. Typical fields of application are testing and manufacturing in the automotive industry. For this purpose, we have developed a device that is easy to handle for repetitive measurements. Due to the requirements of different standard, we offer the device with different spring stiffness. It is also increasingly being used in technical surveillance institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after many years of use in harsh environments.For measuring arrangements in the test and in the production, fast and easy execution is of great importance. For this purpose, a software was developed that drastically reduces the process of the measurements and the expenditure for the documentation. The measurements can be transferred, evaluated, exported and documented to a PC with just a few operating steps. For integration into an automated test sequence, we provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW).

This text is machine translated.

Features

Support of relevant standards 2000/4 ECPrecise measurements by friction-free guide and platform weighing cellRobust design with high-strength aluminum and POM ensures long service life in tough applicationsEasy handling operation with a single button or remotely operated via Microsoft® DLLInterface or National Instruments® LabVIEW LibraryProfessional extensive PCSoftware PincPilot does not leave anything undesiredAvailable in several spring stiffnesses 2 5 10 20 65 N/mmComplete delivery package including high-quality transport case
