PCE Instruments Force gauge 0 - 25000 N Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Number
Total (€ 617.65 / piece)
€
Only 1 Piece(s) available
Highlights & Details

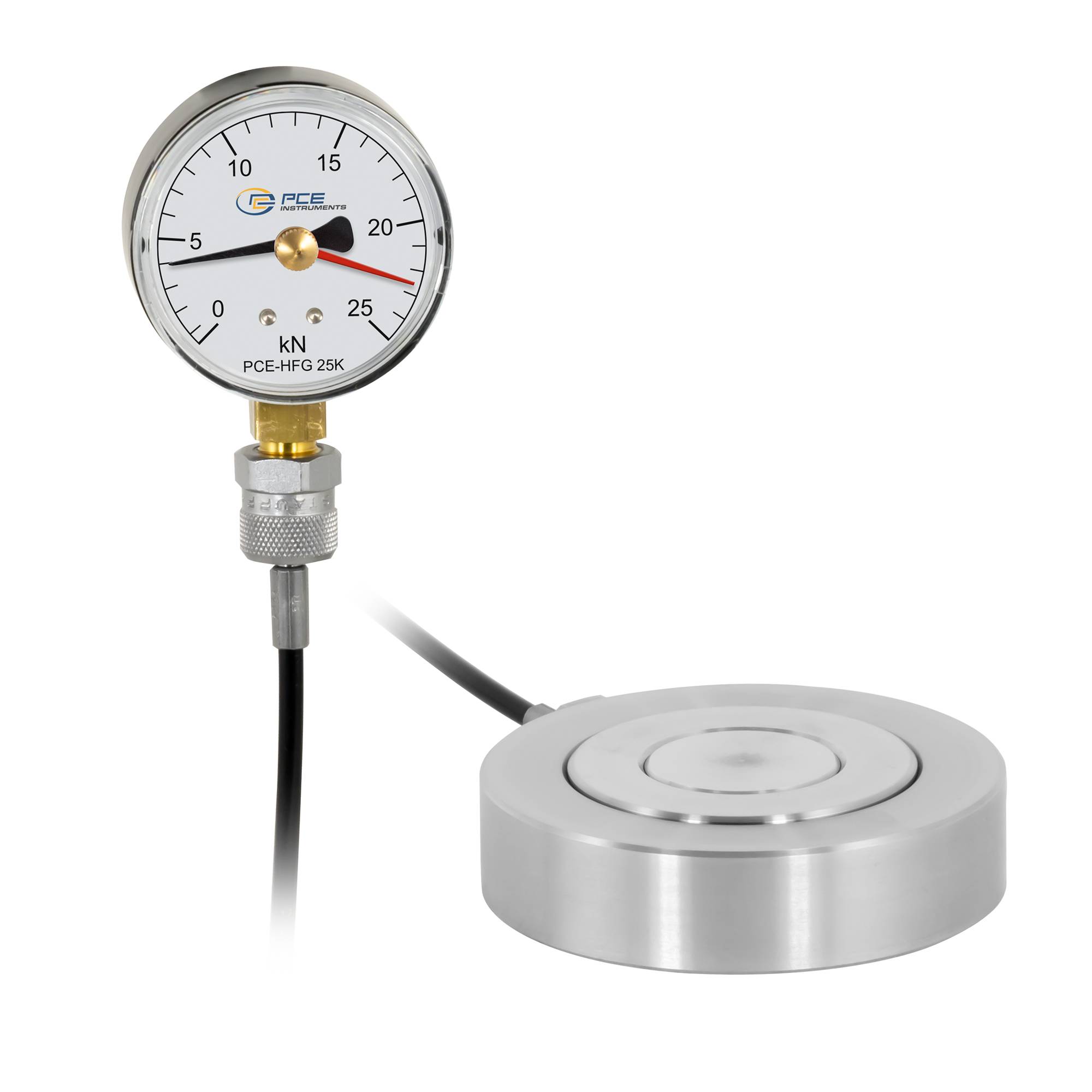

PCE Instruments Force gauge 0 - 25000 N Manufacturer's standards (no certificate)
- Hydraulic force meter with analogue scale
- Made of stainless steel
- Compact for small installation rooms
- Measurement of static pressure
- Ring force transducer and pressure stamp
- 27 mm ring hole size
- Pressure force display in Newton [N]
- Measuring range 0 … 25,000 N
- Resolution 1000 N
- Integrated drag indicator
- Screw socket for axial mounting
- With mounting holes
Technical specifications
- Measuring range 0 … 25,000 N
- Resolution 1000 N
- Measuring accuracy ±1.85% of measuring range
- Hydraulic hose length 100 cm
- Dimensions of the display Ø 55 mm
- Mounting holes 2 x M6
- Environmental conditions: 0 - 50 °C
- Dim
(L x W x H) 180 x 105 x 35 mm
- Weight
1.6 kg
- Height
35 mm
- Length
180 mm
- Width
105 mm
- Force reading range
0 - 25000 N
Manufacturer's standards (no certificate)
- Display
Analogue
- Basic accuracy
1.95 %
- Force reading range (max.)
25000 N
- Force reading range (min.)
0 N
- Resolution (force)
1000 N
- Product type
Force gauge
Documents & Downloads
Datasheet
Datasheet 3192974 PCE Instruments Force gauge 0 - 25000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3192974 PCE Instruments Force gauge 0 - 25000 N Manufacturer's standards (no certificate)
Description
A hydraulic force meter is based on the principle that the force acting on the pressure die is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force gauge on a scale in Newton. With the integrated drag indicator, our hydraulic force meter can display the respective maximum measured value.

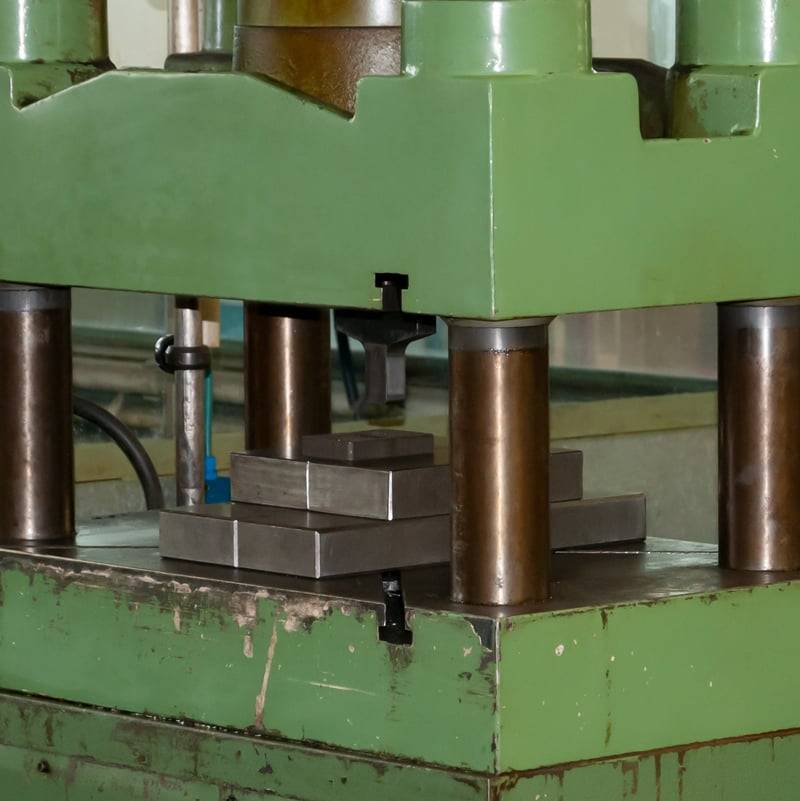

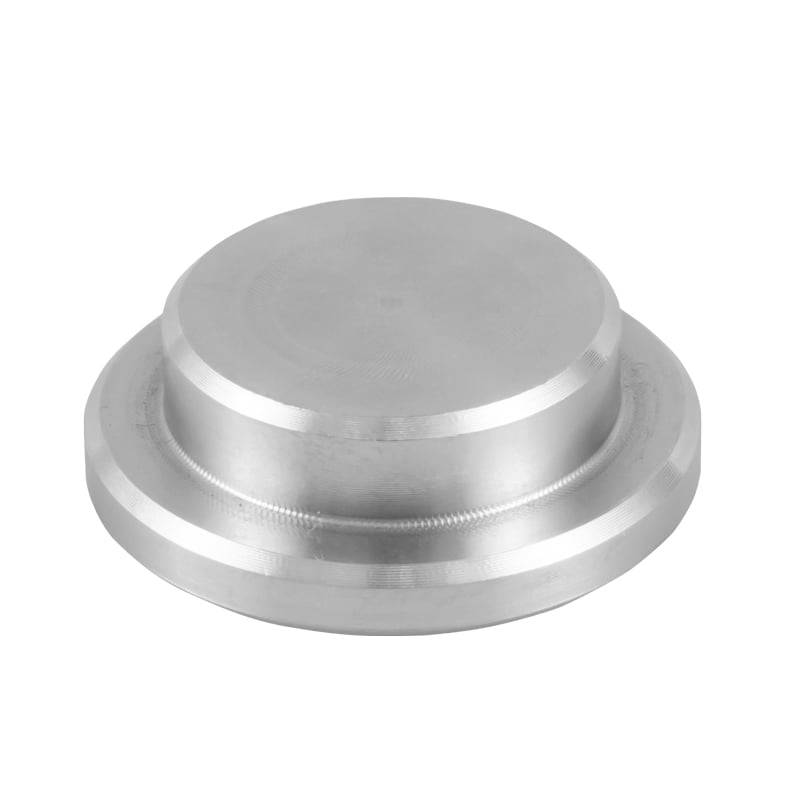

Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.
Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.
This text is machine translated.
Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.
Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.
This text is machine translated.
Features
- Measurement of static pressure
- Integrated drag indicator
- Screw socket for axial mounting

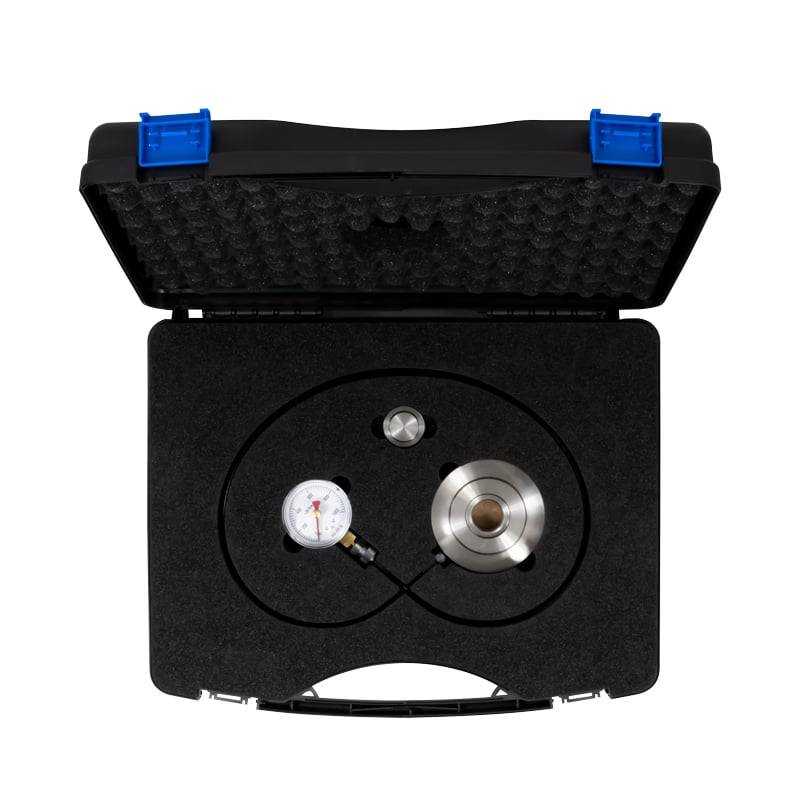

Scope of delivery
- 1 x PCE-HFG 25K-E100 Hydraulic Force Transducer
- 1 x instrument case
- 1 x insert panel
- 1x user manual
