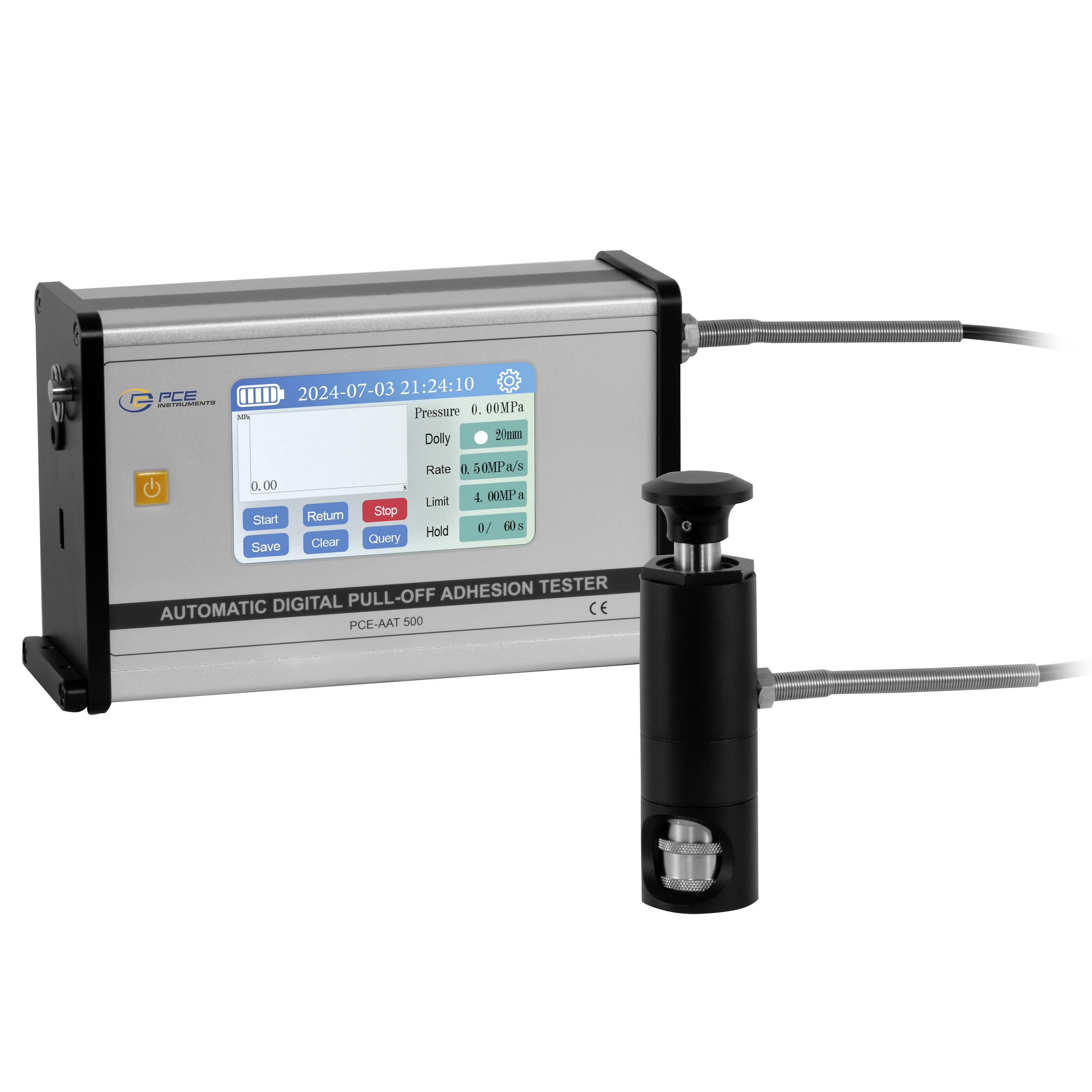

Automatic digital pull-off adhesion tester with touchscreen display and attached cylindrical test head connected by cables.

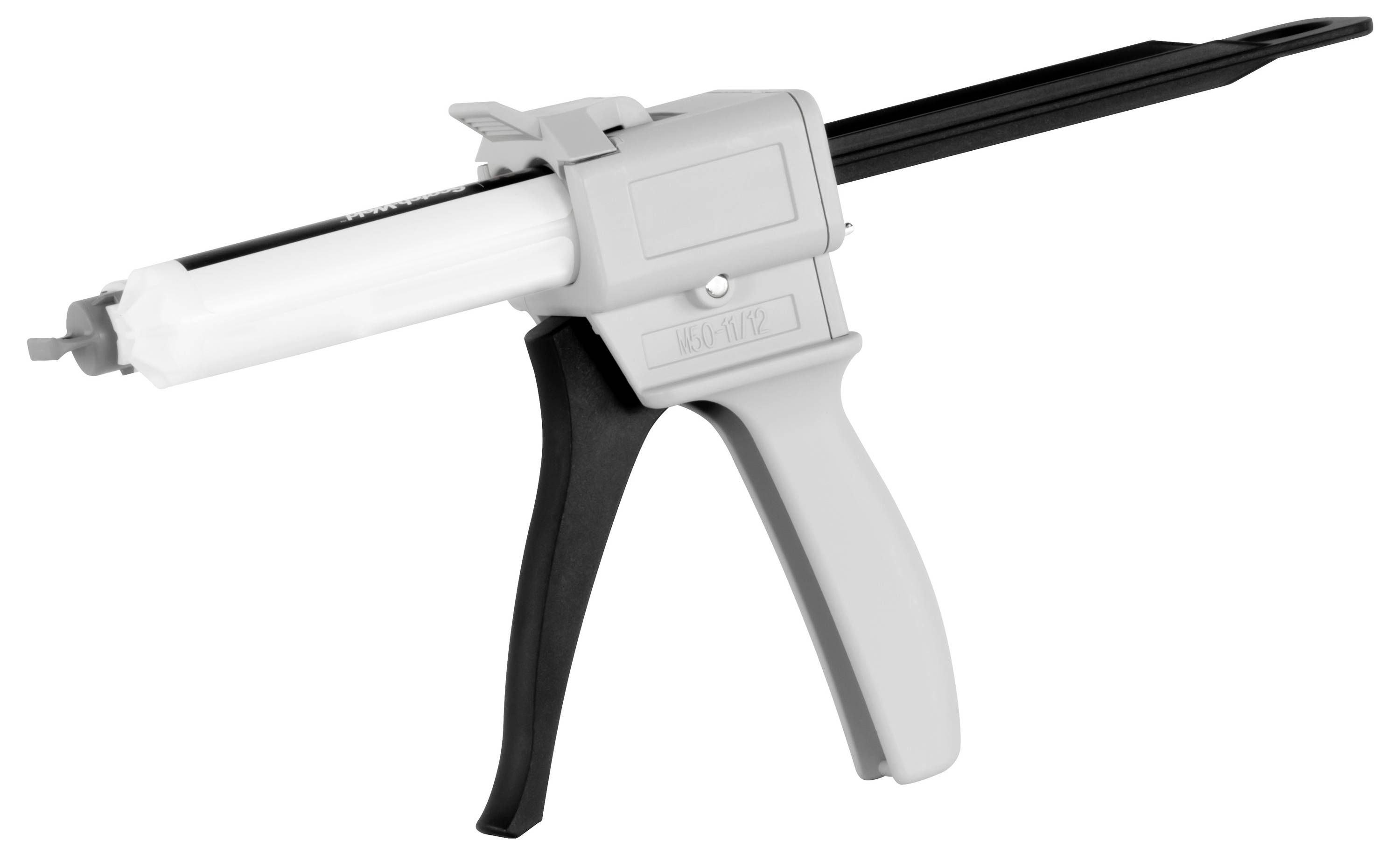

Caulking gun with a white sealant tube, black trigger, and gray handle on a white background.

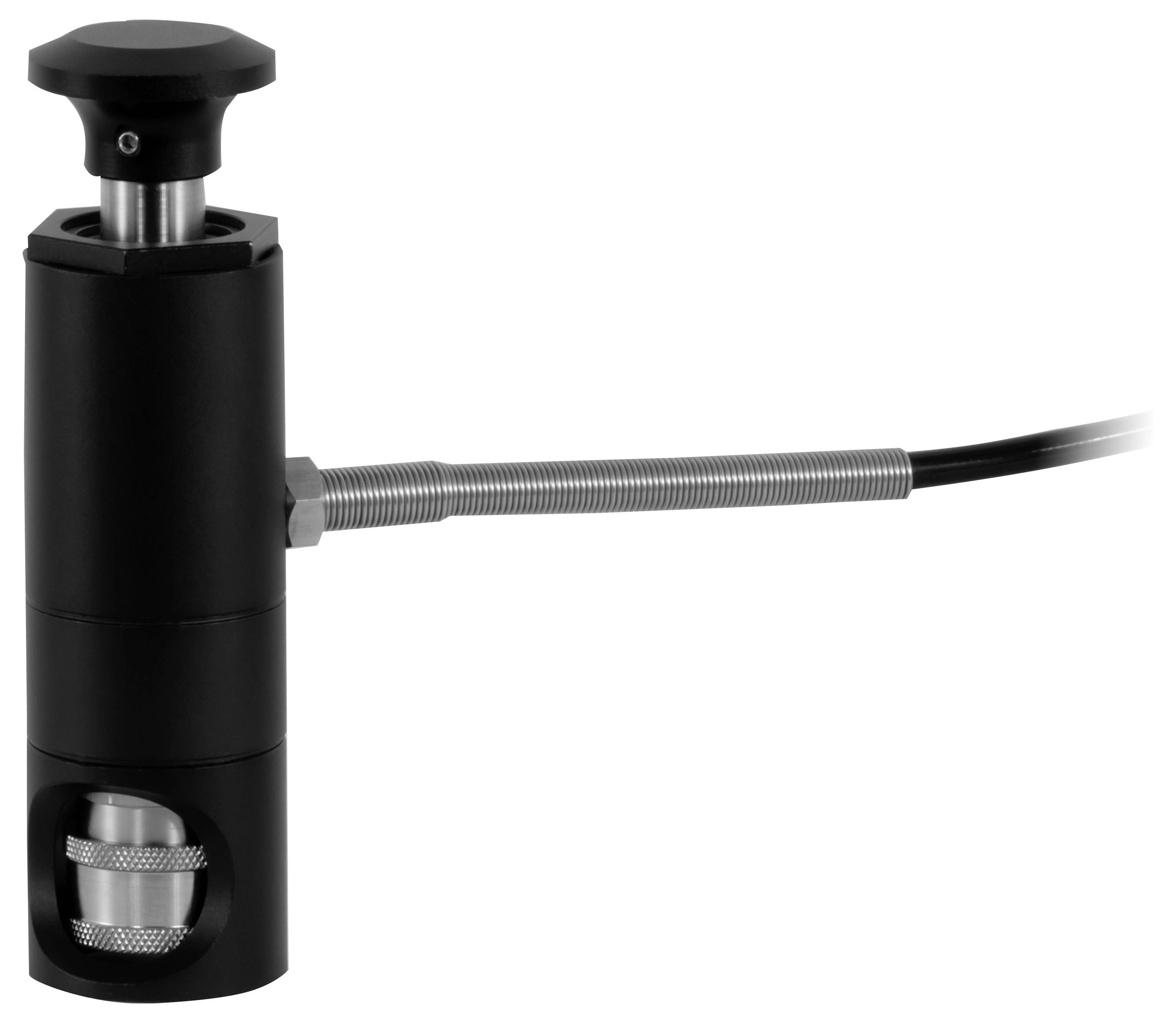

Black cylindrical sensor or switch with a cable extending to the right, shown on a white background.

Close-up of a black flashlight with the front lens cap removed, showing a glowing blue-white light inside.

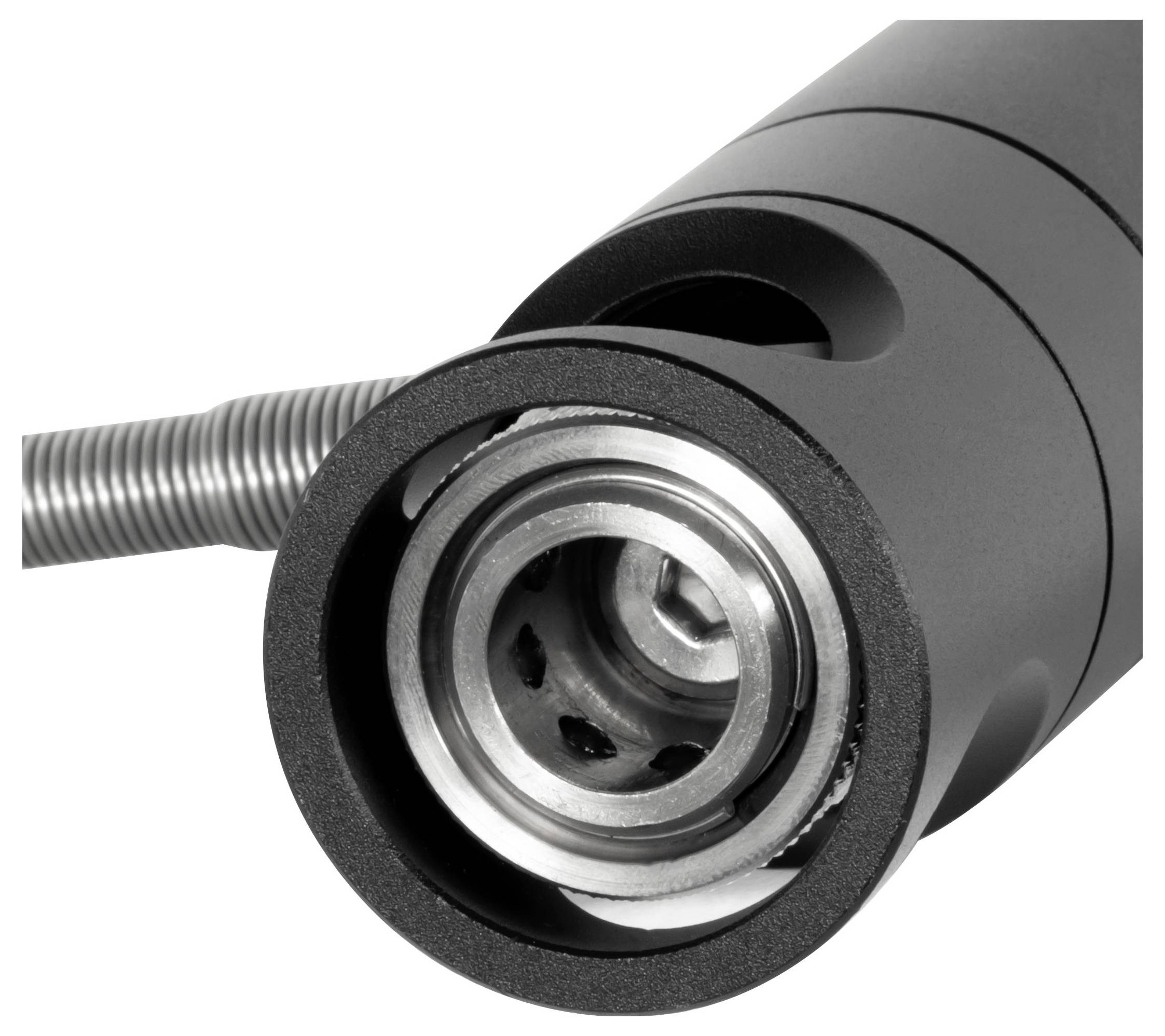

Close-up of a black metal connector or coupling with a threaded cable attached, showing its circular inner socket.

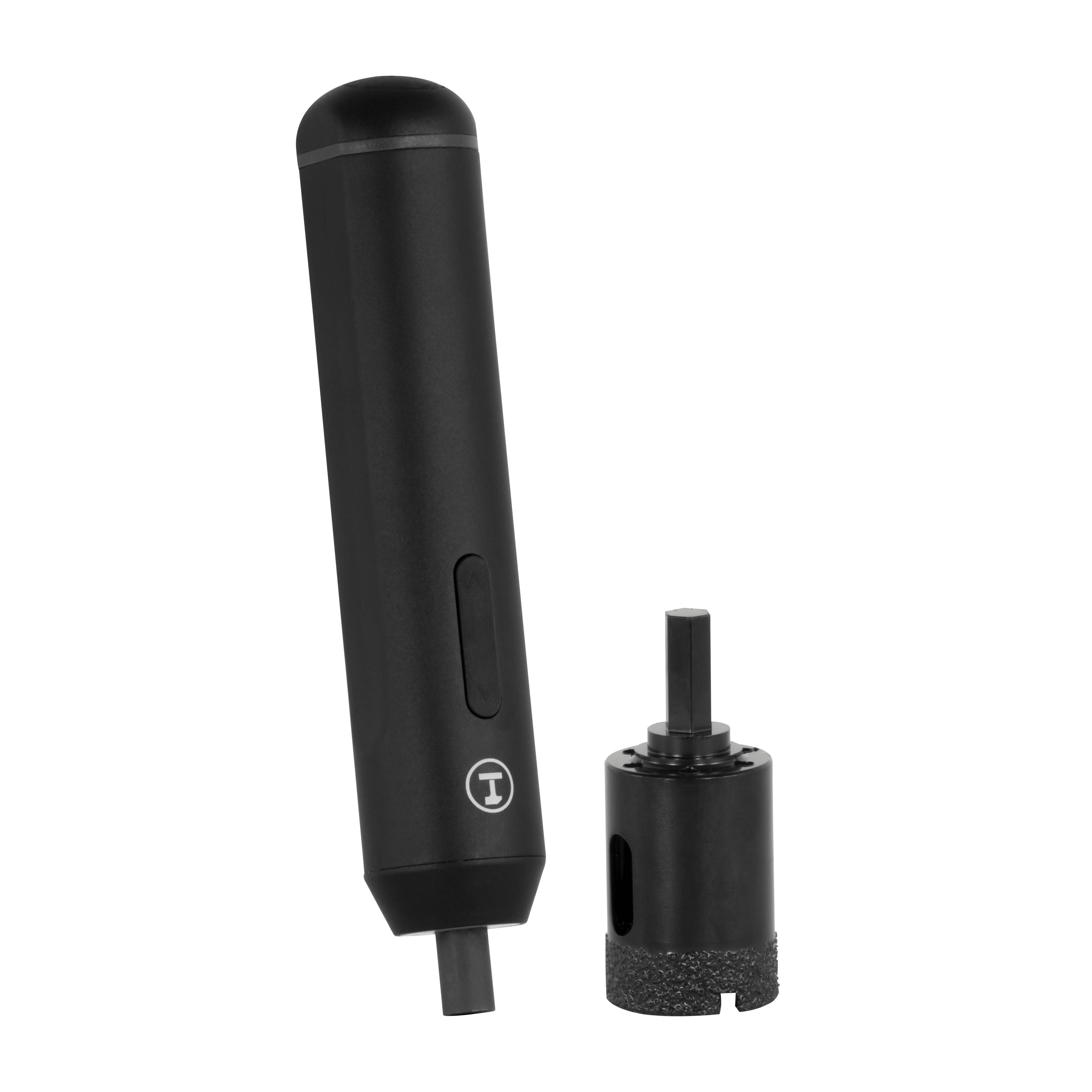

PCE Instruments Force gauge Manufacturer's standards (no certificate)-5

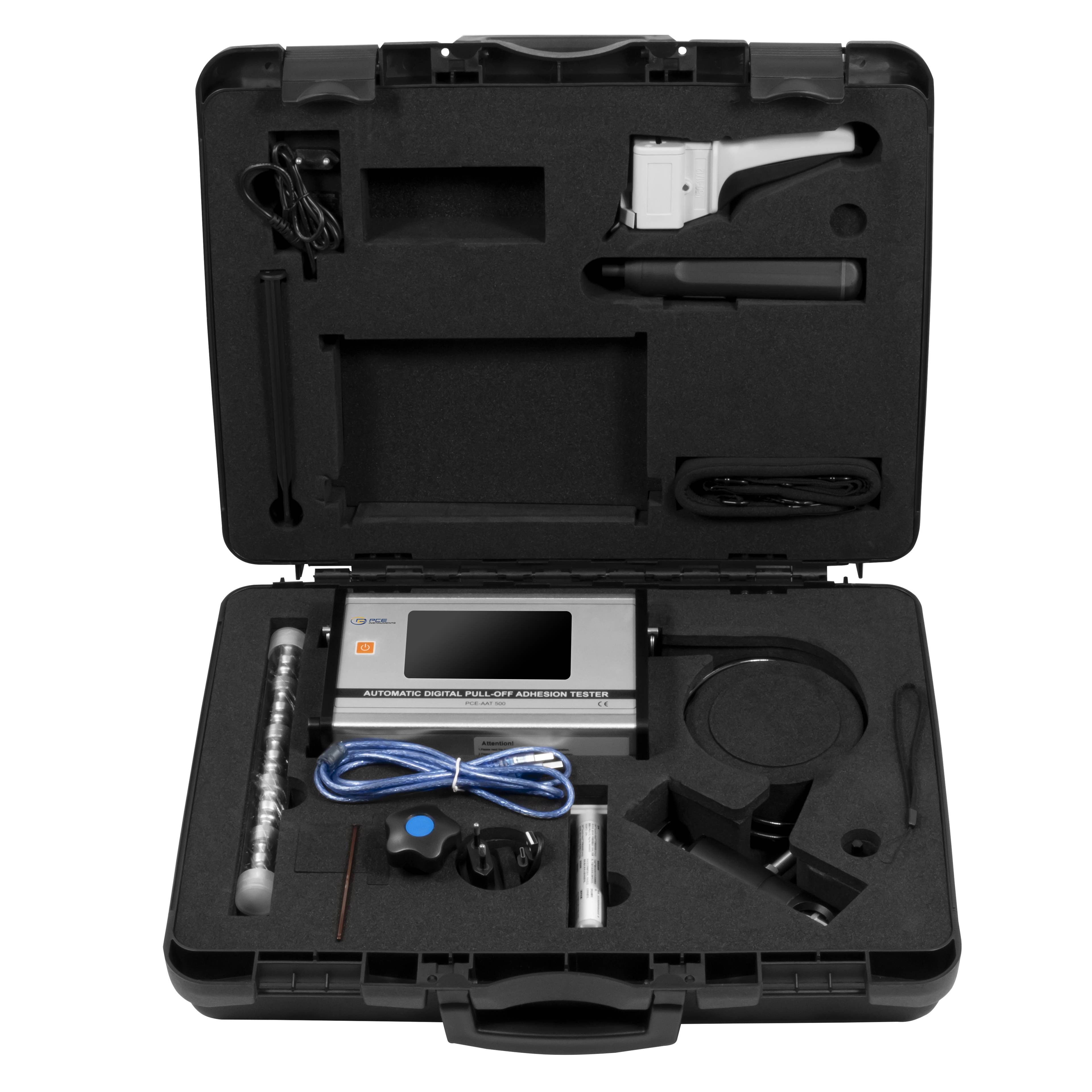

PCE Instruments Force gauge Manufacturer's standards (no certificate)-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments Force gauge Manufacturer's standards (no certificate)

Electronically controlled hydraulic pump
Different measurement head sizes can be selected
Adjustable draw speed, limit and hold time
Graphical measurement process
5-inch touch screen
USB interface
Memory in csv file format

Technical specifications

Pressure
Measuring range 0.1 ... 80 MPa
0.01 MPa resolution
Accuracy ±1 % FS
Pressure
Measuring range 14 ... 11600 psi/
Resolution 1 psi
Accuracy ±1 % FS
General Technical Data
Units MPa, psi
LCD touchscreen display type
Display size 4.8 inches
Storage medium Internal memory
Storage capacity: 16 MB
Interface USB
Standard(s) GB/T 5210, ASTM D4541/D7234, ISO 4624/16276-1
Automatically switches off approx. 10 min.
Menu language English (GB), English (US), Chinese
Protection class (device) IP40
Power supply 100 ... 240 V AC 50/60 Hz
Connector type Euro plug
Weight 4.1 kg.
Operating conditions 0 ... 50 °C , 10 ... 90 % r.F.
Storage conditions 0 ... 50 °C , 10 ... 90 % r.F.
Battery 1 x 3.7 V 18650 , Lithium-ion battery
Capacity 3400 mAh
Dimensions ( L x W x H ) 360 x 100 x 130 mm

Product type: Force gauge

Display: LCD

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 480 x 100 x 130 mm

Weight: 4.1 kg

Basic accuracy: 1 %

Width: 100 mm

Height: 130 mm

Length: 480 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 3369048 PCE Instruments Force gauge Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3369048 PCE Instruments Force gauge Manufacturer's standards (no certificate)

Description

The automatic adhesion meter is a portable, hand-operated device that measures the force required to remove a specific test diameter of a coating from the substrate using hydraulic pressure. The measured pressure is displayed on the 5 inch touch screen and represents the adhesive strength of the coating on the substrate. This device is used to evaluate the adhesion (tear resistance) of a coating by determining the maximum tensile force it can withstand before it is released. The automatic adhesion meter makes it possible to detect breaks caused by cracks along the weakest layer in the system consisting of carrier, adhesive, coating layers and substrate.

Equipped with an electronically controlled hydraulic pump, our automatic adhesive strength meter enables precise and repeatable application of the required traction force. Thanks to the choice of different Dolly-sizes, the device is flexibly adapted to different Test requirements, WAS makes it very versatile. The drawing speed, the load limit and the holding time can be individually adjusted to meet specific requirements for different materials and applications.

In addition, the automatic adhesive strength meter features a USB interface for easy transfer of the measured data to external devices. The data can be stored in a practical CSV format, WAS makes it easy to process and analyze. The accessories include additional measurement heads and replacement heads as well as a suitable socket for your needs.
