Highlights & Details

PCE Instruments Force gauge Manufacturer's standards (no certificate)

Different measurement head sizes can be selected

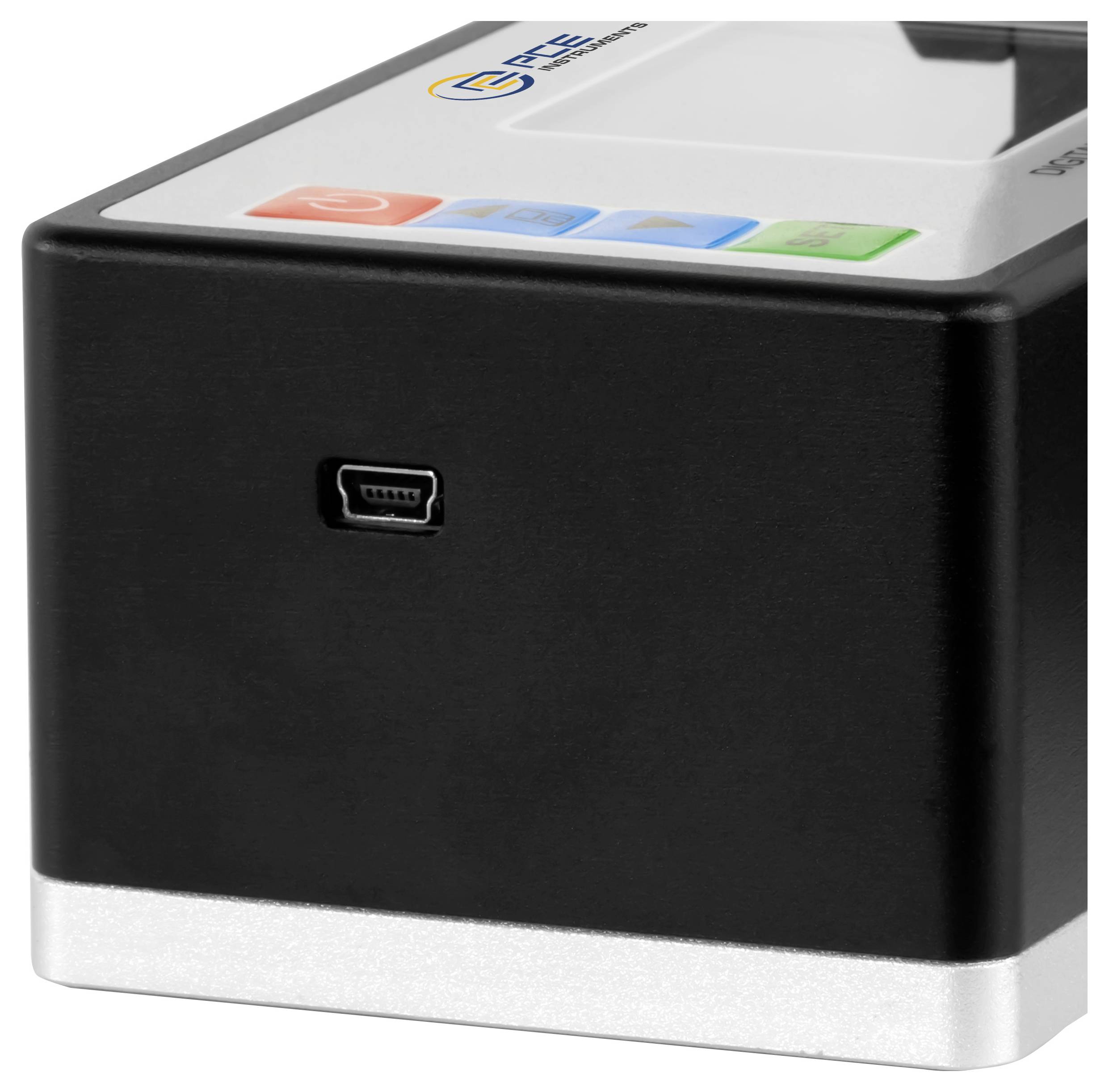

Mini-USB interface
Memory in CSV file format
Battery-powered
Auto switch-off

Technical specifications

Pressure
Measuring range 0.4 ... 80 MPa
0.01 MPa resolution
Accuracy ±1 % FS
Pressure
Measuring range 25 ... 11600 psi/
Resolution 1 psi
Accuracy ±1 % FS
General Technical Data
Unit(s) MPa, psi
Display type LCD
Display size 2.36 inches
Storage medium Internal memory
Storage capacity: 16 MB
Interface Mini-USB
Standard(s) GB,T 5210, ASTM D4541,D7234, ISO 4624,16276-1
Automatic shutdown of...to 1 ... 10 min.
Menu language English (GB), English (US), Chinese
Protection class (device) IP40
Power supply 100 ... 240 V AC 50.60 Hz
Connector type Euro plug
Weight 3.25 kg
Operating conditions 0 ... 50 °C , 10 ... 90 % r.F.
Storage conditions 0 ... 50 °C , 10 ... 90 % r.F.
Battery, battery 1 x 3.7 V 18650 , lithium-ion battery
Capacity 3400 mAh
Dimensions ( L x W x H ) 220 x 140 x 81 mm

Product type: Force gauge

Display: LCD

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 220 x 140 x 81 mm

Weight: 3.25 kg

Basic accuracy: 1 %

Width: 140 mm

Height: 81 mm

Length: 220 mm

Interfaces: Mini USB

Documents & Downloads

Datasheet

Datasheet 3369052 PCE Instruments Force gauge Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3369052 PCE Instruments Force gauge Manufacturer's standards (no certificate)

Description

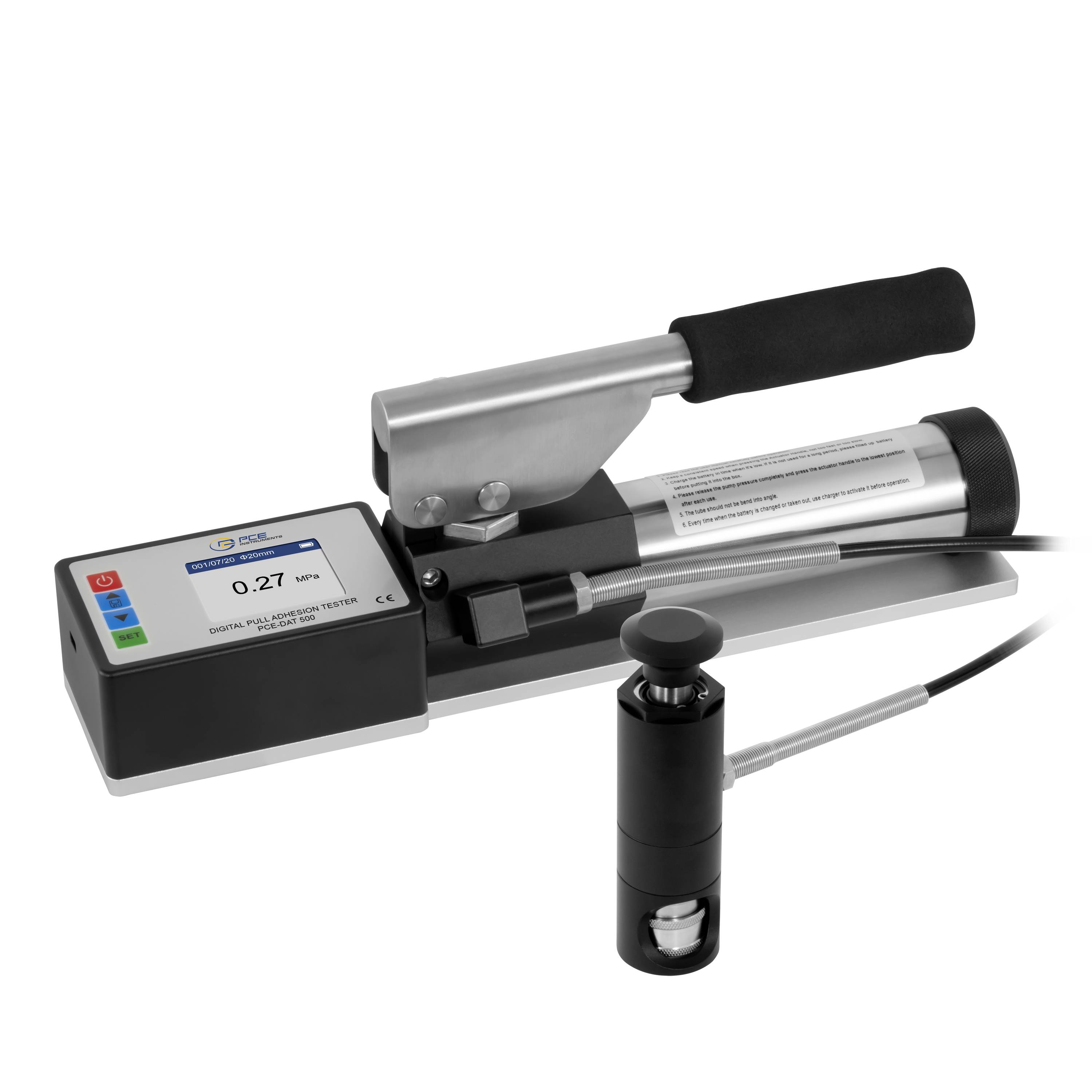

The strength meter is a portable, hand-operated device that measures the force required to extract a specific test diameter of a coating from the substrate using hydraulic pressure. The measured pressure is shown on the LC display and represents the adhesive strength of the coating on the substrate. This device is used to evaluate the adhesion (tear resistance) of a coating by determining the maximum tensile force it can withstand before it is released. Fractions, which result from cracks along the weakest layer in the system of carrier, adhesive, coating layers and substrate, are visible by the adhesion meter.

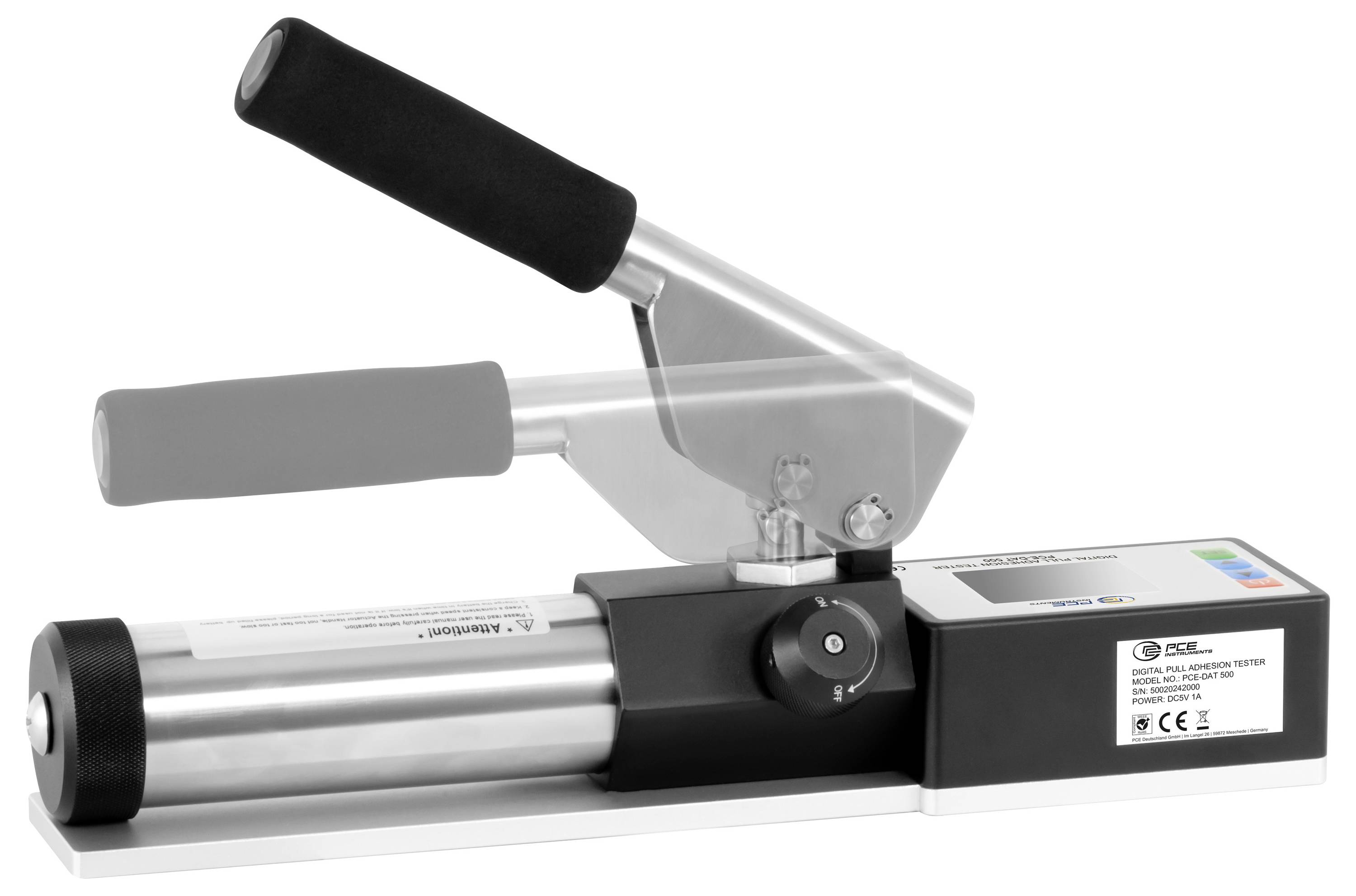

Equipped with a hand-operated hydraulic pump, our adhesive strength meter enables a precise and repeatable application of the required traction force. Thanks to the choice of different Dolly-sizes, the device is flexibly adapted to different Test requirements, WAS makes it very versatile.

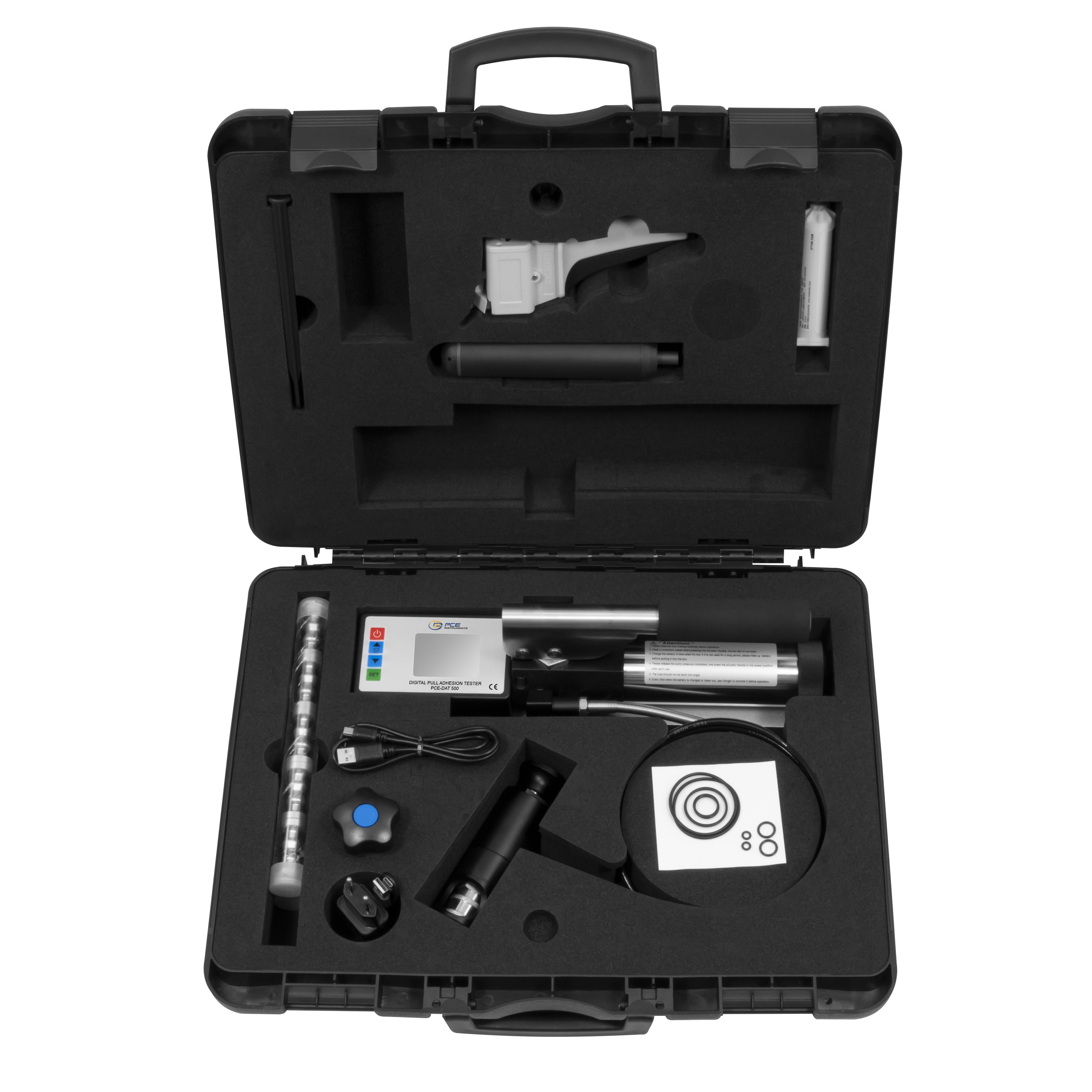

The adhesive strength meter also has a mini USB interface for easy transfer of the measured data to external devices. The data can be stored in a practical CSV format, WAS makes it easy to process and analyze. The accessories include additional measurement heads and replacement heads as well as a suitable socket for your needs.
