Buy PCE Instruments PCE-RT 1200 Surface roughness tester

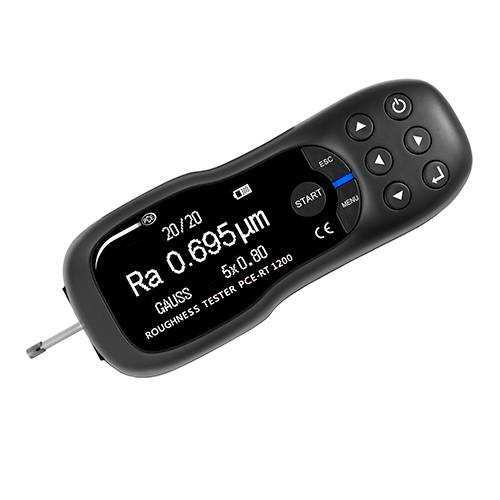

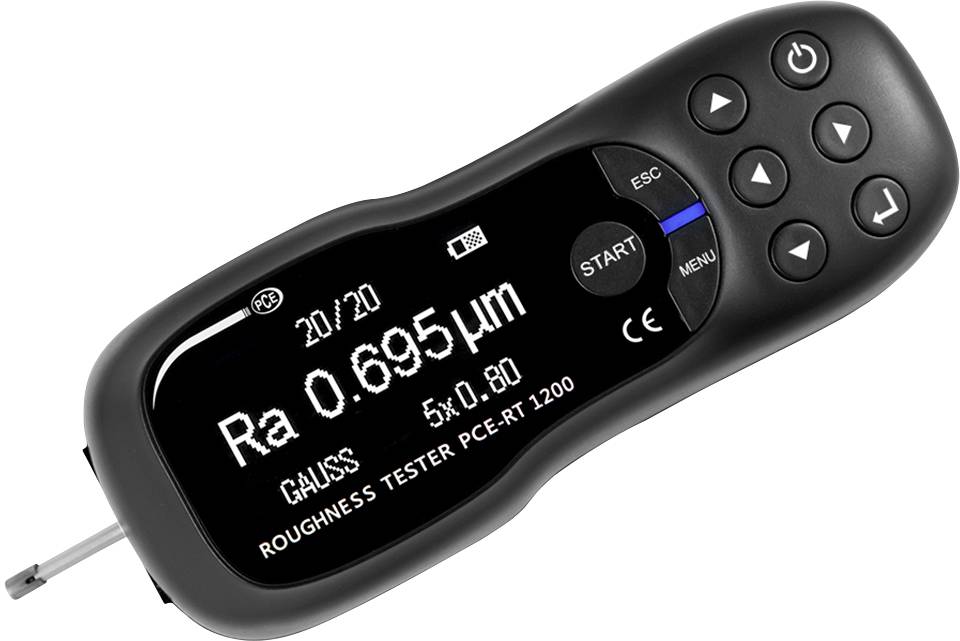

Handheld roughness tester displaying Ra 0.695µm on its screen, with control buttons on the right and a probe extending from the left.<br>

Close-up of a black remote control with directional buttons, a power button, and a USB port with on/off switch on the front.

Close-up of a handheld roughness gauge with a probe stylus extended from the bottom, showing the 'ROUGHNESS' label on its display.

Handheld roughness tester display showing Ra measurement results and settings, labeled 'ROUGHNESS TESTER PCE-RT 1200'.<br>

1/5

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,441.18 / piece)

€ 1,441.18

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Material tester PCE-RT 1200

Extremely compact
Easy to operate
A large OLED display
4 measurable parameters of roughness
The sensor of the roughness knife consists of a high-quality diamond
The display of the roughness meter gives the measured values in tabular form off
The measurement values can also be output as a graph from the roughness meter
A micro-USB interface for online data transfer to a PC (e.g. useful for serial measurement or laboratory measurement) an internal rechargeable battery (3000 measurements with a rechargeable battery charge (Li-ion))

Technical specifications

Measurement parameters: RA, Rz, Rq, RT
Measuring ranges: RA, Rq: 0.005 ... 16.00 µm; Rz, RT: 0.02 ... 200.0 µm
Radius probe tip: 5 µm

Product type: Surface roughness tester

Display type: Digital (OLED)

Dim: (L x W x H) 150 x 60 x 60 mm

Weight: 370 g

Content: 1 pc(s)

Width: 60 mm

Height: 60 mm

Length: 150 mm

Interfaces: Micro USB

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2299587 PCE Instruments PCE-RT 1200 Surface roughness tester

User & Safety Instructions

User & Safety Instructions 2299587 PCE Instruments PCE-RT 1200 Surface roughness tester

Description

The roughness gauge is used to determine the surface roughness. The compact roughness meter is a handheld meter for mobile use. Due to the power supply via a powerful rechargeable battery, it can be used directly on site. The roughness meter is used in the laboratory, in production and generally everywhere where the roughness of surfaces is to be determined. The measured values are displayed on the clear and very clear OLED display directly on the measuring device. In addition, the roughness meter has a storage possibility for up to 20 measured values, which can later be read out via the micro-USB interface. The measurement software, which is included in the delivery like a USB cable, can also be used for this purpose. The internal rechargeable battery is also charged via the micro USB interface. The measurement software already mentioned is particularly suitable when measurement series are pending. The data is then transferred to the software accordingly and can be directly evaluated on the screen.

The roughness meter has a protective cap for the sensor, which protects it against external influences and can be screwed on to the device very easily. A calibration plate with a roughness standard is also standard equipment and is used to check the accuracy of the measurement results.

RZ = averaged roughness depth
The averaged roughness depth Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring distances.
RA = arithmetic mean roughness
Ra is the generally accepted and internationally applied roughness parameter. It is the arith-mean value of the absolute values of the profile deviations within the reference distance. The measured numerical value Ra is always less than the Rz value determined on the same roughness profile.
