PCE Instruments Hydrostatic-type fluid level gauge PCE-WLC 10 Reading range: 0 - 8 mWG 1 pc(s)

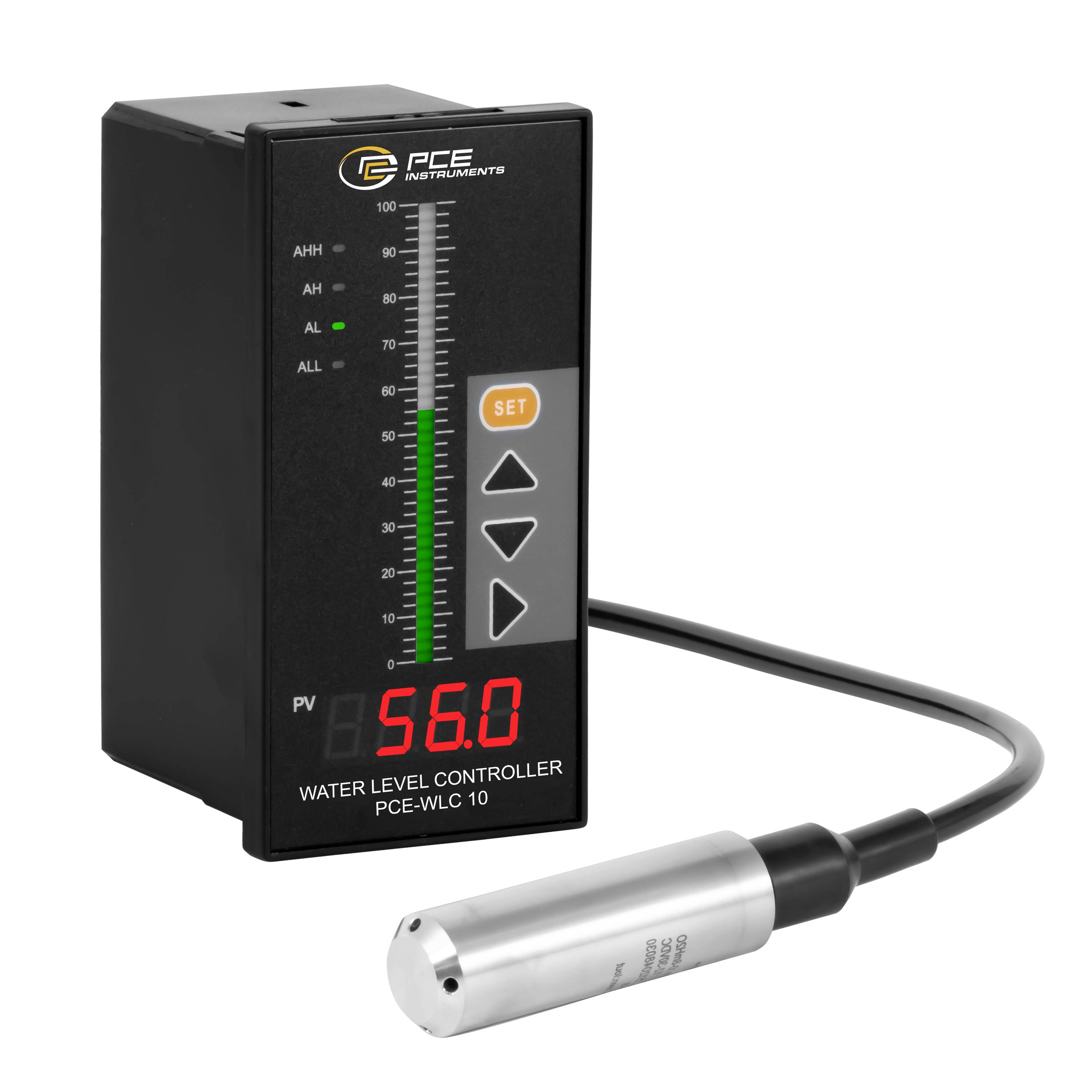

The level indicator offers a reliable and precise solution for measuring fluid levels in a wide range of applications. With a measuring range from 0 to 8 m Hforecast O, the level display Ideal is suitable for use in deep wells, rivers, lakes, canals, reservoirs and coastal monitoring up to 8 m of water depth. The high accuracy of ±0.5 % FS ensures accurate measurement results even under demanding conditions. Thanks to the robust design with stainless steel housing and durable cable material, the level indicator is resistant to abrasion, oil, acids and alkalis.

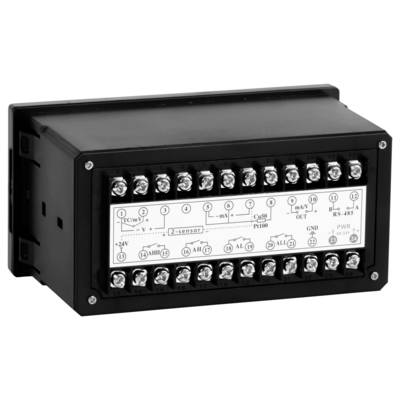

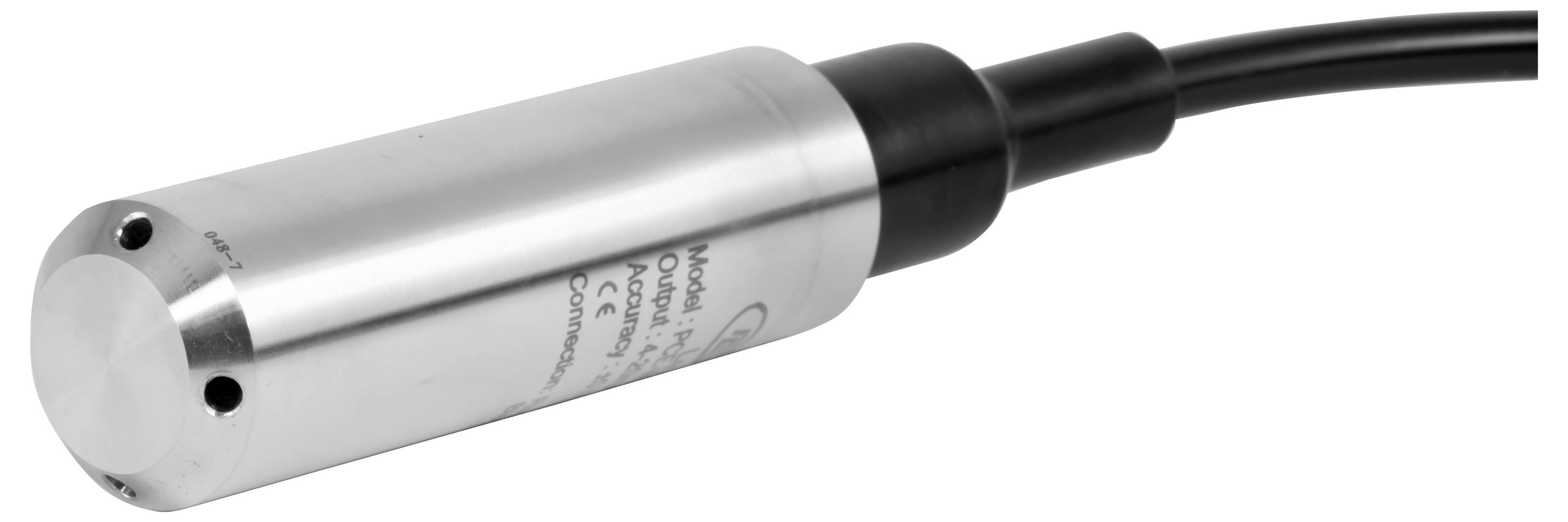

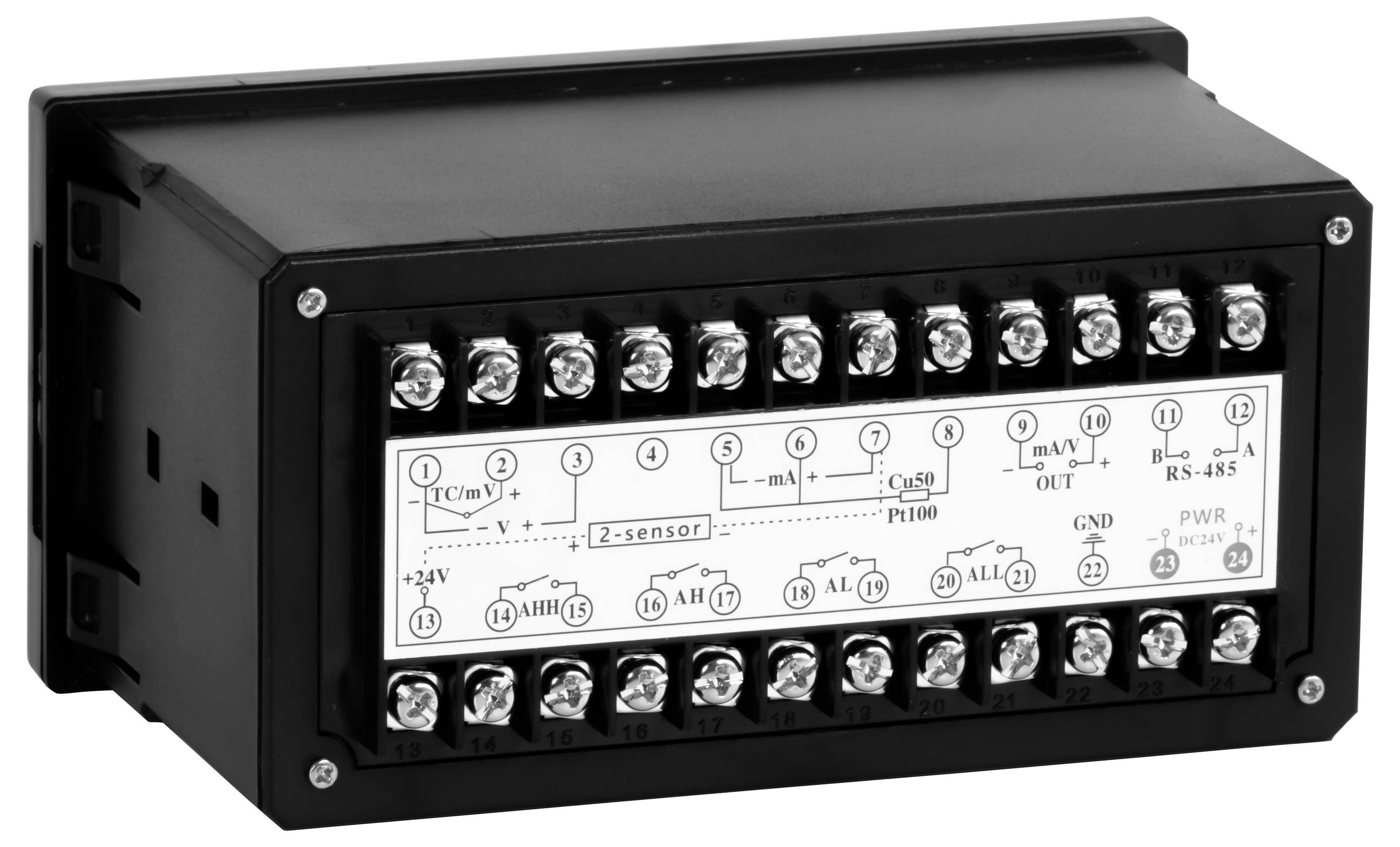

The flexible submersible installation enables the use in static and flowing media. The long-term stability of ±0.2 % FS per year provides for permanently reliable measurement results. The display is operated with a supply voltage of 24 V DC and is designed for connection of sensors with 4–20 mA output signal. In addition, it has a 4–20 mA analogue output, which enables easy further processing of the measured values in higher-level control systems.

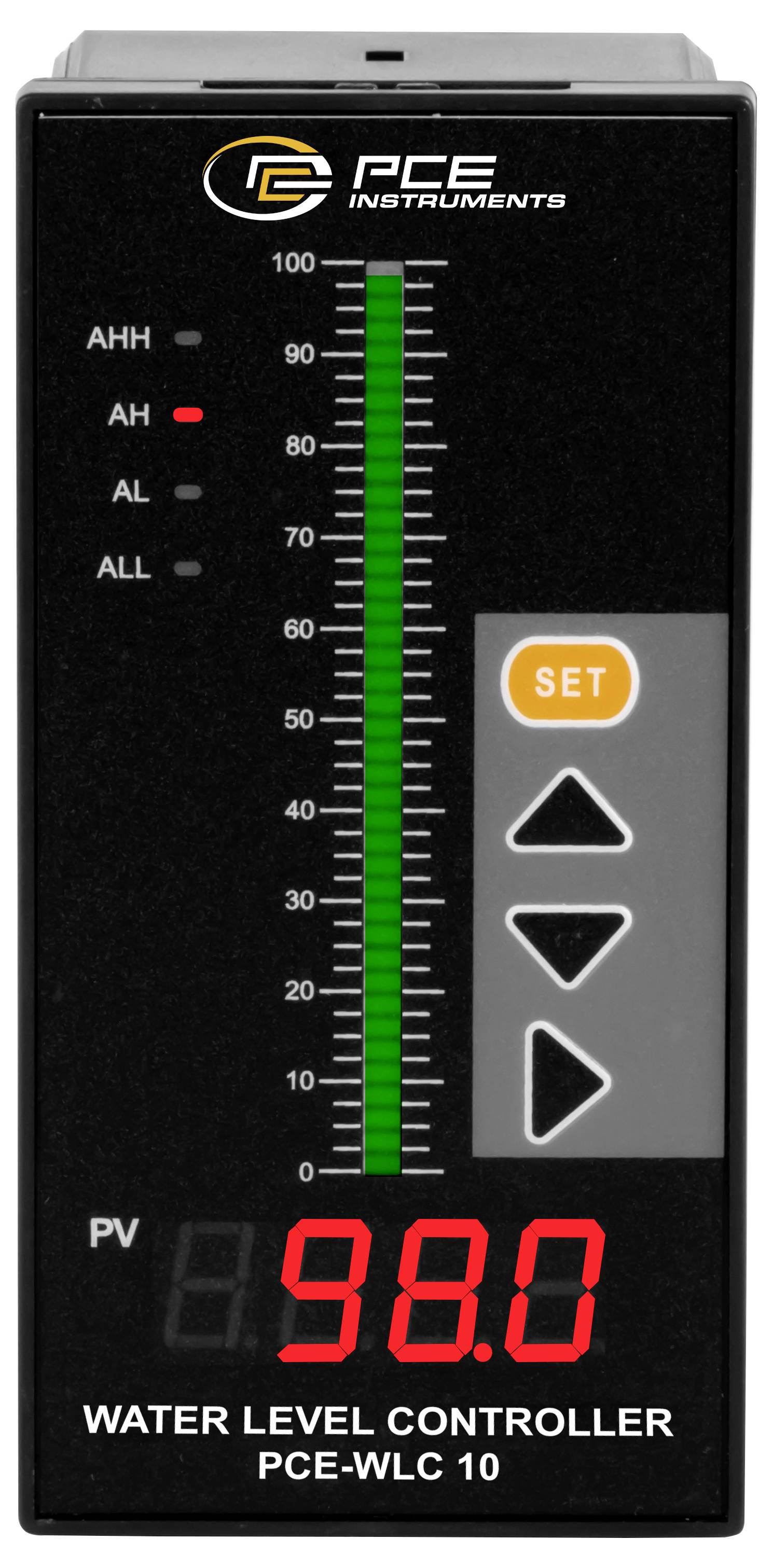

Four alarm relays (ALL, AL, AH, AH) are available for the monitoring of limit values, with which individual switching points for different levels can be implemented. All settings can be conveniently made directly using the control buttons on the display, while WAS ensures easy and quick start-up. The level display is optimally suitable for applications in water management, waste water treatment, irrigation, water redirection and industrial liquid monitoring.

This text is machine translated.
