PCE Instruments Manometer Bottom -0.5 up to 0.5 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PME 50
- MAX, MIN, AVG value, HOLD
- Acoustic alarm
- 13 selectable pressure units
- Data recording and software
- Rechargeable lithium battery
- LC colour display
- Date and time display
Technical specifications

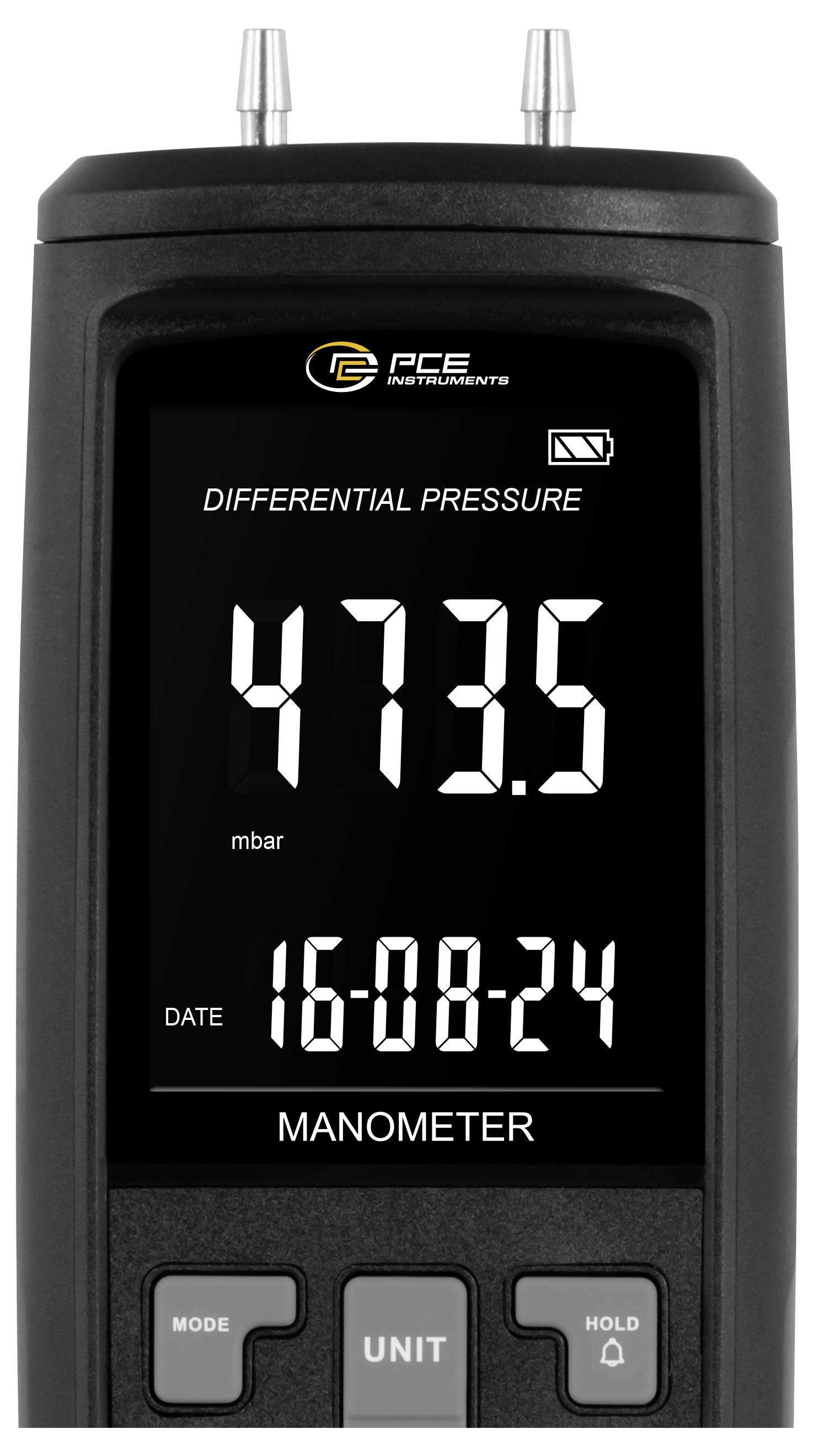

- Differential pressure
- Measuring range -50 ... +50 kPa
- Resolution: 0.01 kPa
- Accuracy ±1 % FS
- Differential pressure
- Measuring range -500 ... 500 mbar
- Resolution: 0.1 mbar
- Accuracy ±1 % FS
- General Technical Data
- Measurement functions MIN, MAX, HOLD, AVG
- Unit(s) inHg, Pa, bar, mmHg, mbar, hPa, inHg O, kPa, psi, kg/cm2, PSI, Ozf/in², ftHINT O
- Display type LC-color display
- Storage medium Internal memory
- Memory capacity: 15996 measurements
- Storage intervals of 1 s.
- Storage intervals of up to 9999 s.

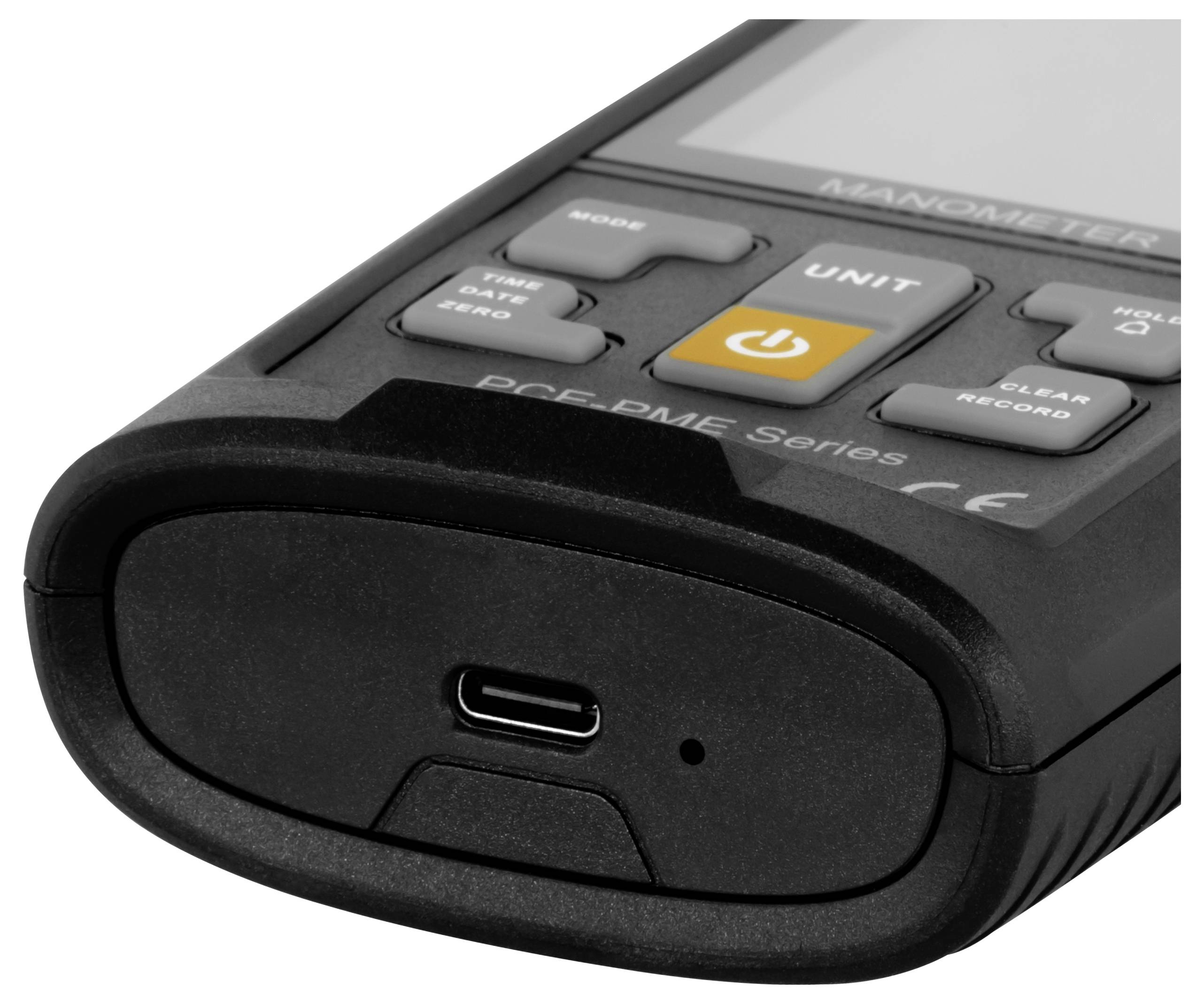

- Interface USB-C
- Operating time 13 h
- Automatic shutdown of ... to 1 ... 99 min.
- Automatic switch-off deactivated Yes
- Audible alarm
- Alarm modes Above, Below
- Over-pressure 3 kPa
- Menu language English (US)
- Protection class (device) IP20
- Power supply 5 V
- Weight 180 g
- Operating conditions -10 ... 60 °C , 0 ... 95 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 95 % r.F.
- Battery/Battery 1 x 3.7 V 803040 , Lithium-polymer battery
- 1000 mAh output
- Dimensions ( W x H x D ) 63 x 162 x 32 mm
- Product type
Manometer
- Min. display range
-500 mbar
- Display range (max.)
+500 mbar
- Operating temperature
-10 up to 60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
60 °C
- Manufacturer part #
PCE-PME 50
- Dim
(W x D) 162 mm x 32 mm

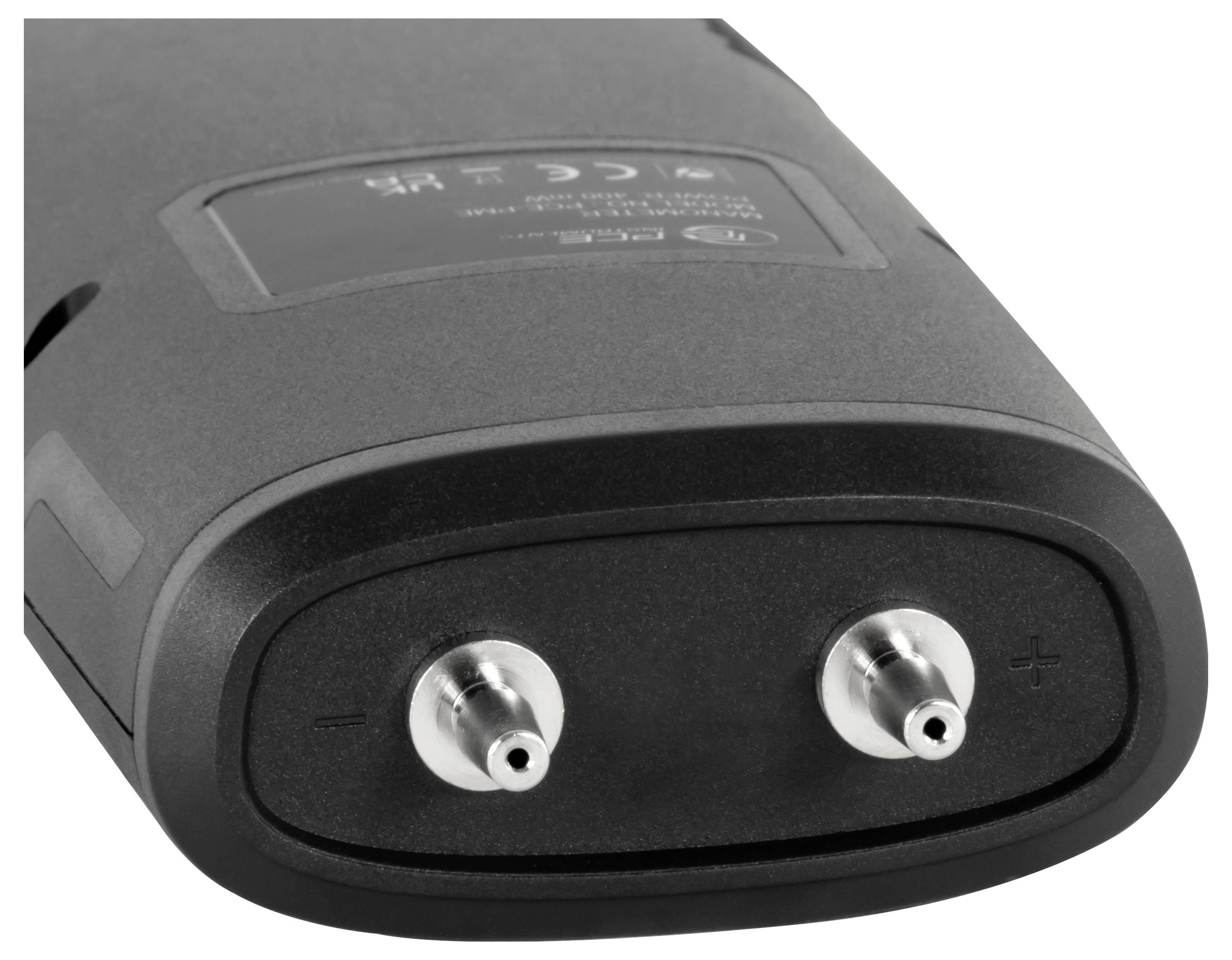

- Connector
Bottom
- Max. operating pressure
0.5 bar
- Operating pressure (min.)
-0.5 bar
- Pressure range
-0.5 up to 0.5 bar
- Operating medium
Compressed air
Air
- Width
162 mm
- Depth
32 mm
Documents & Downloads
Datasheet
Datasheet 3369103 PCE Instruments Manometer Bottom -0.5 up to 0.5 bar
User & Safety Instructions
User & Safety Instructions 3369103 PCE Instruments Manometer Bottom -0.5 up to 0.5 bar
Description

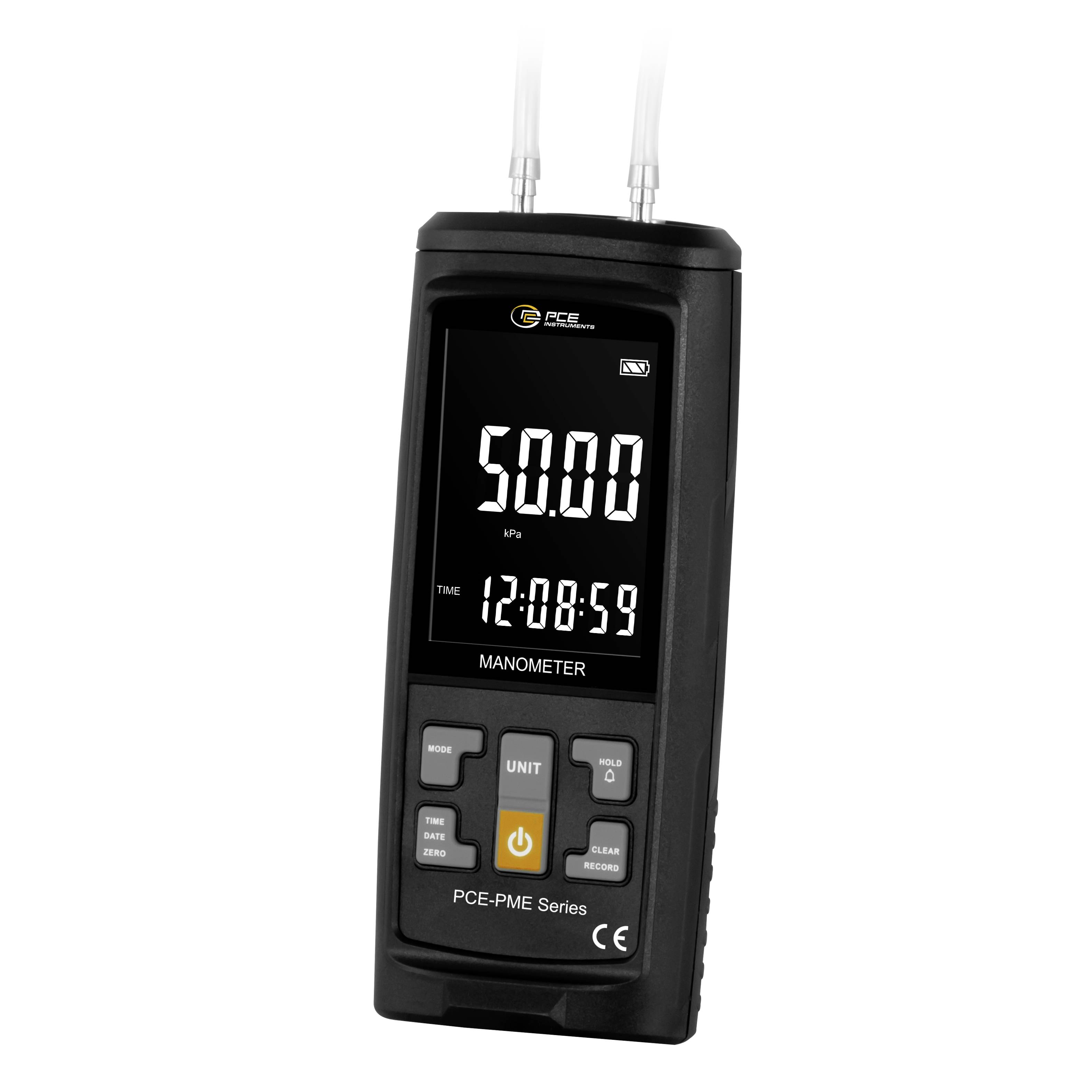

The digital manometer is an accurate and compact meter for differential pressure measurement in a variety of applications, such as measurement of filter resistors, pressure in ovens, apertures, gas-air ratio balancing, combustion processes, Air conditioning, ventilation, etc. The pressure gauge is suitable for measuring non-aggressive and non-explosive gases. The pressure gauge offers a variety of measurement functions such as maximum, minimum and average calculation, a HOLD function, a built-in data acquisition function with adjustable acquisition interval and real time communication with a PC as well as export of the recorded data as an xls file. The rechargeable battery enables a service life of approx. 13 h. The manometer has an acoustic alarm for control your applications. With 13 selectable pressure units, it adapts flexibly to individual needs.
This text is machine translated.
This text is machine translated.

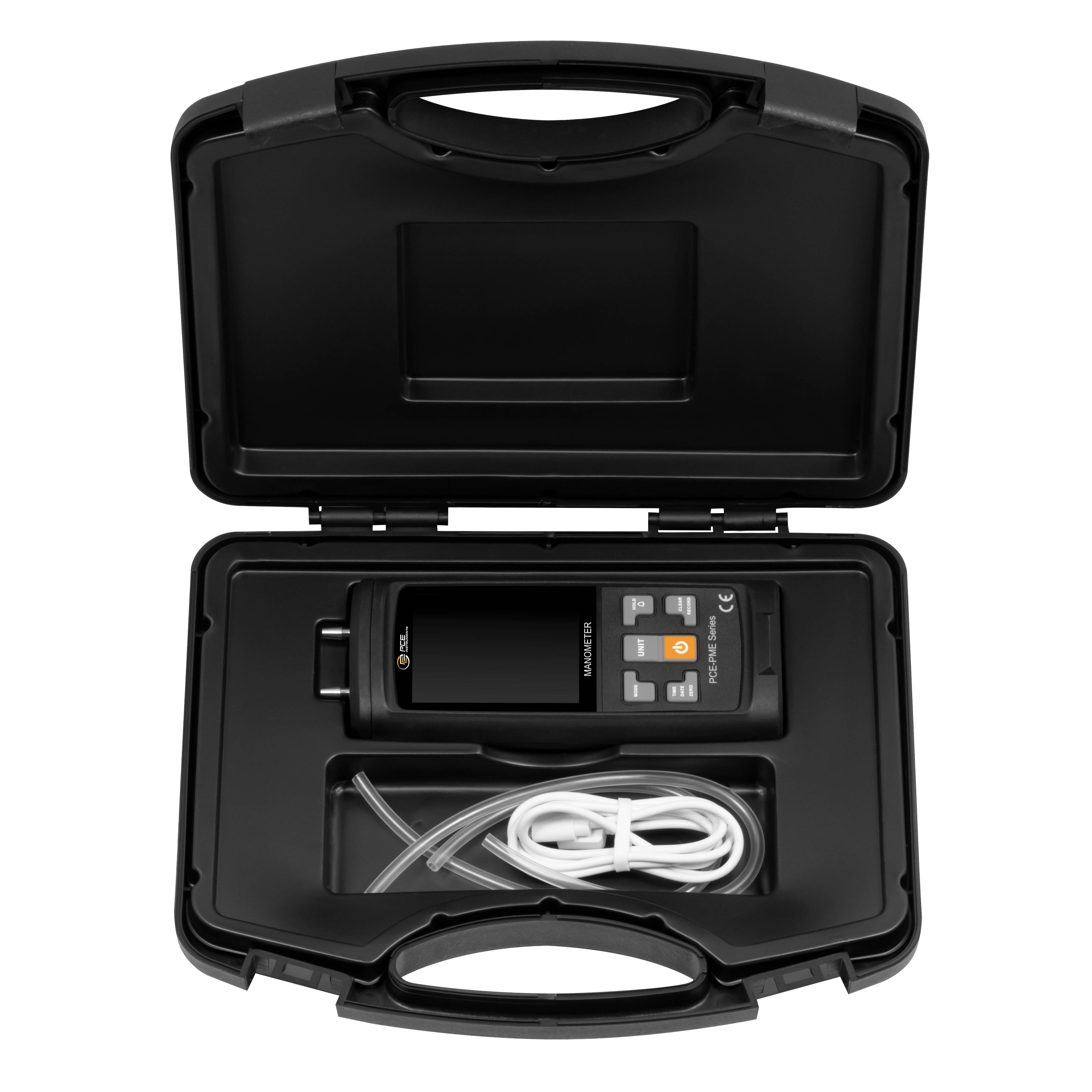

Scope of delivery
- 1 x manometer PCE-PME 50

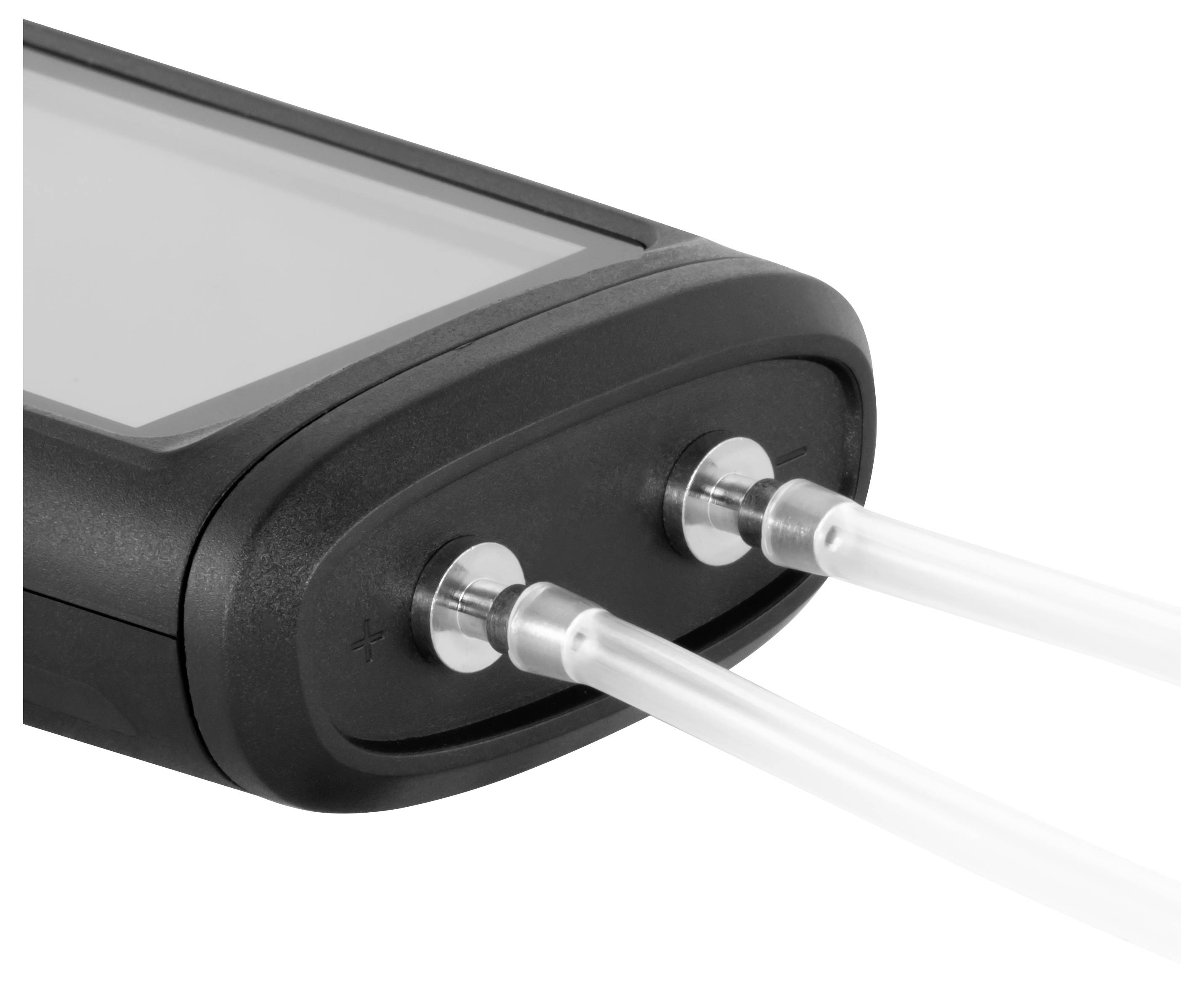

- 2 x tube approx. 25 cm
- 1 x USB-A - USB-C cable (power supply not included)
- 1 x transport case
- 1 x PC software (in the download area)
- 1x user manual
