PCE Instruments Manometer PCE-P15-ICA PCE-P15-ICA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

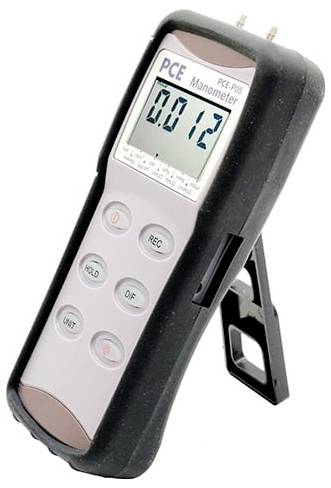

PCE instruments manometer PCE-P15-ICA
- 9 selectable units
- Digital display of over, under (vacuum) or differential pressure
- Min/max memory.
- Data-hold function Data-hold function
- LCD-display with background lighting
- Shock-resistant ABS casing
- Auto Power-off function
- Further areas of application
- Manometer can be used for a wide range of purposes.
- This is how it is used, for example, in:
- Pneumatic area, on compressors and pump systems
- Chemical area for process control, measurements on pressure tanks
- Manufacturing sector for compressed air processes e.g. in the plastics industry
- Inspection of valve controls (before air loss)
- Research and development
- Generally for optimization and testing in the process
- Heating and air conditioning system can be added

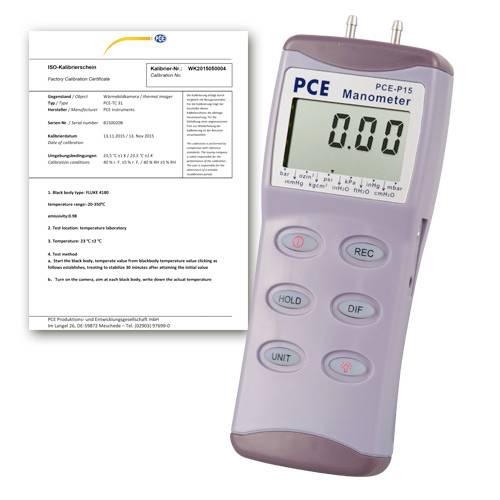

- Incl. ISO calibration certificate
Technical specifications
- Differential pressure
- Measuring range -1000 ... +1000 mbar
- resolution: 1 mbar.
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -415 ... +415 INHVIEO
- Resolution 0.3 in Hext O
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -30.5 ... +30.5 inHg
- Resolution 0.005 inHg
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -750 ... +750 mmHg
- Resolution 0.5 mmHg
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -100 ... +100 kPa
- Resolution: 0.1 kPa
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -1050 ... +1050 cmHVision O
- Resolution 1 cmHVision O
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -1.05 ... +1.05 kg/cm²
- Resolution 0.001 kg/cm2
- Accuracy ±0.3 % FS at 25 °C.
- Differential pressure
- Measuring range -15 ... +15 psi
- Resolution 0.01 psi
- Accuracy ±0.3 % FS at 25 °C.
- General Technical Data
- Measurement functions MIN, MAX, HOLD, AVG
- Display type LCD with lighting
- Interface RS232
- Response time 0.3 ms
- Measuring medium air, gases
- Automatically switches off approx. 20 min.
- Repeatability 0.2%
- ABS casing (acrylonitrile-butadiene-styrene copolymers)
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Rechargeable battery/battery 1 x 9 V block battery , zinc-carbon
- Capacity 310 mAh
- Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 182 x 72 x 30 mm
- Weight 150 g.
- Operating medium
Air, non-corrosive gases
- Product type
Manometer
- Min. display range
-1000 mbar
- Display range (max.)
+1000 °C
- Type
Digital differential pressure hand-held meter
- Operating temperature
0 up to 50 °C
- Min. operating temperature
0 °C
- Max. operating temperature
50 °C
- Manufacturer part #
PCE-P15-ICA
- Dim
(W x D) 72 mm x 182 mm
- Connection
Hose tail
- Width
72 mm
- Depth
182 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812642 PCE Instruments Manometer PCE-P15-ICA PCE-P15-ICA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3812642 PCE Instruments Manometer PCE-P15-ICA PCE-P15-ICA 1 pc(s)
Description
Here you see a pressure gauge with the highest accuracy and best performance. With this manometer you can not only measure. The pressure readings can easily be transferred online to a PC or laptop. The manometer is Ideal for use in industry, service and laboratory. This device is particularly well suited for measuring non-corrosive media. Overload protection equals double the measurement range. The 9 units that can be shown on the display make this manometer universally applicable for practitioners on site and saves tedious conversion of measurement results (conversion table of pressure units).
If you want to transfer the measurement data from the pressure gauge to the computer, you will need the optional software and the RS-232 interface cable. The software runs in conjunction with Windows® versions `95, `98, `2000 and ME / XP (info: Pressure gauge with interface). The principle of absolute and differential pressure measurement is explained if you follow the link below : Principle of absolute and differential pressure measurement. DIN ISO 9000 calibration certificates of the pressure gauges, as well as corresponding accessories, are also available.
Software
The software for data transmission and the interface cable can be ordered as an option in the package. The pressure gauge is connected to the PC with the RS-232 cable. The software is installed from the CD. The pictures below give you a visual impression of the software. The pressure gauge transmits the respective measured values online to the PC.
The values determined on the pressure gauge are applied directly to the y-axis. The differential pressure values are displayed with "-" in a field below the graphic (visible on the top left image (in the red circle). The measuring units can be changed to the desired unit on the manometer as well as in the software. All measured values are written in a data file and can be stored under any name on the computer's hard disk. Many customers also transfer the values to MS Excel for further analysis, for example.
This text is machine translated.
If you want to transfer the measurement data from the pressure gauge to the computer, you will need the optional software and the RS-232 interface cable. The software runs in conjunction with Windows® versions `95, `98, `2000 and ME / XP (info: Pressure gauge with interface). The principle of absolute and differential pressure measurement is explained if you follow the link below : Principle of absolute and differential pressure measurement. DIN ISO 9000 calibration certificates of the pressure gauges, as well as corresponding accessories, are also available.
Software
The software for data transmission and the interface cable can be ordered as an option in the package. The pressure gauge is connected to the PC with the RS-232 cable. The software is installed from the CD. The pictures below give you a visual impression of the software. The pressure gauge transmits the respective measured values online to the PC.
The values determined on the pressure gauge are applied directly to the y-axis. The differential pressure values are displayed with "-" in a field below the graphic (visible on the top left image (in the red circle). The measuring units can be changed to the desired unit on the manometer as well as in the software. All measured values are written in a data file and can be stored under any name on the computer's hard disk. Many customers also transfer the values to MS Excel for further analysis, for example.
This text is machine translated.
Scope of delivery
- 1 x manometer PCE-P15-ICA
- 1 x Carrying case
- 1 x 9 V battery
- 1 x PVC hose (1 m)
- 1 x Operating manual
- 1 x protective covers
- Note!! An overload destroys the sensor in the pressure gauge PCE-P15-ICA
- 1 x ISO calibration certificate
