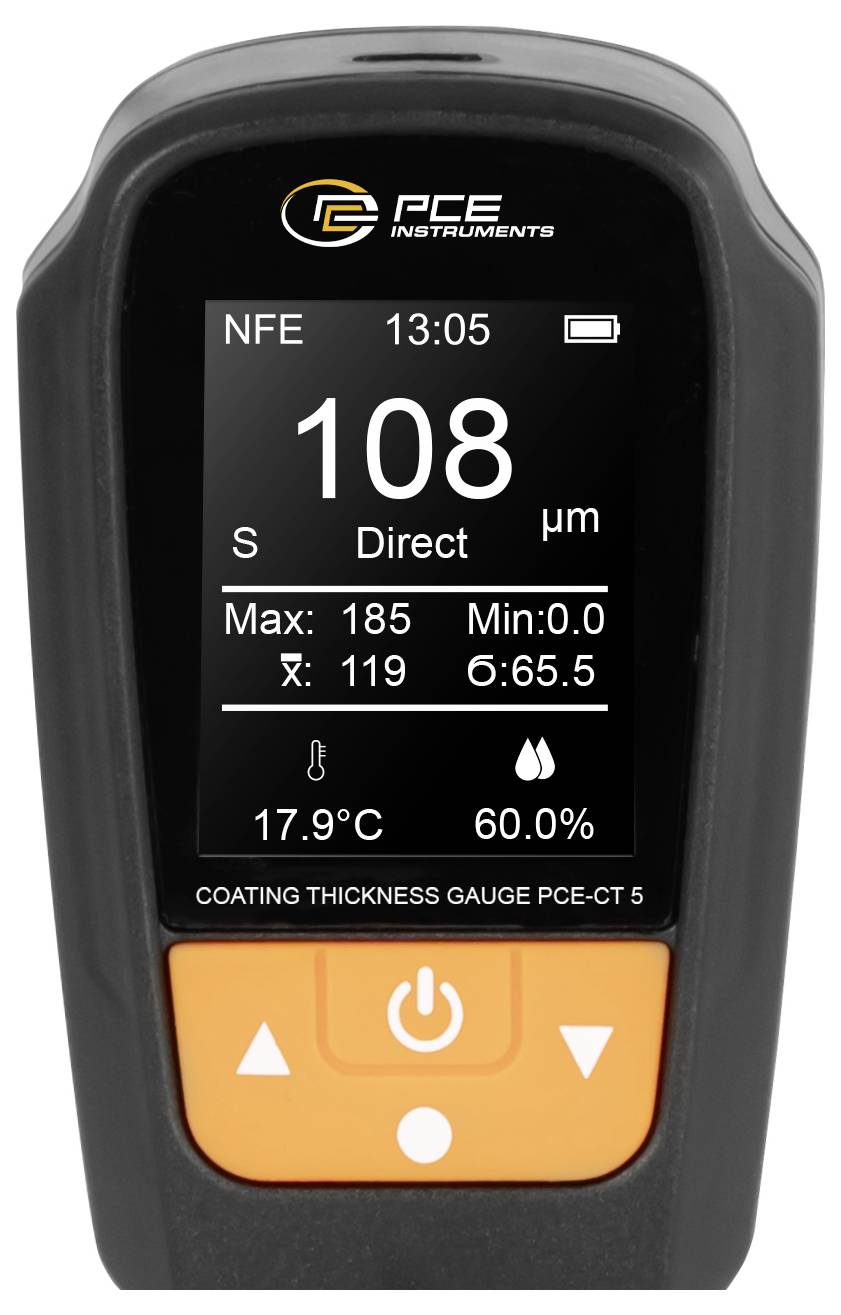

PCE Instruments Paint meter 0 - 2000 µm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 54.62 / piece)
€ 54.62
incl. VAT
14-day return policy included
Technical specifications
- Layer thickness
- Measurement range 0 ... 99.9 µm
- Resolution 0.1 µm
- Accuracy less than or equal to +/-(3 % from MW. +2 µm
- Layer thickness
- Measurement range 100 ... 2000 µm
- Resolution 1 µm
- Accuracy less than or equal to +/-(3 % from MW. +2 µm
- Sensor
- Magnetic mode type (Fe), eddy current mode (NFe)
- Min Base material thickness 0.3 mm
- Min. Curve radius convex 5 mm
- Min. Bend radius concave 25 mm
- Additional description The device automatically detects the basic material and selects the suitable measurement method independently.
- General Technical Specifications
- Unit(s) µm, mm, mil
- Display type TFT color display
- Display size 2 inches
- Measurement rate 0.5 x per second
- Storage medium Internal memory
- Memory information Ring memory for 30 measured values

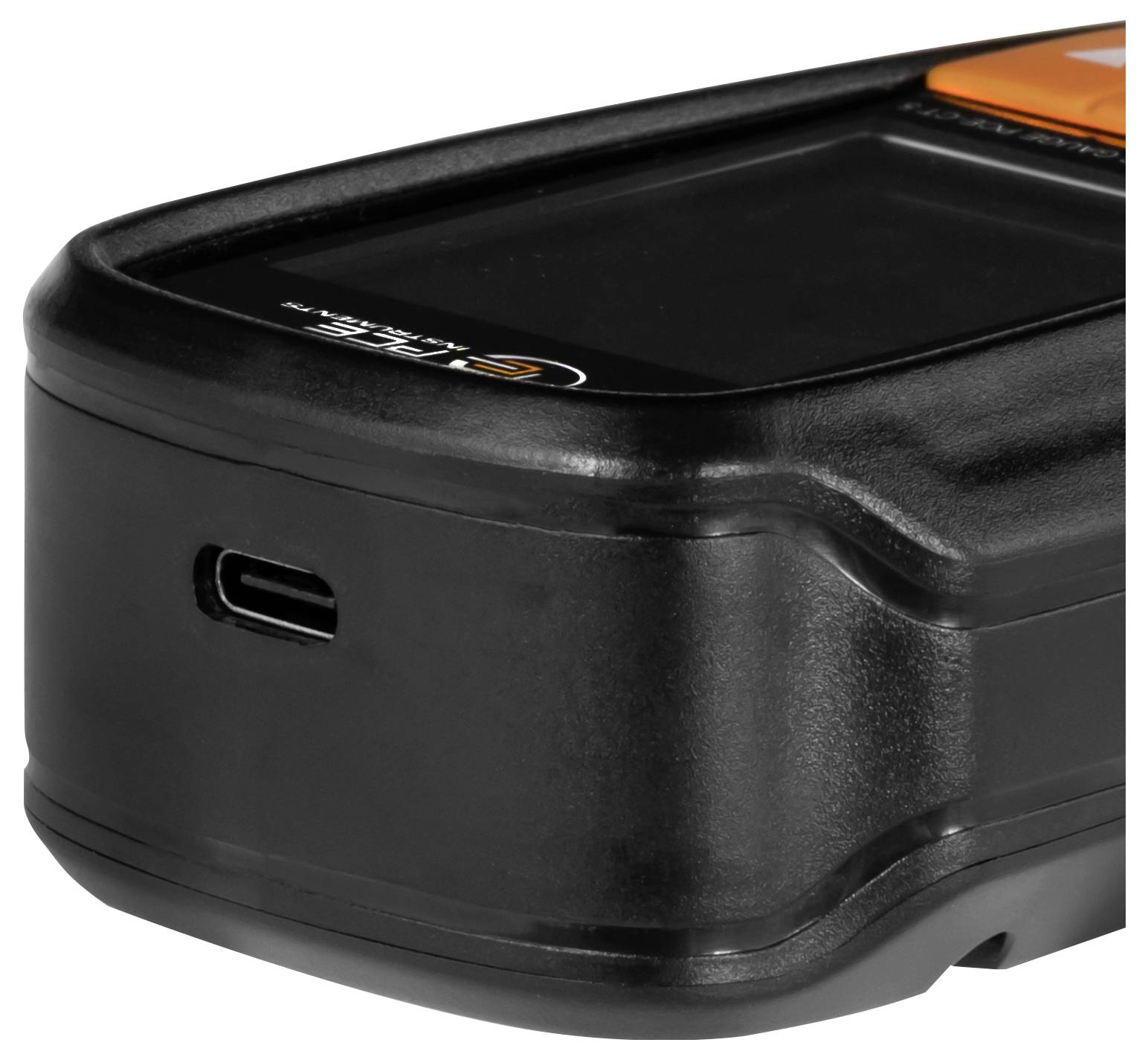

- Interface USB-C
- Automatic shutdown of ... to 5 ... 30 min.
- Calibration zero calibration / 2 point calibration
- Menu language English (US), English (GB), Chinese
- Protection class (device) IP20

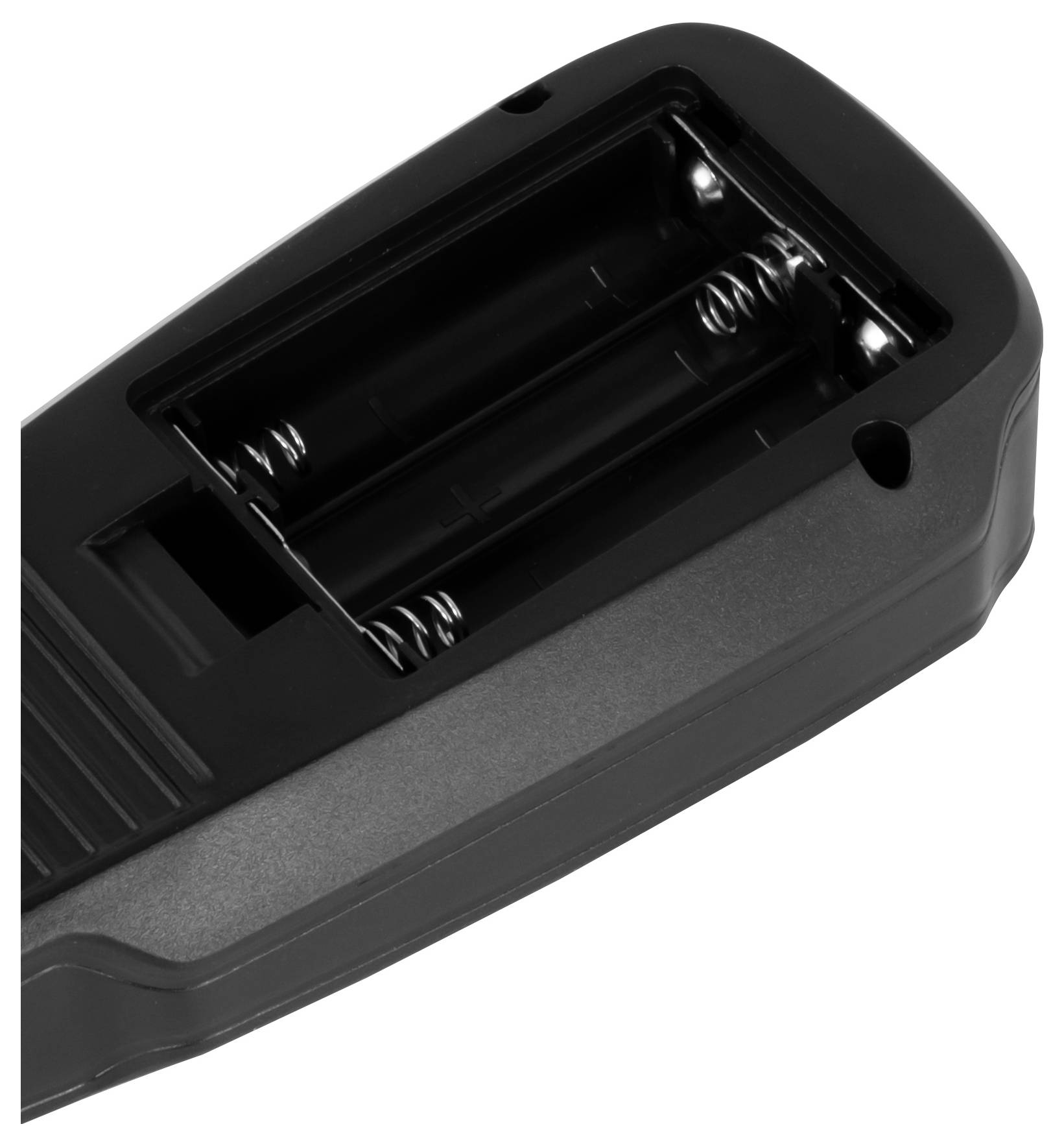

- Power supply battery or 5 V DC (USB-C)
- Operating conditions -10 ... 50 °C , 10 ... 90 % r. F.
- Storage conditions -20 ... 60 °C , 10 ... 90 % r.h.
- Dimensions (L x W x H) 130 x 58 x 30 mm.
- Weight 80 g
- Product type
Paint meter
- Measuring type
Ferrous substances
Non-ferrous substances
Steel
Aluminium
Copper
Brass
- Reading range
0 - 2000 µm
Manufacturer's standards (no certificate)
- Operating voltage
5 V DC
- Dim
(L x W x H) 130 x 58 x 30 mm
- Weight
80 g
- Display
Digital
- Resolution
1 µm
- Accuracy
3 %
- Content
1 pc(s)
- Reading range (max.)
2000 µm
- Reading range (min.)
0 µm
- Measuring type
Eddy current
Magnet
- Width
58 mm
- Height
30 mm
- Length
130 mm
- Plastic free packaging
Plastic-free packaging
