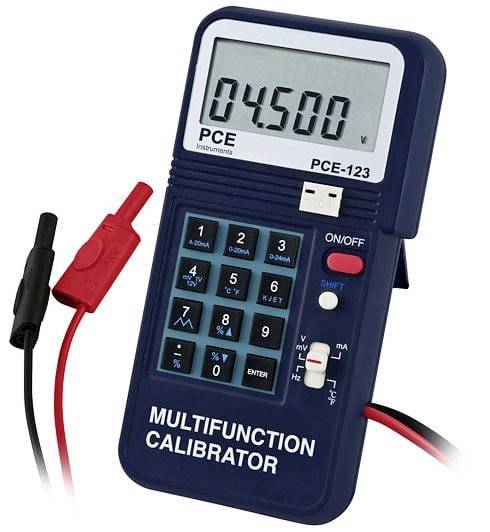

Handheld multifunction calibrator showing 04500 on the display, with red and black test leads attached.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE-123 digital multimeter

K, J, E, T TEMPERATURE SENSORS (°C AND °F)
Frequency range 1 … 62500 Hz
Basic accuracy 0.025 %
Simple operation via keyboard
Automatic ramp functions
Beep warning "open” (mA) or "short circuit" (mV, V)

Technical specifications

MA DC current (1 kΩ max. load, 24 V supply) Range 4 … 20 mA/ 0 … 20 mA/ 0 … 24 mA Resolution 1 µA Accuracy ±0.025 % ±3 µA Warning Beep warning, in case of open current loop, and current output > 1 mA MV, V DC voltage (1 mA supply) Ranges 0 … 100.00 mV (0 - 10.000 V) 0 … 1.0000 V Resolution 10 µV 1 mV 1.0000 V Accuracy ±0.05 % ±30 µV ±0.05 % ±3 mV ±0.05 % ±300 µV Warning Beep tone warns, in case of short circuit and voltage output > 10 mV K, J, E, T - TYPE Temperature sensor (1 kΩ min.) Ranges K: -200 ... 0 C and 0 ... +1370 C J: -100 ... +0 C and 0 … +760 C. E: -100 … +0 C AND 0 … +700 C. T: -200 … 0 C AND T: 0 … +400 C. Resolution 1 C (for all) Accuracy K: ±1.1 C AND ±0.8 C. J: ±0.9 C AND ± 0.7 C. E: ± 0.9 C AND ± 0.7 C. T: ± 1.0 C AND ± 0.8 C. Frequency range 1 ...125 Hz and 126 ... 62.5 kHz Resolution 1... 125 Hz / 1 Hz 126...62.5 kHz / 604 steps Accuracy ±0.04Hz 604 frequencies can be selected Output signal approx. 6.4 V Signal type rectangle General properties Display 5-digit LCD Operating temperature range 0 ... +50 C Operating humidity range <85 % r.h. Storage temperature -20 ... +60 C Storage humidity <85 % r.h. Power supply 1 x 9V or 6 x 1.5V in the battery pack Power consumption 60 mA … 180 mA (depending on output) Battery indicator 5.5 V at 150 mA Dimensions 88 x 168 x 26 mm Weight 330 g.

Voltage reading range DC (min.): 0 V

Product type: Handheld multimeter

Voltage DC reading range (max.): 10 V

Amperage reading range DC (min.): 0 mA

A DC reading range (max.): 24 mA

Basic accuracy: 0.025 %

Height: 26 mm

Width: 88 mm

Length: 168 mm

Weight: 330 g

: Manufacturer's standards (no certificate)

Current reading: DC

Type: PCE-123

Display: Digital

Dim: (L x W x H) 168 x 88 x 26 mm

Temperature reading range (max.): 1370 °C

Temperature reading range (min.): -200 °C

Documents & Downloads

Datasheet

Datasheet 2452231 PCE Instruments PCE-123 Handheld multimeter Digital

User & Safety Instructions

User & Safety Instructions 2452231 PCE Instruments PCE-123 Handheld multimeter Digital

Description

Setpoint generator / measuring device for simulation and measurement of electrical unit signals as well as frequency and temperature The digital multimeter is a mains-independant device for simulation, of control signals / unit signals in the MSR technology, with which you can test / calibrate almost all parameters of control units and measuring devices. Our digital multimeter is used to provide an electrical output signal (mA, mV, V as well as the frequency in Hz and the temperature in °C or °F). In addition, the calibration device has an automatic step or ramp function, percentage preselection of the output signal jumps (0 ...100 %) via up/down keys, as well as a direct specification of the output value (e.g., 3.8 mA). The operation is very simple (intuitive), directly via the keypad. The very high accuracy and the very universal application area of the calibration device are to be emphasized. It should therefore not be missing in any electrical workshop or MSR department in the trade, industry or automation technology.
