PCE Instruments PCE-2500N-ICA Hardness tester Leeb 170 : 960 HLD
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

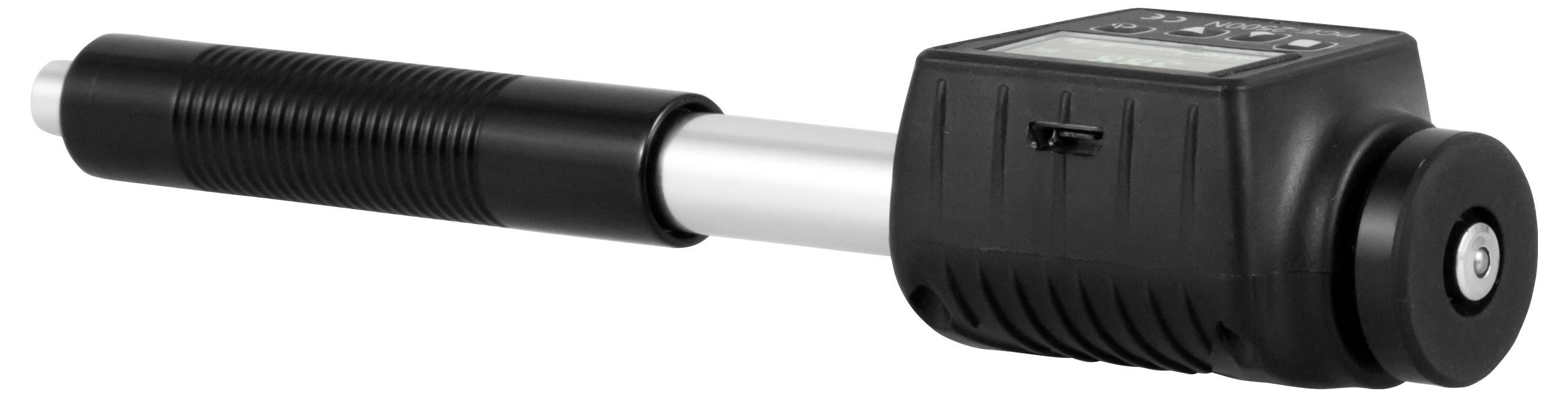

PCE Instruments hardness tester PCE-2500N-ICA
- Determines all the common hardness parameters
- Large measurement range
- High accuracy
- Immediate indication on the display
- Measurement in different positions is possible
- Measurement principle according to the rebound procedure
- Measurement on many materials
- Limit alarm
- Rechargeable lithium-ion battery
- Micro-USB charging cable
- Internal read-memory
- Incl. ISO calibration certificate
Technical specifications
- Measurement ranges:
- HLD: 170 ... 960
- HRC: 17.9 ... 69.5
- HB: 19 ... 683
- HV: 80 ... 1042
- HS: 30.6 ... 102.6
- HRA: 59.1 ... 88
- HRB: 3.5 ... 101.7
- Measuring accuracy HLD ±0.5 %
- Measurement principle of rebound procedure
- Hammer mechanism type D

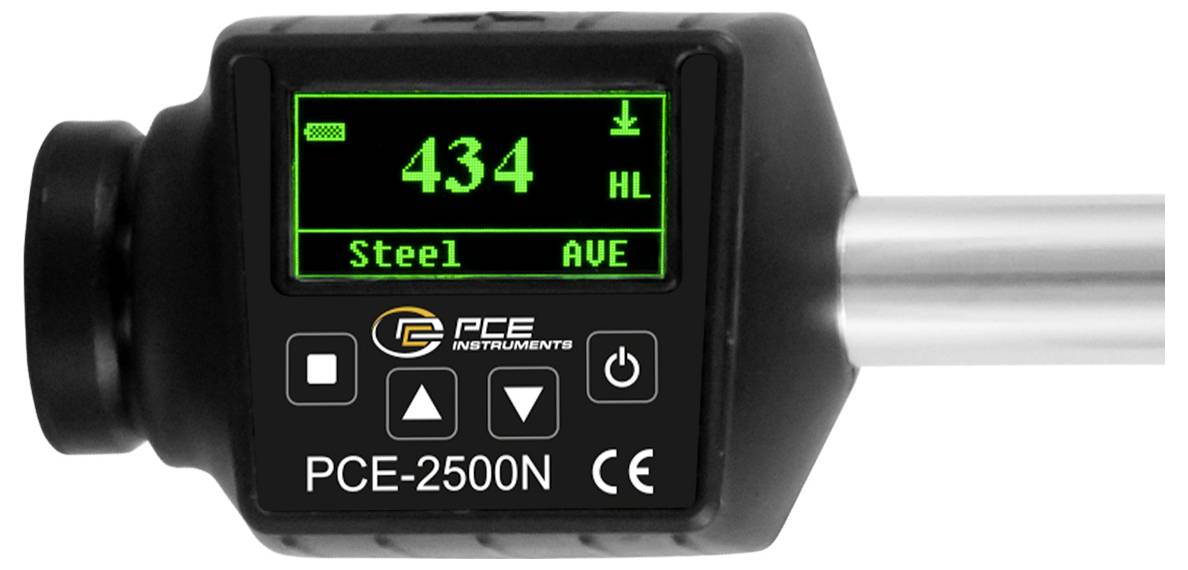

- Display 128 x 64 OLED
- Repeatability HLD ±0.8 %
- Hardness max. 1042 HV
- MEASUREMENT UNITS HLD, HRC, HB, HV, HS, HRA, HRB
- LCD display 15 mm / 0.59 inch display with background lighting
- Materials
- Steel
- Cast steel
- Alloyed tool steel
- Stainless steel
- Grey iron
- Cast iron
- Aluminium cast alloy
- Brass
- Bronze
- Tin-bronze
- Measurement ranges on different material surfaces
- Steel
- HRC: 17.9 ... 68.5
- HRB: 59.6 ... 99.6
- HRA: 59.1 ... 85.8
- HB: 127 ... 651
- HV: 83 ... 976
- HS: 32.2 ... 99.5
- Tool steel
- HRC: 17.9 ... 68.5
- HRB: 59.6 ... 99.6
- HRA: 59.1 ... 85.8
- HB: 127 ... 651
- HV: 83 ... 976
- HS: 32.2 ... 99.5
- Stainless steel
- HRB: 46.5 ... 101.7
- HB: 85 ... 655
- HV: 85 ... 802
- Grey iron
- HB: 93 ... 334
- Brass
- HRB: 13.5 ... 95.3
- HB: 40 ... 173
- Bronze
- HB: 60 ... 290
- Copper
- HB: 45 ... 315
- Continuous operating time approx. 10 h
- Power supply rechargeable Li-ion battery
- Storage conditions -30 ... +60 °C, max. 90 % r.F.
- Operating conditions -10 ... +50 °C, max. 90 % r.F.
- Dimensions 148 x 32 x 25 mm
- Limit alarm yes
- Automatic switch-off yes
- Weight 650 g
- Reverse rebound procedure yes
- IR thermometer no.
- ISO calibration certificate yes
- Product type
Hardness tester
- Reading range
170 : 960 HLD
- Display type
Digital
- Dim
(L x W x H) 148 x 32 x 25 mm
- Weight
650 g
- Content
1 pc(s)
- Calibration service
Incl. ISO calibration certificate
- Measuring type
Leeb
- Width
32 mm
- Height
25 mm
- Length
148 mm
- Interfaces
Micro USB
Manufacturer's standards (no certificate)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812401 PCE Instruments PCE-2500N-ICA Hardness tester Leeb 170 : 960 HLD
User & Safety Instructions
User & Safety Instructions 3812401 PCE Instruments PCE-2500N-ICA Hardness tester Leeb 170 : 960 HLD
Description

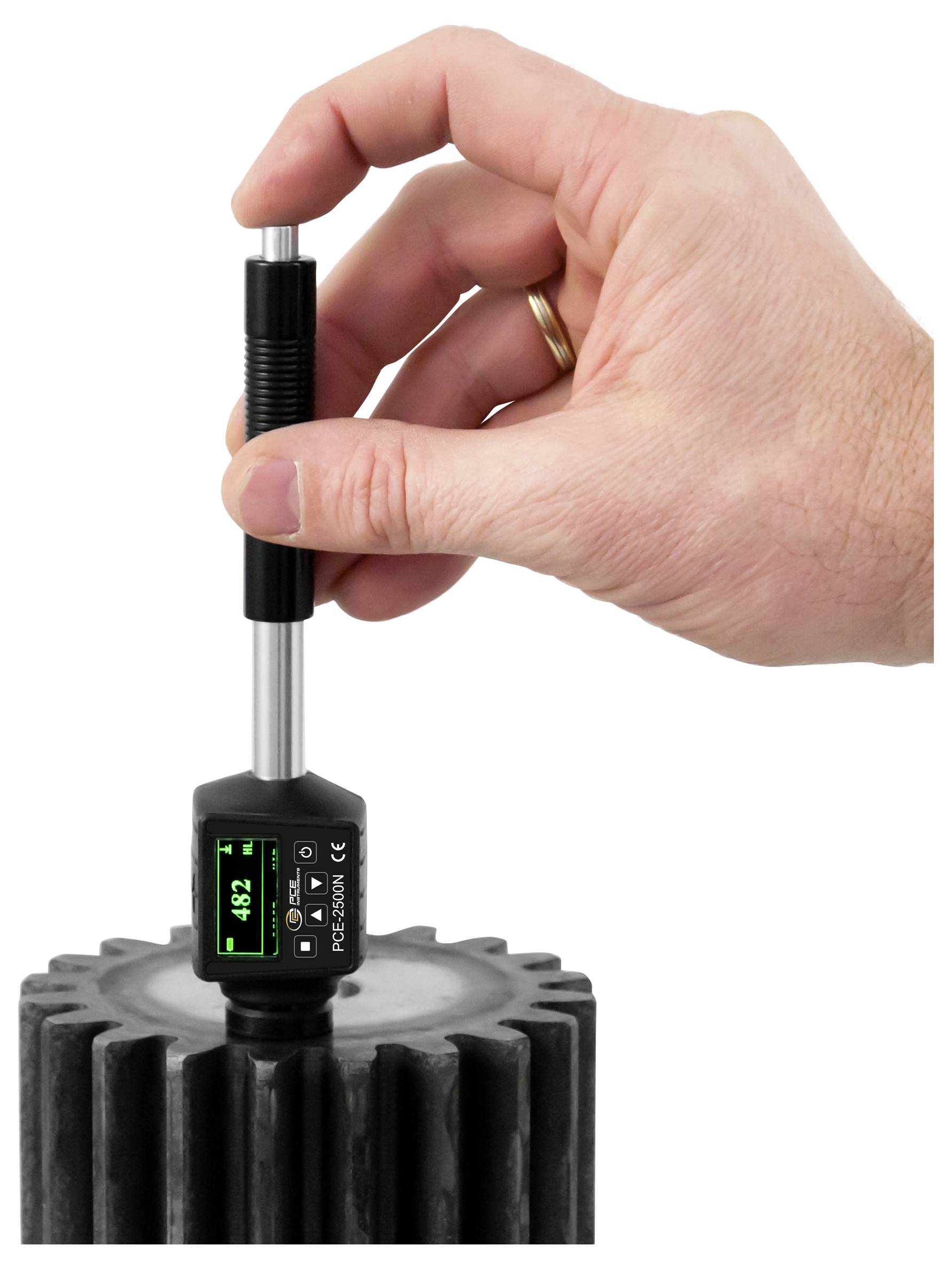

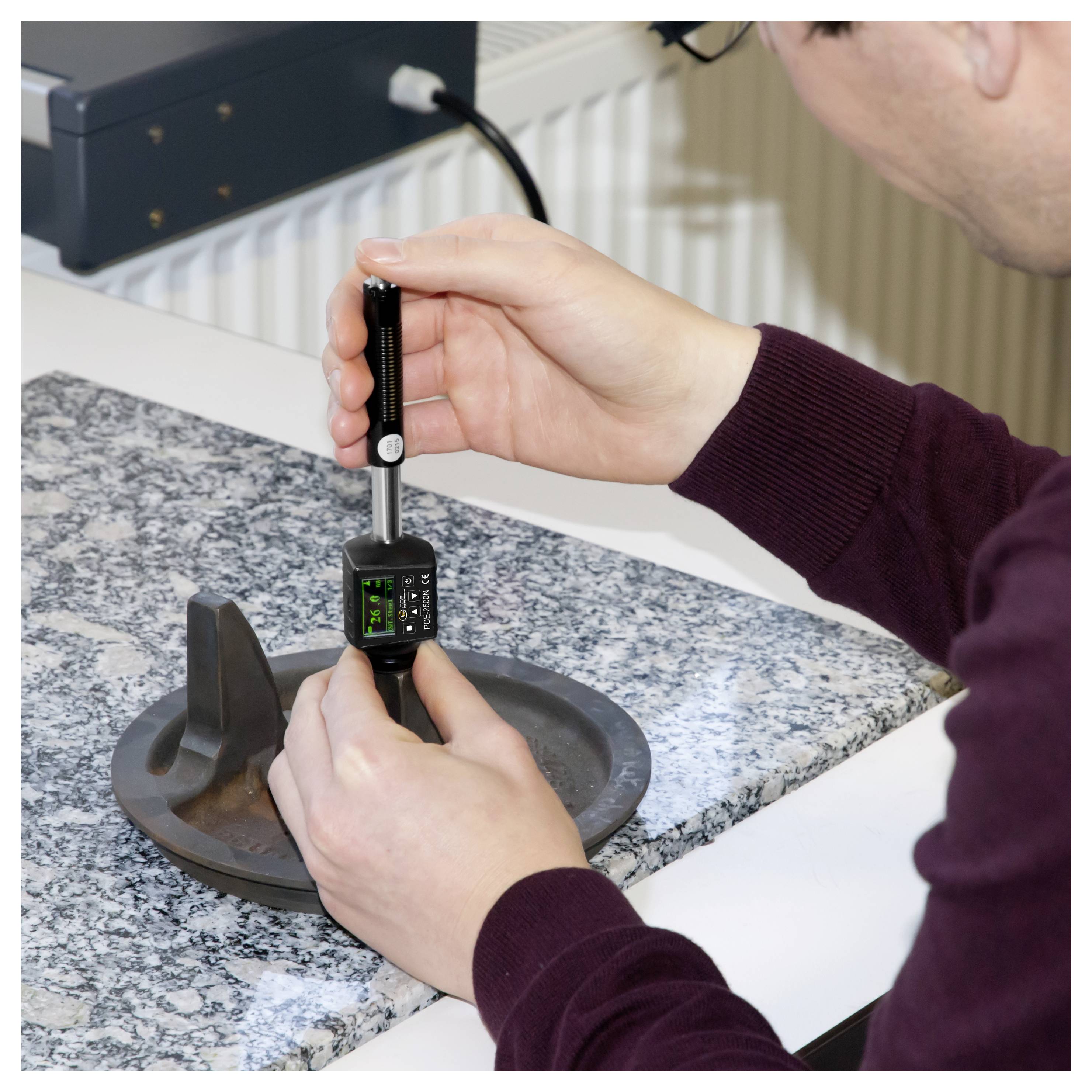

The hardness tester is easy to use. The hardness tester is no larger than a standard pen. Portable measurements are thus easily possible with the hardness tester. The non-destructive hardness measurement of the surface is carried out by a hammer which hits the metal and subsequently directly shows the measurement value on the display.
With the hardness tester, the parameters HRC, HRB, HRA, HB, HV and HS can be used partly on the materials steel, cast steel, alloy tool steel, stainless steel, cast iron, brass, bronze and tin bronze, cast aluminum alloy. Furthermore, the hardness tester has an internal read-out memory, taking care not to read it from a computer. The measuring principle of the hardness tester is the rebound procedure by a type D impact instrument
This text is machine translated.
With the hardness tester, the parameters HRC, HRB, HRA, HB, HV and HS can be used partly on the materials steel, cast steel, alloy tool steel, stainless steel, cast iron, brass, bronze and tin bronze, cast aluminum alloy. Furthermore, the hardness tester has an internal read-out memory, taking care not to read it from a computer. The measuring principle of the hardness tester is the rebound procedure by a type D impact instrument
This text is machine translated.

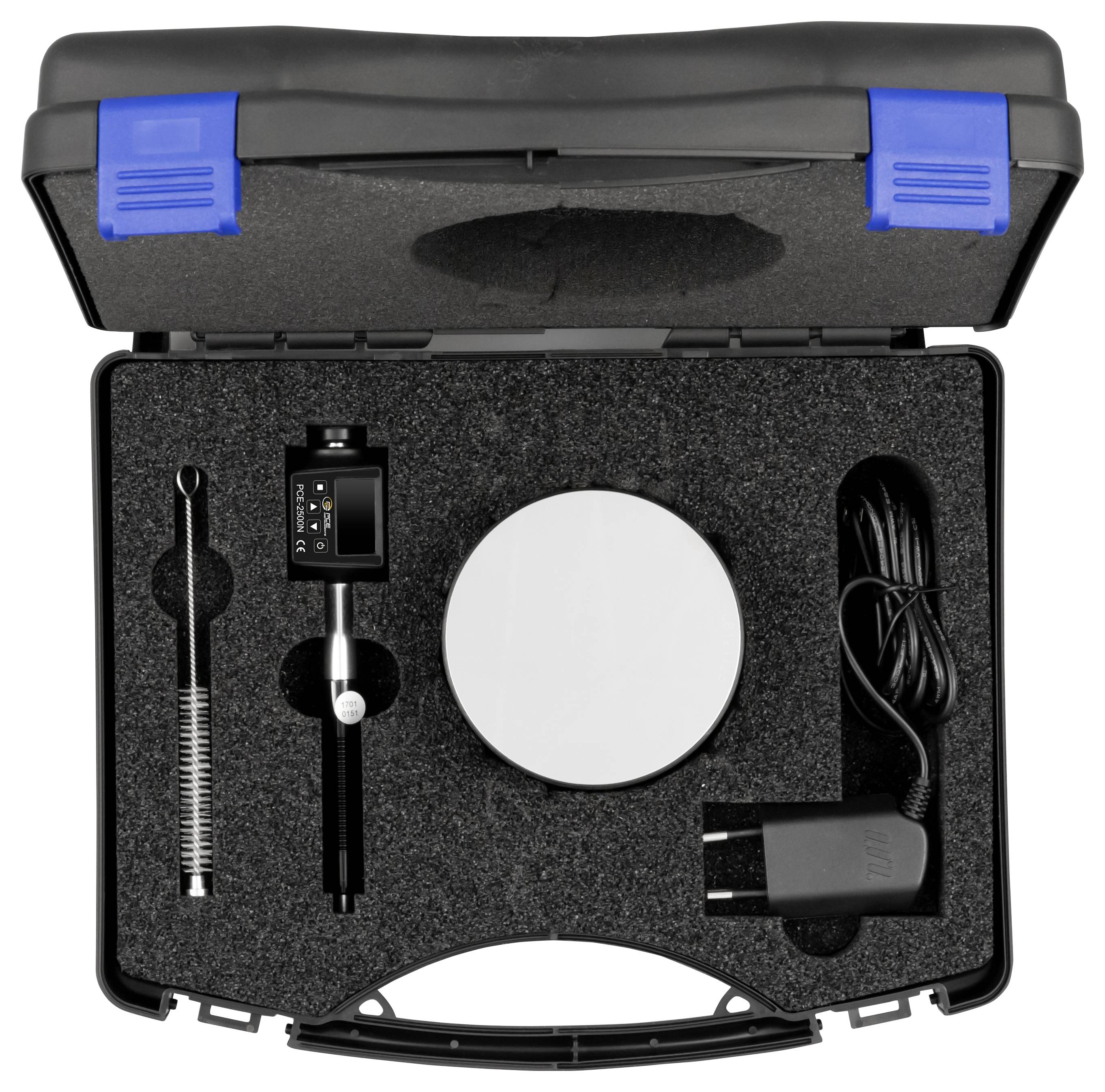

Scope of delivery
- 1 x hardness tester PCE-2500N-ICA
- 1 x Impactor type D
- 1 x cleaning brush

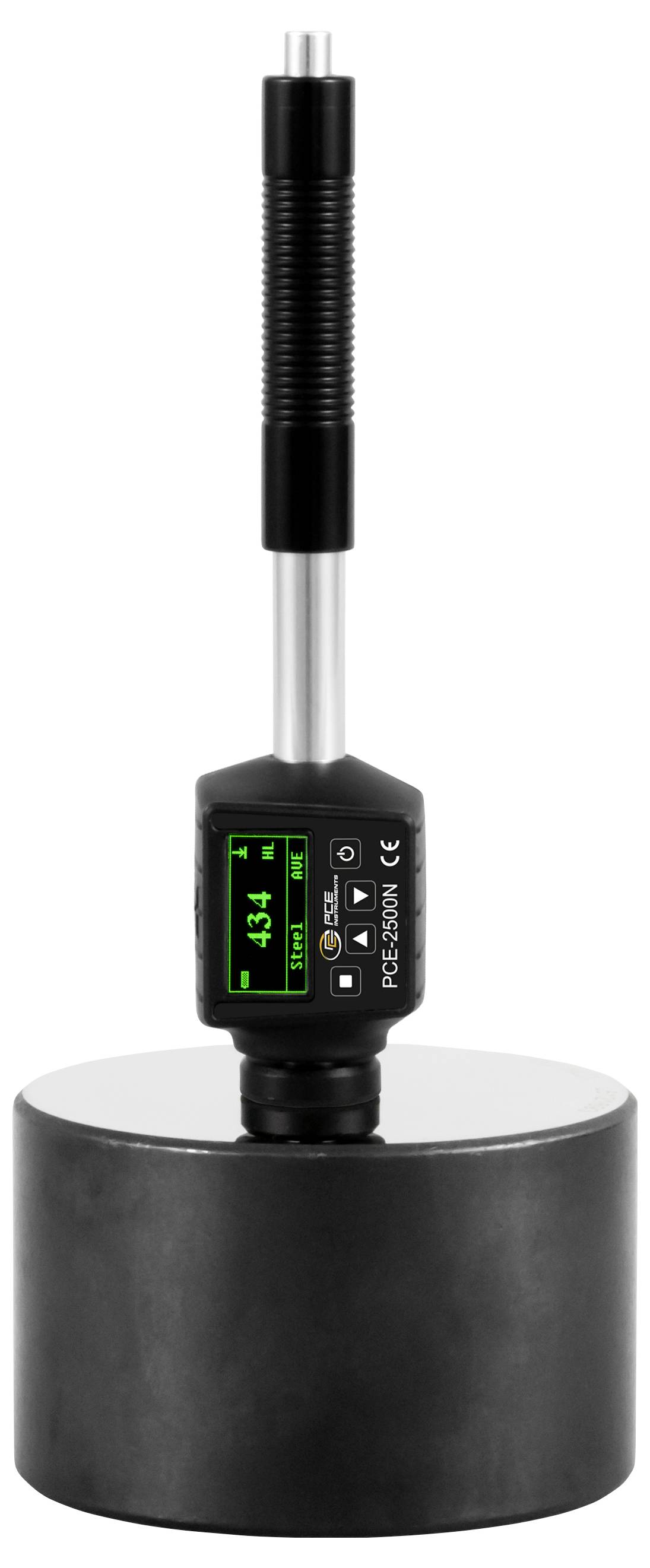

- 1 x calibration block
- 1 x power supply 5 V DC
- 1 x transport case
- 1x user manual

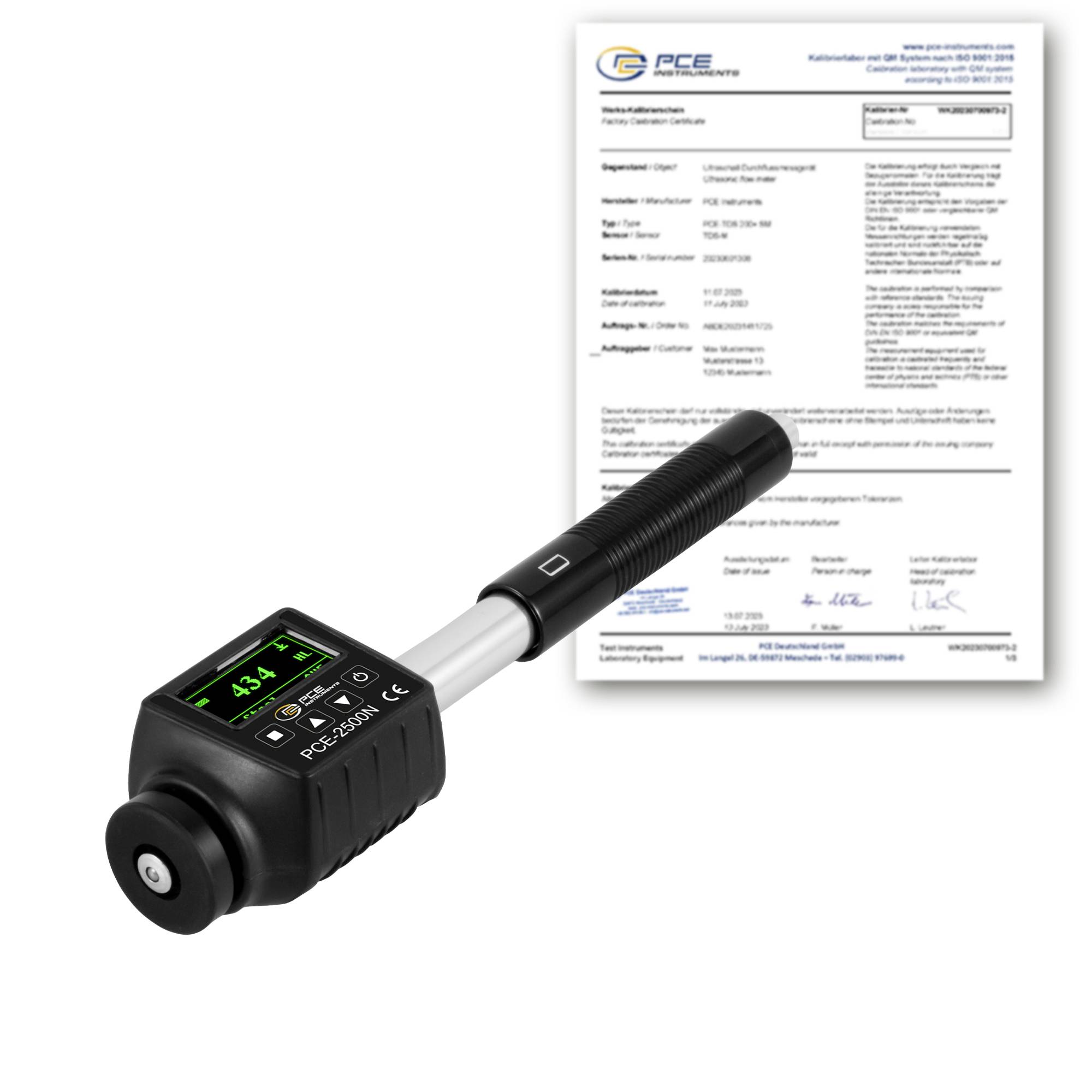

- 1 x ISO calibration certificate
