PCE Instruments PCE-2550 Hardness tester Shore, Brinell, Vickers, UCI, Rockwell, Leeb
EAN:
Part number:
Item no:
Technical specifications
- Measuring ranges 170 ... 960 HLD Measuring direction 360° Impact device type D. UNITS OF MEASUREMENT HL, HB, HRB, HRC, HRA, HV, HV Selectable materials 10 Calibration on enclosed hardness test block Minimum weight of the workpiece 2 kg (on stable support / 50 g with coupling gel) Minimum workpiece thickness 5 mm with coupling paste OLED display Internal measured value memory 350 data groups Maximum or minimum alarm value car. Switch-off function yes Power supply 2 x CR2016 button cells Interface USB Ambient temperature 0 ... +40 °C). Dimensions 145.5 x 32 x 26 mm Weight 160 g Material steel and cast steel Scale Rockwell, Brinell, Vickers, Shore Reading range HRC: 17.9 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 127 ... 651 HV: 83 ... 976 HS: 32.2 ... 99.5 Material tool steel Scale Rockwell, Vickers Reading range HRC: 20.4 ... 67.1 HV: 80 ... 898 Material stainless steel Scale Rockwell, Brinell, Vickers Reading range HRB: 46.5 ... 101.7 HB: 85 ... 655 HV: 85 ... 802 Material gray cast iron Scale Rockwell, Brinell, Vickers Reading range HRC: --- HB: 93 ... 334 HV: --- Material: Die-cast Scale Rockwell, Brinell, Vickers Reading range HRC: --- HB: 131 ... 387 HV: --- Material aluminum cast alloy Scale Rockwell, Brinell Reading range HRB: 23.8 ... 84.6 HB: 19 ... 164 Material: Brass Scale Rockwell, Brinell Reading range HRB: 13.5 ... 95.3 HB: 40 ... 173 Bronze material Scale Brinell Reading range HB: 60 ... 290 Material machined cub. Leg. Scale Brinell Measuring range HB: 45 ... 315 Material machined steel leg. Scale Brinell Reading range HB: 143 ... +650
- Product type
Hardness tester
- Display type
Digital (OLED)
- Dim
(L x W x H) 32 x 26 x 145.5 mm
- Weight
160 g
- Operating voltage
6 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
Shore
Brinell
Vickers
UCI
Rockwell
Leeb
- Width
26 mm
- Height
145.5 mm
- Length
32 mm
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452831 PCE Instruments PCE-2550 Hardness tester Shore, Brinell, Vickers, UCI, Rockwell, Leeb
Description

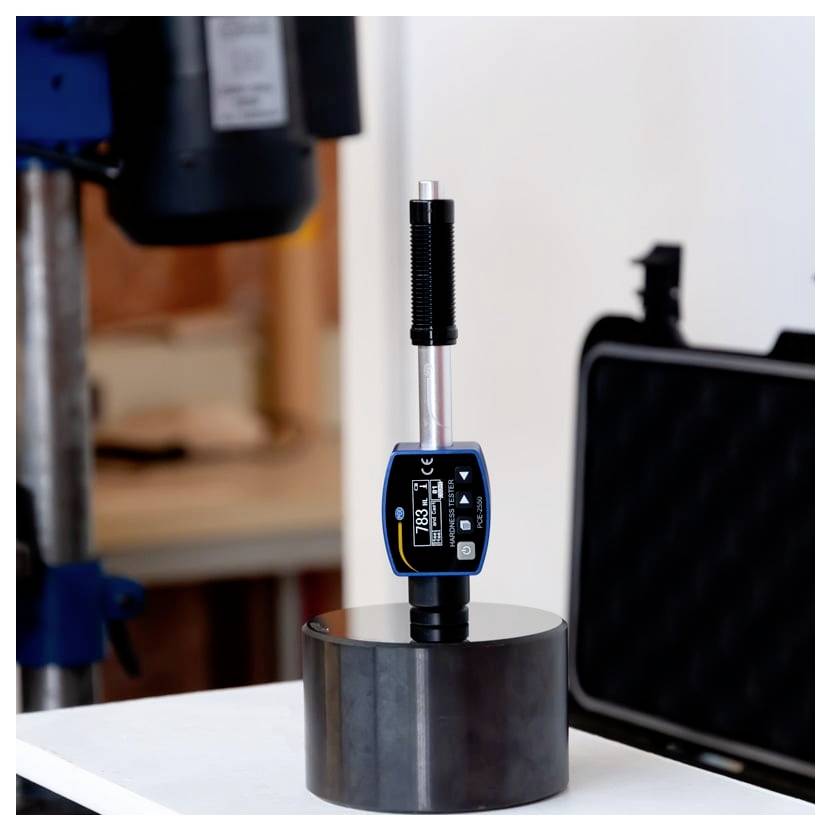

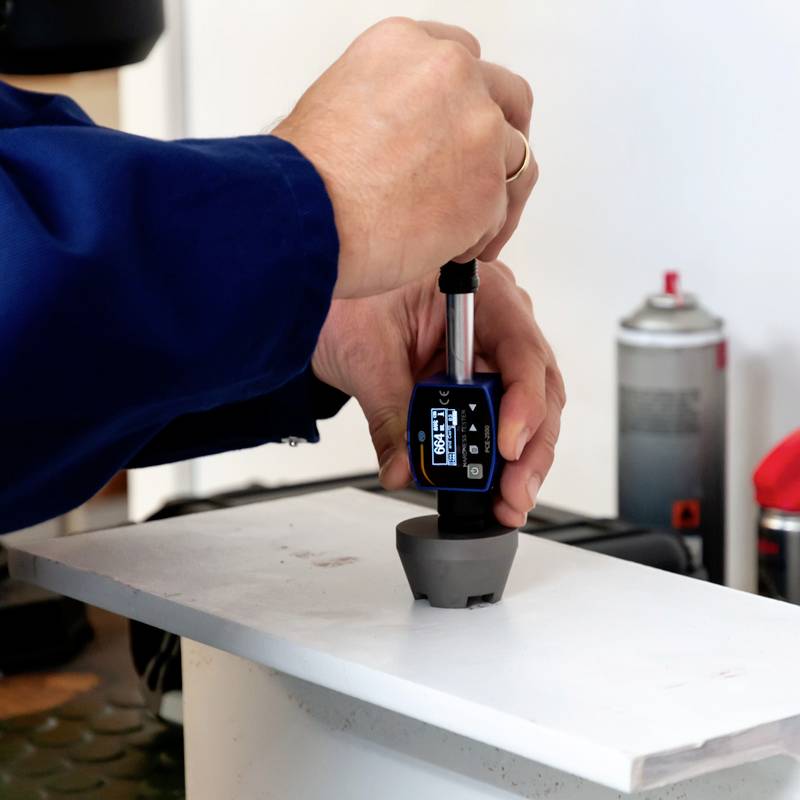

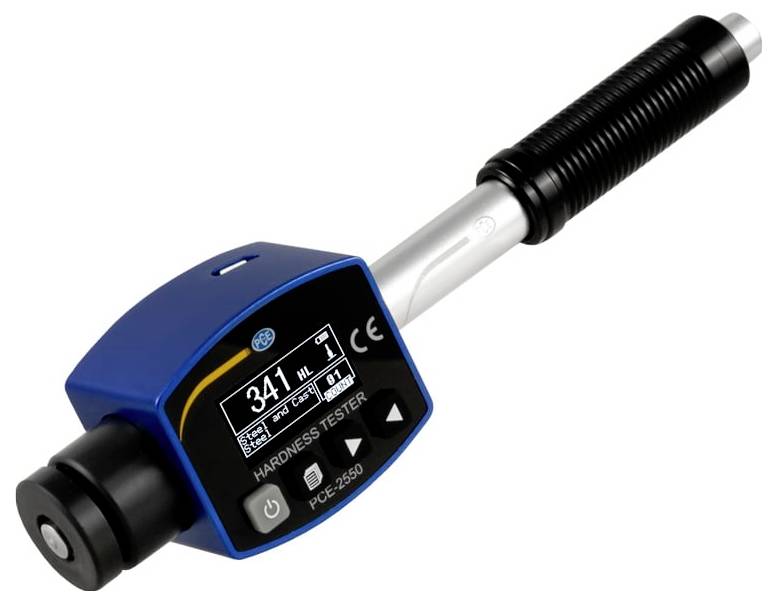

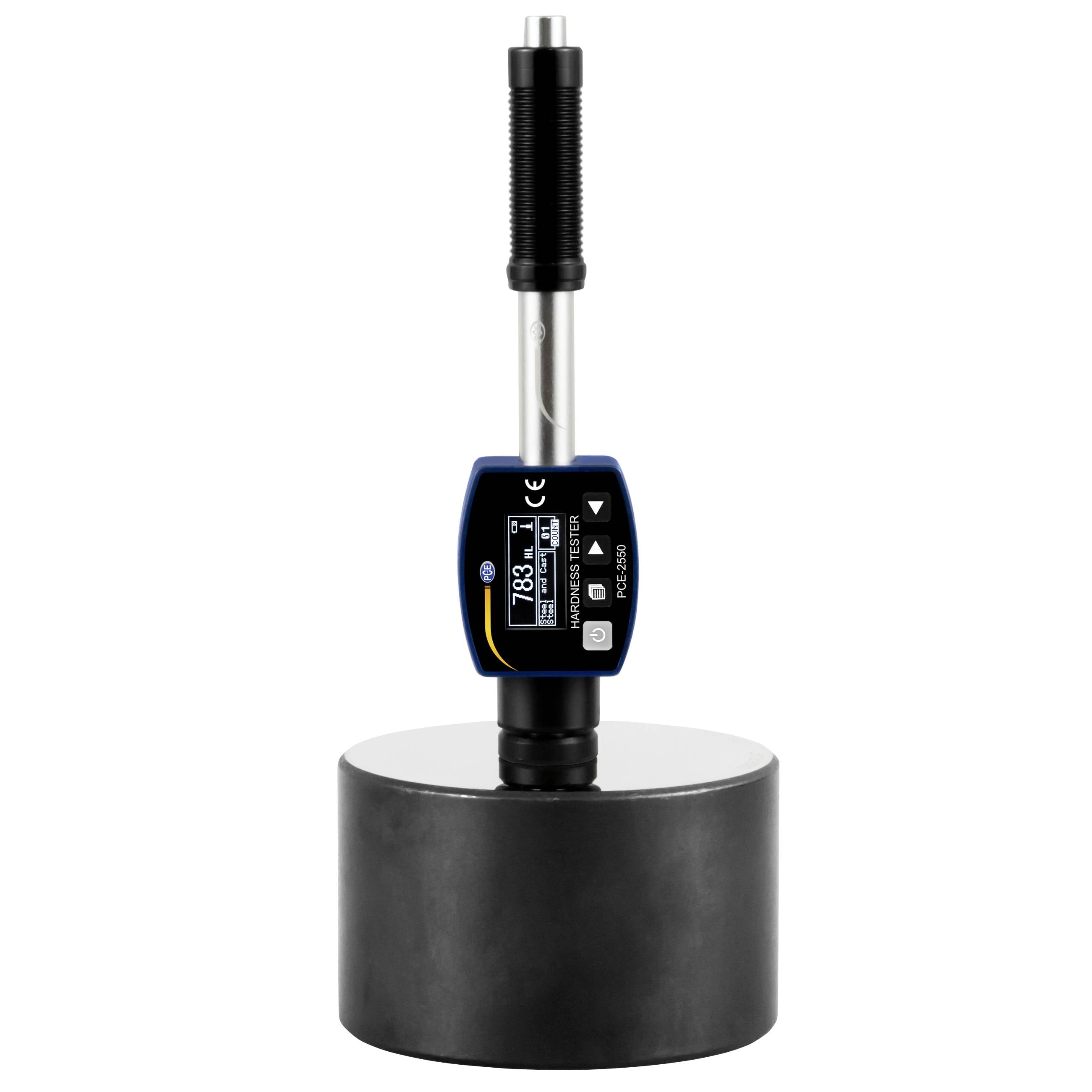

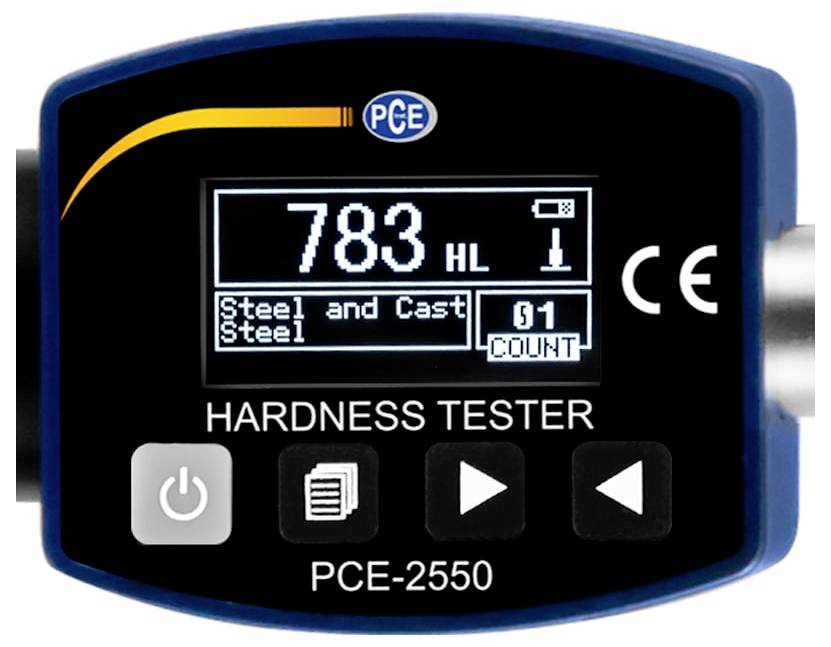

Metal hardness tester PCE-2550 Portable hardness tester with integrated impact mechanism / for metallic materials / data download via USB / measured value memory of up to 360,000 points of the metal hardness tester PCE-2550 can be used very easily for incoming and outgoing inspections due to its compact design. The metal hardness tester PCE-2550 can be used in a variety of ways thanks to the adjustable hardness scales. The measurement range of the PCE-2550 metal hardness tester is sufficiently large for very soft surfaces as well as for extremely hard surfaces. The measured values can be stored in the PCE-2550 and read and processed later using the available software. Up to 350 data groups can be stored in the metal hardness tester. The OLED display is easy to read even in dark environments.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x hardness tester PCE-2550
- 1 x USB connection cable
- 1 x software
- 1 x hardness test block
- 1 x cleaning brush
- 1 x support ring with Ø14 mm
- 1 x carrying case
- 1x user manual
