PCE Instruments PCE-2600N Hardness tester Shore, Brinell, Vickers, Rockwell, Leeb
EAN:
Part number:
Item no:
Highlights & Details

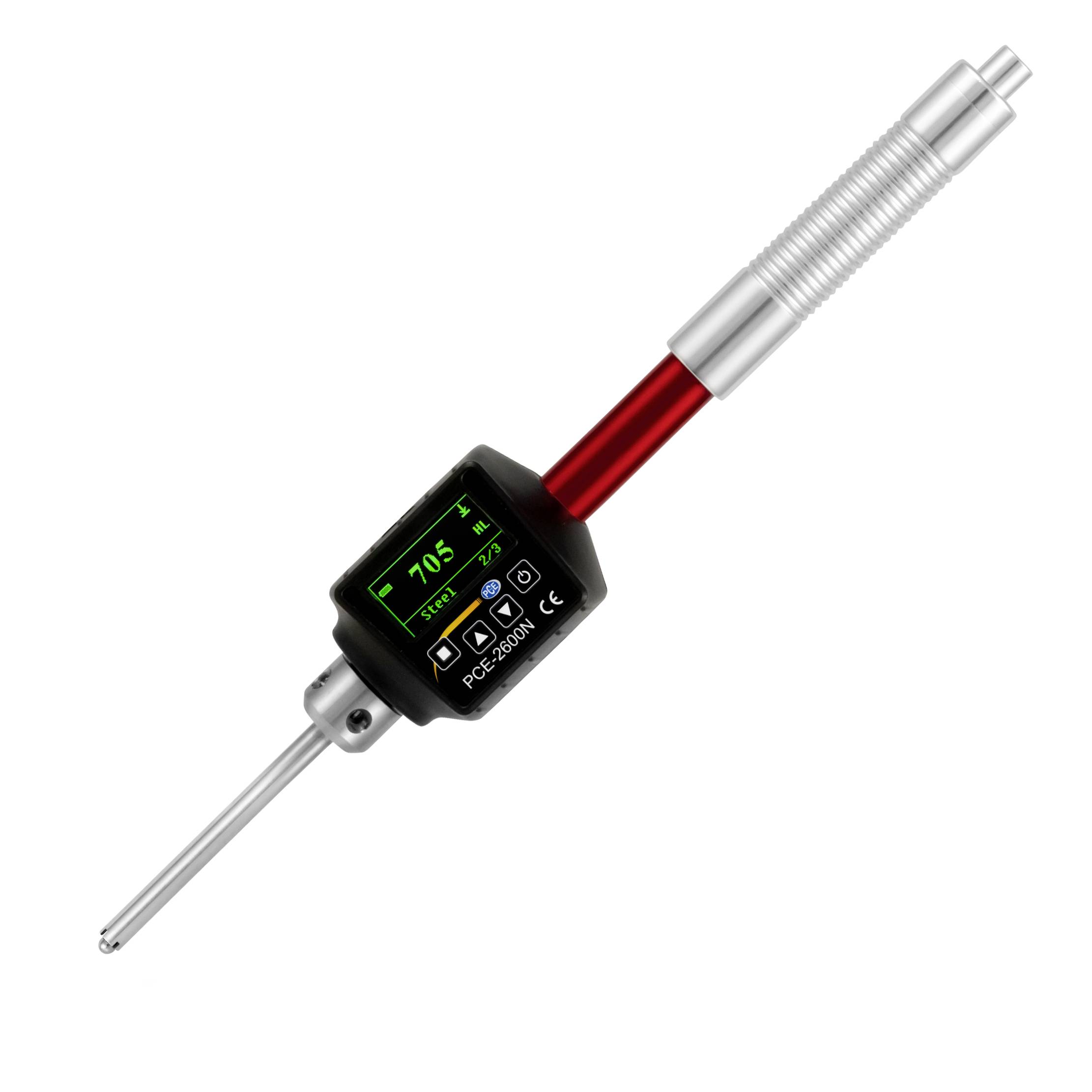

Durometer PCE-2600N
- Limit alarm
- Suitable for measuring in holes
- Surface measurement on many metals
- Internal memory
- For reading - bright OLED
- Battery-operated handheld meter
Technical specifications
- Measuring method according to leeb Impact body DLMeasurement ranges: HLD: 170 ... 960 HRC: 17.9 ... 69.5 HB: 19 ... 683 HV: 80 ... 1042 HS: 30.6 ... 102.6 HRA: 59.1 ... 88 HRB: 3.5 ... 101.7Measurement accuracy HLD: ±0.5 % Maximum hardness 1042 HV Impact device type D. Display 128 x 64 OLED Repeatability HLD: ±0.8 % hardness max. 1042 HV MEASURING UNITS HLD, HRC, HB, HV, HS, HRA, HRB Display 15 mm Material Steel Cast steel Alloy Tool steel Stainless steel Cast iron Thrust cast aluminum alloy Brass Bronze Tin bronze Measuring ranges on different material surfaces Materials Steel HRC: 17.9 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 127 ... 651 HV: 83 ... 976 HS: 32.2 ... 99.5 Tool steel HRC: 17.9 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 127 ... 651 HV: 83 ... 976 HS: 32.2 ... 99.5 Stainless steel HRB: 46.5 ... 101.7 HB: 85 ... 655 HV: 85 ... 802 Gray cast iron HB: 93 ... 334 Brass HRB: 13.5 ... 95.3 HB: 40 ... 173 Bronze HB: 60 ... 209 Copper HB: 45 ... 315 Battery life approx. 10 h Power supply Li-ion battery Interface: USB 2.0 Power supply polymer lithium battery, 3.7 V Dimensions 205 x 32 x 25 mm Weight 650 g Display 128 x 64 OLED Operating conditions -10 ... +50 °C,< 90% r.h. Storage conditions -30 ... +60 °C,< 90 % RH
- Product type
Hardness tester
- Display type
Digital (OLED)
- Dim
(L x W x H) 32 x 25 x 205 mm
- Weight
650 g
- Operating voltage
3.7 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
Shore
Brinell
Vickers
Rockwell
Leeb
- Width
25 mm
- Height
205 mm
- Length
32 mm
- Interfaces
Micro USB
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452245 PCE Instruments PCE-2600N Hardness tester Shore, Brinell, Vickers, Rockwell, Leeb
Description

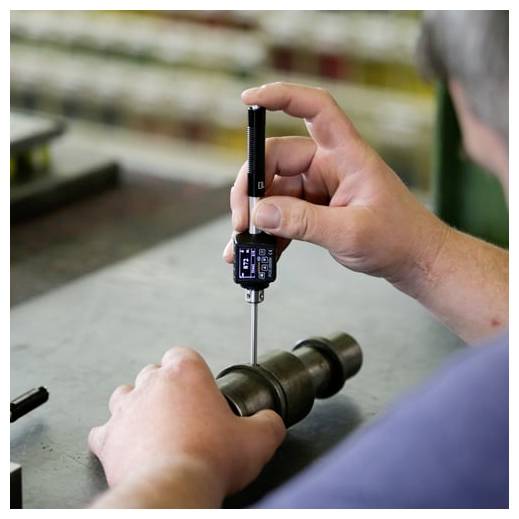

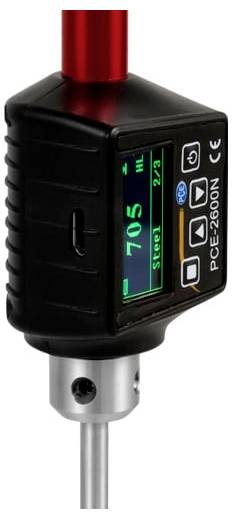

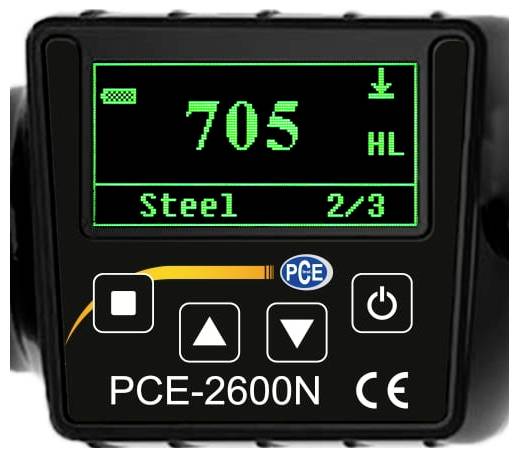

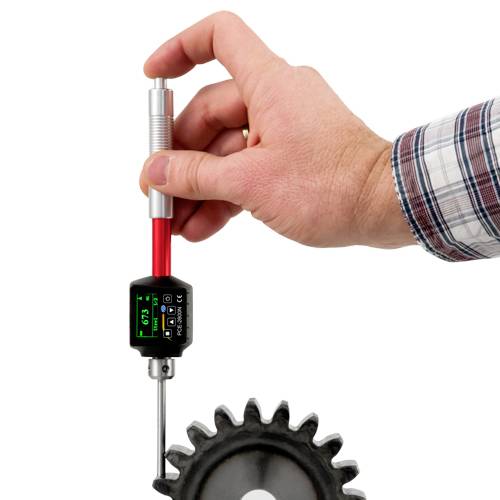

Durometer PCE-2600N for measurement of surface hardness / OLED / compact design / battery operated hand-held measuring device / limit alarm / measuring direction 360 ° of the hardness tester is used everywhere, where a quick hardness test has to be carried out. It is possible to use the hardness tester to determine the surface hardness of many metals. The hardness tester is particularly suitable for quality or incoming goods inspection. It is possible that the measured values can be stored in the internal memory and can be called up again later. Please note that the measured values only have the hardness tester call up on the display and that it does not offer any possibility of reading. The one-hand operation of the hardness tester allows a comfortable use in different places. Due to its design, the hardness tester also offers the possibility to determine the surface hardness in holes or other wells. The small design of the hardness tester contributes to the functionality just like the bright OLED. The OLED from the hardness tester shows many functions, so that the user can directly detect which parameters are measured, which measuring direction is selected and which hardness has been measured.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x PPCE-2600N Durometer
- 1 x impact device
- 1 x calibration block
- 1 x cleaning brush
- 1 x carrying case
- 1x user manual
