PCE Instruments PCE-2600N-ICA Hardness tester Calibrated to (ISO standards) Leeb HLD
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments hardness tester PCE-2600N-ICA
- Suitable for measuring in holes
- Surface measurement of many metals
- Immediate indication on the display
- Limit alarm
- Internal read-memory
- Bright OLED
- Rechargeable lithium-ion battery
- Incl. ISO calibration certificate
Technical specifications
- Hardness
- Measuring range 170 ... 960 HLD
- Resolution 1 HLD
- Accuracy ± 0.5%
- Hardness
- Measuring range 17.9 ... 69.5 HRC
- Resolution 0.1 HRC
- Accuracy ± 0.5%
- Hardness
- Measuring range 19 ... 683 HB
- Resolution 1 HB
- Accuracy ± 0.5%
- Hardness
- Measuring range 80 ... 1042 HV
- Resolution 1 HV
- Accuracy ± 0.5%
- Hardness
- Measuring range 30.6 ... 102.6 HS
- Resolution 0.1 HS
- Accuracy ± 0.5%
- Hardness
- Measuring range 59.1 ... 88 HRA
- Resolution 0.1 HRA
- Accuracy ± 0.5%
- Hardness
- Measuring range 3.5 ... 101.7 HRB
- Resolution 0.1 HRB
- Accuracy ± 0.5%
- General Technical Data
- Measurement functions MIN, MAX, average value
- Measurement principle of rebound procedure
- OLED display
- Display size 0.6 inches
- Display resolution 128 x 64
- Storage medium Internal memory
- Memory capacity: 600 values
- Memory capacity (additional information) 6 files
- Interface Micro-USB
- Materials steel, cast steel, alloyed tool steel, stainless steel, cast iron, Aluminium cast alloy, brass, bronze, tin bronze
- Operating time 10 h
- Repeatability 0.8%
- Hammer drill type Dl
- DUROMETER HLD, HRC, HB, HV, HS, HRA, HRB
- Test body tungsten carbide, hardness-1600 HV, ø 3 mm
- Menu language English (US), Chinese, English (GB)
- Protection class (device) IP52
- Voltage supply: 5 V DC
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 240 mAh
- Operating conditions -10 ... 50 °C , 0 ... 90 % r.F.
- Storage conditions -30 ... 60 °C , 0 ... 90 % r.F.
- Dimensions ( L x W x H ) 205 x 32 x 25 mm
- Weight 650 g
- Product type
Hardness tester
- Reading range
HLD
- Display type
Digital (OLED)
- Dim
(L x W x H) 205 x 32 x 25 mm
- Weight
650 g
- Operating voltage
3.7 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
Leeb
- Width
32 mm
- Height
25 mm
- Length
205 mm
- Interfaces
USB 2.0 port
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812403 PCE Instruments PCE-2600N-ICA Hardness tester Calibrated to (ISO standards) Leeb HLD
User & Safety Instructions
User & Safety Instructions 3812403 PCE Instruments PCE-2600N-ICA Hardness tester Calibrated to (ISO standards) Leeb HLD
Description

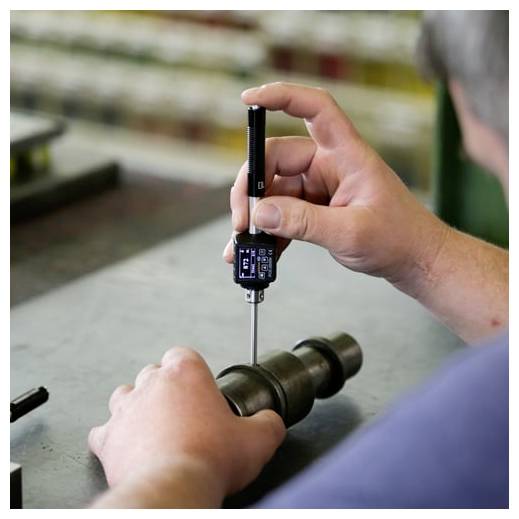

The hardness tester is used wherever a quick hardness test needs to be performed. With the hardness tester, it is possible to determine the surface hardness of many metals. The hardness tester is particularly suitable for quality or incoming goods tests. There is the option of storing the measured values in the internal memory and calling them up again later on. Please note that the measured values can only be called up on the display by the hardness tester and it does not offer any possibility of reading.

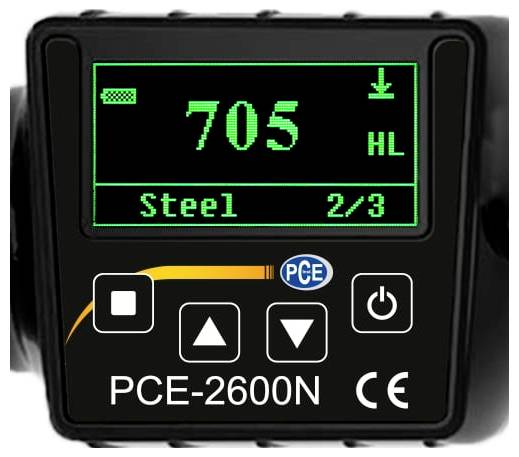

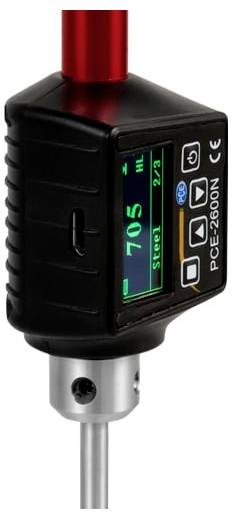

One-hand operation of the hardness tester makes it easy to use in different places. Due to its design, the hardness tester also offers the possibility to determine the surface hardness in holes or other wells. The small design of the hardness tester contributes to the functionality as well as the bright OLED. The OLED of the hardness tester shows many functions, so the user directly recognizes which parameters are measured, which measuring direction is selected and which hardness has been measured.
This text is machine translated.
One-hand operation of the hardness tester makes it easy to use in different places. Due to its design, the hardness tester also offers the possibility to determine the surface hardness in holes or other wells. The small design of the hardness tester contributes to the functionality as well as the bright OLED. The OLED of the hardness tester shows many functions, so the user directly recognizes which parameters are measured, which measuring direction is selected and which hardness has been measured.
This text is machine translated.
Scope of delivery
- 1 x hardness tester PCE-2600N-ICA
- 1 x impact body type DL

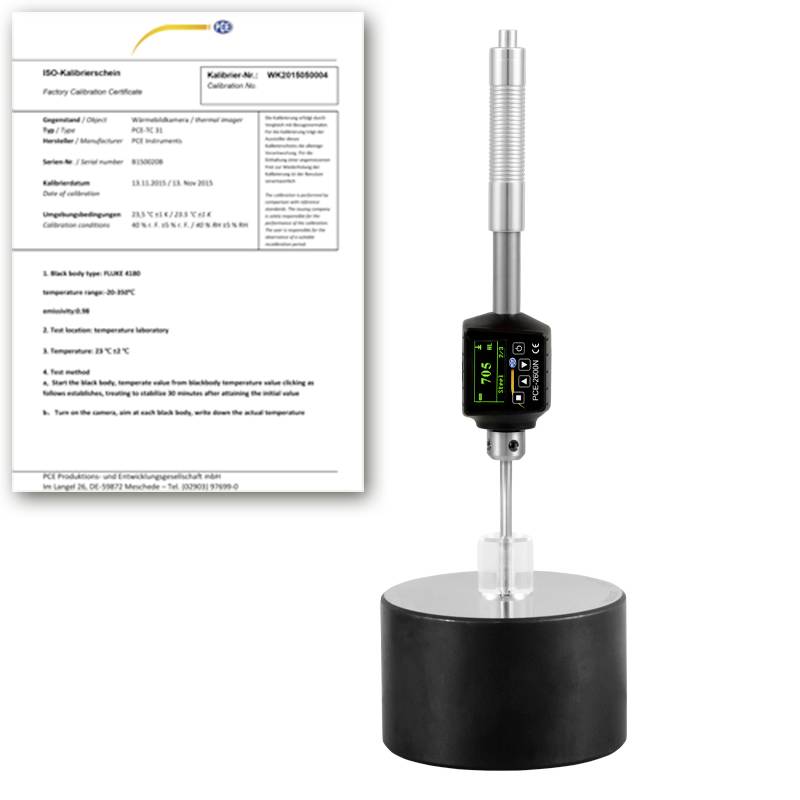

- 1 x calibration block
- 1 x cleaning brush
- 1 x power supply 5 V DC
- 1 x transport case
- 1x user manual
- 1 x ISO calibration certificate
