PCE Instruments PCE-2900 Hardness tester Shore, Brinell, Vickers, Rockwell, Leeb
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Durometer PCE-2900

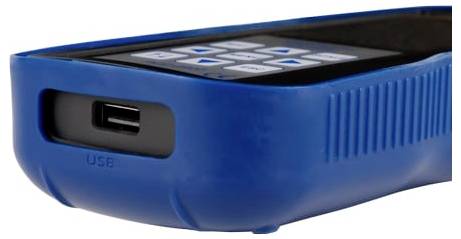

- USB and WiFi for data transfer

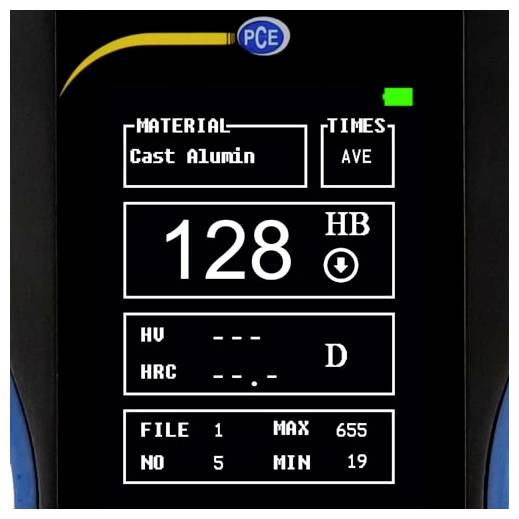

- Large, bright touch-screen LCD display
- Large measuring range
- Measurement possible in every position
- HARDNESS SCALES (HRC, HRB, HV, HB, HS)
- For all metallic materials
Technical specifications
- Measuring range 170 ... 960 HLD Reproducibility ± 6 HLD Impact device type D. Measuring direction 360° Adjustable scales Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore Surface finish Ra of the workpiece 2 µm Minimum weight of the workpiece Direct measurement: 5 kg Connected measurement: 2 ... 5 kg. With coupling gel: 0.05 ... : 2 kg Minimum thickness of the workpiece Direct measurement > : 5mm With coupling gel: 0.8 ... 5 mm Display color LCD Internal measured value memory 600 data records in 6 files Interface USB, WiFi Power supply 2 x 1.5 V AA batteries Operating time approx. 50 hours Operating conditions 10 ... 50 °C / max. 90 % r.h. Storage conditions -30 ... 60 °C / max. 90 % r.h. Dimensions 160 x 80 x 35 mm Weight 350 g
- Product type
Hardness tester
- Display type
Digital (OLED)
- Dim
(L x W x H) 80 x 35 x 160 mm
- Weight
350 g
- Operating voltage
3 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
Shore
Brinell
Vickers
Rockwell
Leeb
- Width
35 mm
- Height
160 mm
- Length
80 mm
- Interfaces
Wi-Fi
USB 2.0 port internal 4-pin
USB 1.1 connector A
USB 2.0 port A
USB host
USB 2.0 connector A
USB 2.0 connector internal 4-pin
1x USB 2.0 (device)
1x USB 2.0 (host)
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452246 PCE Instruments PCE-2900 Hardness tester Shore, Brinell, Vickers, Rockwell, Leeb
User & Safety Instructions
User & Safety Instructions 2452246 PCE Instruments PCE-2900 Hardness tester Shore, Brinell, Vickers, Rockwell, Leeb
Description

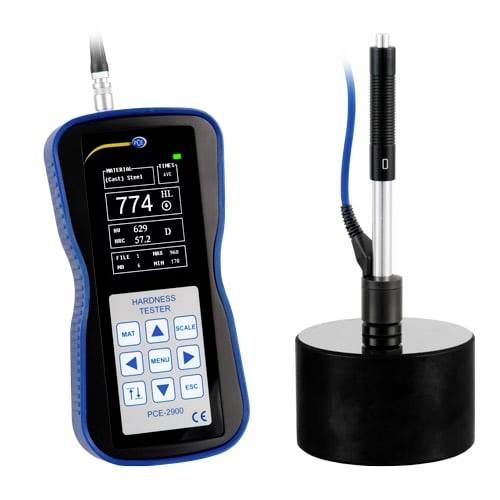

Durometer PCE-2900 modern, dynamic hardness tester with color display / memory / for metallic materials with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and tensile strength of the PCE-2900 hardness tester has been developed for hardness measurements on metallic materials. The hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness measuring device PCE-2900 measures the hardness according to the Leeb rebound principle. A striking body is used to hit the workpiece and the metal hardness is measured via the rebound. The PCE-2900 hardness tester is equipped with an illuminated color display. The keys of the PCE-2900 are also illuminated. Thus, the display can be read well even under poor light conditions. The impact device is connected to the hardness tester via a cable. The PCE-2900 hardness tester has an internal memory of 6 x 100 measurement value sets. The memory allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the hardness tester to a PC via software. We operate the hardness tester with standard 1.5 V AA batteries, which guarantee an operating time of approx. 50 h.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Durometer PCE-2900
- 1 x impact device D
- 1 x test block
- 2 x 1.5 V AA battery
- 1x user manual
- 1 x carrying case
