PCE Instruments PCE-3000 Hardness tester UCI
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-3000th
- Measurement in HV, HRC, HB, HRB
- 360° measuring direction
- TFT-colour display
- Memory for 150 measurements
- Individual and average measurement
- Result display with tolerance evaluation
- UCI calibration for various materials
- Test standard ASTM A1038
Technical specifications
- Hardness
- Measuring range 20 ... 999 HB
- Resolution 0.1 HB
- Accuracy ± 3 %
- Hardness
- Measuring range 20 ... 999 HV
- Resolution 0.1 HV
- Accuracy ± 3 %
- Hardness
- Measuring range with 80 HRC
- Resolution 0.1 HRC
- Accuracy ±1.5 %
- Hardness
- Measuring range 20 ... 120 HRB
- Resolution 0.1 HRB
- Accuracy ±1.5 %
- General Technical Data
- Display type TFT color display
- Display size 2.75 inches
- Storage medium Internal memory
- Memory capacity: 150 values
- Memory information can only be viewed on the device
- ASTM A1038 standard(s)
- Operating time 6 h
- Automatic shutdown of ... to 2 ... 10 min.
- Menu language English (GB), English (US)
- Protection class (device) IP52
- Power supply 4.5 V (AA batteries)
- Battery 3 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 10 ... 50 °C , 0 ... 95 % r.F.
- Storage conditions 10 ... 50 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 170 x 85 x 36 mm
- Weight 235 g
- Product type
Hardness tester
- Display type
Digital
- Dim
(L x W x H) 170 x 85 x 36 mm
- Weight
235 g
- Operating voltage
4.5 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
UCI
- Width
85 mm
- Height
36 mm
- Length
170 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3812940 PCE Instruments PCE-3000 Hardness tester UCI
User & Safety Instructions
User & Safety Instructions 3812940 PCE Instruments PCE-3000 Hardness tester UCI
Description

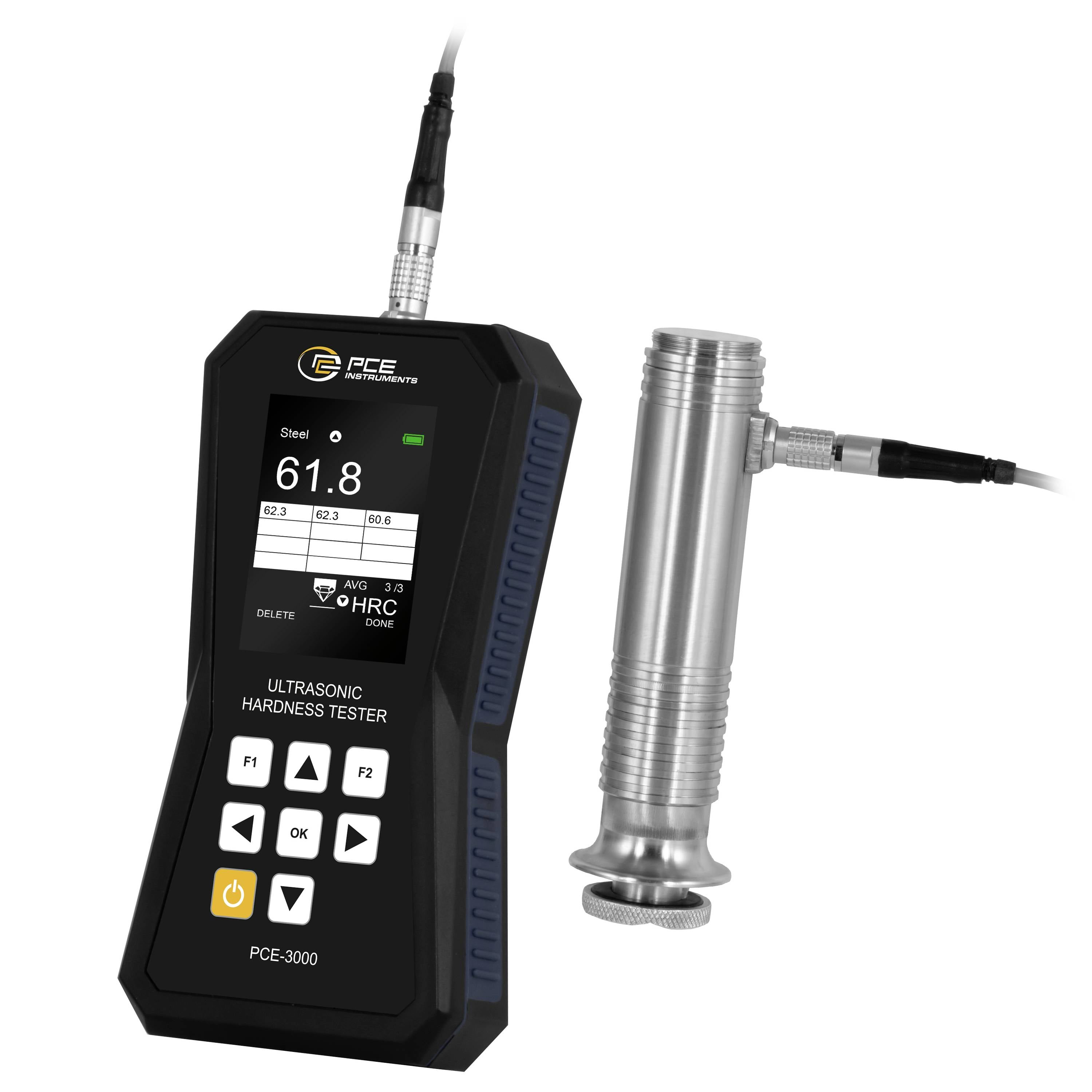

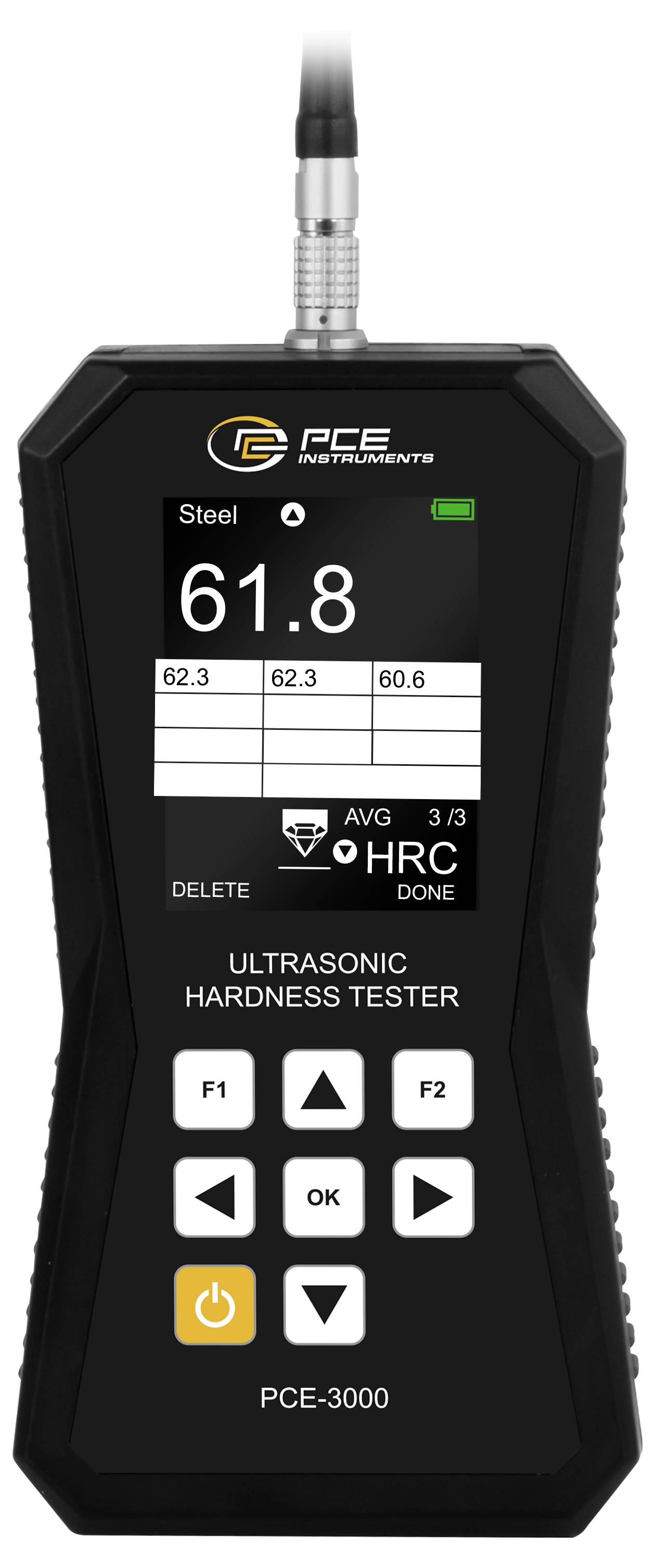

The ultrasound hardness tester impresses with its high precision, versatility and user-friendly operation for reliable hardness measurements in industrial environments. The device supports multiple hardness scales such as HV, HRC, HB and HRB and allows measurements in any direction (360°). The results of measurement are clearly displayed with the large TFT color display. The ultrasonic hardness tester offers a high repeatability of ±3% for HV and HB as well as ±1.5 for HRC and HRB. The storage of up to 150 measured values enables an efficient documentation of the test results, which can be called up in the device.
The ultrasound hardness tester has different measurement modes, including individual measurement and averaging of 3, 5 or 10 measurements. The result display with tolerance evaluation directly shows whether the measured values lie within the defined range. UCI calibration is possible for various materials such as steel, stainless steel, aluminum, brass and custom materials. The device is operated via an intuitive menu with navigation buttons and function keys.
The ultrasound hardness tester works with standard AA batteries and offers an operating time of 6 to 8 hours. The robust construction and the adherence to the ASTM A1038 standard make the device Ideal for the use in the quality assurance, material testing and industrial production. Typical applications are the hardness testing of metals, workpieces, components and welding joints in production, in the laboratory and in goods receipt inspection.
This text is machine translated.
The ultrasound hardness tester has different measurement modes, including individual measurement and averaging of 3, 5 or 10 measurements. The result display with tolerance evaluation directly shows whether the measured values lie within the defined range. UCI calibration is possible for various materials such as steel, stainless steel, aluminum, brass and custom materials. The device is operated via an intuitive menu with navigation buttons and function keys.
The ultrasound hardness tester works with standard AA batteries and offers an operating time of 6 to 8 hours. The robust construction and the adherence to the ASTM A1038 standard make the device Ideal for the use in the quality assurance, material testing and industrial production. Typical applications are the hardness testing of metals, workpieces, components and welding joints in production, in the laboratory and in goods receipt inspection.
This text is machine translated.
Scope of delivery
- 1 x PCE-3000x ultrasound hardness tester

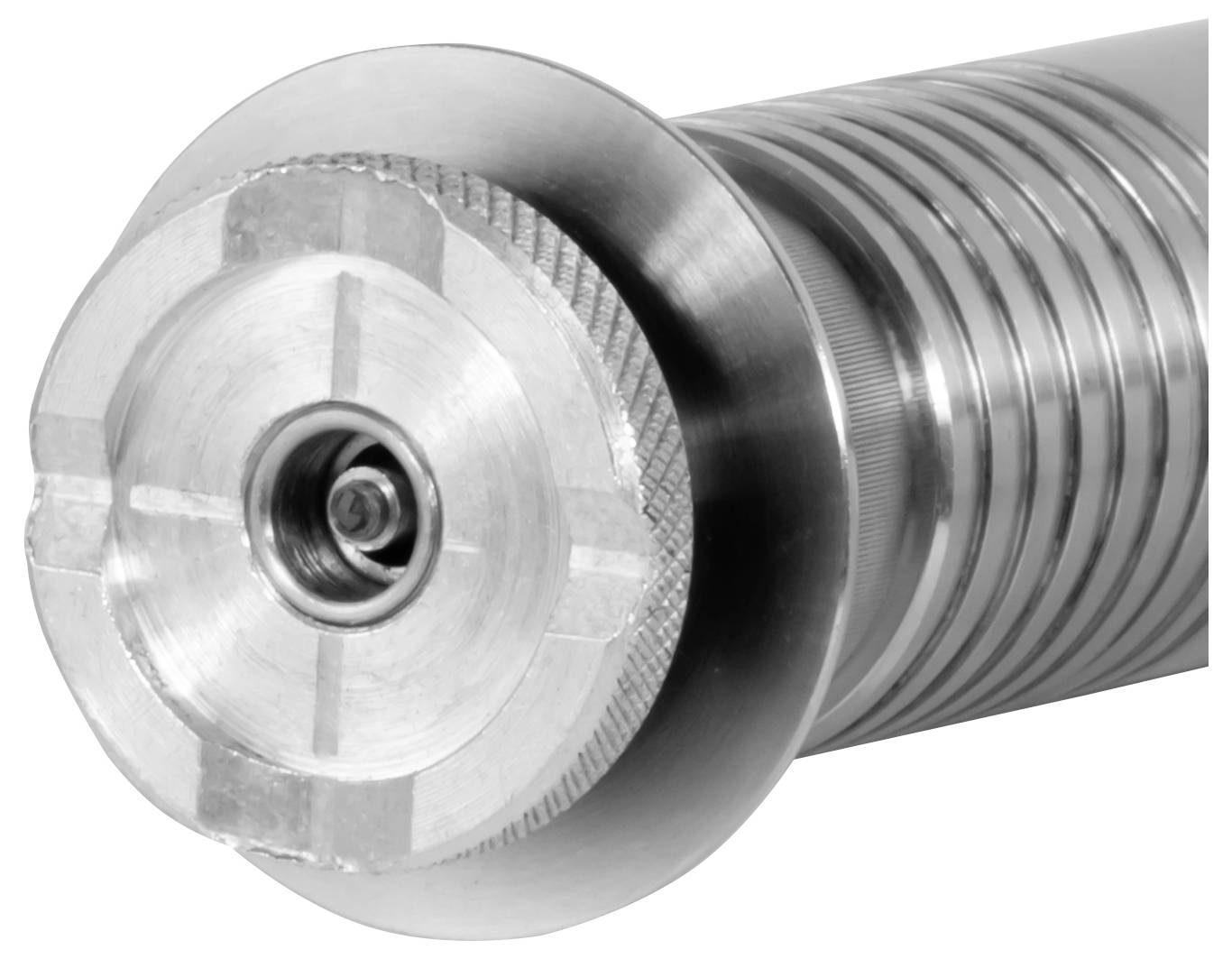

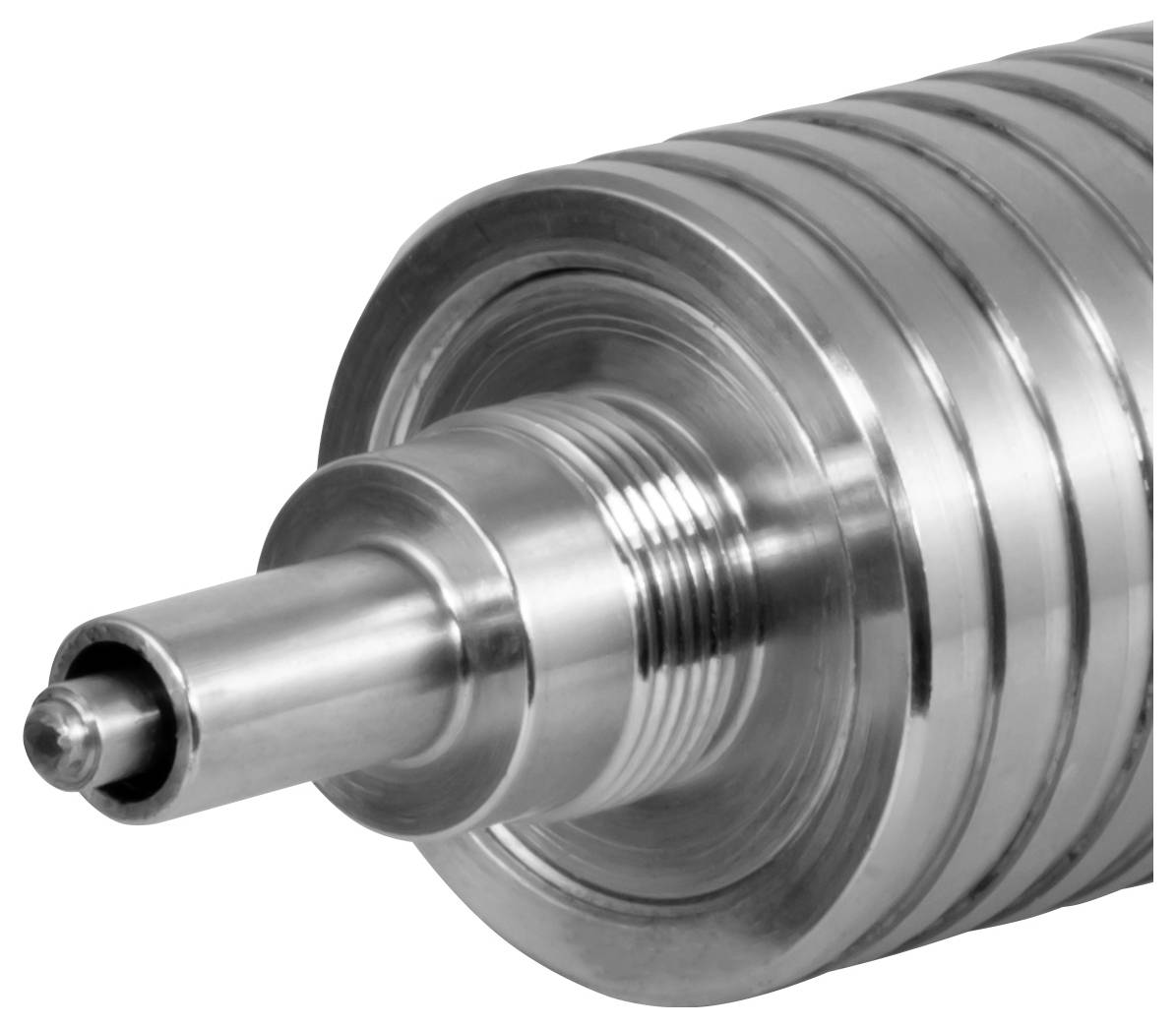

- 1 x UCI-Probe

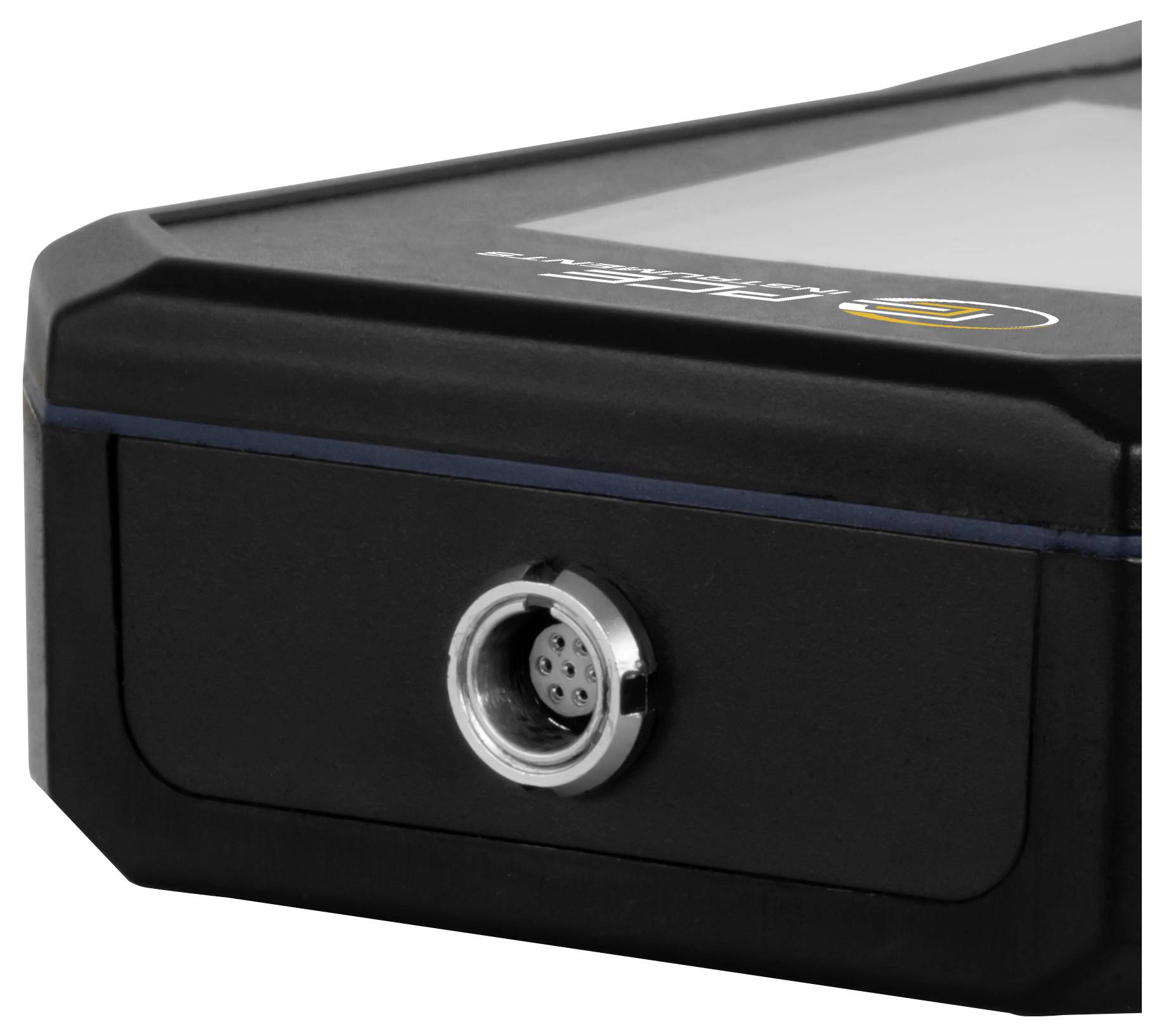

- 1 x connection cable
- 1 x reference block
- 1 x transport case
- 1x user manual
- 1 x power supply 5 V, 1 A
