Buy PCE Instruments PCE-322A PCE-322A SPL data logger Unit of measurement SPL 30 up to 130 dB

Handheld sound level meter with foam microphone windscreen, digital display reading 78.3 dB, and control buttons on the front.

Close-up of a handheld device with an open battery compartment showing a 9V battery connector and internal wiring.

Close-up of a handheld electronic device showing the port panel under a hinged cover, with DC 9V, USB, output, and CAL markings.

Close-up of a black handheld electronic device with a cylindrical metal probe extending from one end.

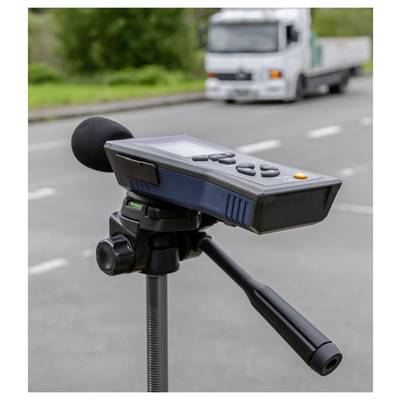

Sound level meter on a tripod by a road, measuring noise from passing traffic with a truck blurred in the background.<br>

1/5

Datasheet (PDF)

Unavailable

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Data logger PCE-322A

Measuring range 30 ... 130 dB - Resolution 0.1 dB
USB interface for data transfer
32700 measured values can be stored
Fast and slow time evaluation
Date & time
Robust ABS plastic housing
Large LCD

Technical specifications

Noise levels Low 30 ... 80 dB medium 50 ... >100 dB High 80... 130 dB Auto 30...130 dB Dynamic range: 50 dB Display 4-digit LCD Resolution 0.1 dB Accuracy ±1.4 dB Display update 2 x per second Frequency 31.5 Hz ... 8 kHz Storage capacity 32700 values Storage interval adjustable from 1 ... 59 seconds Frequency evaluation A and C. Time evaluation fast (125 ms) slow (1 sec.) Microphone type Electret condenser FUNCTIONS MIN, MAX, HOLD, ALARM Analogue output. AC/DC Headphones Data interface USB Automatically switches off after 15 minutes of inactivity Operating conditions 0 ... +40 °C,< 90 % RH Storage conditions -10 ... +60 °C, 10 ... 75 % r.F. Operating supply 9 V block battery (for approx. 30 h continuous operation) Mains current Dimensions 280 x 95 x 45 mm Weight approx. 329 g standard IEC 61672-1 (class II)

Product type: SPL data logger

Unit of measurement: SPL

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 95 x 45 x 280 mm

Weight: 329 g

SPL reading range (max.): 130 dB

SPL reading range (min.): 30 dB

SPL reading accuracy: 1.4 dB

Width: 45 mm

Height: 280 mm

Length: 95 mm

Interfaces: USB

Power supply: Battery

Type: PCE-322A

Max. frequency: 8 kHz

Display: LCD

Reading type: SPL

Features: Data logger

dB (A) accuracy: 1.4 dB

Min. frequency: 31.5 Hz

dB (A) SPL reading range (max.): 80 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 80 dB

SPL resolution: 0.1 dB

Documents & Downloads

Datasheet

Datasheet 2452252 PCE Instruments PCE-322A PCE-322A SPL data logger Unit of measurement SPL 30 up to 130 dB

User & Safety Instructions

User & Safety Instructions 2452252 PCE Instruments PCE-322A PCE-322A SPL data logger Unit of measurement SPL 30 up to 130 dB

Description

Class II sound level meter with data logger / USB interface / measuring range 30 ... 130 dB / LC-display / incl. software / memory for up to 32700 measured values of the sound data logger PCE-322A is particularly suitable for measurements of noise nuisance in the area of industrial, health, safety and environmental monitoring. The data logger has a logger function, which was used to store up to 32700 measured values. This makes it ideal for long-term monitoring. The PCE-322A data logger can be connected to the PC with a USB cable. A live measurement is also possible with the sound level meter and the data can be viewed directly and evaluated. The software offers data representations in graphic formats and tables. This data can, for example, be transferred to MS Excel. The sound level meter has an analogueue output and offers further equipment features that are unique in its class.

This text is machine translated.
