PCE Instruments PCE-330-ICA Thermo-hygrometer Blue-black PCE-330-ICA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments thermo-hygrometer PCE-330-ICA
- High precision
- Communication with a computer possible
- Compact dimensions
- Dew point temperature measurement
- Large memory (16000 values)
- Analysis software included
- Fast measurement
- Display with background lighting.
- Use
- Monitoring laboratories
- Climate measurements at the workplace
- Measurements in construction biology
- Damage assessment for building reports
- Monitoring the humidity in the living room
- Monitoring coffee, tobacco & paper storage

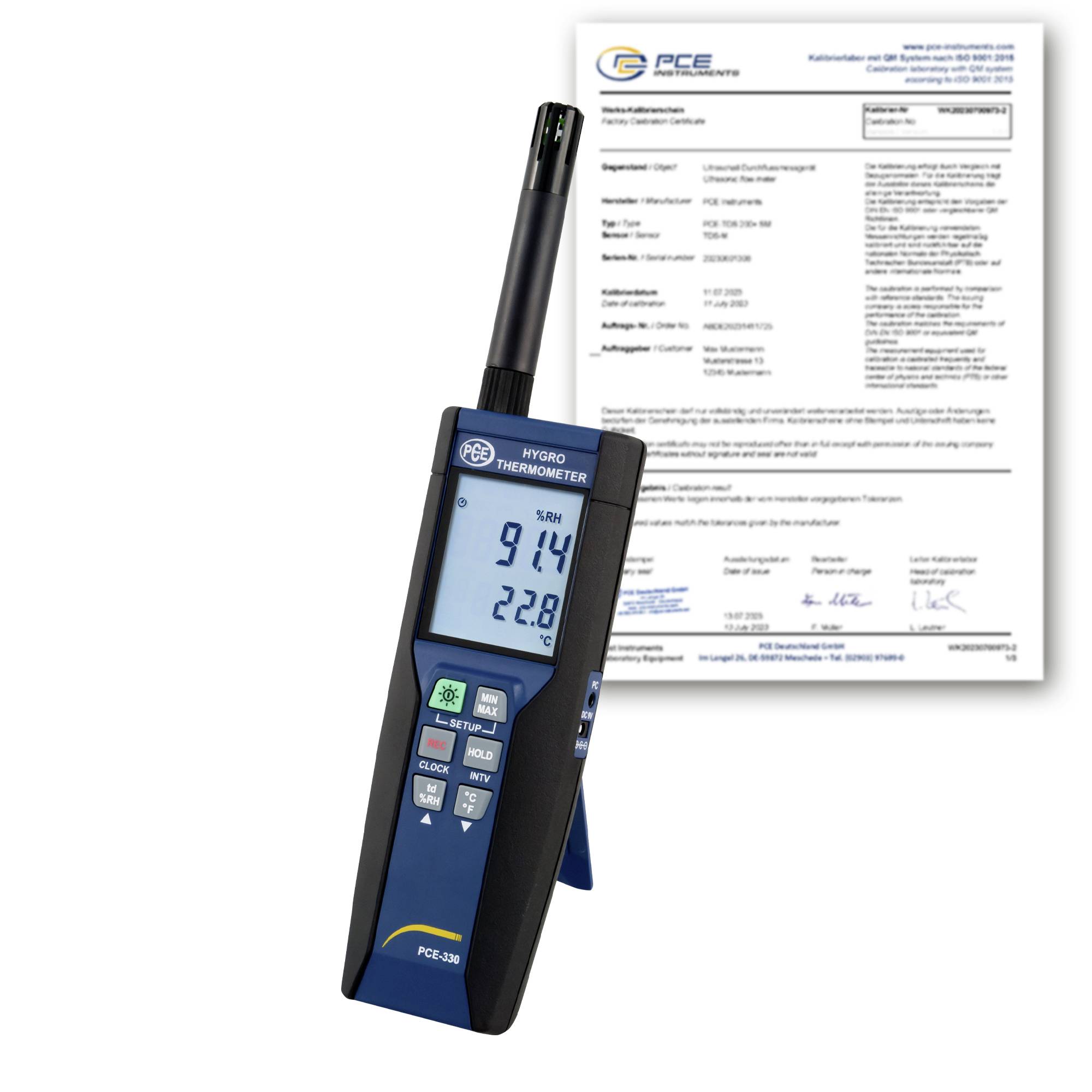

- Incl. ISO calibration certificate
Technical specifications
- Dew point
- Measuring range -20 ... +60 °C
- Resolution 0.1 °C
- Accuracy: ±0.8°C
- Humidity relative
- Measuring range 0 ... 9 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±4 % r.h.
- Humidity relative
- Measuring range 10 ... 90 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±2.0 % r.h.
- Humidity relative
- Measuring range 91 ... 100 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±4 % r.h.
- Temperature
- Measuring range -20 ... +60 °C
- Resolution 0.1 °C
- Accuracy: ±0.8 °C
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD

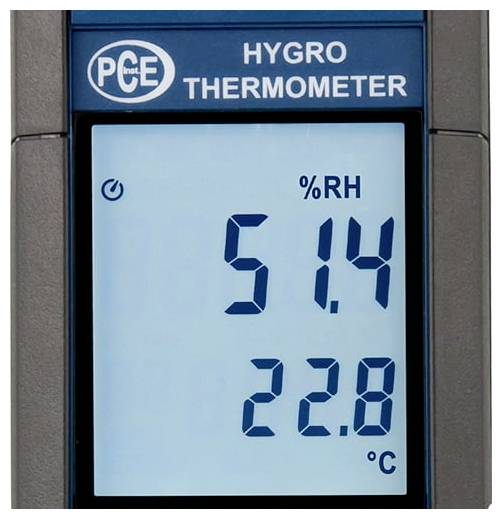

- Display type LCD with lighting
- Display size 2.5 inches
- Measurement rate 2 x per second
- Storage medium Internal memory
- Memory capacity: 16000 values
- Sensor NTC
- Response time additional information humidity: 60 s,Temperature: 10 s
- Operating time 80 h
- Automatically switches off approx. 30 min.
- Further dimensions of sensor 15 x 82 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Voltage supply: 9 V DC
- Rechargeable battery/battery 1 x 9 V block battery , zinc-carbon
- Capacity 400 mAh
- Operating conditions 0 ... 40 °C , 10 ... 90 % r.F.
- Storage conditions -10 ... 60 °C , 10 ... 75 % r.F.
- Dimensions ( L x W x H ) 185 x 65 x 36 mm
- Weight 285 g
- Reading range - indoor temperature
-20 - +60 °C
- Product type
Thermo-hygrometer
- Reading range - outdoor temperature
-20 - +60 °C
- Indoor humidity
0 to 100 % r.h.) RH
- Display
Digital
- Case colour
Blue-black
- Sample rate
0.5 s
- Max. number of sensors
1 pc(s)
- Station power supply
9 - 12 V
- Content
1 pc(s)
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812414 PCE Instruments PCE-330-ICA Thermo-hygrometer Blue-black PCE-330-ICA
User & Safety Instructions
User & Safety Instructions 3812414 PCE Instruments PCE-330-ICA Thermo-hygrometer Blue-black PCE-330-ICA
Description
Our precise thermo-hygrometer is suitable for a quick measurement of room temperature and air humidity. In addition, our precise thermo-hygrometer can determine the dew point (dew point temperature). The accurate thermo-hygrometer can read off the measured values on the clear display.

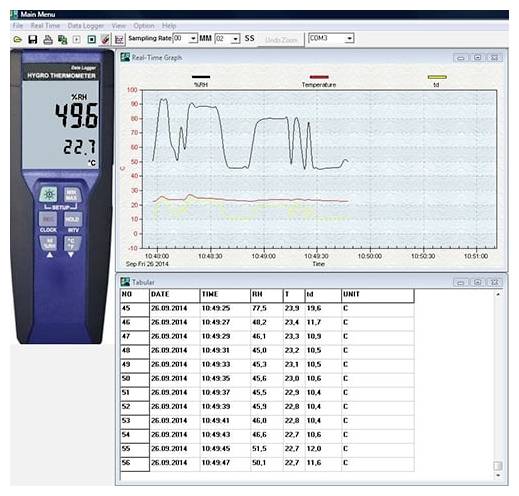

Our precise thermo-hygrometer has a large memory (16000 values) for securing the measured values. These data can be transferred from the precise thermo-hygrometer to the computer. This is done using the analysis software supplied.
A precise thermo-hygrometer is suitable for long-term measurement. This way, you can prevent mold formation in the transport and storage area of food. The measuring instrument is also useful in building services and building services, for example in detecting condensation on walls. Due to its compact dimensions, the precise thermo-hygrometer is especially suitable for the measurement on site. Apart from the recording mode, our precise thermo-hygrometer also possesses Min / Max and Hold mode.
This text is machine translated.
Our precise thermo-hygrometer has a large memory (16000 values) for securing the measured values. These data can be transferred from the precise thermo-hygrometer to the computer. This is done using the analysis software supplied.
A precise thermo-hygrometer is suitable for long-term measurement. This way, you can prevent mold formation in the transport and storage area of food. The measuring instrument is also useful in building services and building services, for example in detecting condensation on walls. Due to its compact dimensions, the precise thermo-hygrometer is especially suitable for the measurement on site. Apart from the recording mode, our precise thermo-hygrometer also possesses Min / Max and Hold mode.
This text is machine translated.

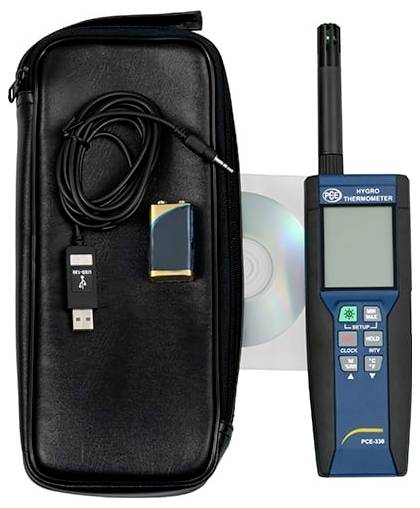

Scope of delivery
- 1 x Thermo-hygrometer PCE-330-ICA
- 1x USB cable
- 1 x CD with logger software
- 1 x 9 V battery
- 1 x appliance bag
- 1x user manual
- 1 x ISO calibration certificate
