Buy PCE Instruments PCE-330 Thermometer 0 - 60 °C Data logger

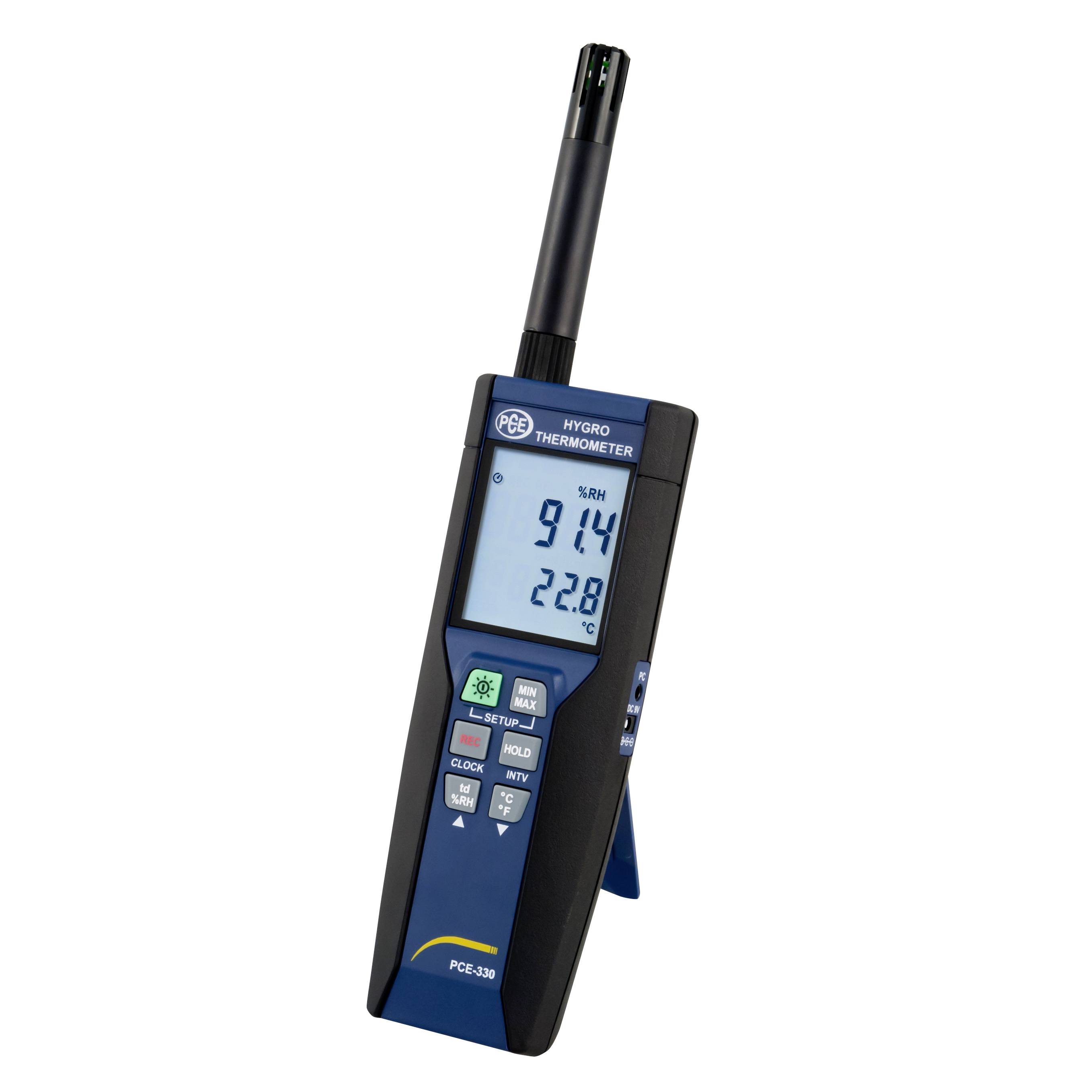

Handheld digital hygrometer thermometer showing 91.4% relative humidity and 22.8°C on its LCD screen.

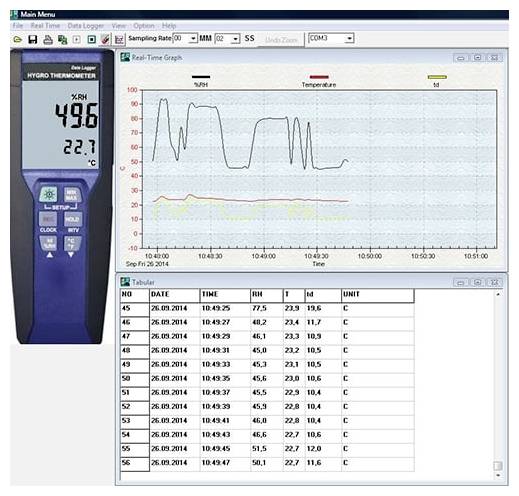

Data logger software shows a hygrometer/thermometer at 49.6% RH and 22.7°C, with a real-time graph and readings table below.

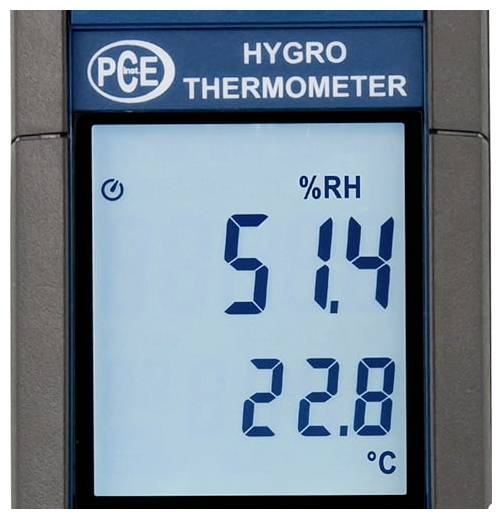

Digital hygrometer thermometer display showing 51.4% RH and 22.8°C.

Warehouse worker in blue coat inspecting a handheld device beside stacked cardboard boxes on storage shelves.

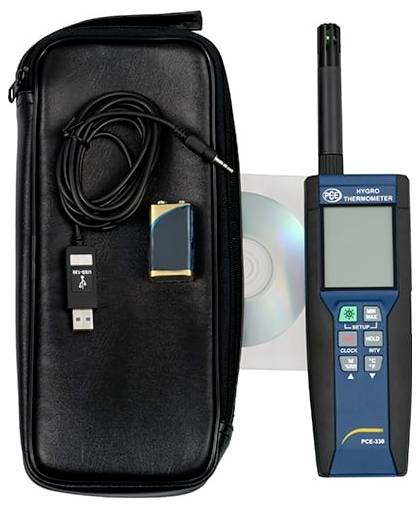

Portable hygrometer thermometer kit with carrying case, sensor probe, USB adapter, battery, and CD beside a handheld digital meter.

A man in workwear is holding a handheld scanner and scanning a barcode on a crate in a warehouse.

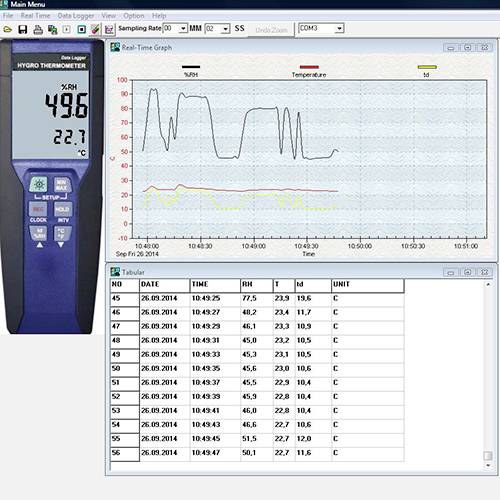

Hybrid Thermometer Display with Real-Time Graphics and Table. Graphic shows temperature curves over time. Table lists date, time, and temperature in Celsius.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital thermometer PCE-330

0 - 60 °C
Emission level -

Technical specifications

Relative humidity Measurement range 0 ... 100 % r.F. Accuracy <10% r.F., >90% r.h. ± 4% R.F.. 10% r.F... 90% r.F.: ±2.0% r.h. Resolution 0.1 % r.h. Temperature / dew point Measurement range -20 °C ... +60 °C Resolution: 0.1°C Accuracy -20 °C ... +60 °C ± 0.8 °C Sensor type capacity polymer film sensor / NTC Response time humidity 60 sec. Response time temperature 10 sec. Sampling rate 2 times per second Memory 16,000 values Software included Display LC-Display Operating temperature 0 ... 40 °C). Operating humidity 10 ... 90 % r.F. Storage temperature -10 ... +60 °C Storage humidity 10 ... 75 % r.F. Dimensions measuring device 185 x 65 x 36 mm Sensor dimensions 15 x 82 mm Weight approx. 285 g 9 V battery Battery life approx. 80 hours AC adapter 9 V DC / 20 mA

Product type: Thermometer

Max. temperature: 60 °C

Basic accuracy: 2 %

Accuracy ± °C: 0.8 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 185 x 65 x 36 mm

Memory units: 16000

Resolution (temperature): 0.1 °C

Features: Data logger

Weight: 285 g

Width: 65 mm

Height: 36 mm

Length: 185 mm

Power supply: 9 V battery (1x)

Min. temperature: 0 °C

Documents & Downloads

Datasheet

Datasheet 2452254 PCE Instruments PCE-330 Thermometer 0 - 60 °C Data logger

User & Safety Instructions

User & Safety Instructions 2452254 PCE Instruments PCE-330 Thermometer 0 - 60 °C Data logger

Description

Precise digital thermometer PCE-330 with integrated data storage for recording room humidity, room temperature and dew point with the help of an external sensor Our precise hygro thermometer is suitable for the quick measurement of room temperature and air humidity. In addition, our precise hygro thermometer is able to determine the dew point (dew point temperature). With the help of the clear display, the measured values can be read on the precise hygro thermometer. Our precise hygro thermometer has a large memory (16,000 values) for securing the measured values. This data can be transferred from the precise hygro thermometer to the computer. This is done using the supplied analysis software. A precise hygro thermometer is very suitable for long-term measurement. This allows you to prevent mold formation, e.g. in the transport and storage area of foodstuffs. The measuring instrument is also useful in the construction sector and in building technology, e.g. in the detection of condensation on walls. Due to its compact dimensions, the precise hygro thermometer is particularly suitable for on-site measurements. In addition to the recording mode, our precise hygro thermometer also has the Min / Max and the Hold mode.

This text is machine translated.
